Mayer from Burgberg (DE) is owning this FAUN ATF 80-4, an 80-tonne crane on a 4-axle carrier.

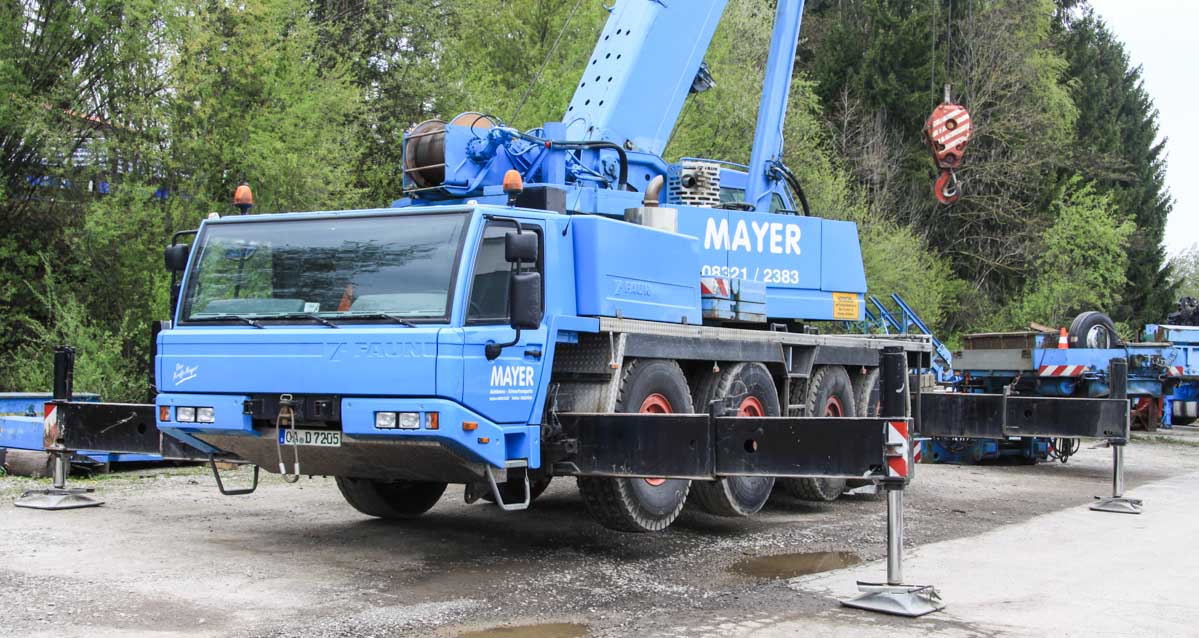

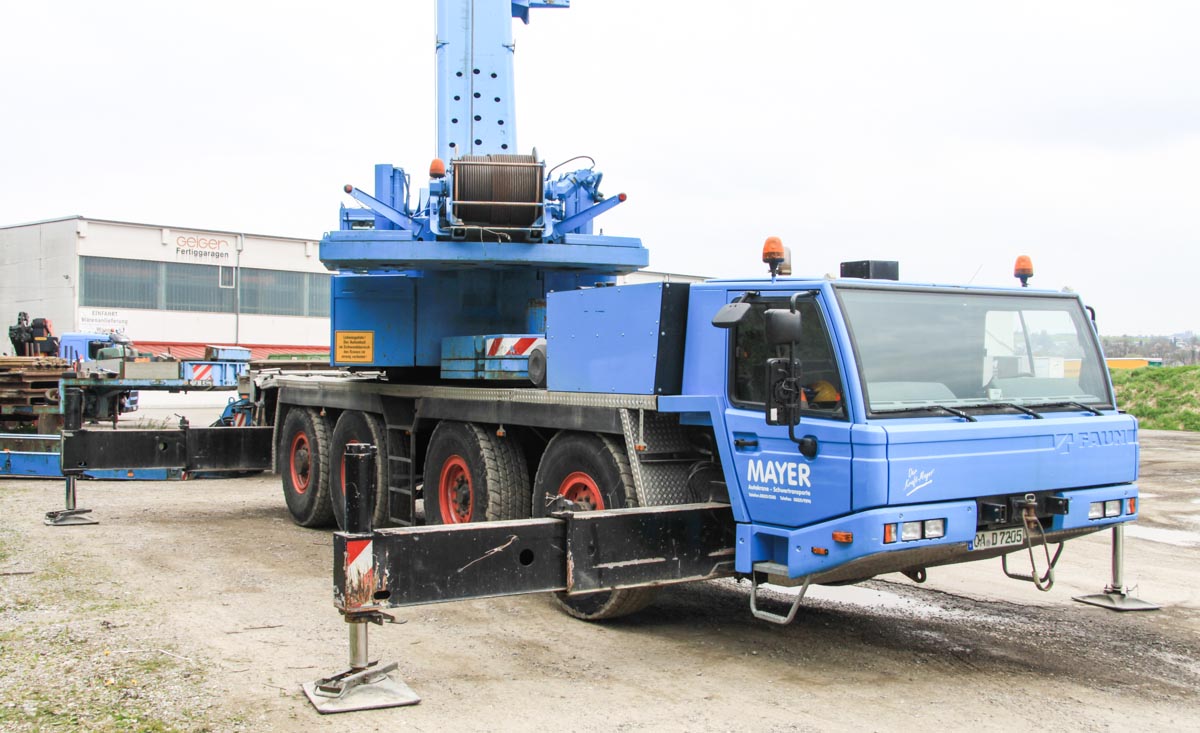

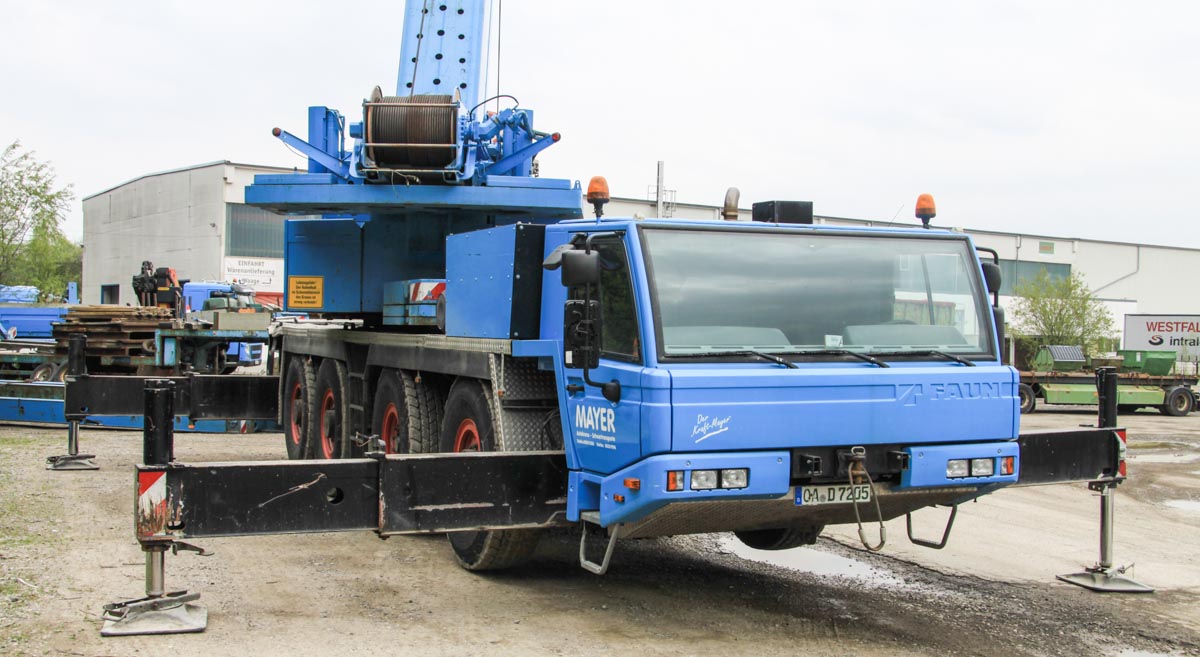

The outrigger base of the crane measures 8.6 x 7.2 meters, or half 8.6 x 5 meters.

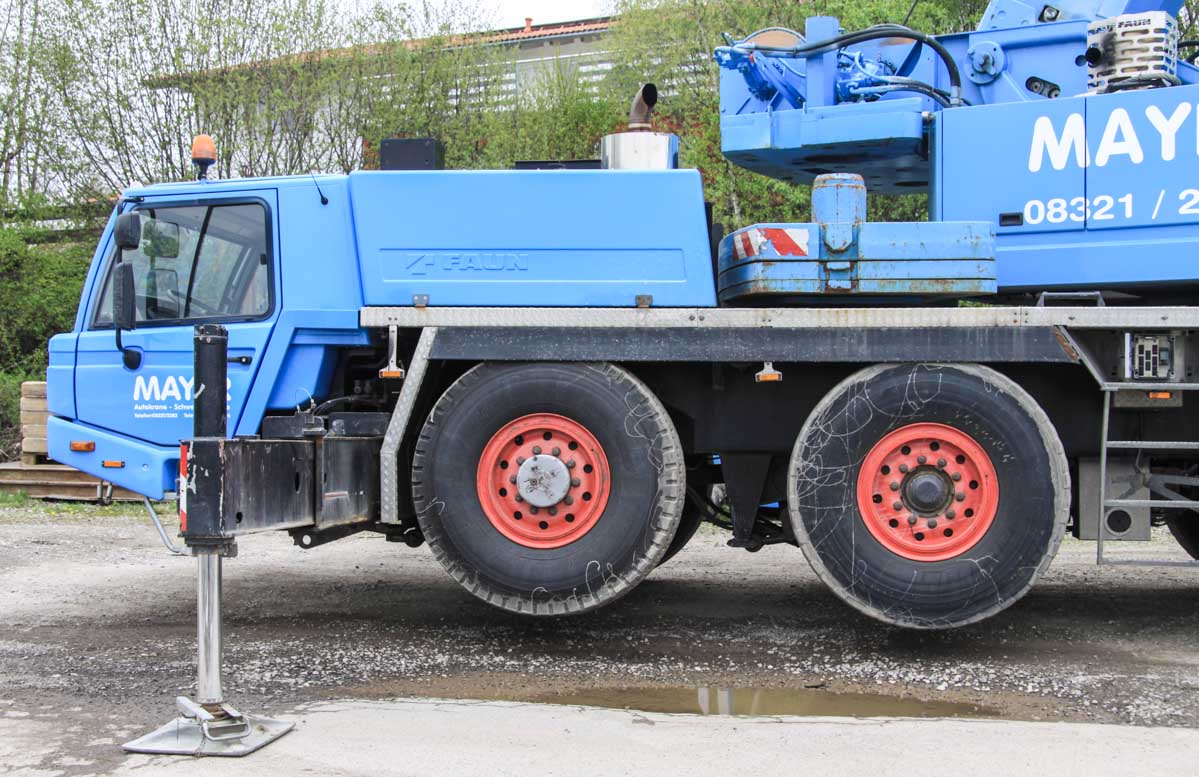

The undercarriage is powered by a Mercedes-Benz OM 501 LA, a 6-ylinder diesel engine with a power of 315 kW (428 hp). The engine powers the first and last two axles through a ZF-AS-tronic 12 AS 2302 drive. All axles are steerable.

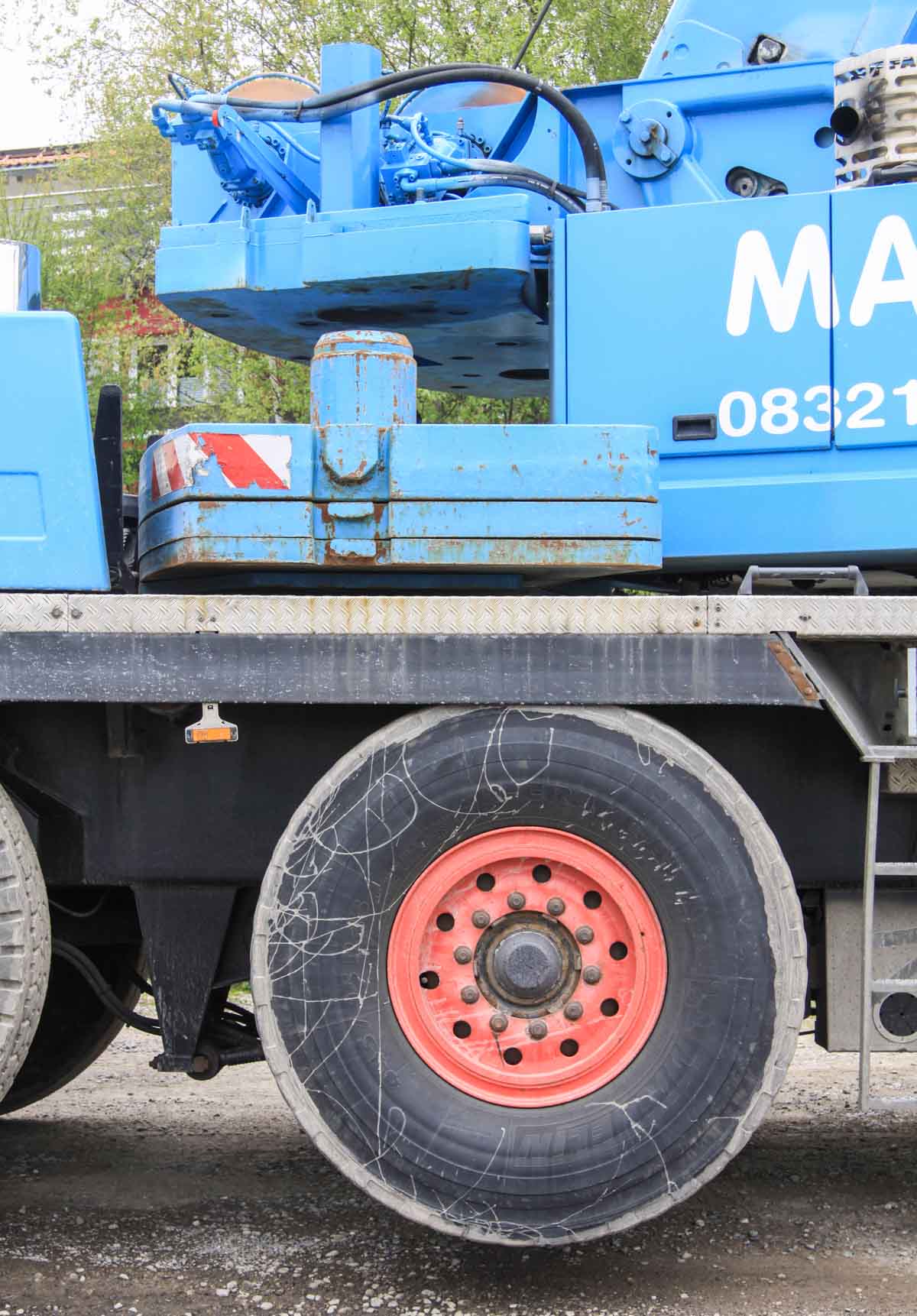

The crane has in total 18 tonnes of counterweight, that has a 3.6 meter tailswing. This crane is fitted with a second winch.

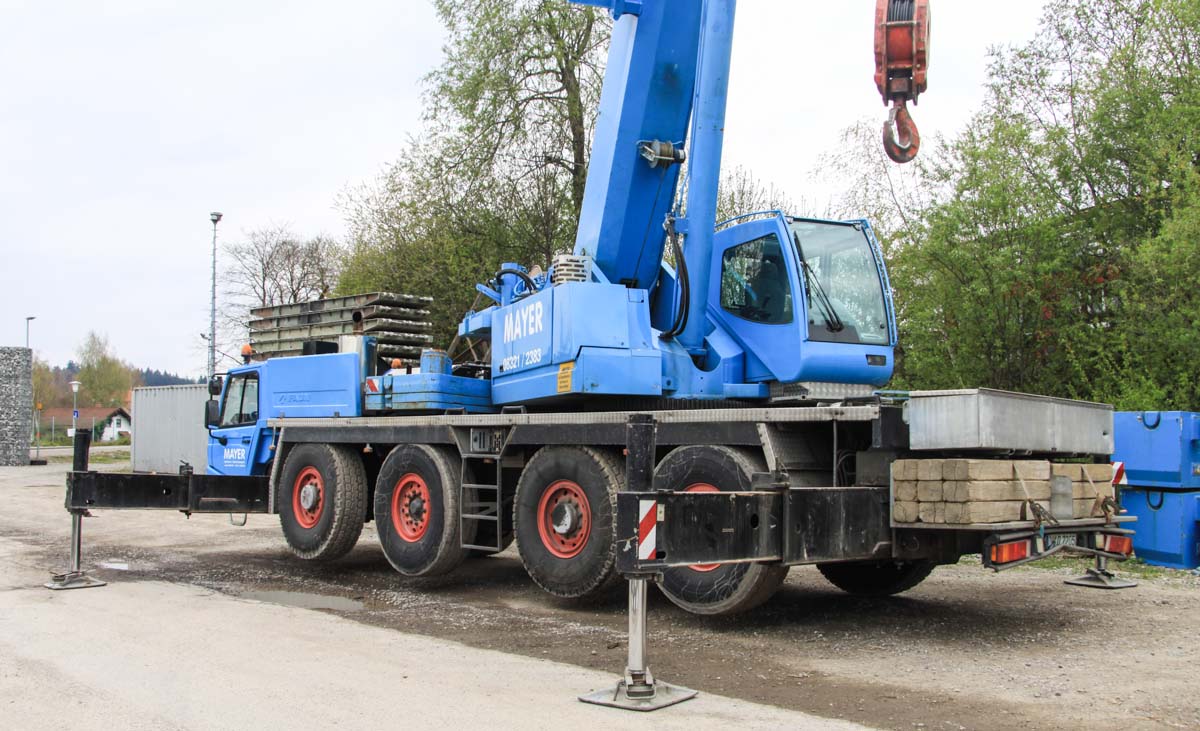

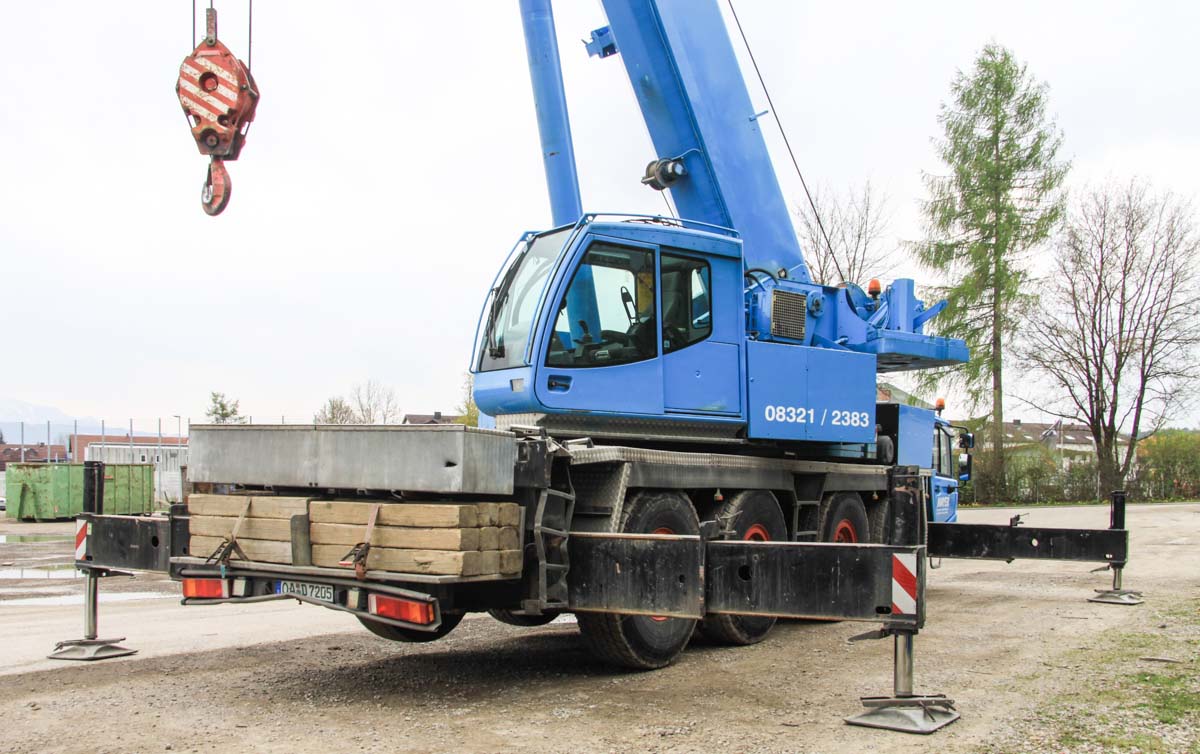

At the back of the crane is a large frame for spreader wood attached. On top is a box for lifting gear installed.

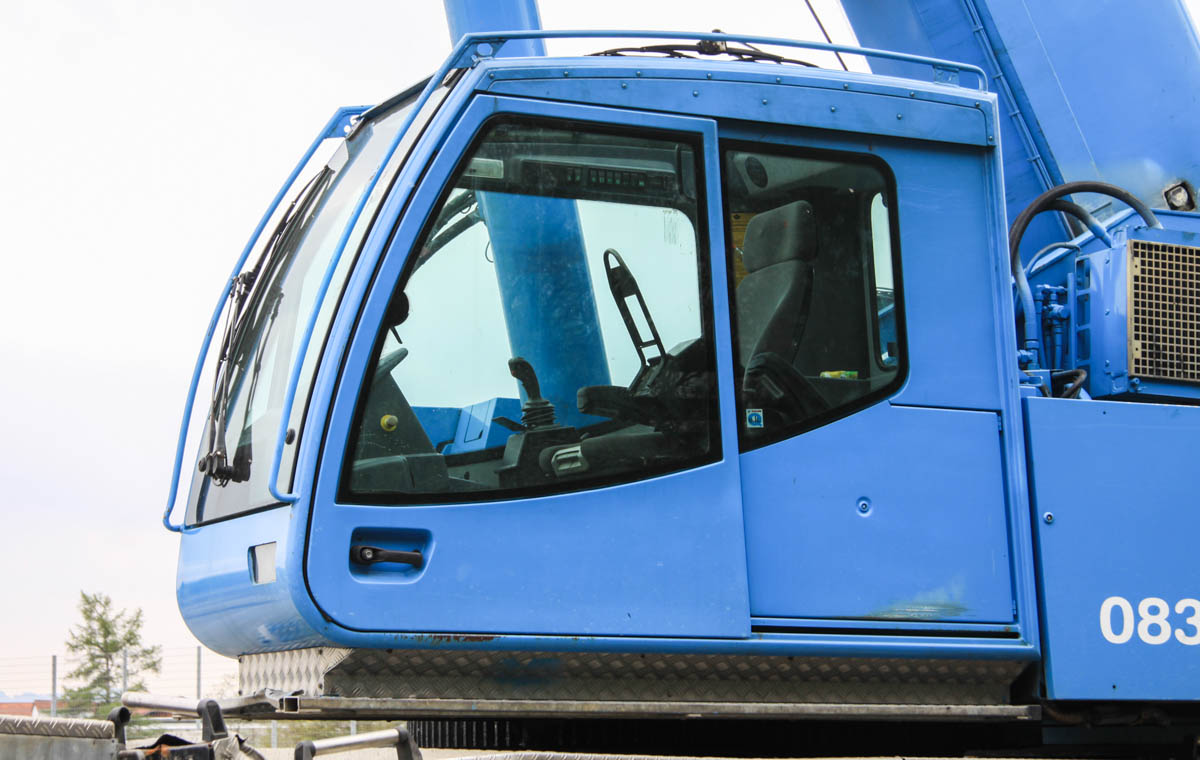

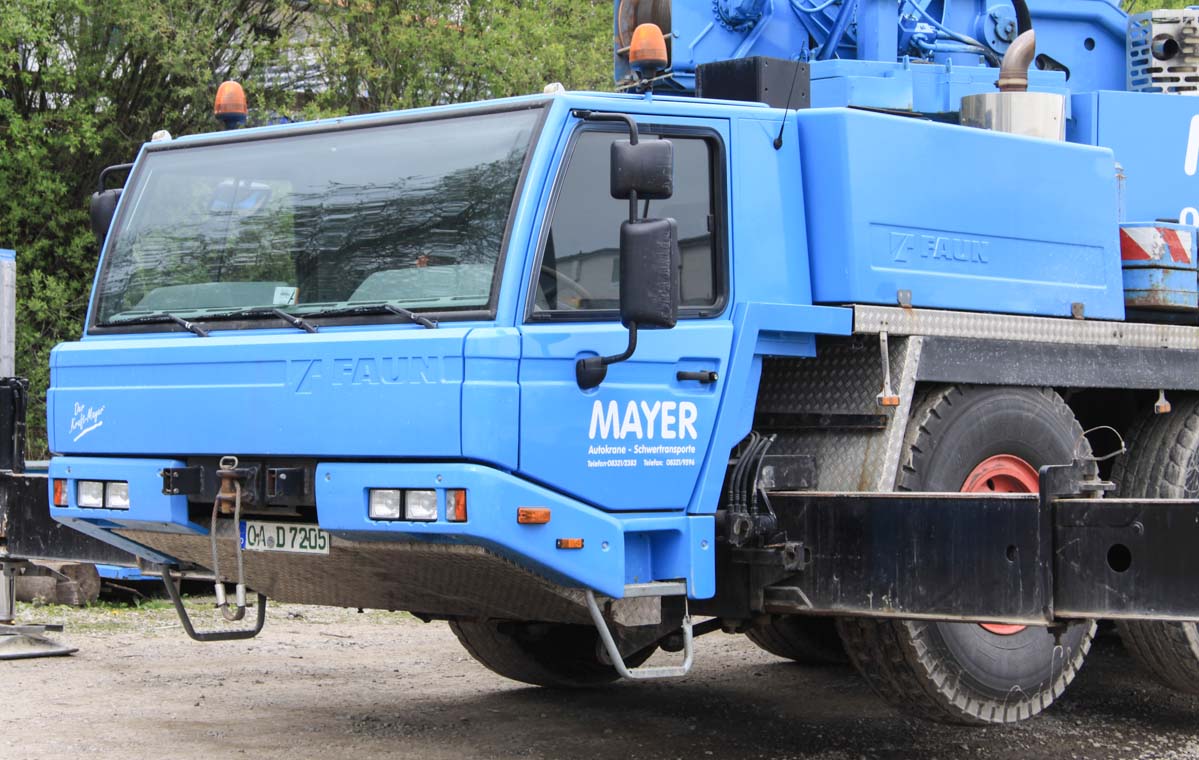

As usual with FAUN isn't the upper cabin tiltable, but is the interior against the cabin rotatable.

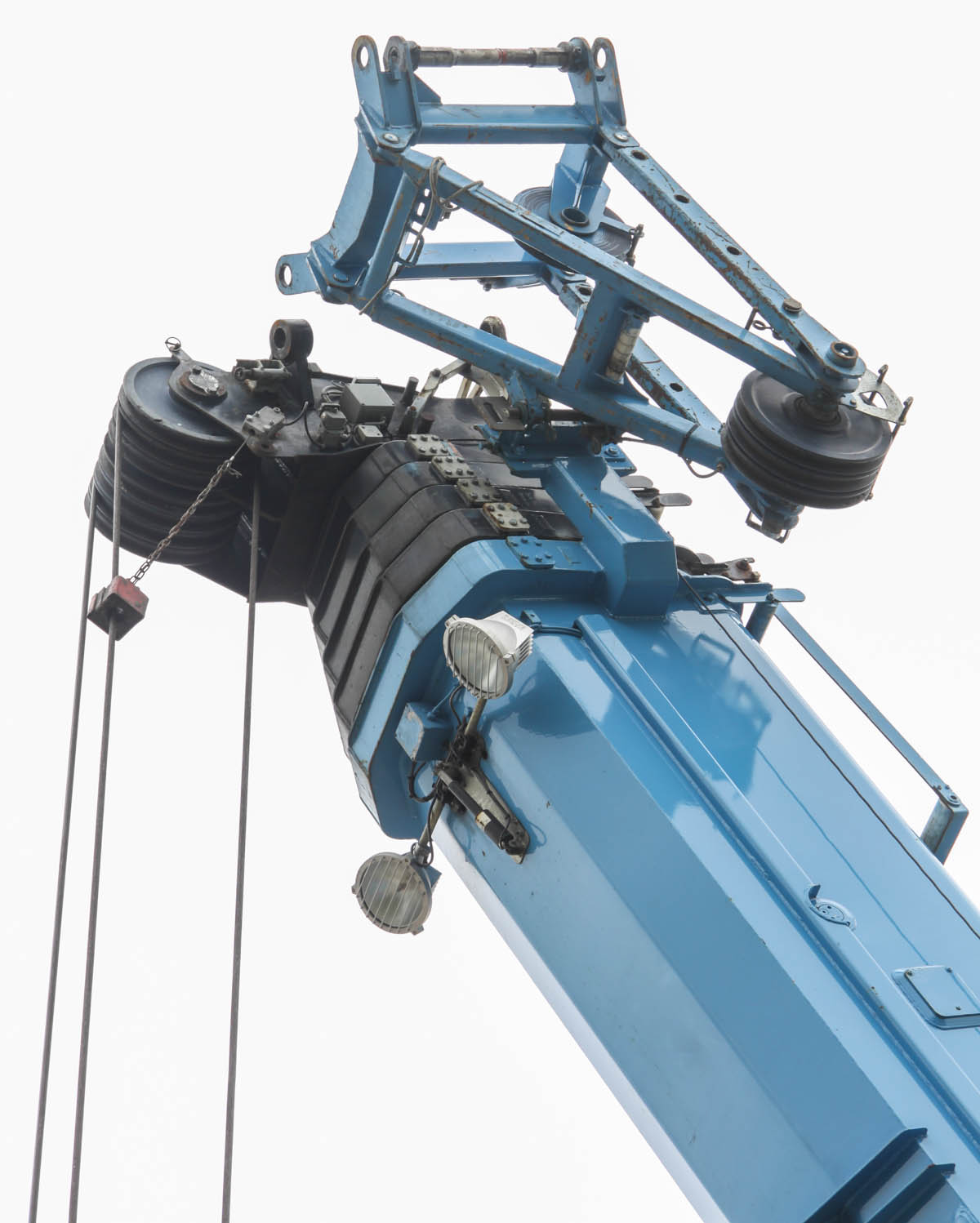

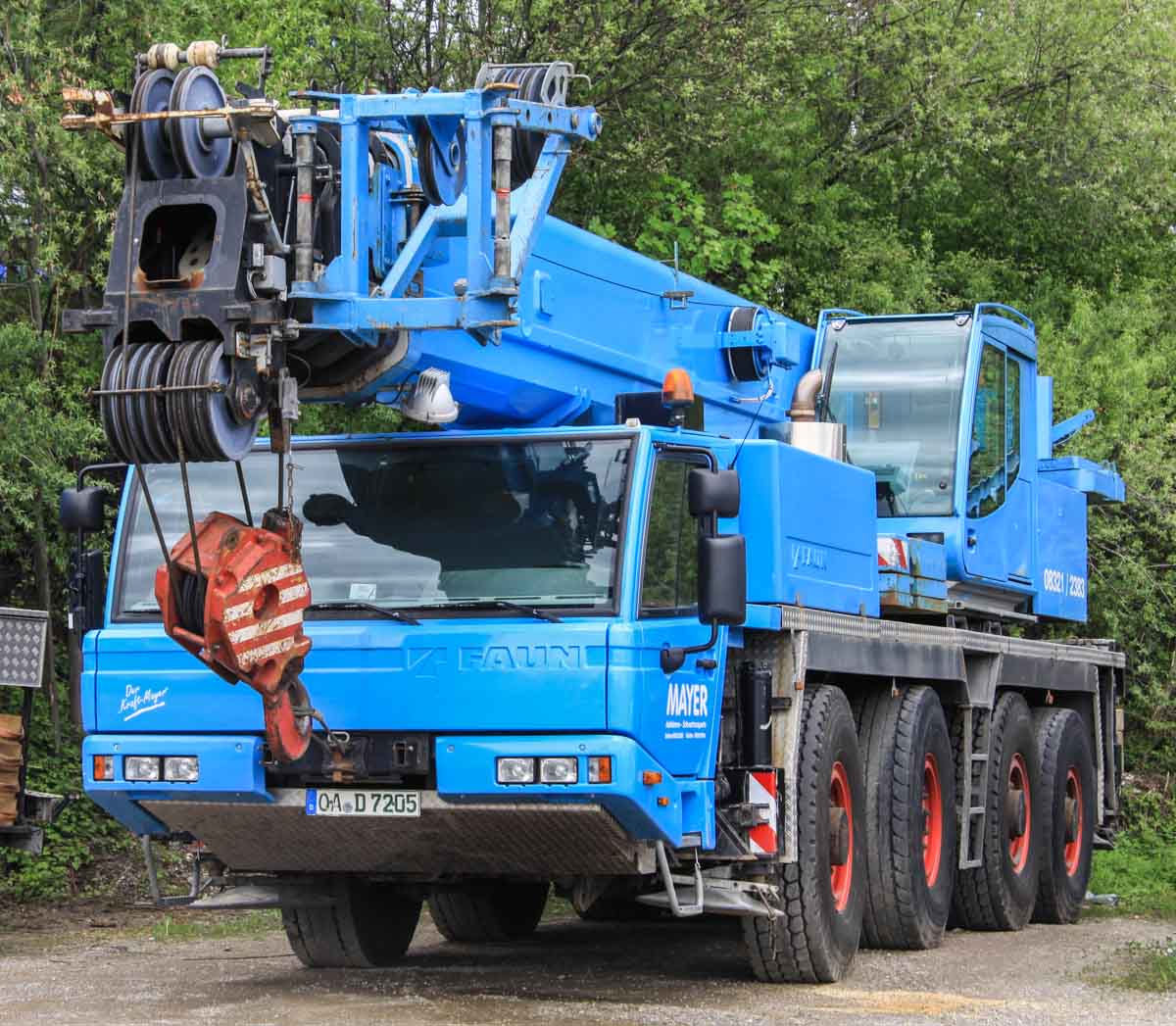

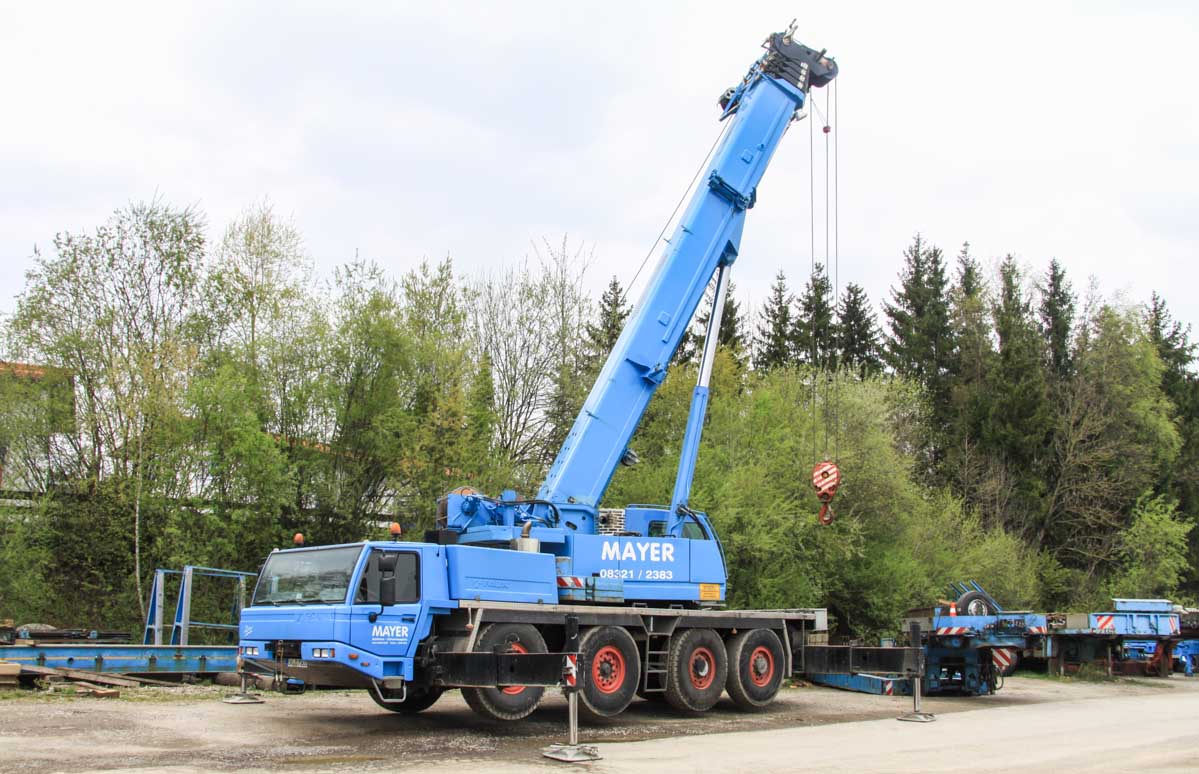

The 6-part main boom has a minimum length of 10.8 meters and a maximum length of 48.5 meters. Next to the main boom is hanging a short assembly jib, very useful to use with two hooks and tilt loads.

In transport mode is the crane 12.7 meters long, 2.75 meters wide and 3.73 meters high. The transport mass is about 48 tonnes.
