FAUN ATF 30-2L - Schmidbauer

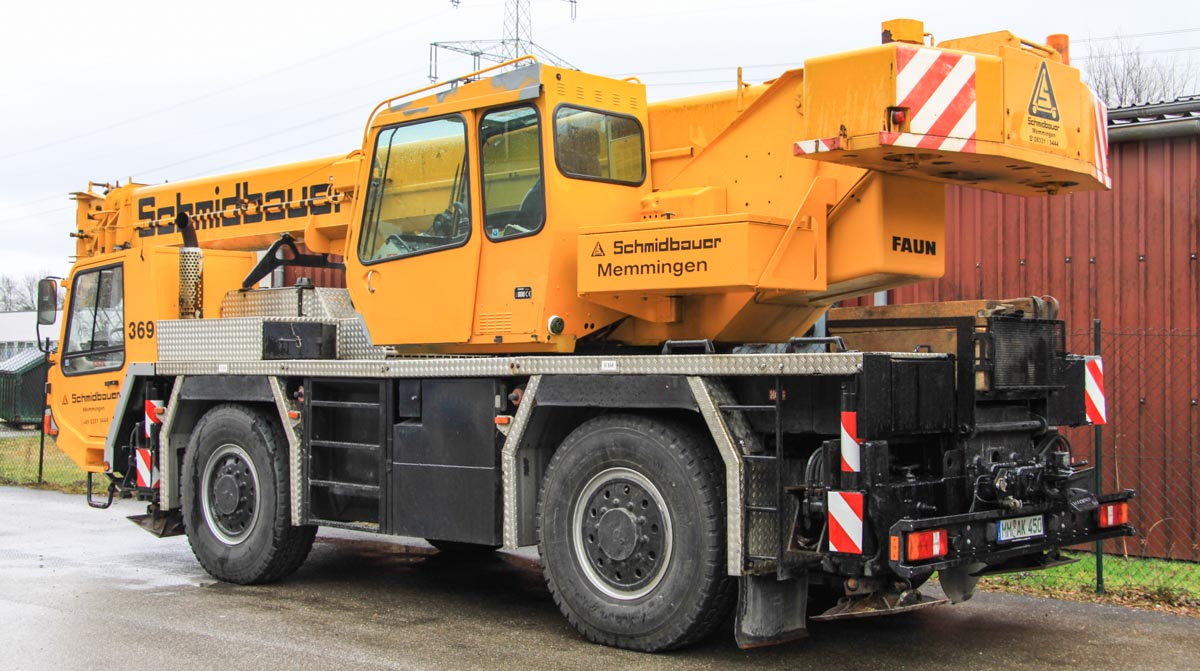

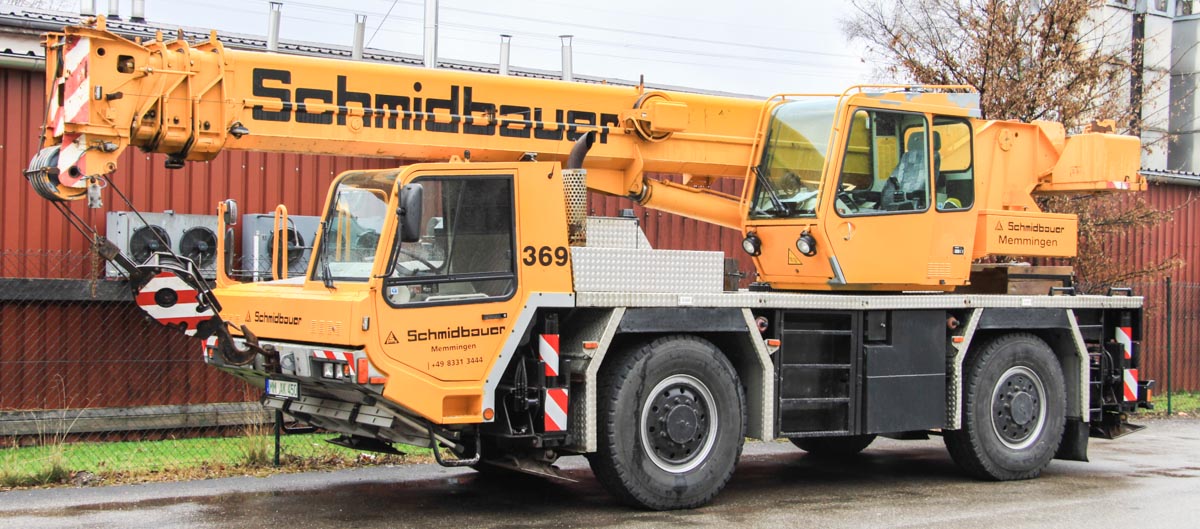

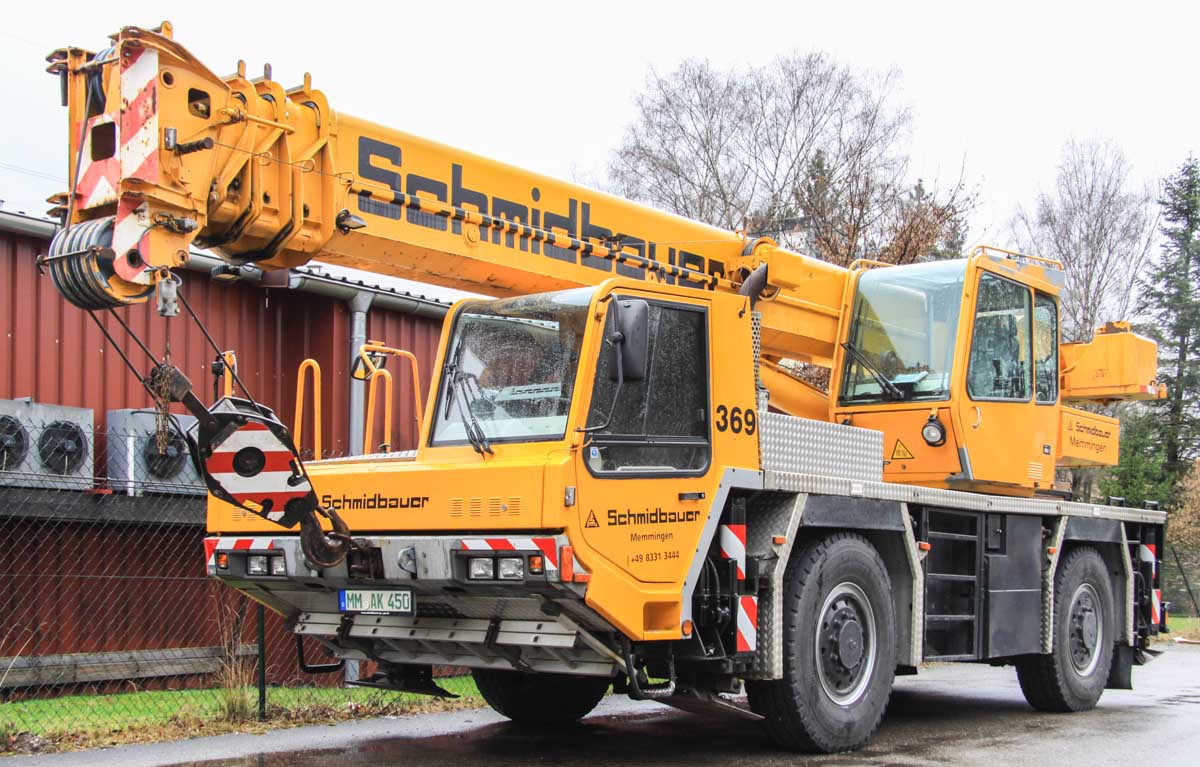

This FAUN ATF 30-2L of Schmidbauer from Memmingen (DE) has year of manufacture 2000, it is a 30-tonne crane on a 2-axle crane carrier.

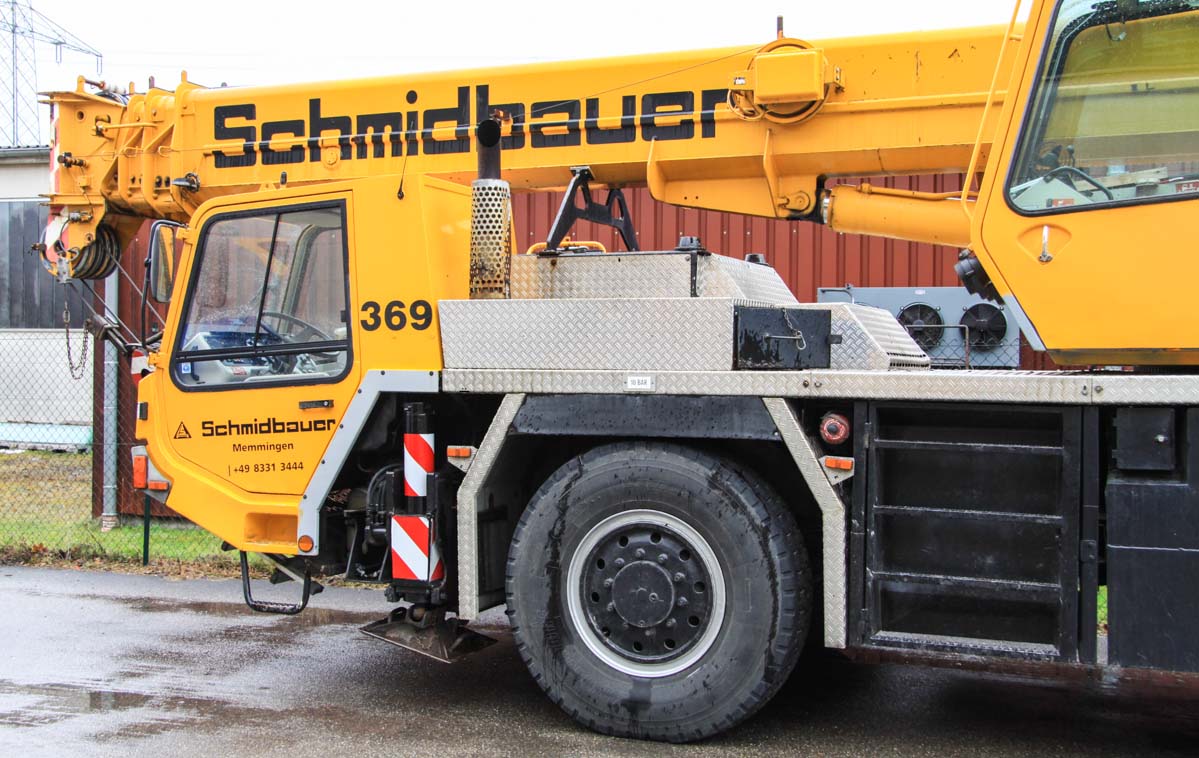

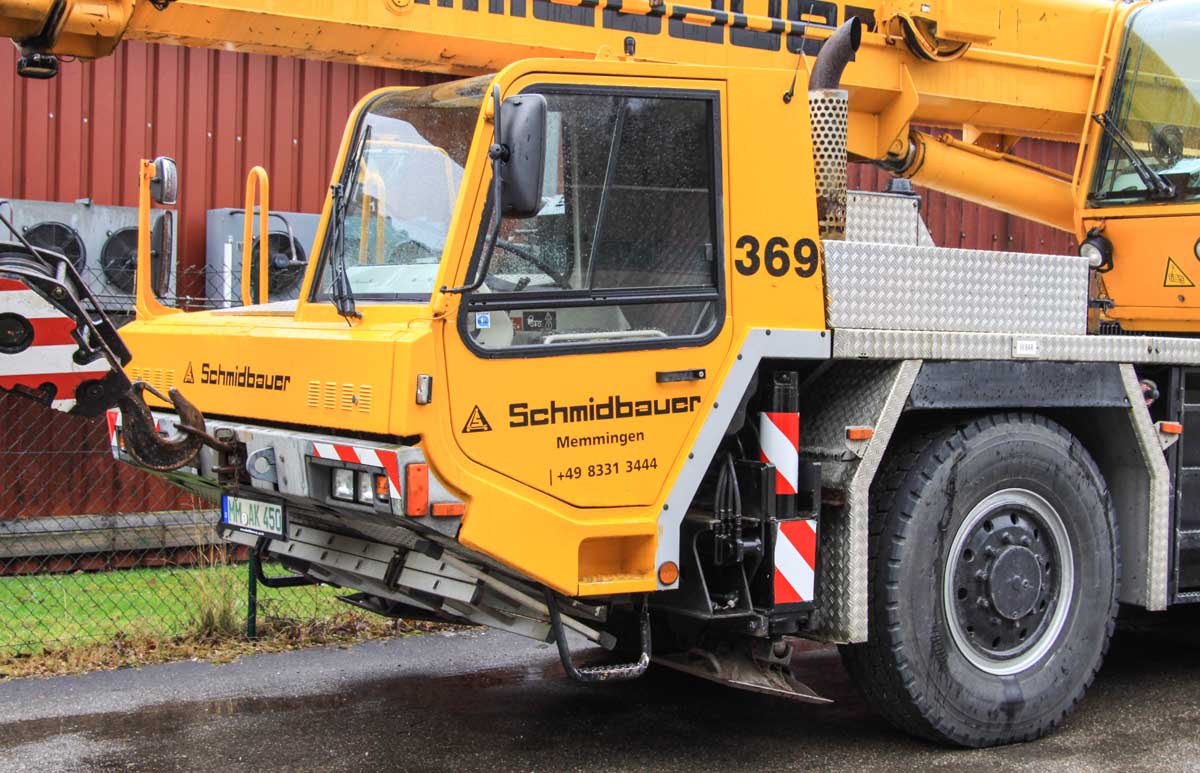

The crane is powered by a Mercedes-Benz OM 906 LA, a 6-cylinder diesel engine with a powere of 205 kW (279 hp). The crane has a 4x4-drive and both axles are steerable. A double cabine was only available as an option.

The outrigger base measures 6.35 x 6.28 meters, or half 6.35 x 4.7 meters.

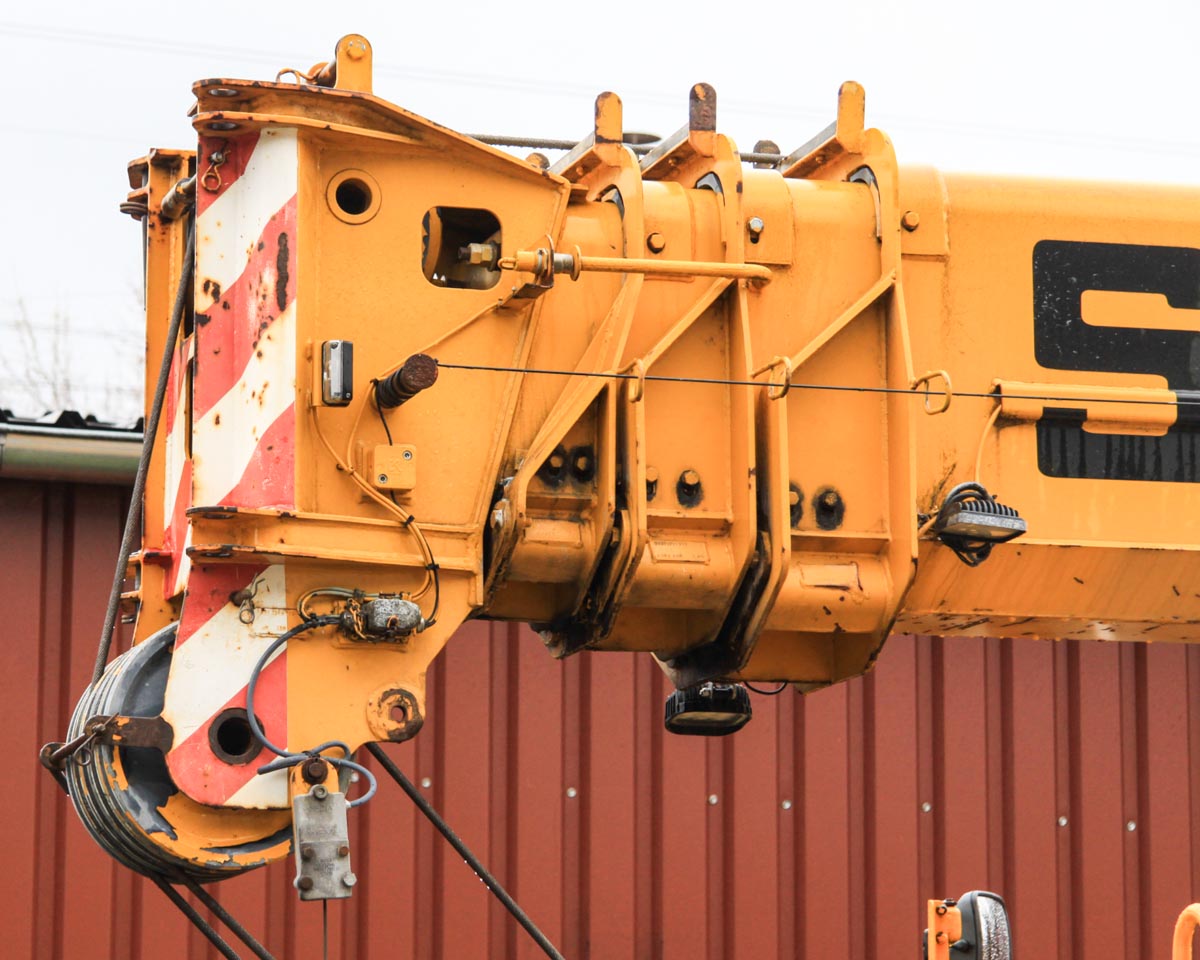

The main boom has a 8.6 meter base length and extends three times up to a full length of 28.5 meters.

Packed is the crane 9.975 meters long, 2.55 meters wide and 3.32 meters high. The transport mass is 24 tonnes including 2.6 tonnes of counterweight.

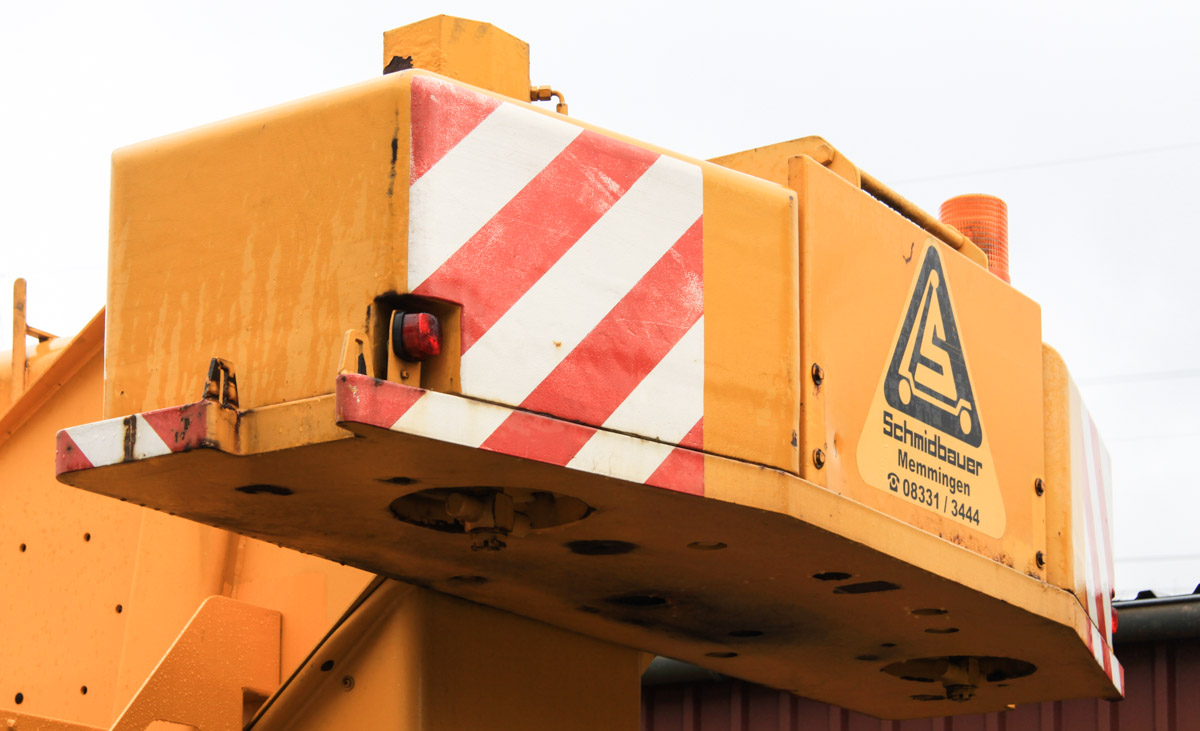

Attached to the superstructure remains 2.6 tonnes of counterweight, this is all counterweight taken with the crane. Two additional slabs make the 5.6 tonnes complete, these slabs can be taken on the undercarriage. The counterweight has a 3.1 meter tailswing.

A very sharp and compact crane!
