Franna AT-12 - RRS

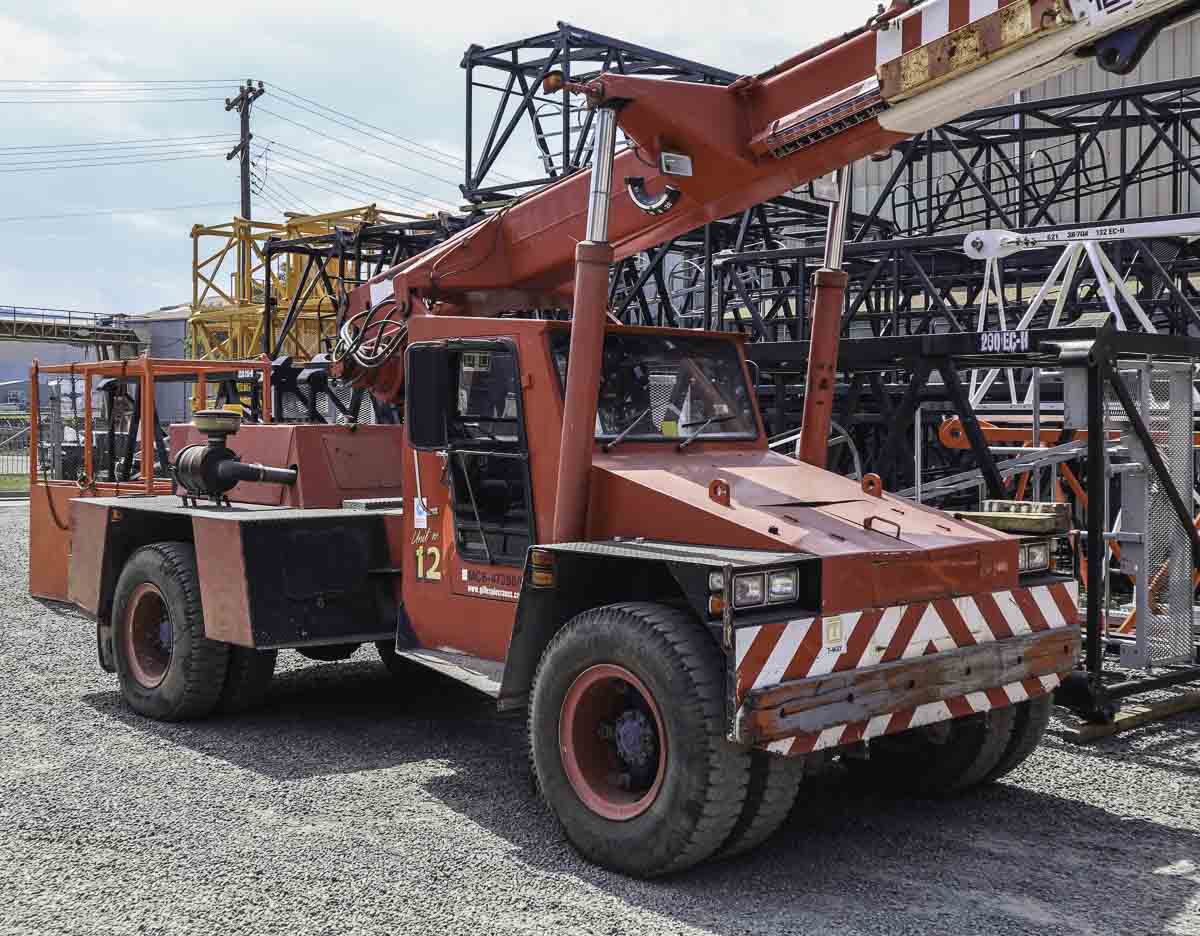

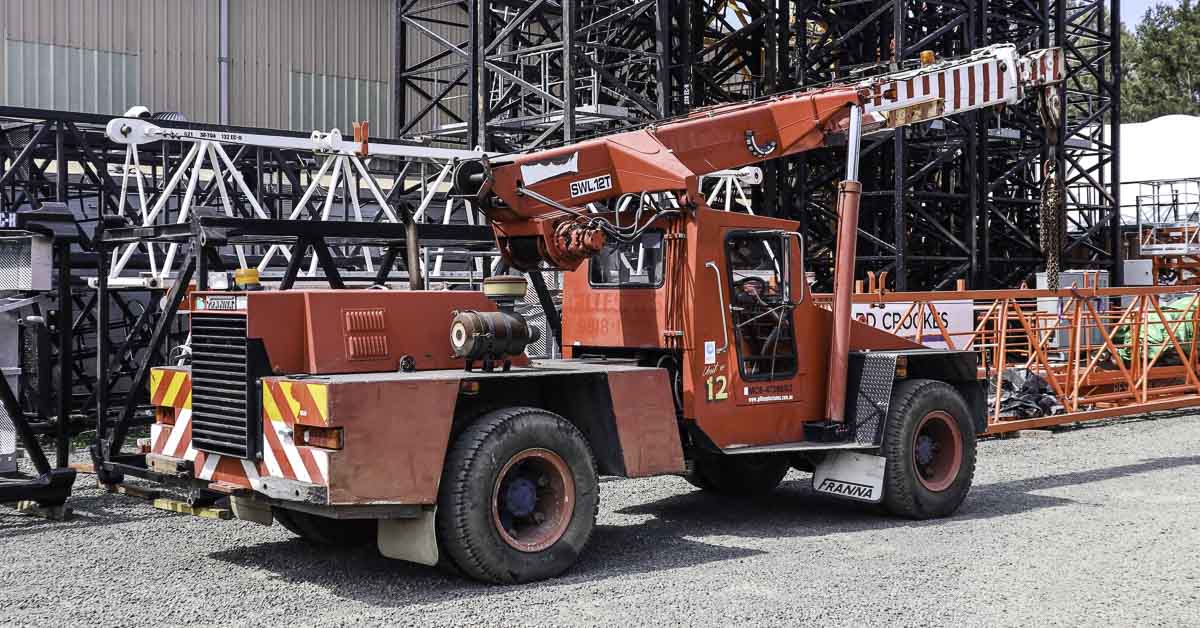

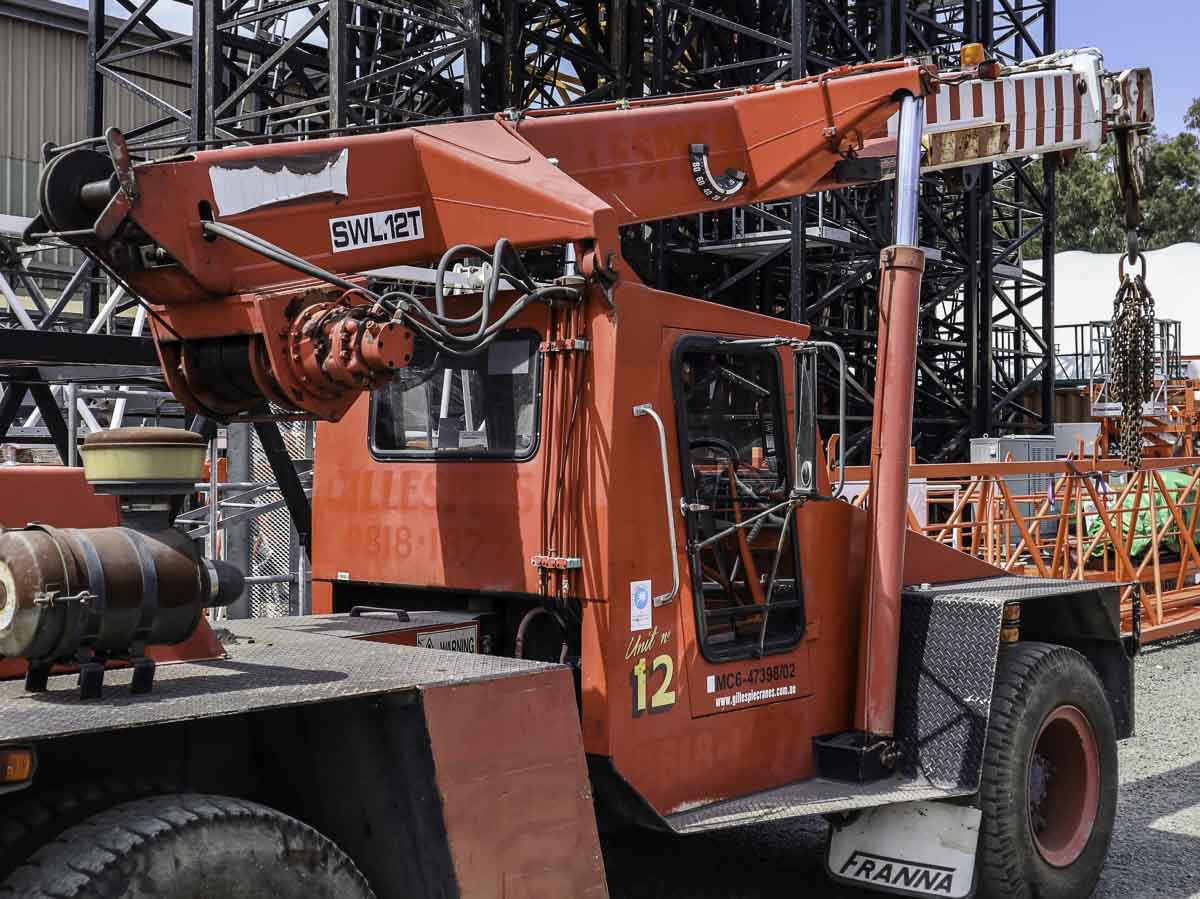

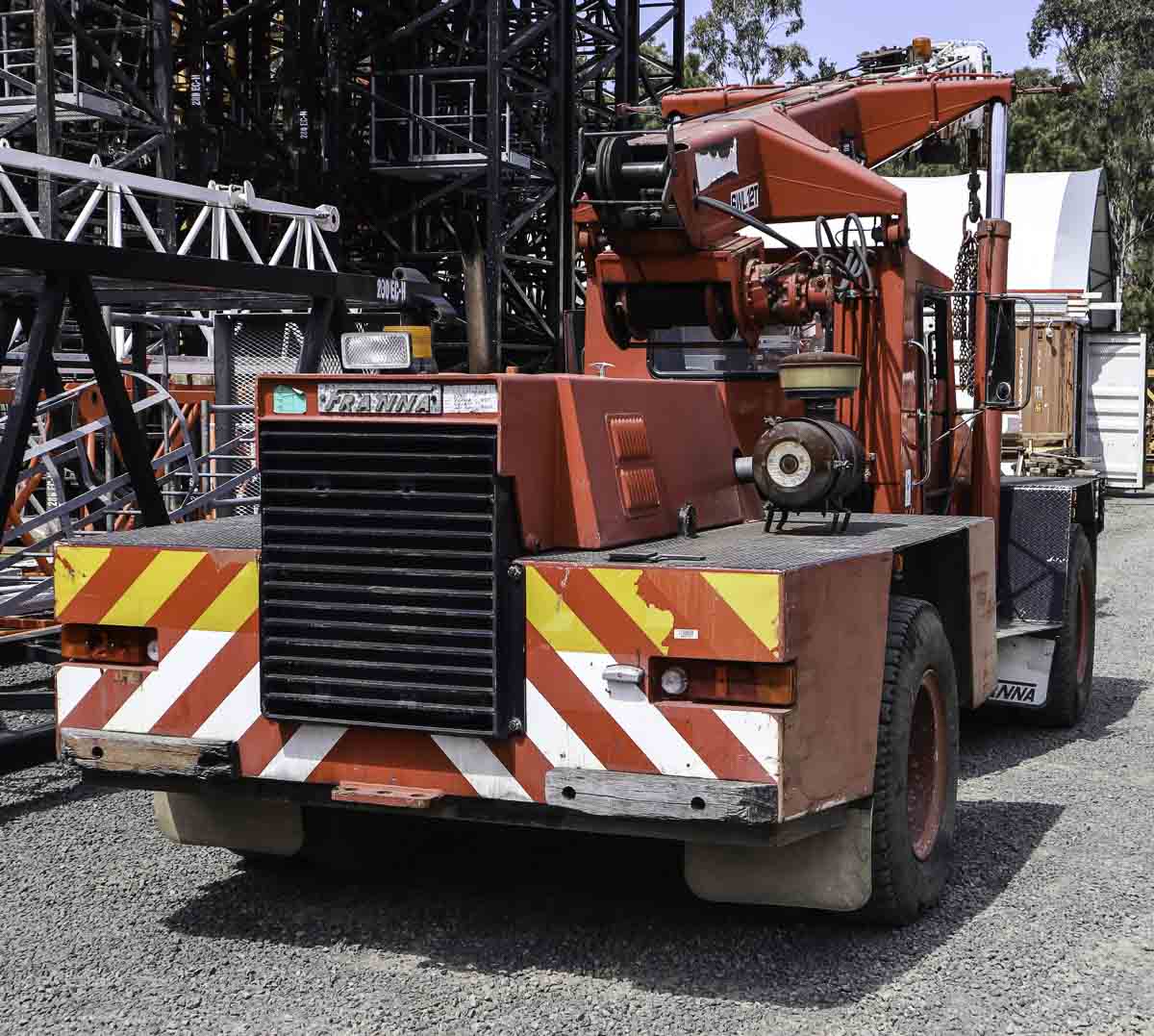

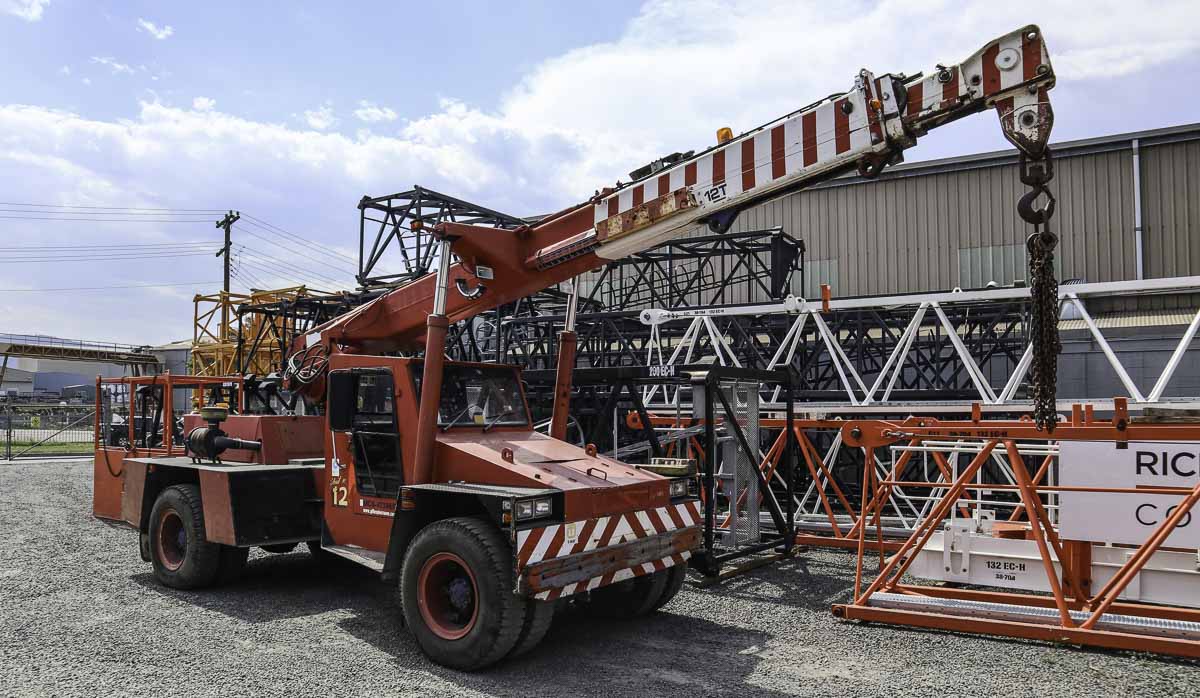

This Franna AT-12 is used by RRS from Unanderra (AU) in their yard for various lifting jobs. RRS is specialized in the rental and installation of tower cranes. It is a 12-tonne pick- and carry crane that is able to drive with load.
The 2-axle crane is powered by a Hino 6-cylinder diesel engine with a power of 163 hp. Both axles are rigid, the crane articulated in the middle 40 degrees to the left or right side. The crane has a total mass of 14.7 tonnes.
The main boom has a 5.66 meter base length and extends two times to a maximum length of 13.66 meters. Optionally is the main boom extendable to a maximum length of 17.56 meters by a jib.
In transit is the crane 8.89 meters long, 2.4 meters wide and 2.83 meters tall. The crane can reach a driving speed of 80 km/h on the road.

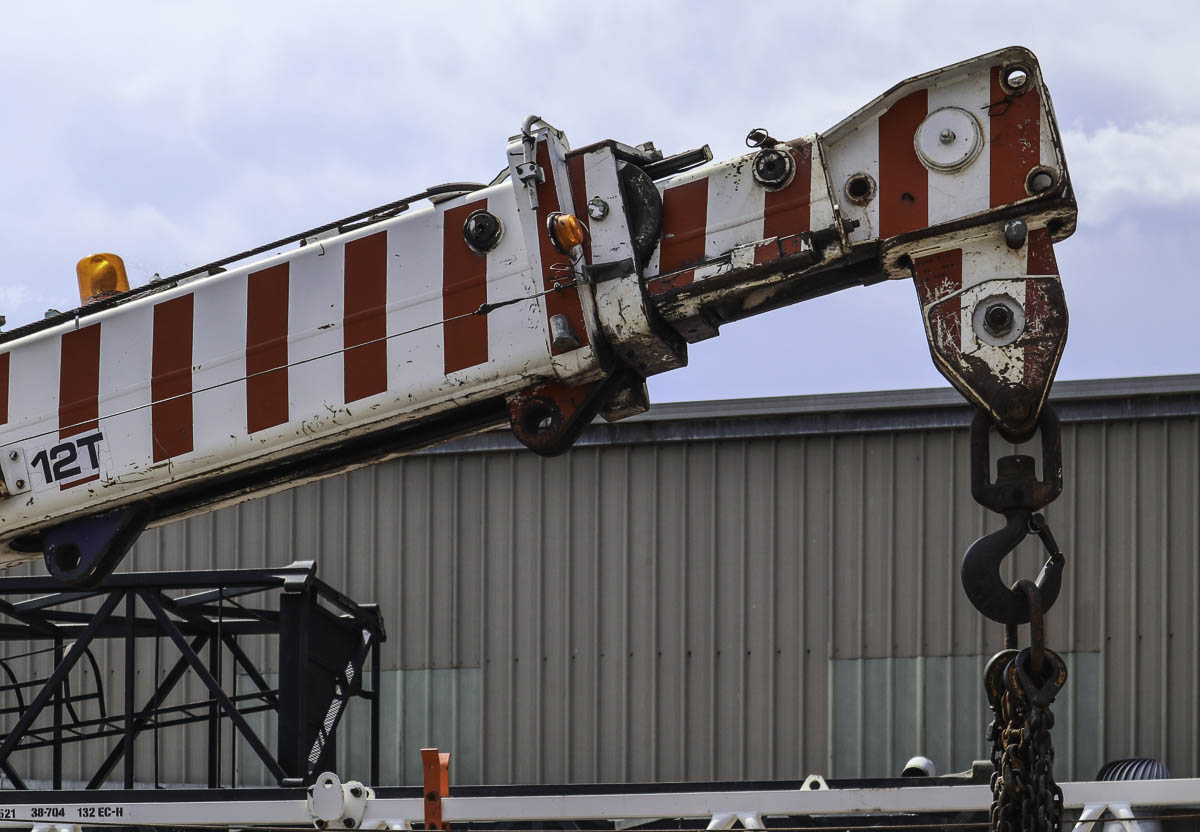

At the rear end of the boom is the 2.5-tonne winch mounted. The crane can maximum lift 12 tonnes on a 1.6 meter radius.
An interesting crane of RRS!
