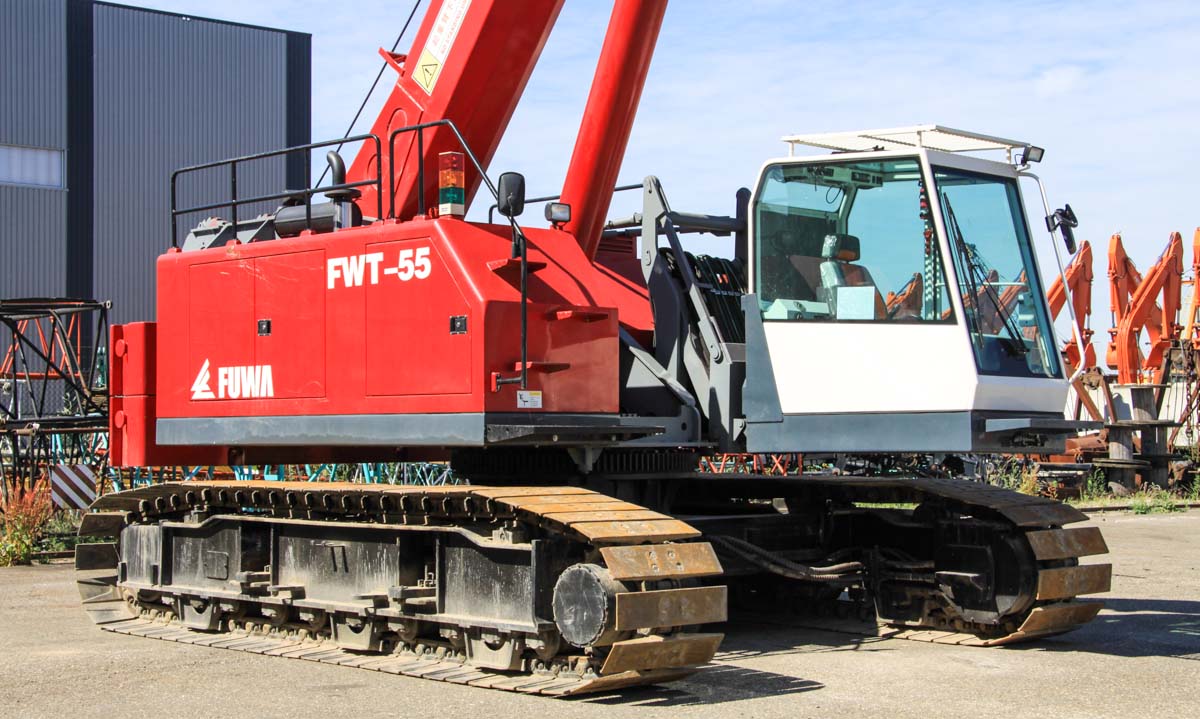

A Fuwa FWT55 on the yard from Crane Business in Moerdijk (NL), the importer of these machines.
It is a 55 ton made in China telescopic crawler crane. This machine is seen as the successor of the usually used 50 tonne crawler cranes.

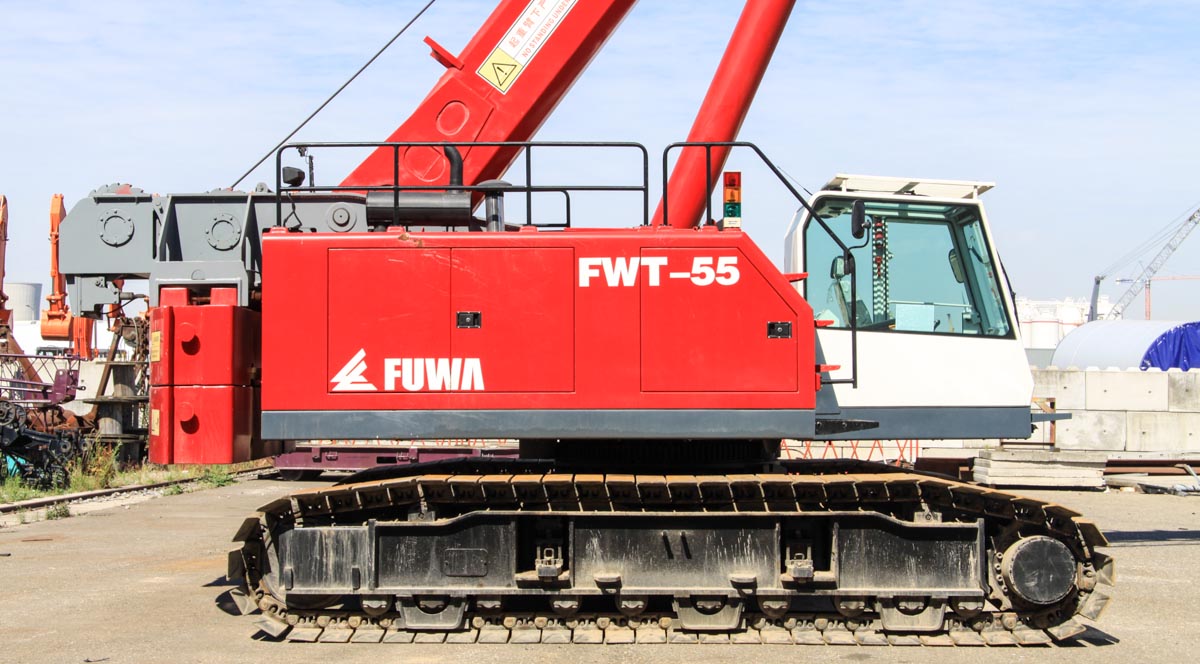

A benefit of this crane is the very short building-up time. After the tracks moving outwards the machine is ready for use. The transport dimensions are: 13 x 3.2 x 3.3 meters (L x W x H) and the transportation weight, with counterweight is 59.1 tonnes.

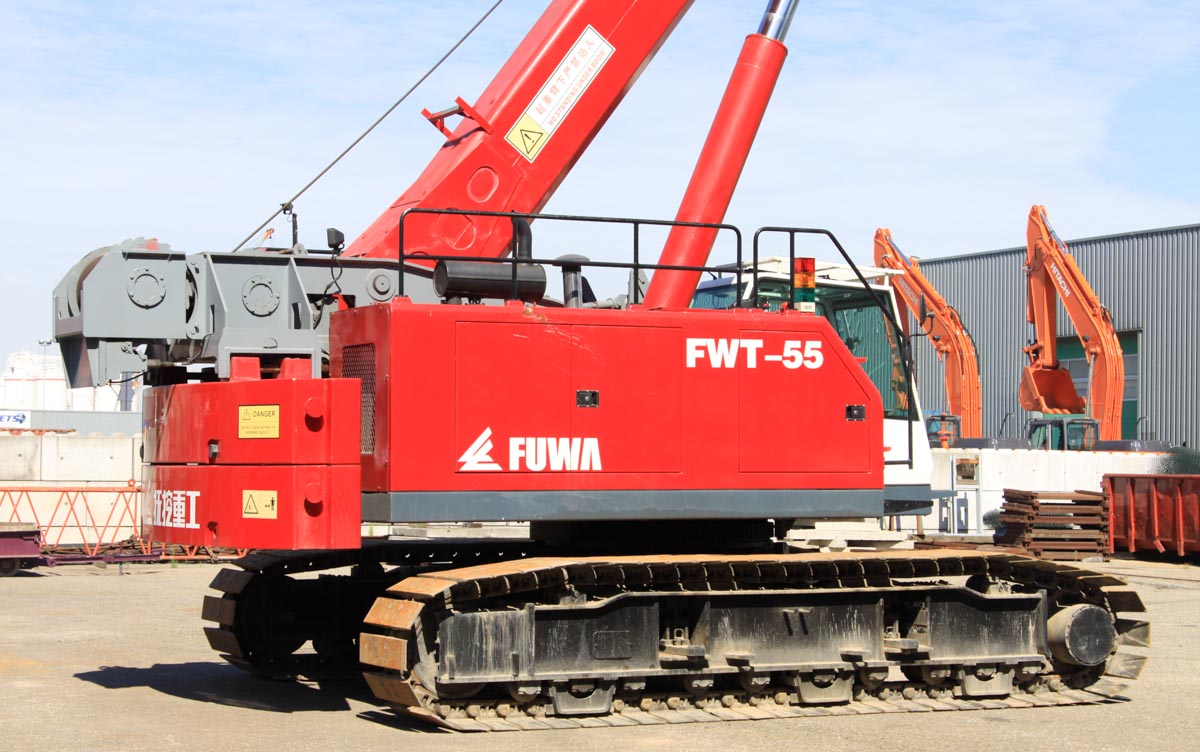

The counterweight weights 15.6 tonnes and can be disassambled for a lower transportation weight.

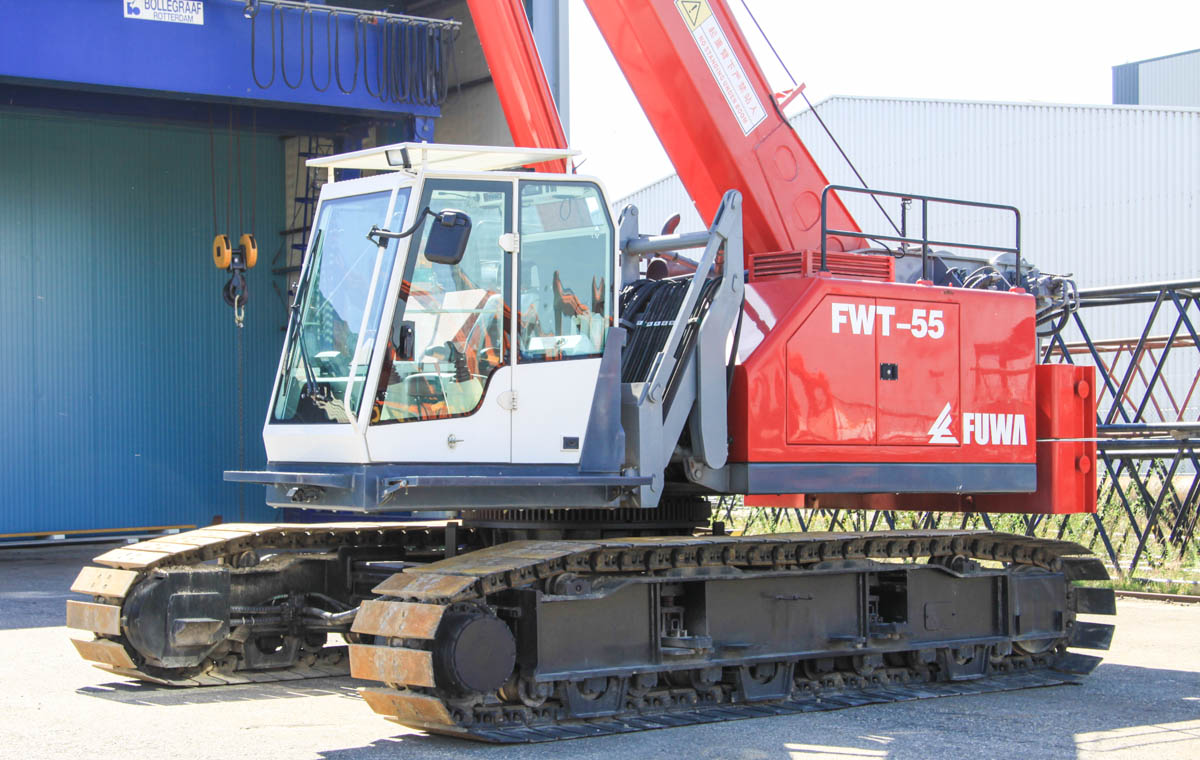

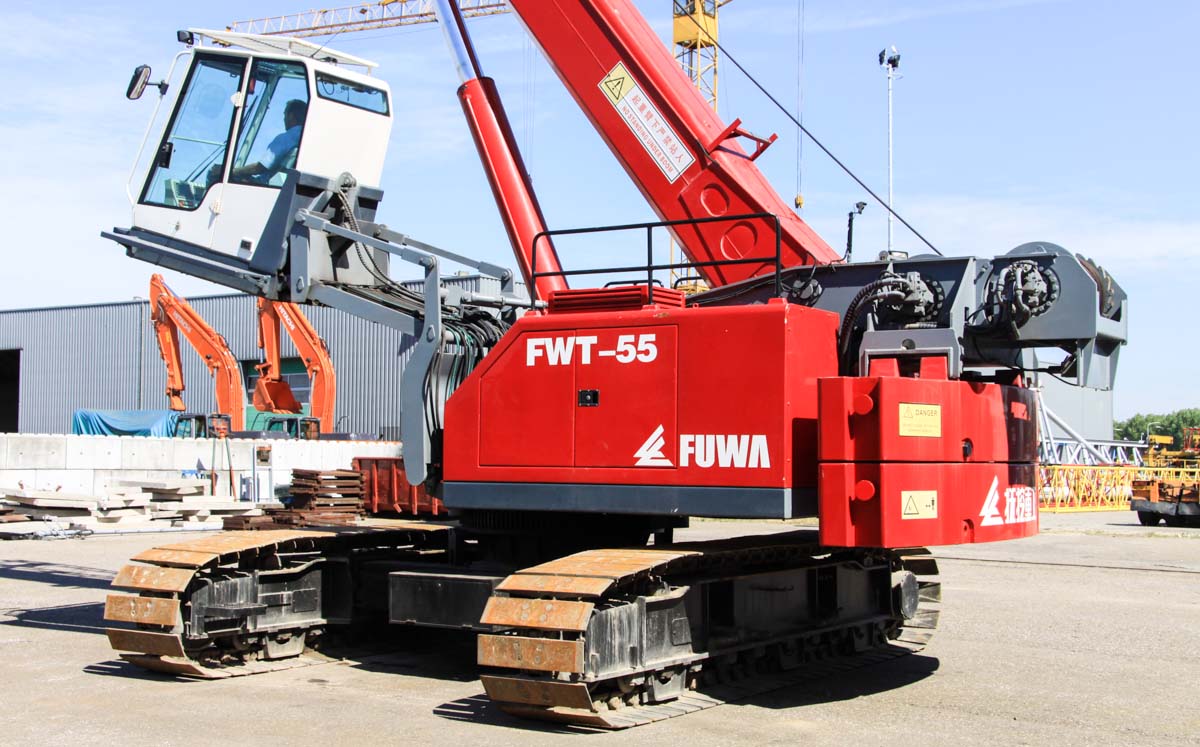

The height of the cab is adjustable.

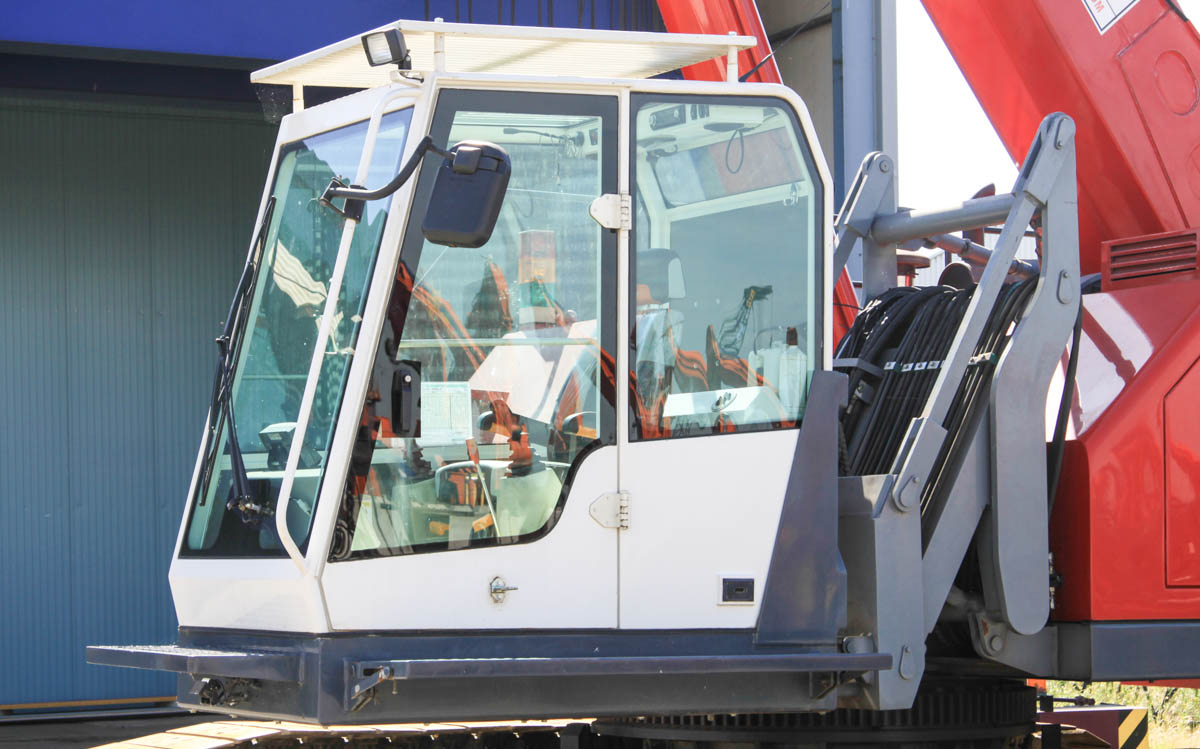

Here a detail. It is the new type of cab from Fuwa, the old ones were round.

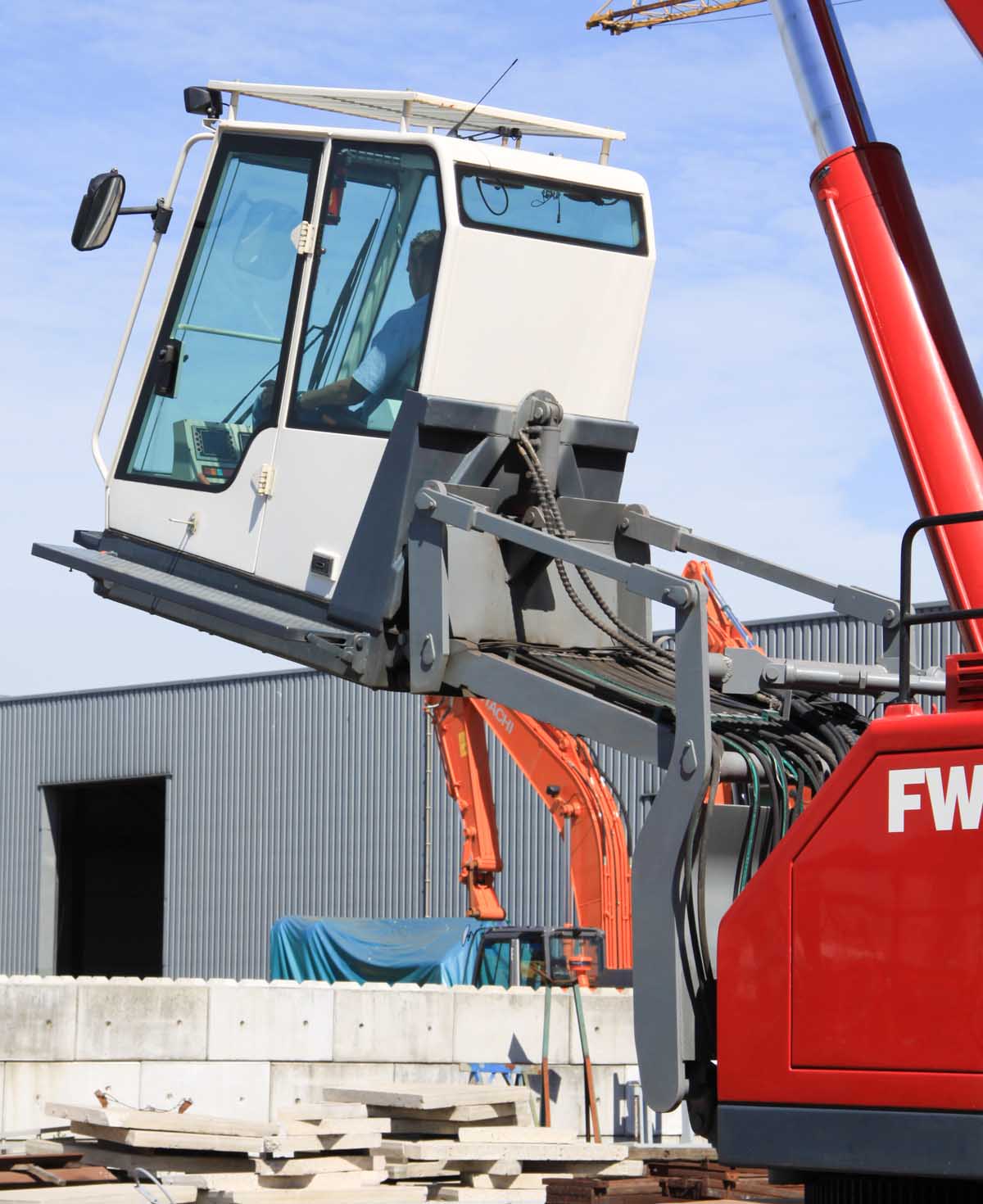

The cab could not only move upwards, but can alse be tilten.

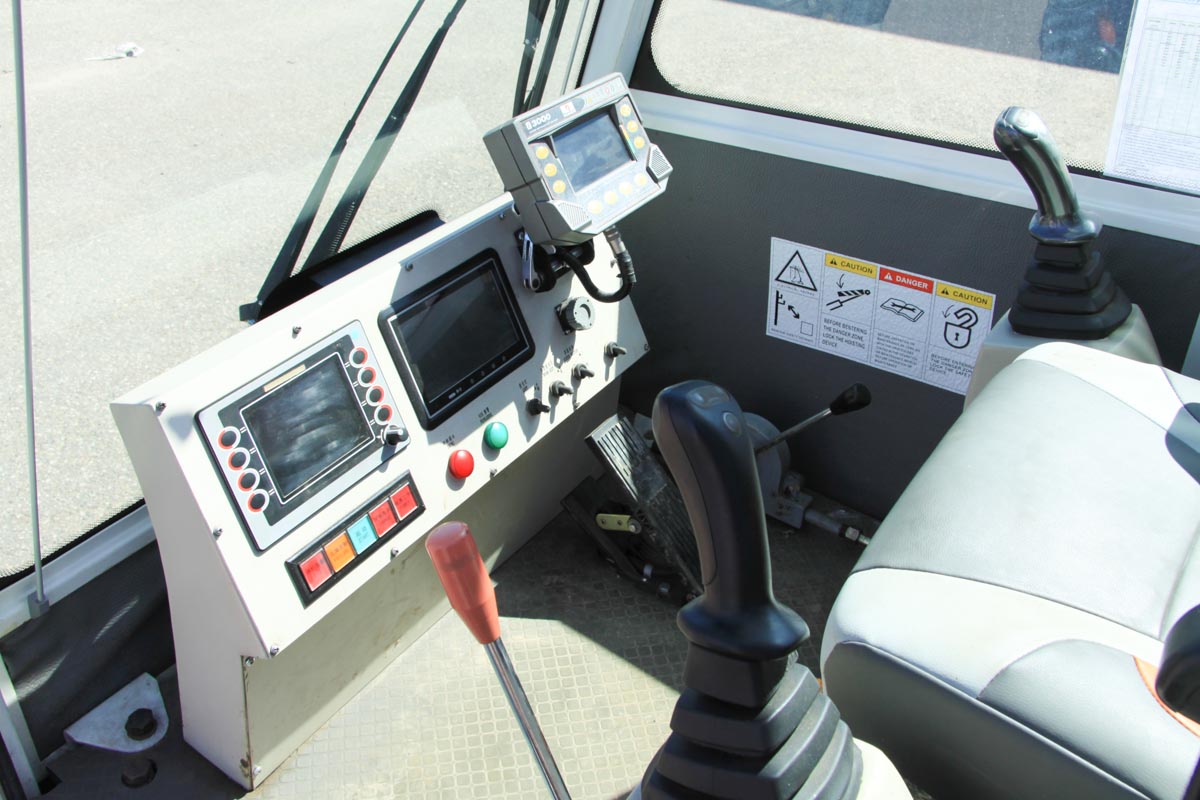

A view in the cab.

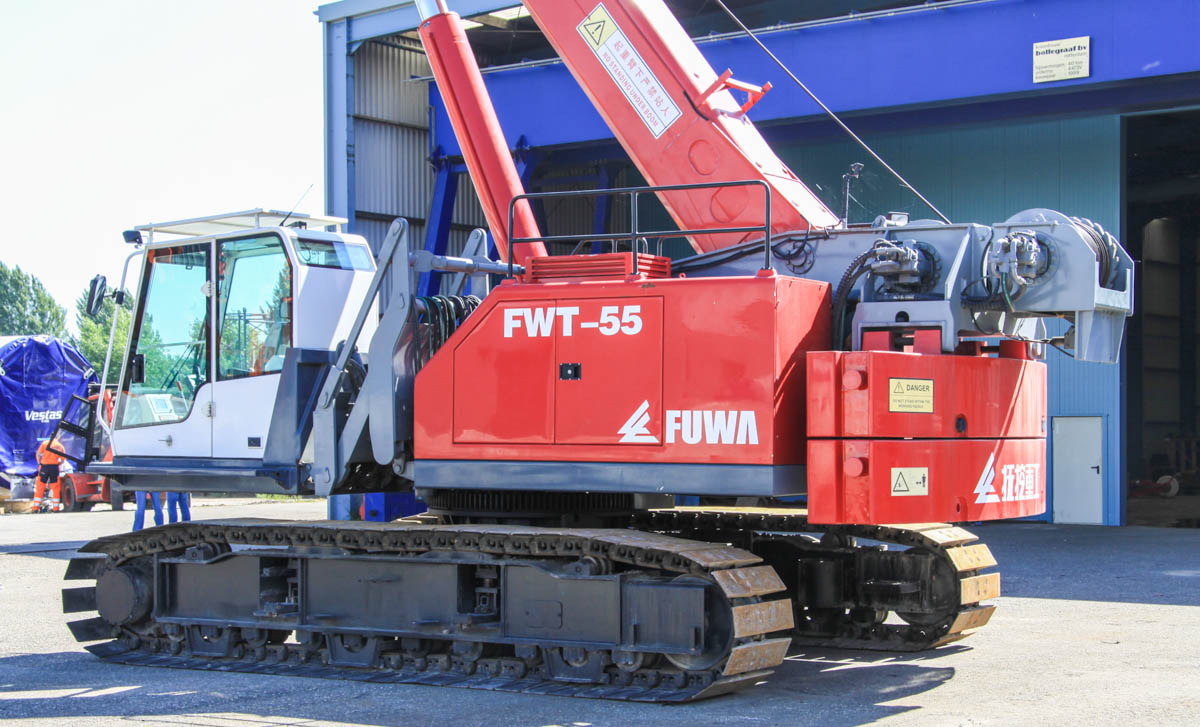

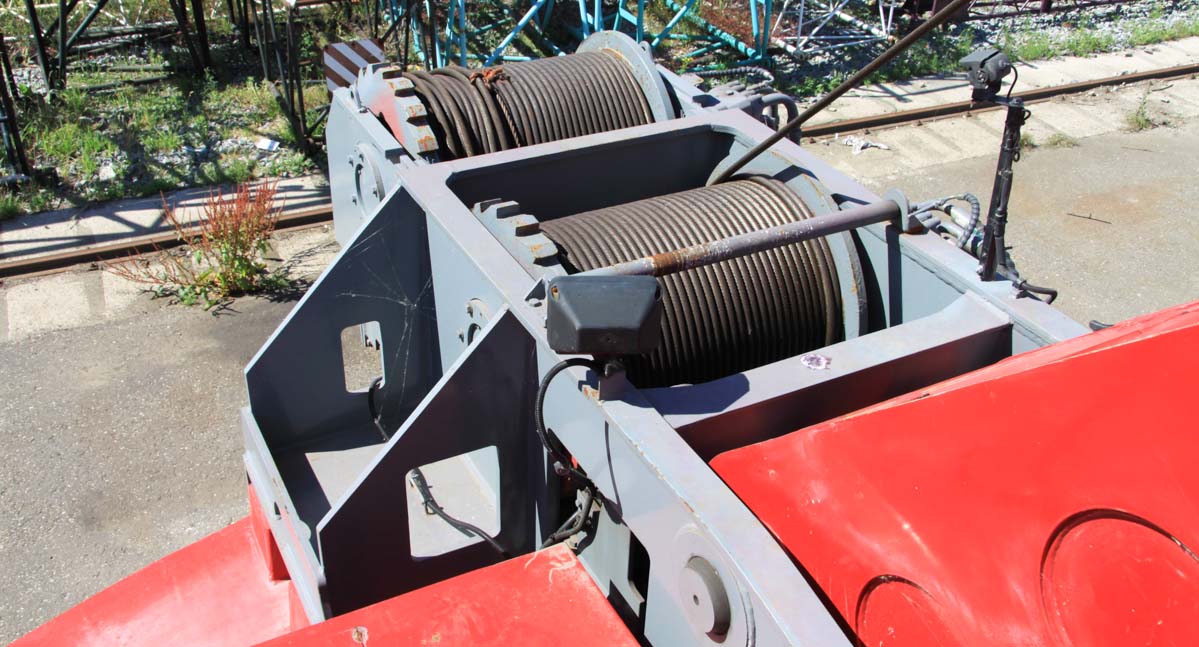

The machine is standard equiped with a second winch.

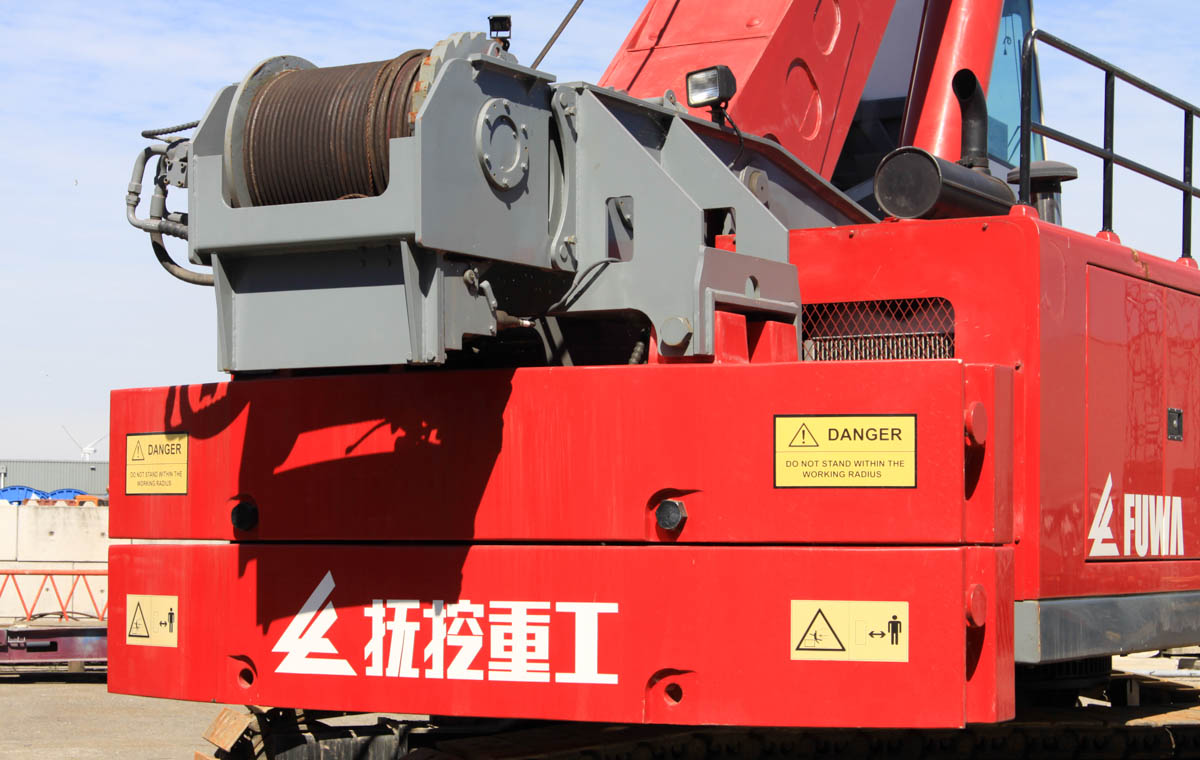

Here a detailview.

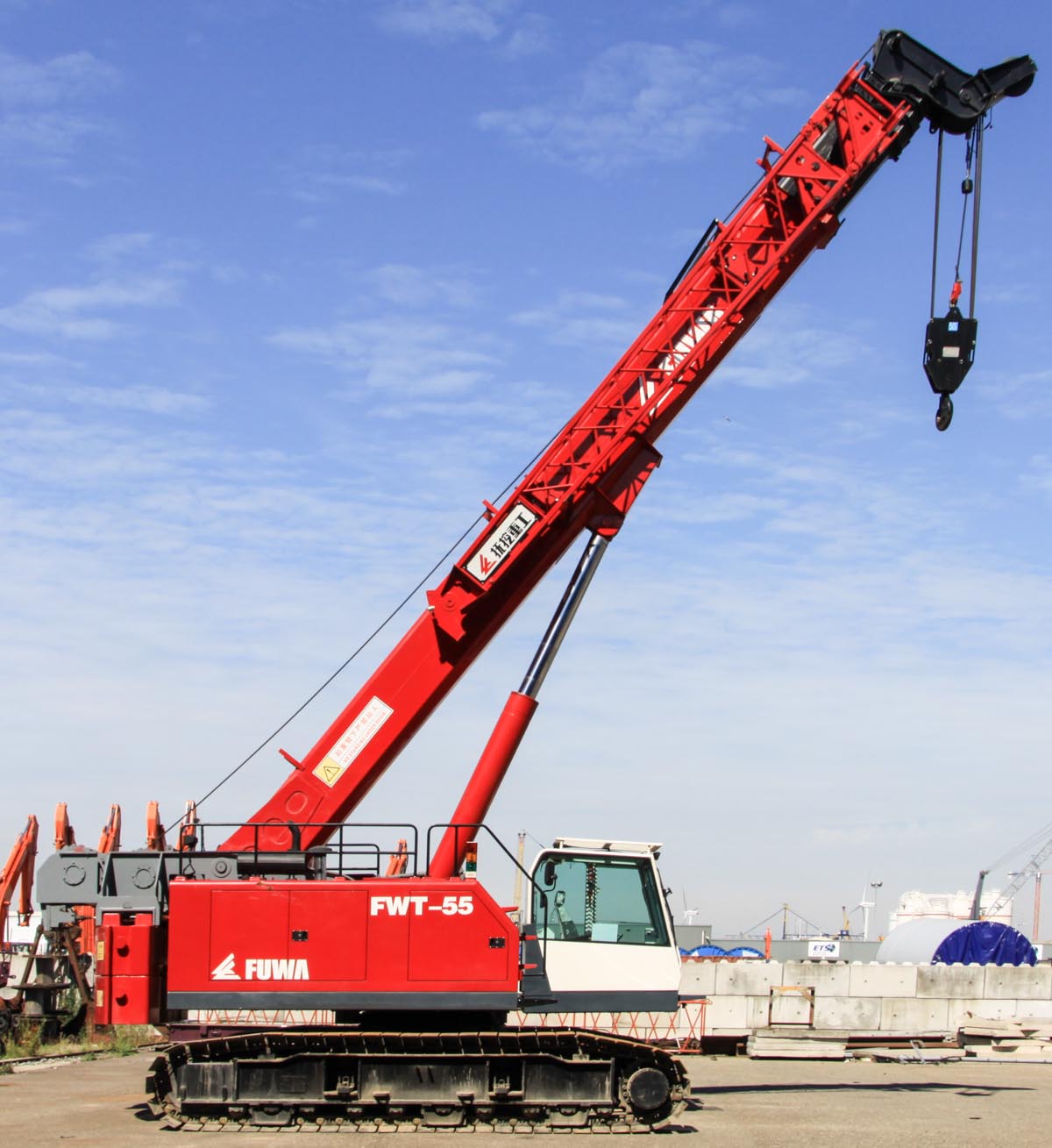

The crane has 38 meters of boom, which can be extended with 7.1 meters of lattice jib.

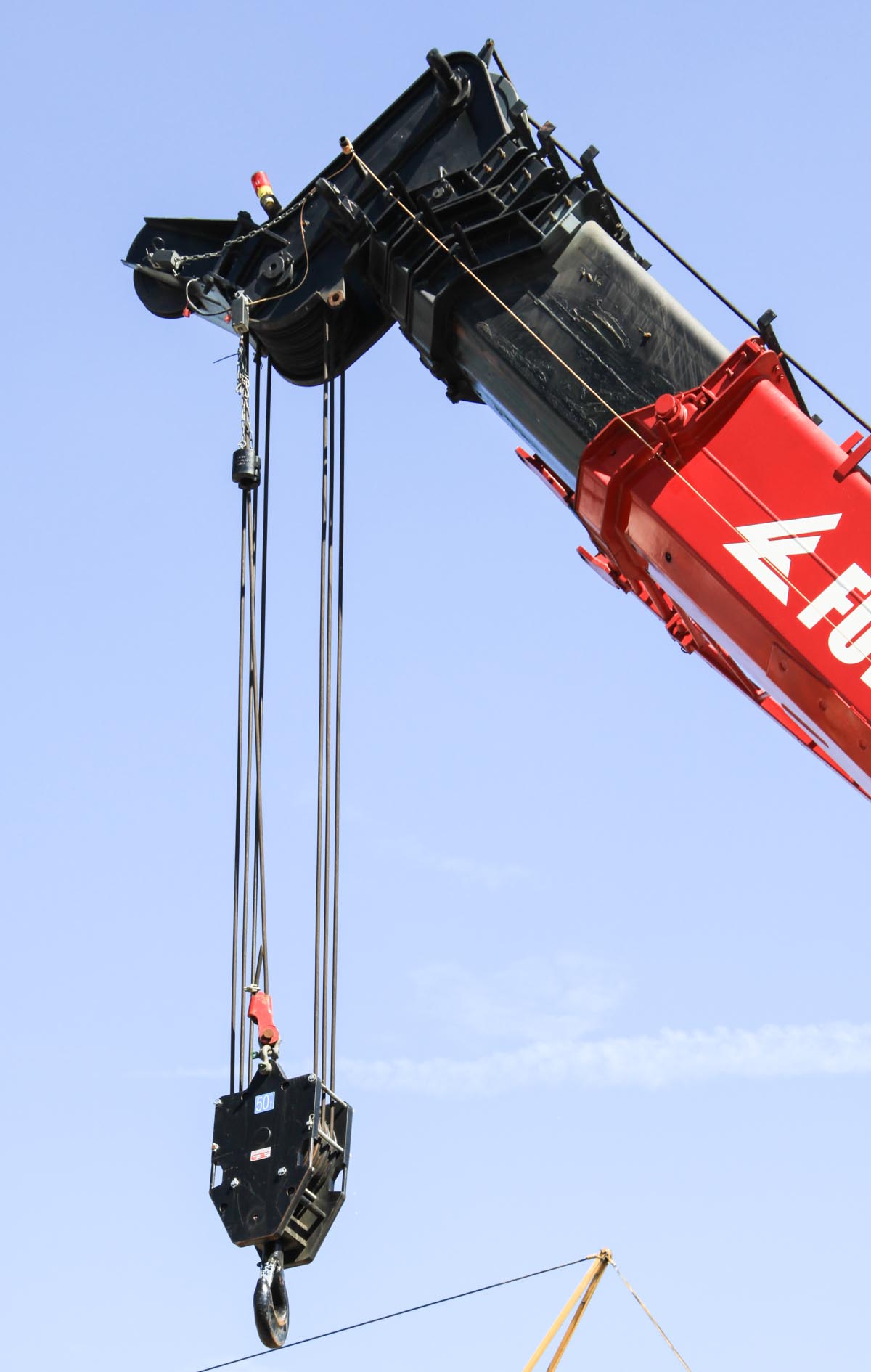

The boom shuffles 4x. A runner for the whipline is attached on the boomhead. The driver can use two hookblocks. One for light - and one for heavier work. This is not much seen in the Netherlands.

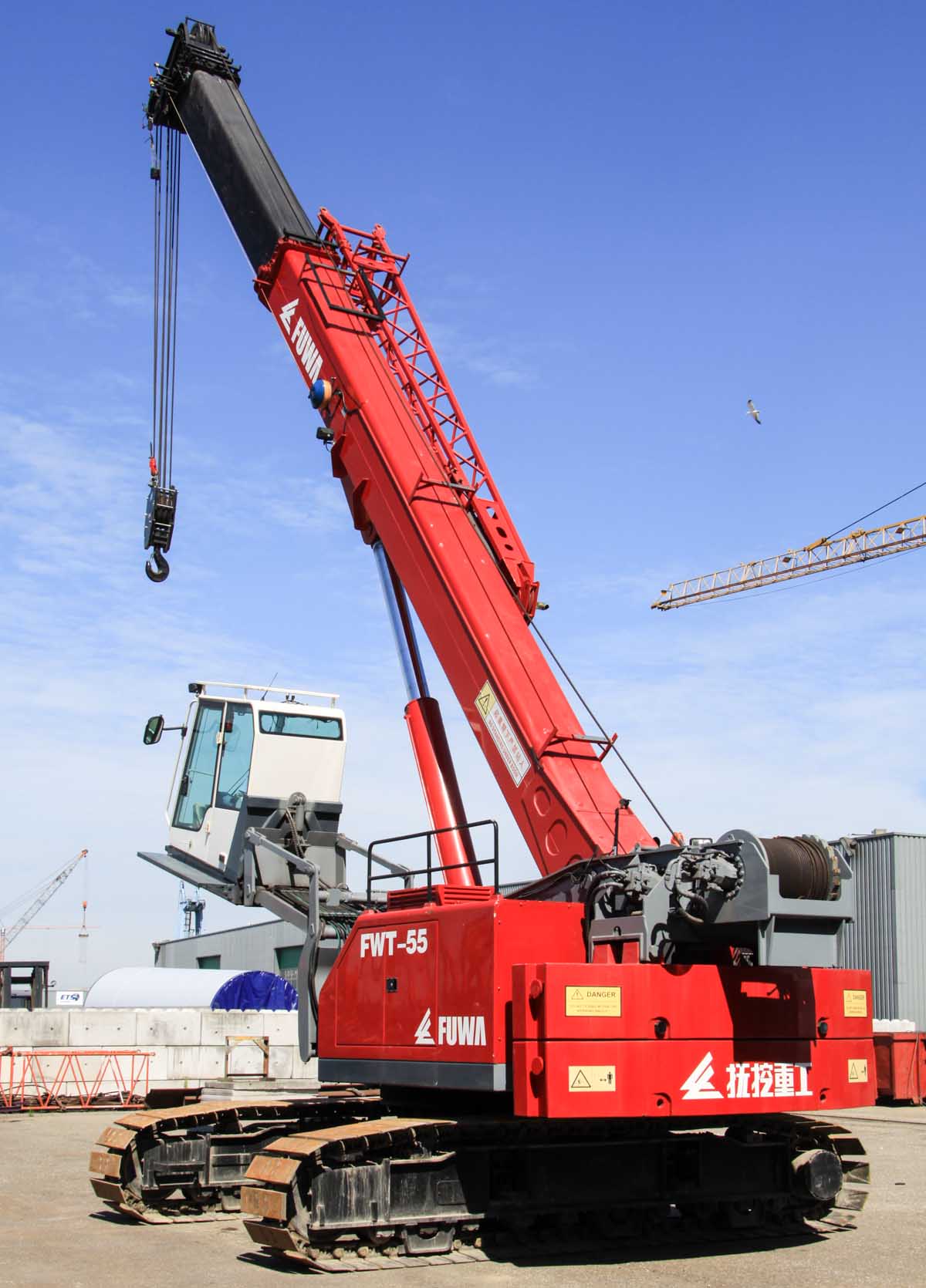

We close with an overview of this interesting crane.
