Fuwa QUY80B - Zwagerman VMT

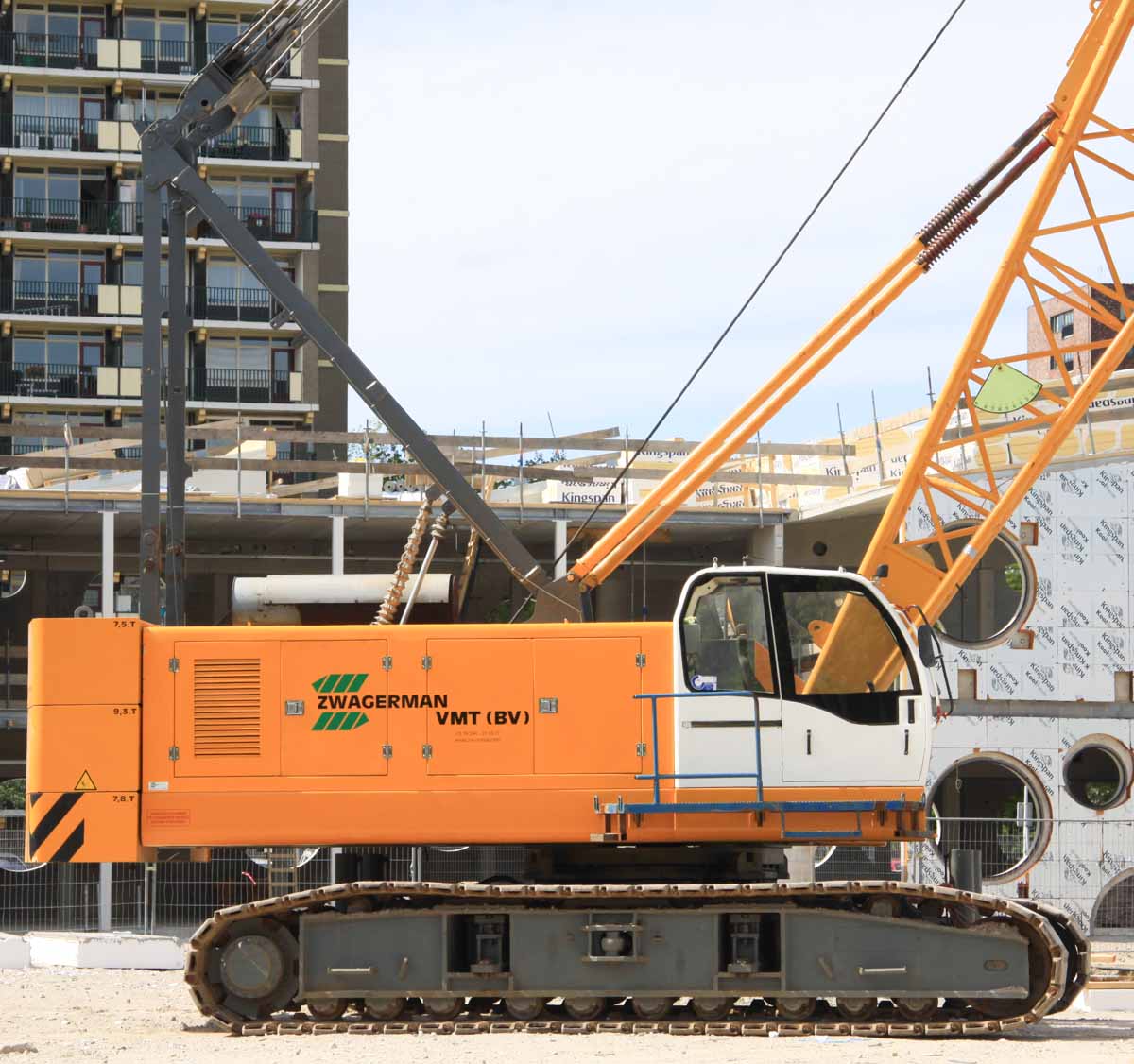

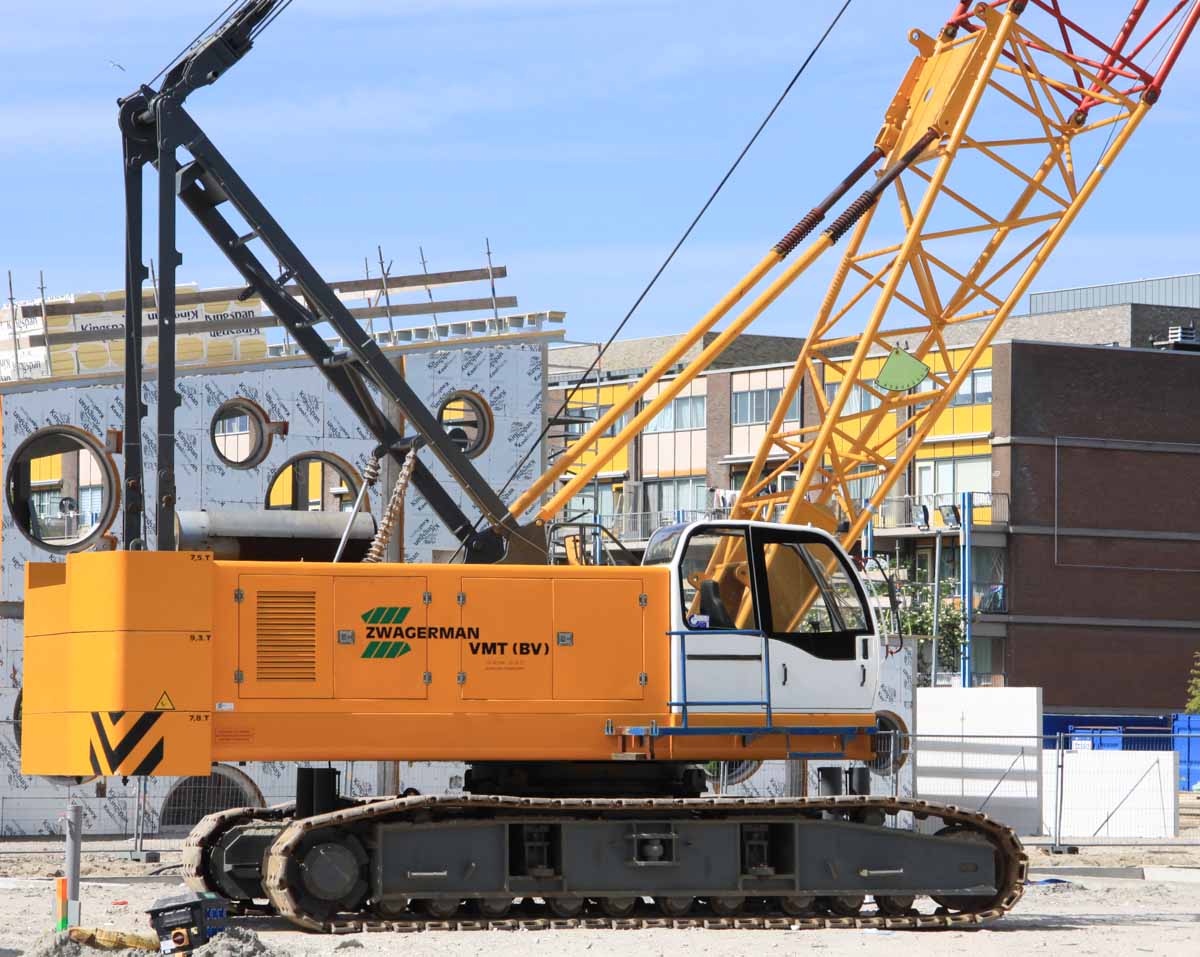

Zwagerman VMT from Nederhorst den Berg (NL) owns this Fuwa QUY80B crawler crane, this crane was working on a job site in Amsterdam (NL). It is a 80 tonne crane that is powered by a Cummins QSL-9 diesel engine with 209 kW.

The undercarriage is 5.06 meters wide and 6.36 meters long. The undercarriage can be retrackted to 3.4 meters for the transport over the road. The carbody with crawlers weights about 53 tonnes. The counterweight weights 24.5 tonnes and has a 4.62 meter tailswing.

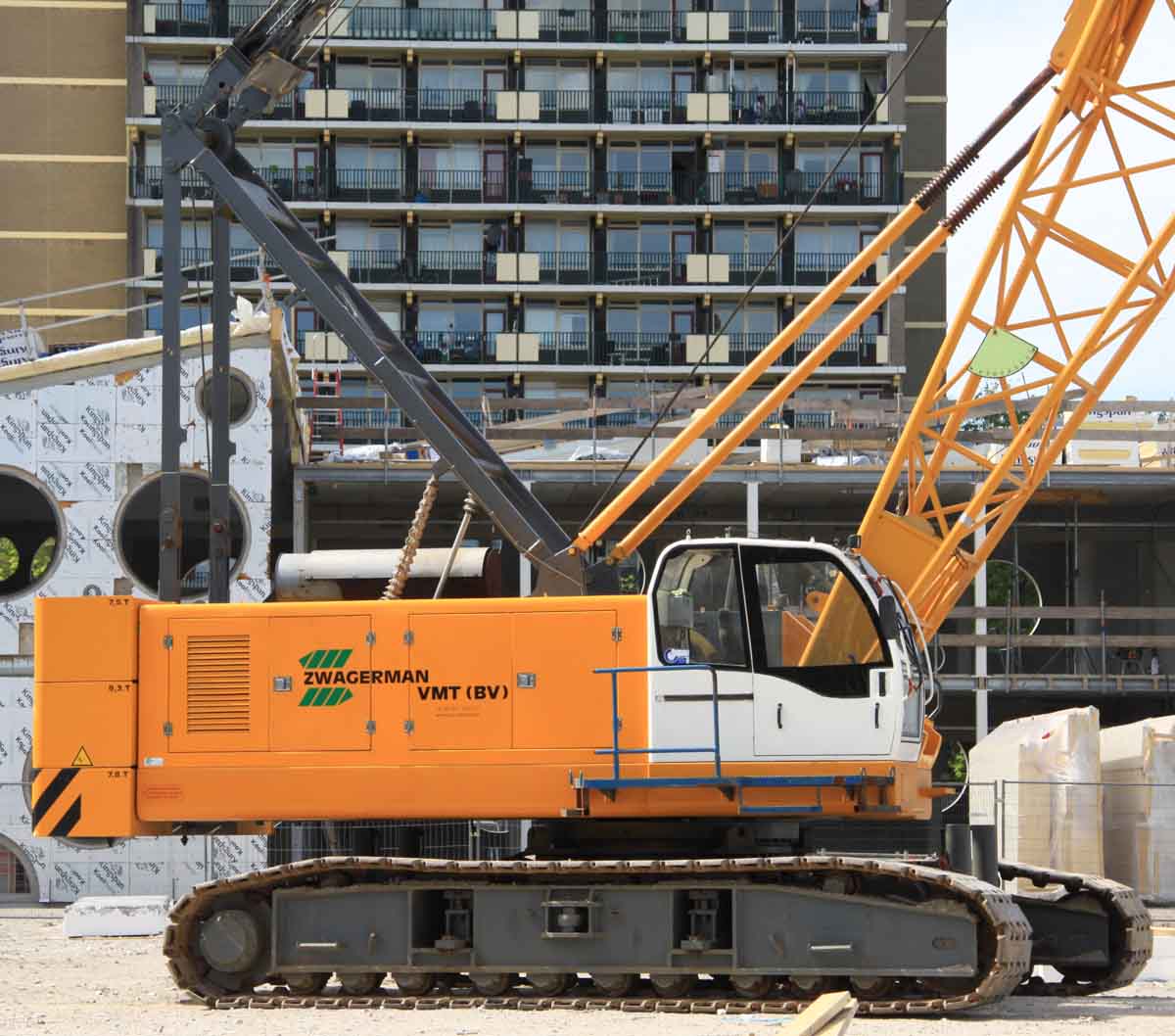

The cabin is 92 centimeters wide and standard equipped with airconditioning, screen swippers, a radio and a fire extinguisher. Also a load momitoring screen is in the cab. Both hoist winches do have a 26 mm hoist cable.

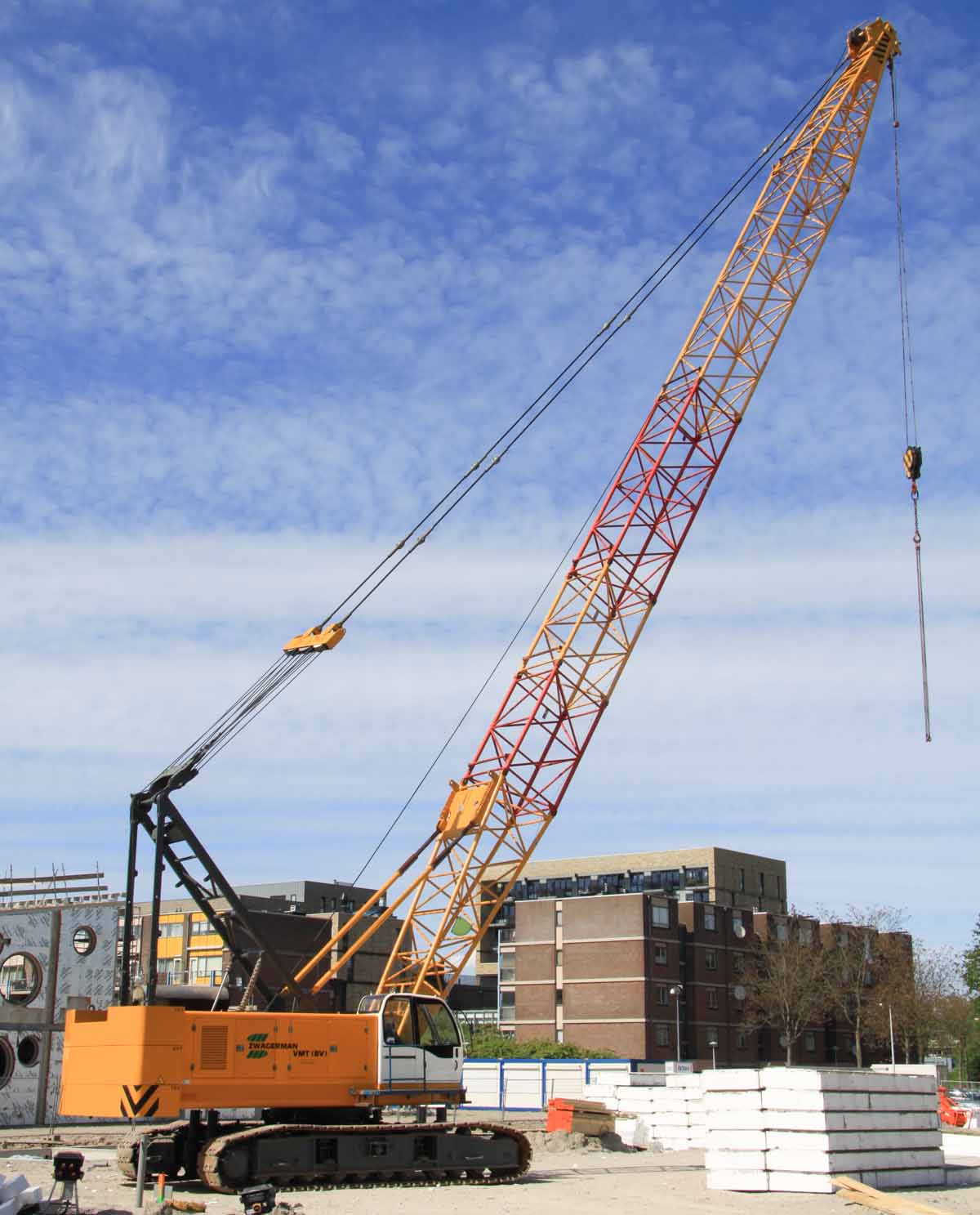

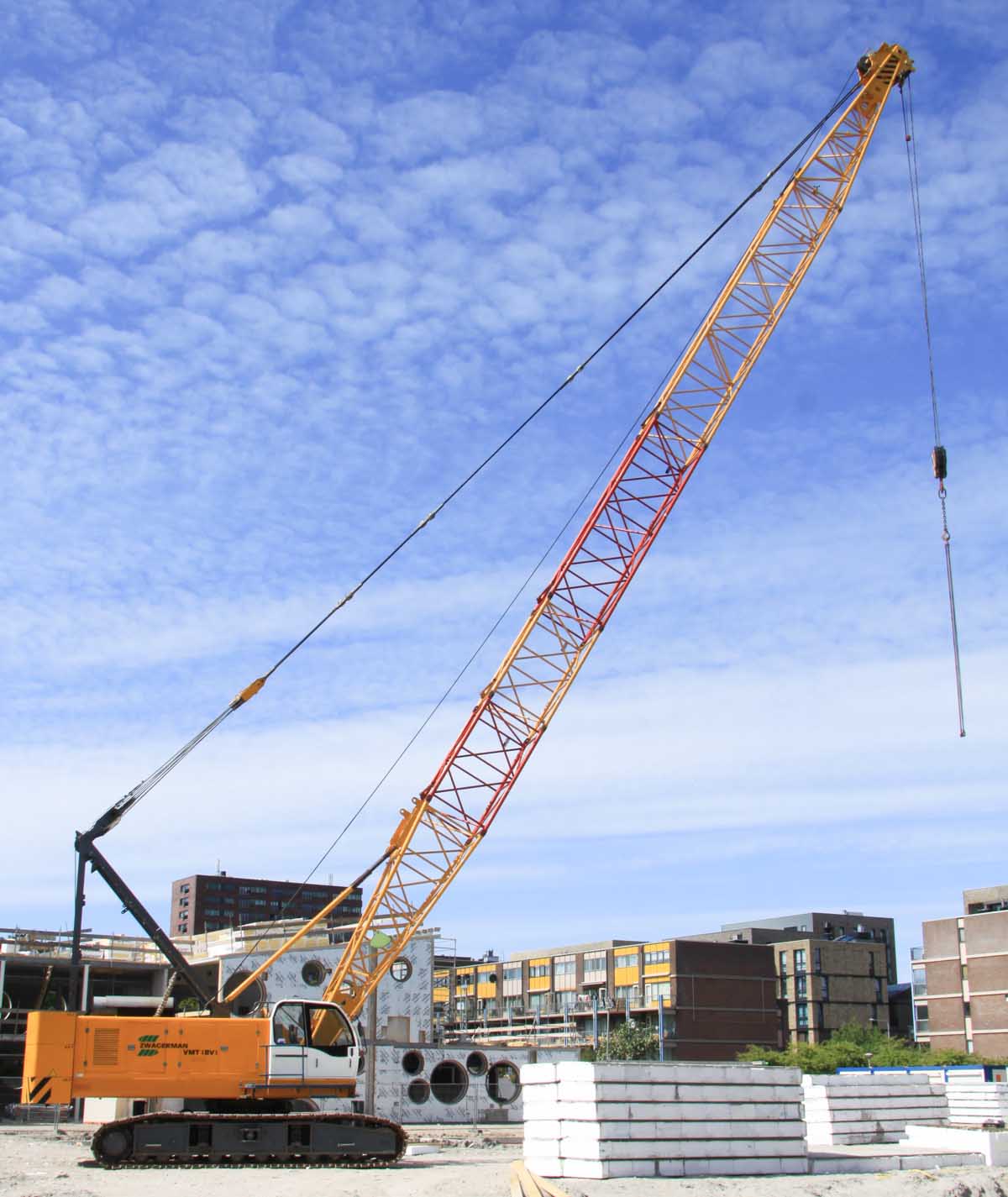

The crane was here erected with a 34 meter main boom. The main boom is minimum 13 meters and maximum 58 meters long. This crane can also be erected with a 52 meter main boom in combination with an 18 meter fixed jib.

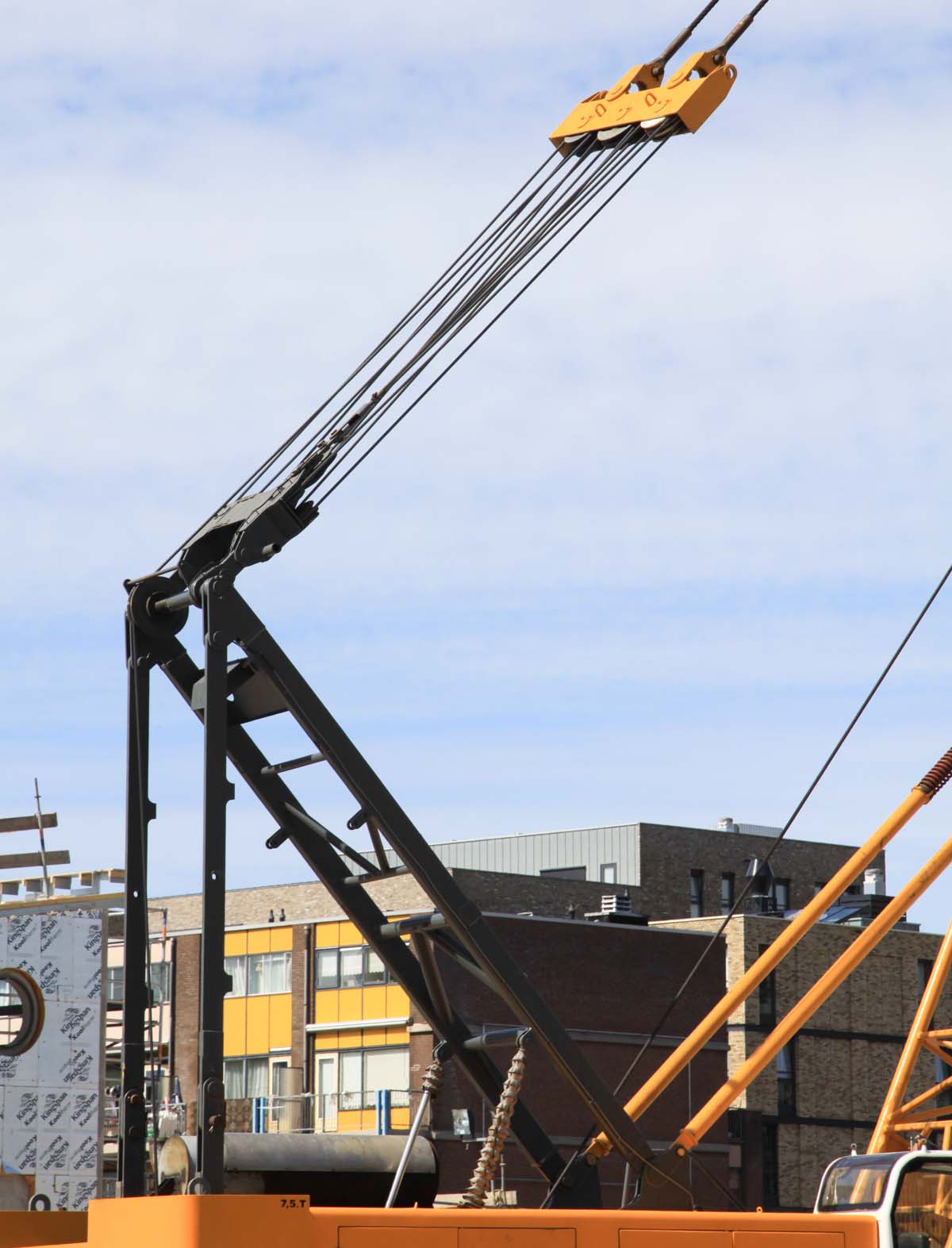

The A-frame of the crane is 6.93 meters height and can be folded down for transport over the road. The adjustment cable is 20 mm.

In the Netherlands only one crane of this type was in use. Zwagerman also owns a Fuwa QUY90, the successor of this crane.
