Gottwald AK 130-48
A Gottwald AK 130-48 owned by an unknown company is used to lift boats and yachts in the harbour of Heilbronn (DE).
It is a 4 axle crane with lattice boom, his transport weight is about 36 tonnes. These crane were built untill 1970 by Gottwald.
The undercarriage is driven by a 250 hp diesel engine. The undercarriage is 3 meters wide and 10.15 meters long.
It is a 75 tonne crane.

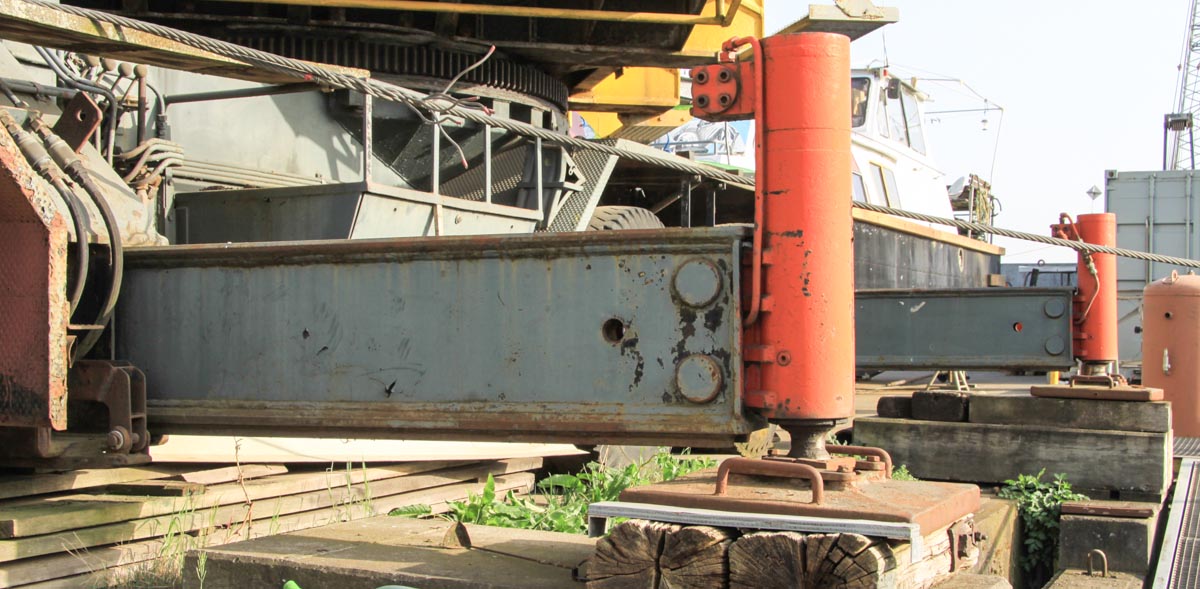

The outrigger base is 5.65 x 6 meters.
The counterweight has a 3.9 meter tailswing.

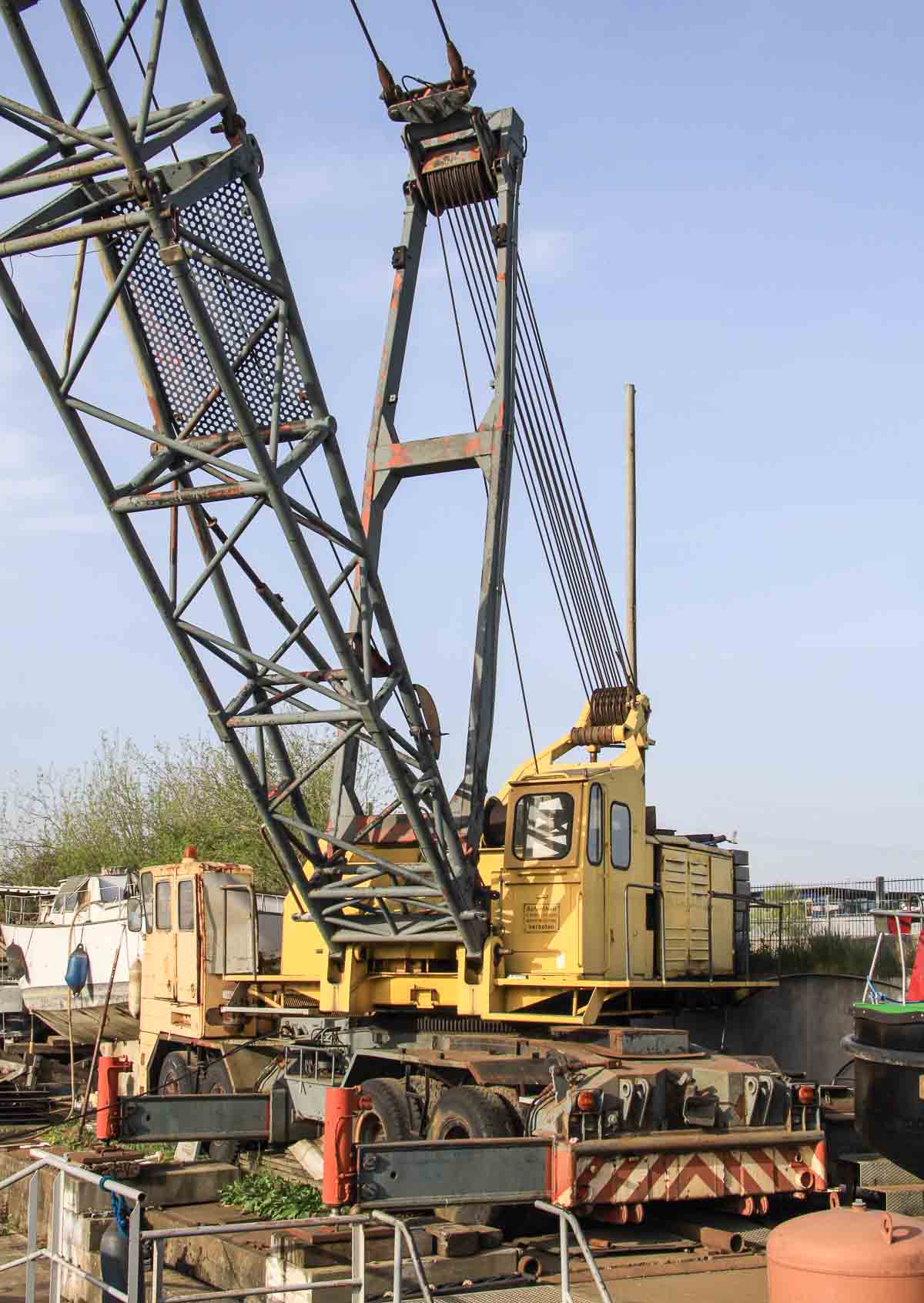

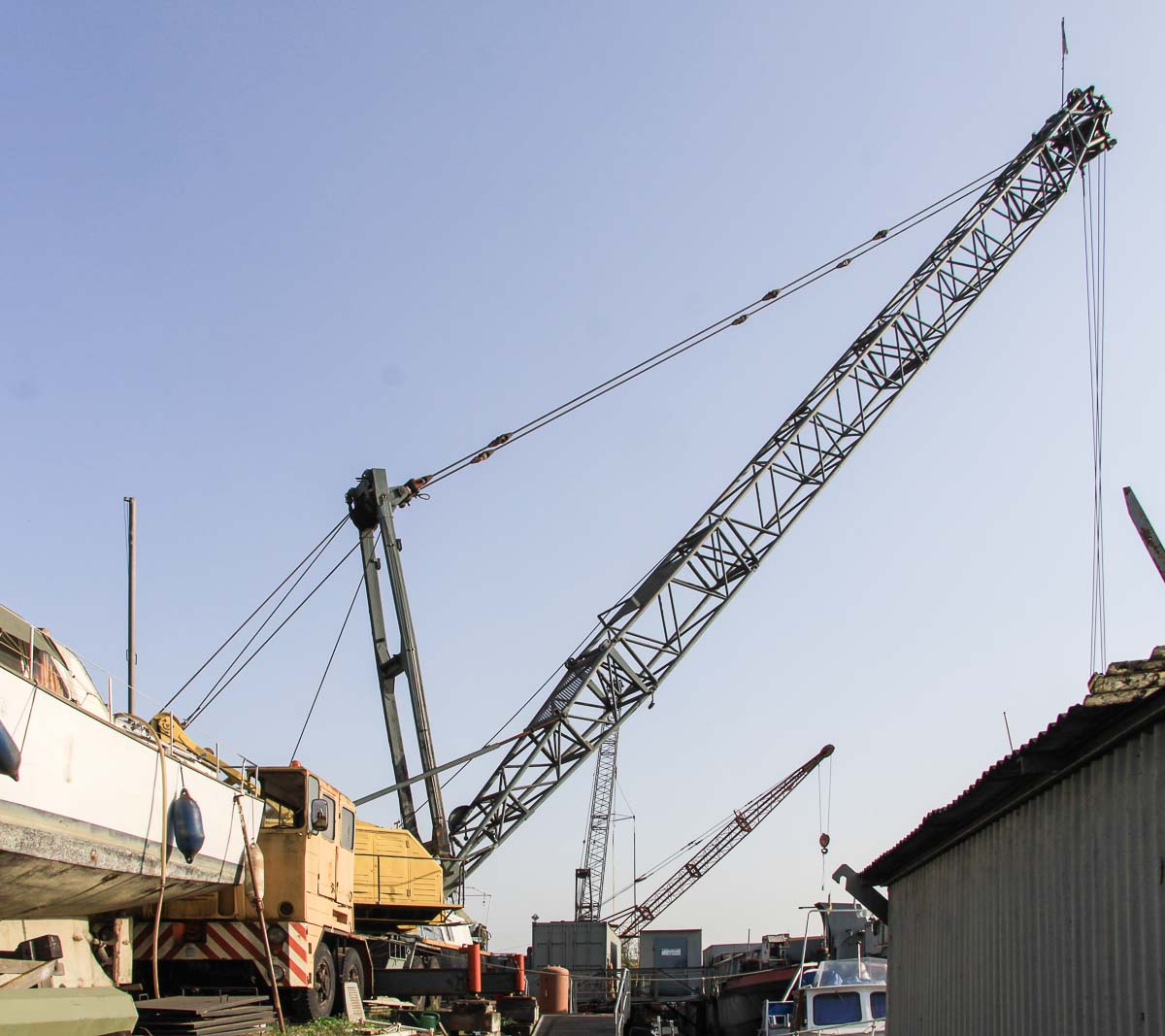

The main boom has here a 26 meter length, extendable up to 54 meters. With this boom length is it possible to lift 43 tonnes on a 6 meter radius and 5.1 tonnes on a 24 meter radius.
