Hitachi Sumitomo SCX2000A-2 - Tat Hong

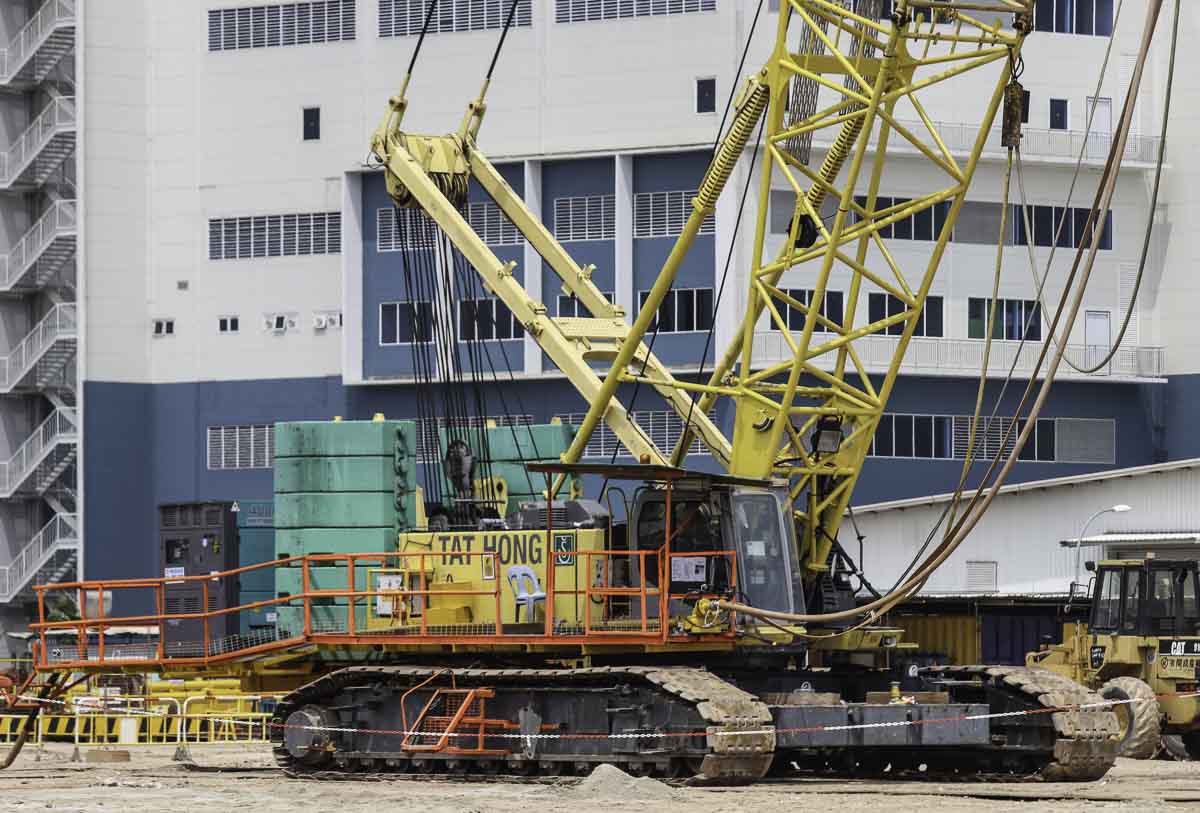

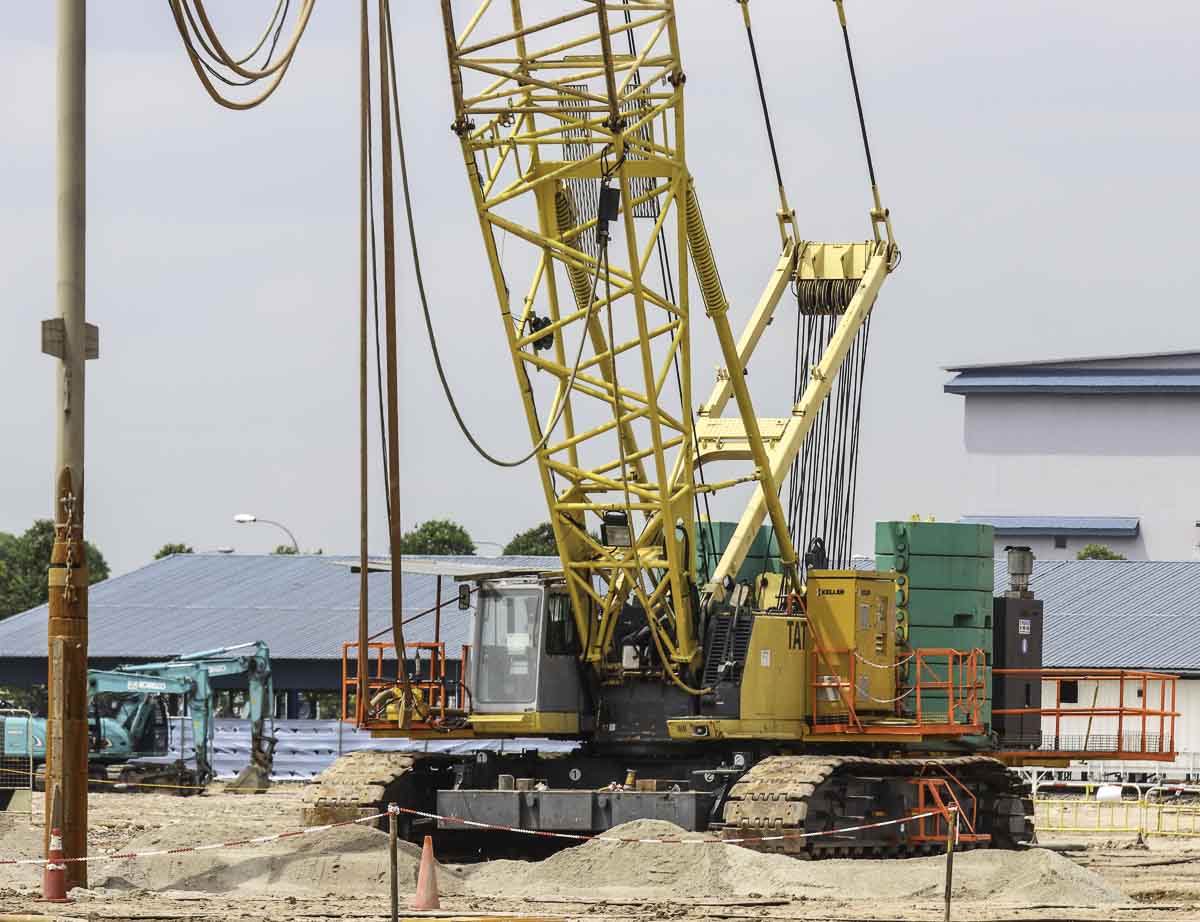

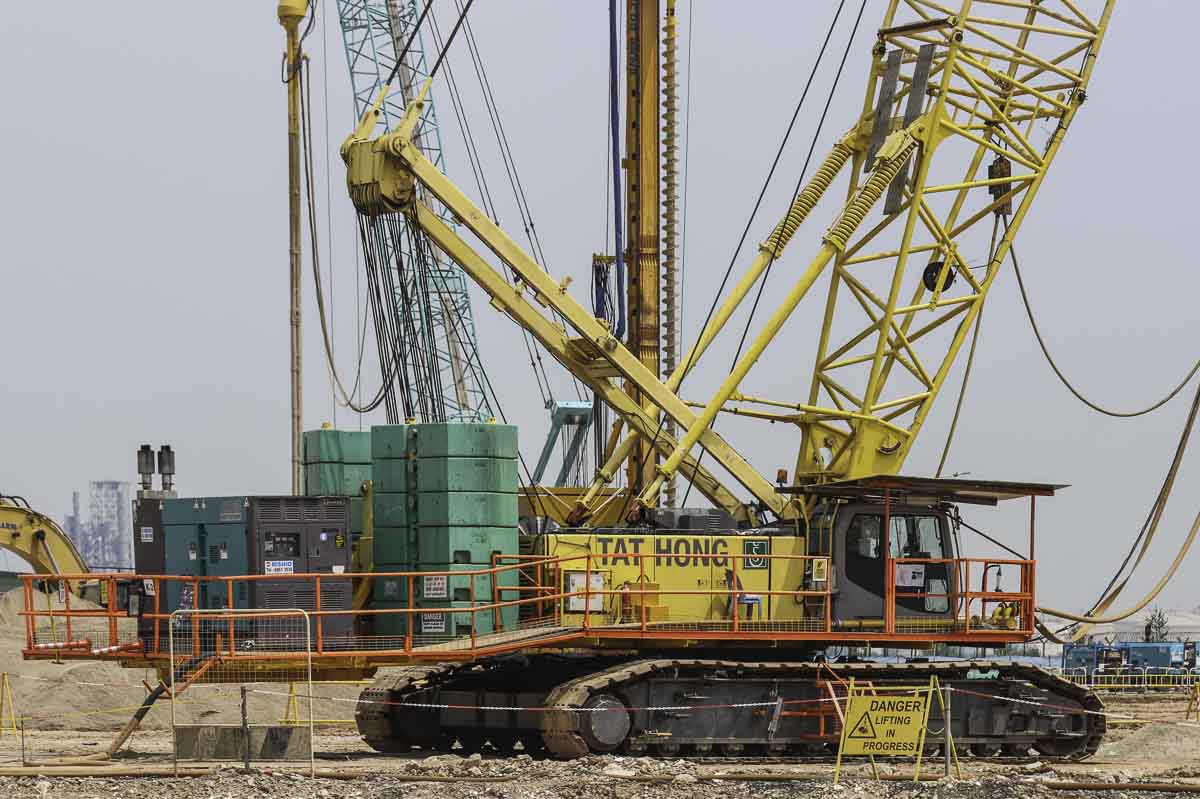

This sharp Hitachi Sumitomo SCX2000A-2 of Tat Hong from Singapore (SG) was together with a Kobelco CKE2500-2 and a Kobelco 7120S used on a construction site for soil compaction.

The undercarriage of the crane is 8.46 meters long and 6.98 meters wide.

The crane is powered by a Mitsubishi 6M70-TL, a 6-cylinder diesel engine with a power of 272 kW (370 hp).

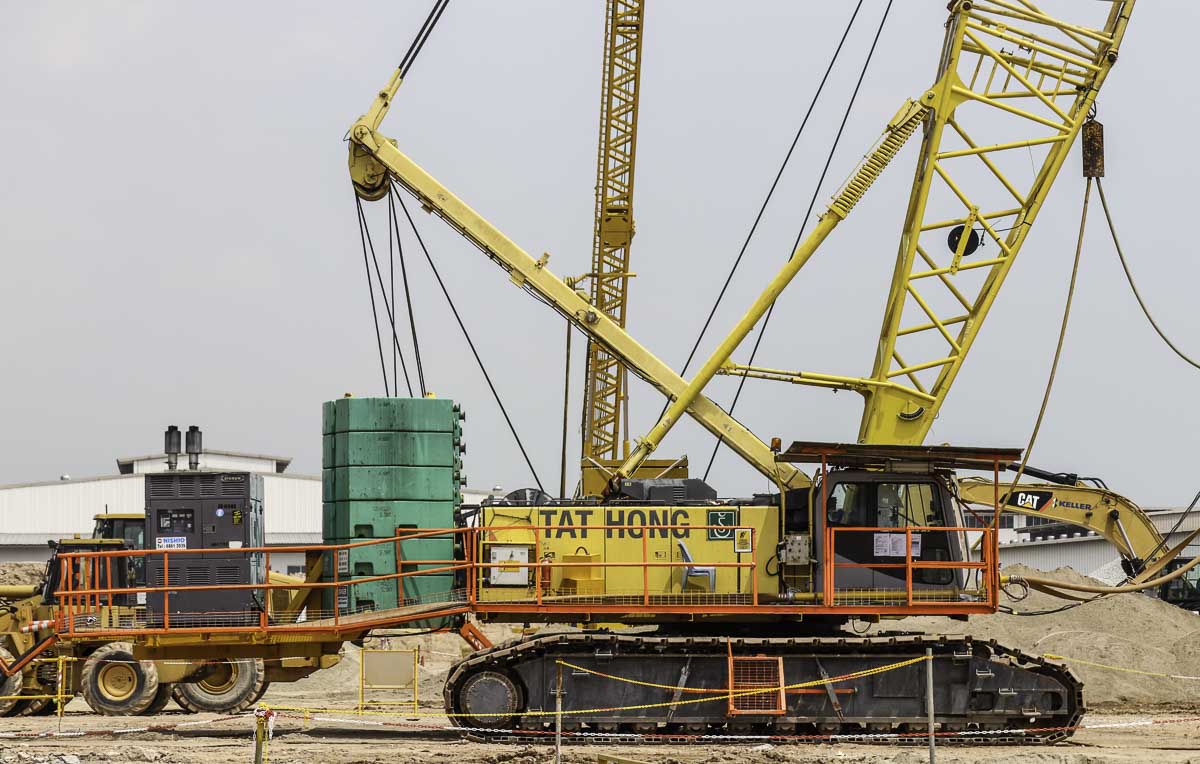

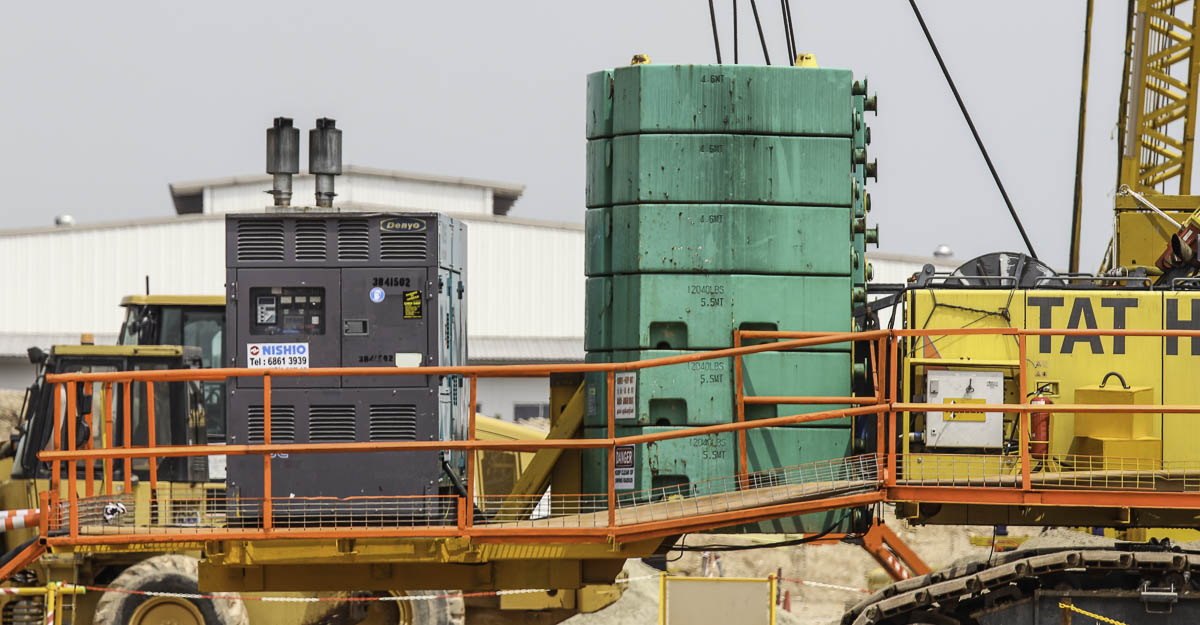

The counterweight on the superstructure has a total mass of 80.6 tonnes with a 5.92 meter tailswing. To power the tool in the crane is a secondary power pack installed on a frame attached to the crane.

Between the tracks is in total 27.6 tonnes of central counterweight installed; per side a slab with 13.8 tonnes.

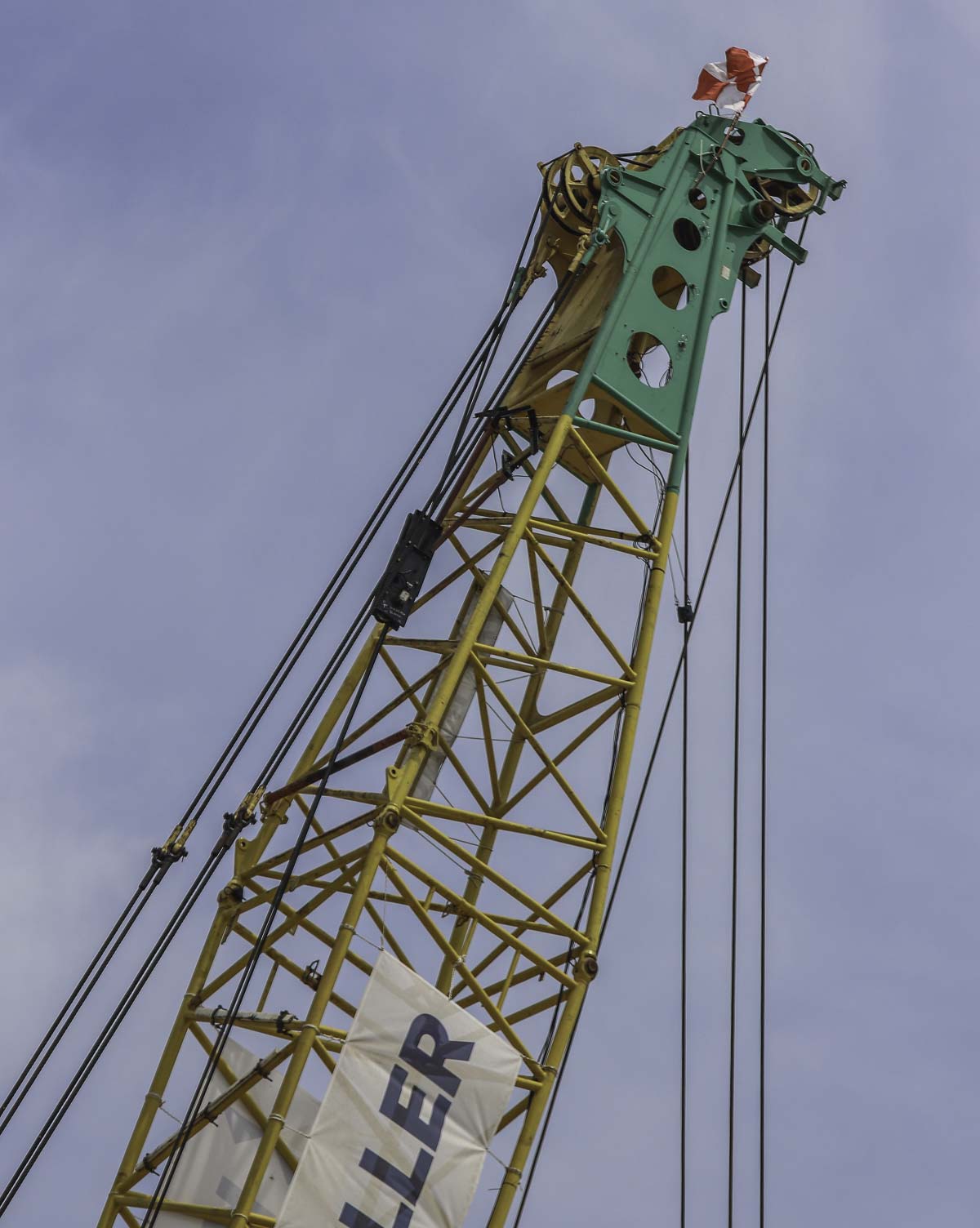

The main boom has a 15.25 meter base length and a maximum length of 85.4 meters.

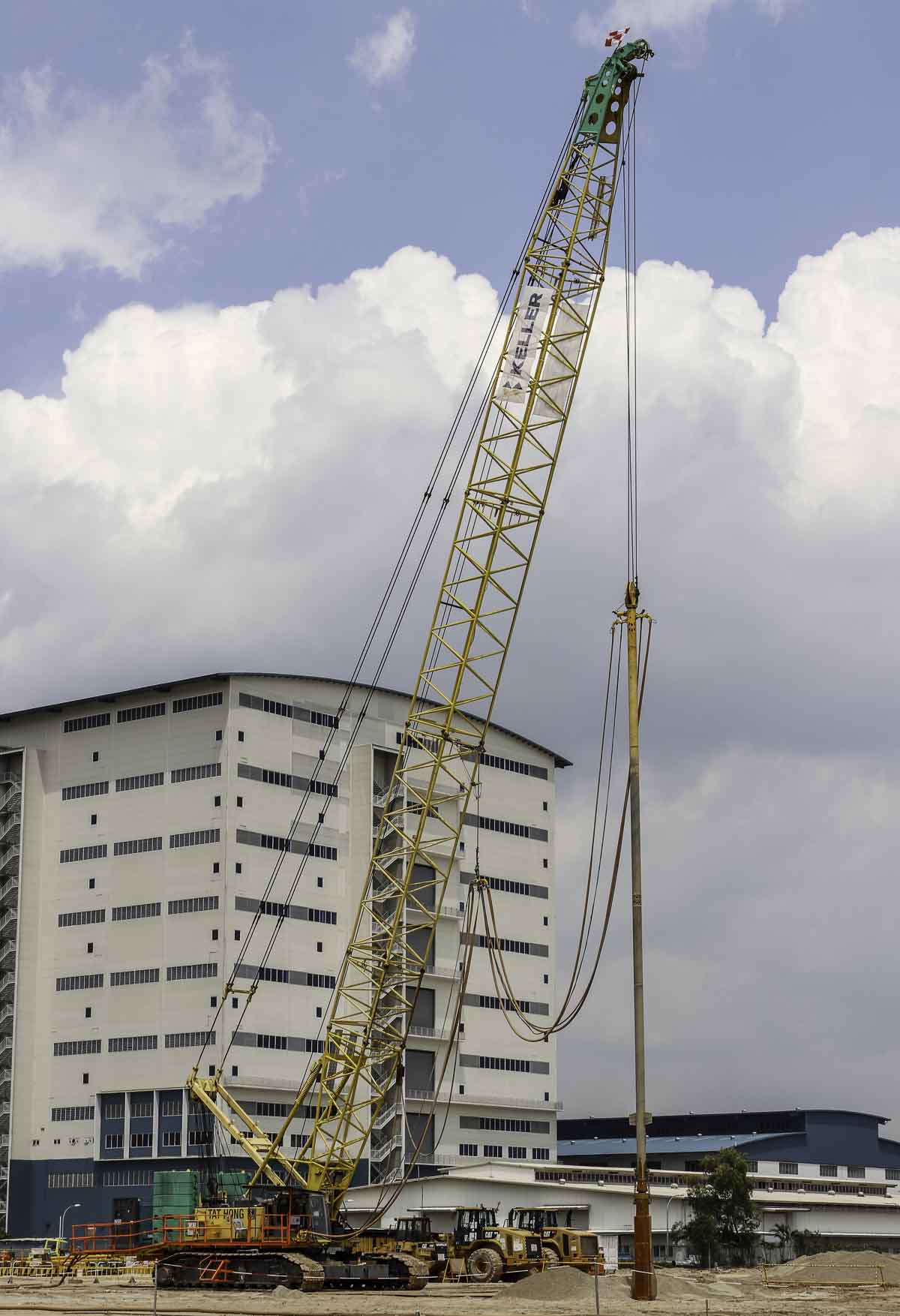

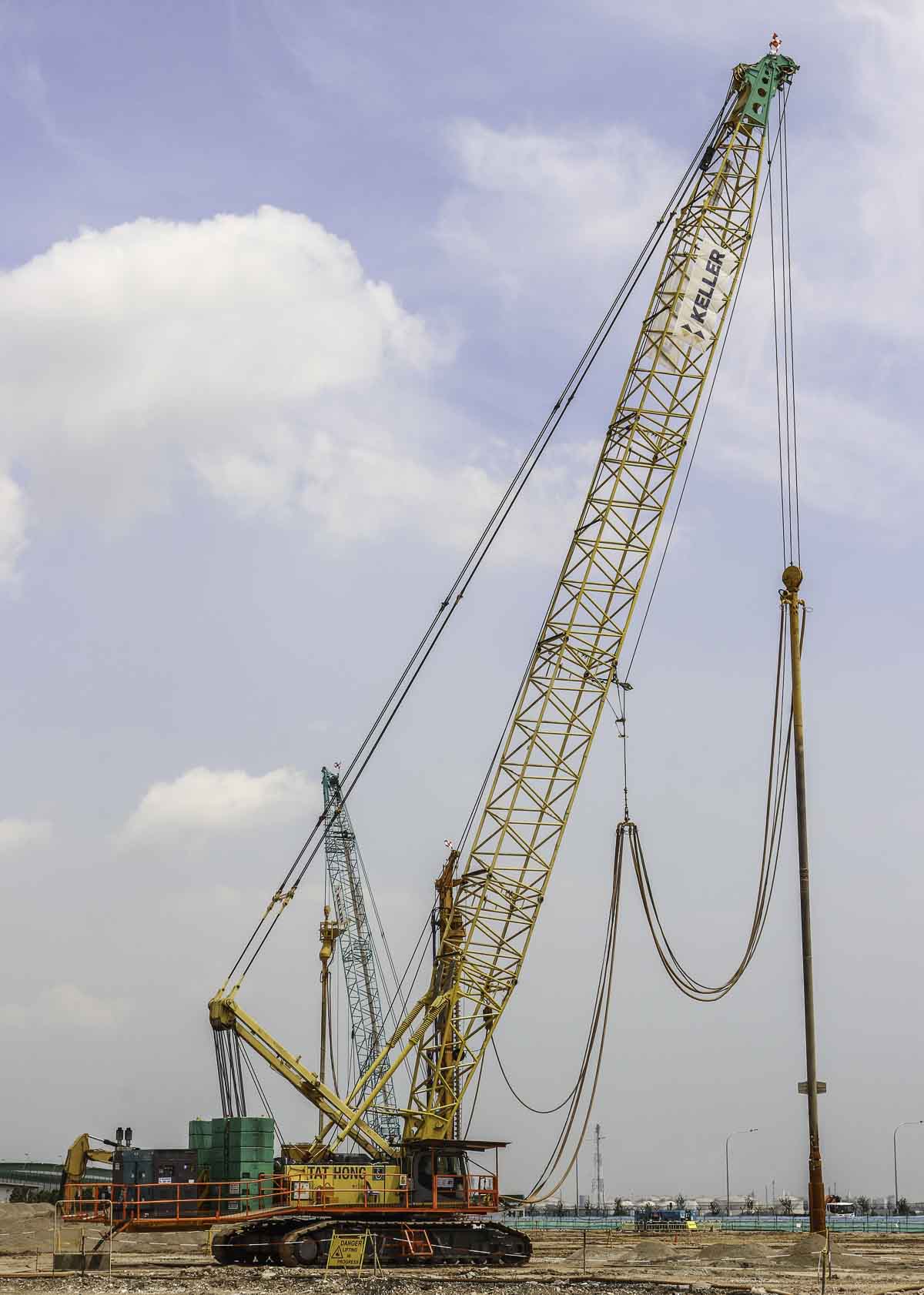

On this site the crane was fitted with a 45.75 meter long main boom. In this configuration is the crane able to hoist maximum 80 tonnes on a 9 meter radius or 13.3 tonnes on a 41.2 meter radius.

A very sharp crane of Tat Hong!
