Krupp KMK2035 - Zettler

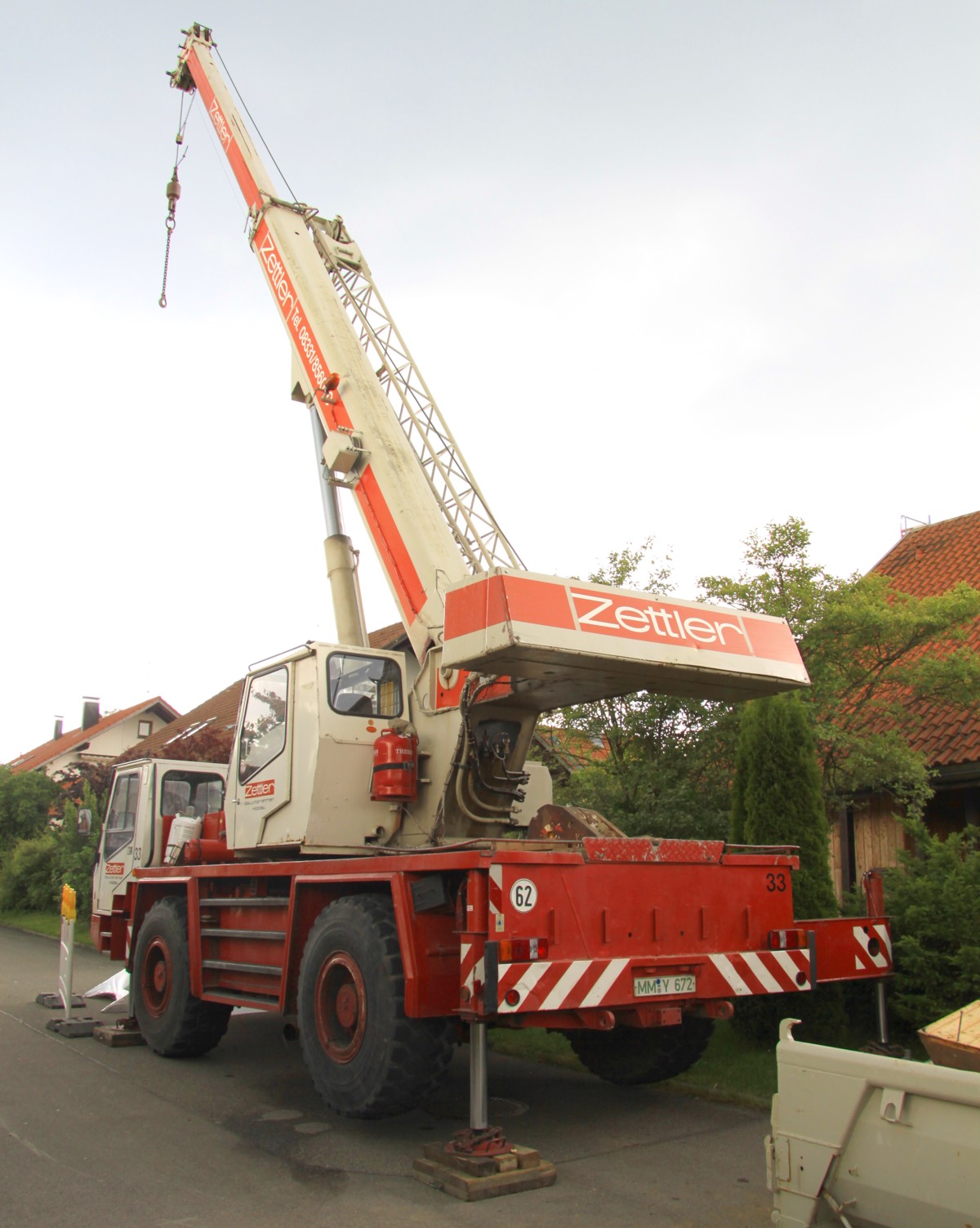

It is a 35 tonne crane on 2 axles. The year of manufacture of the crane is 1988.

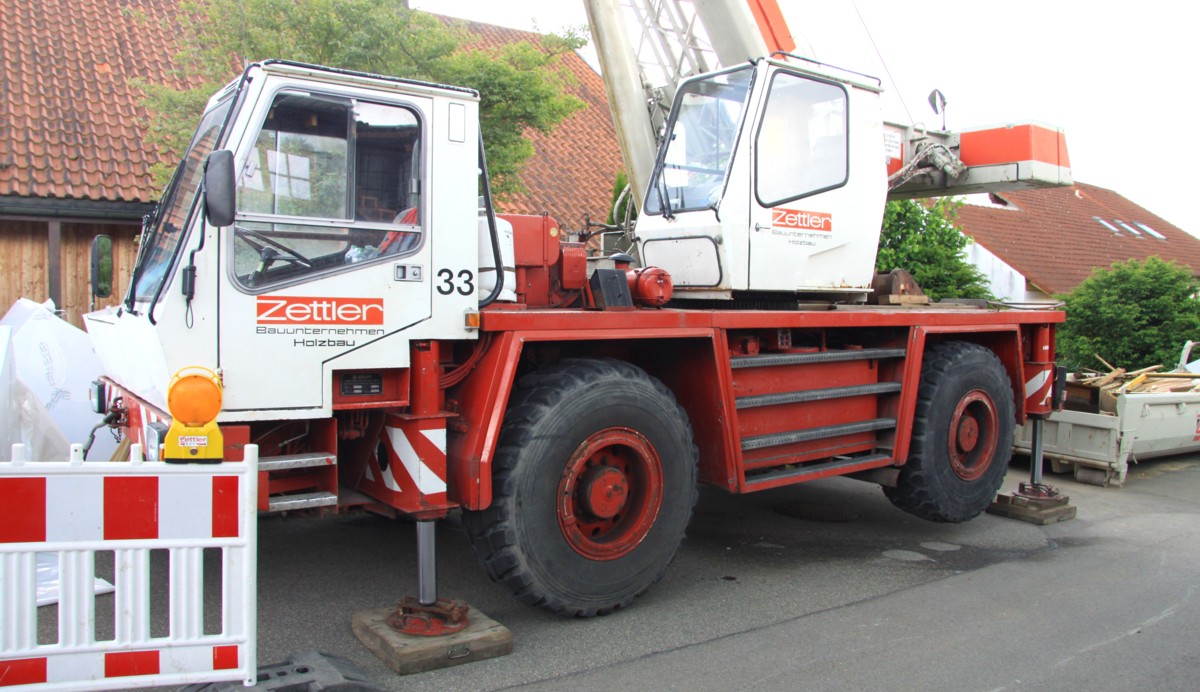

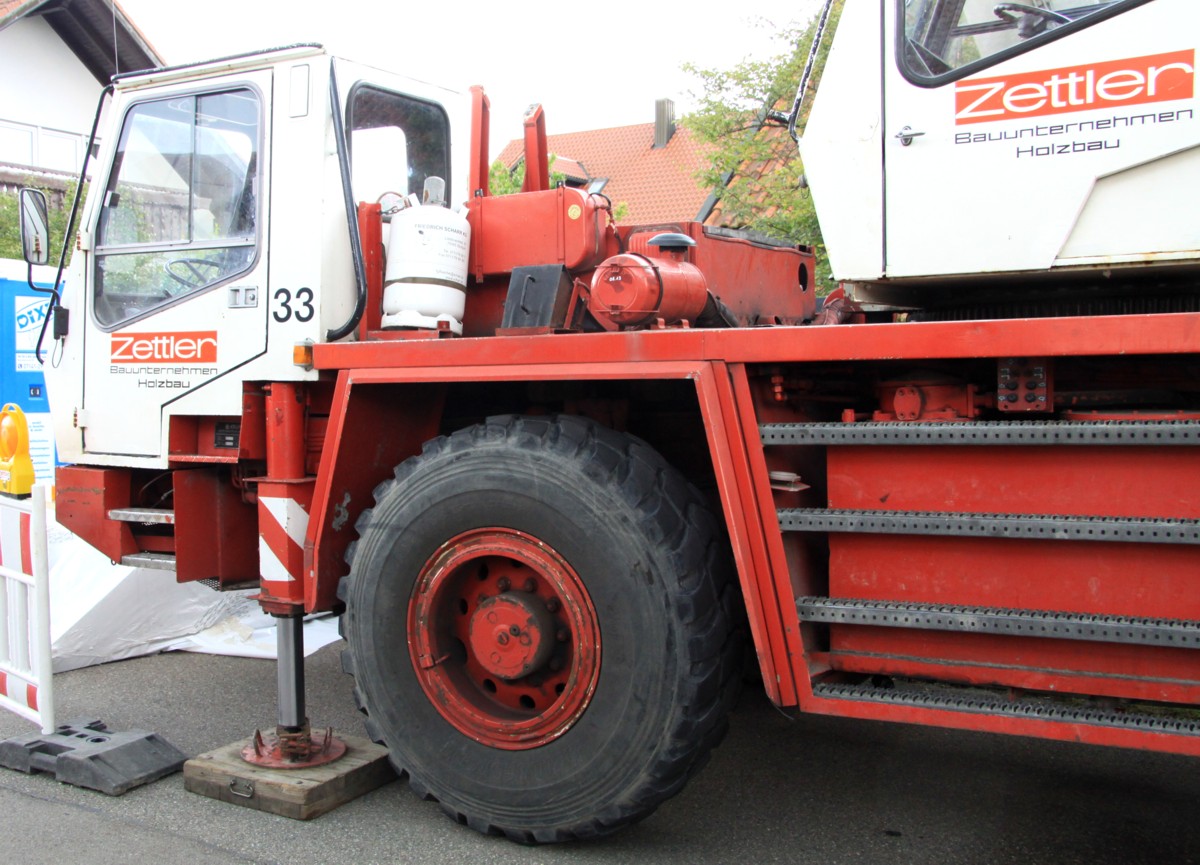

Because the crane was standing on the street, the outriggers are retrackted after working time. The undercarriage has a single person cab. Packed is the crane 10.5 meters long, 2.8 meters wide and 3.4 meters heigh.
The crane is driven by a 8 cylinder Deutz F 8 L 413 aircooled diesel engine with 256 hp, this engine is for driving and crane operating. A speed of 80 km/h can be reeched on the street.
The crane has a 16 mm hoist rope with a 4.2 tonne linepull.

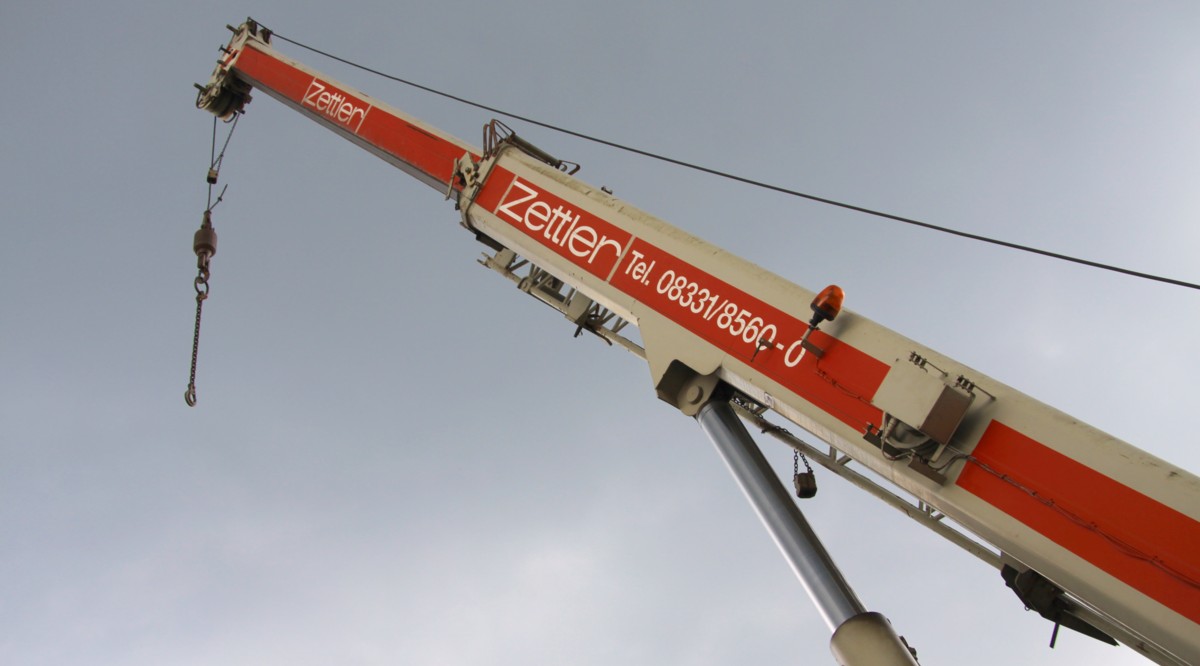

The main boom has three slide parts and has a maximum length of 29.6 meters.

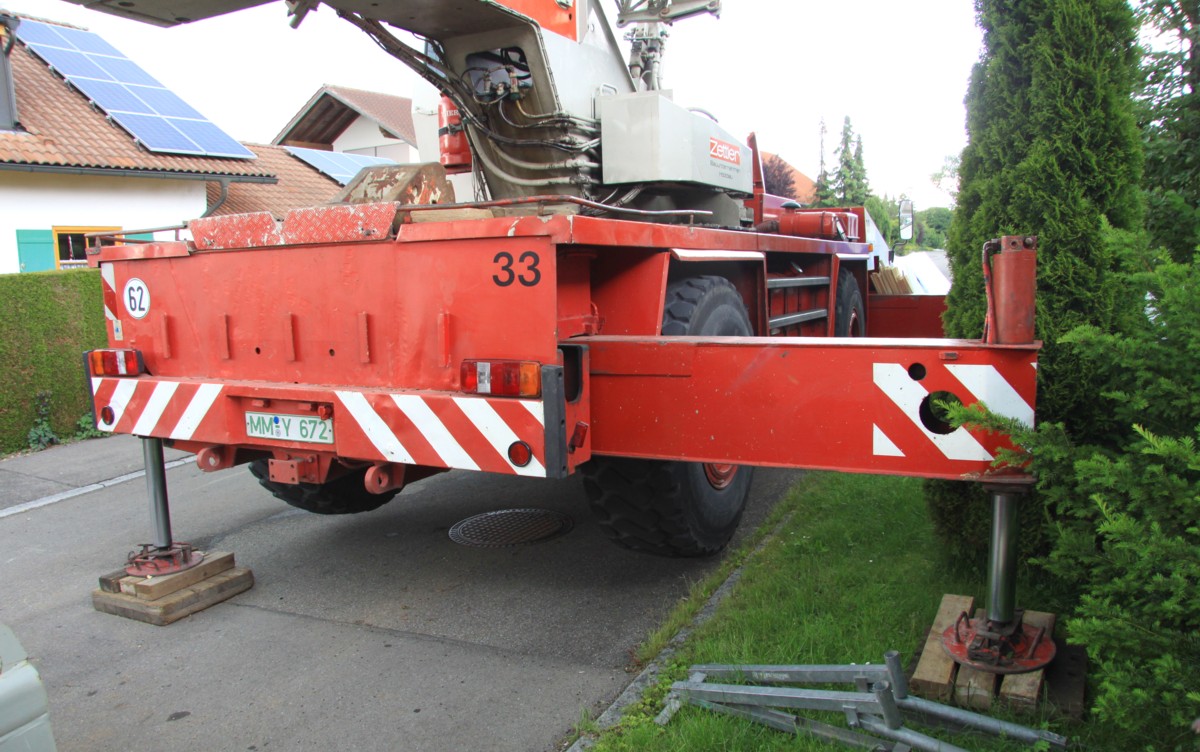

The full outrigger base measures 6 x 6 meters.

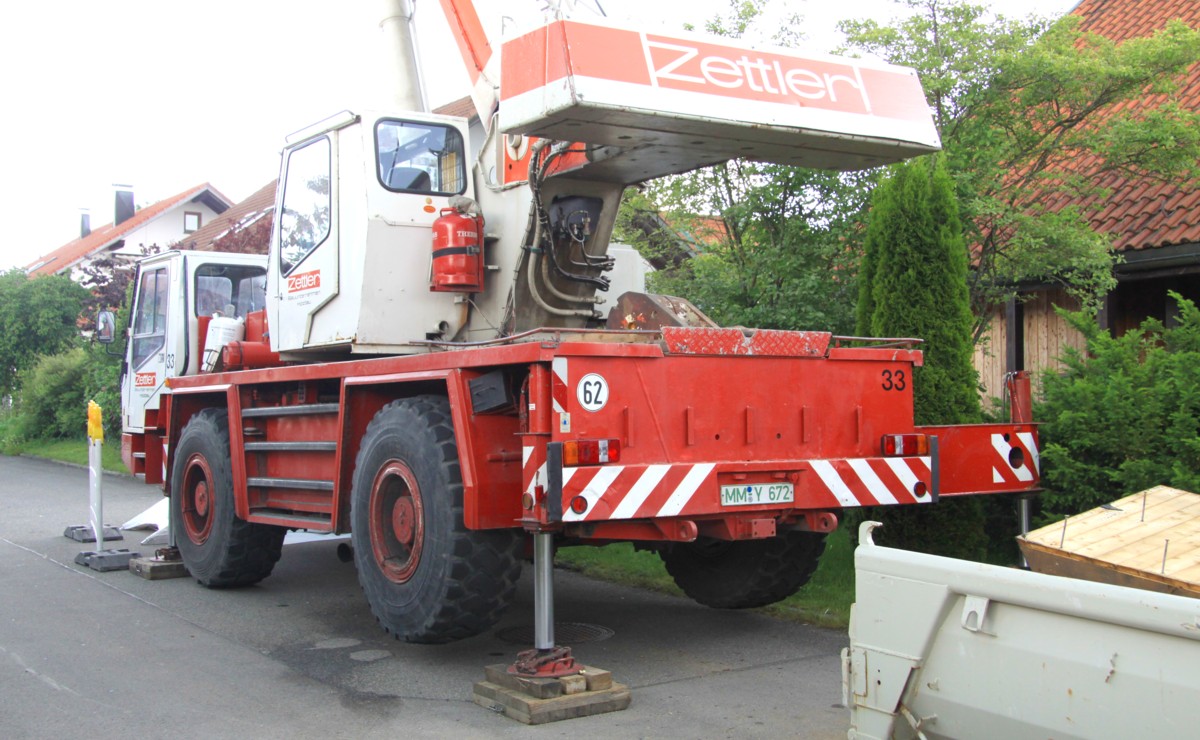

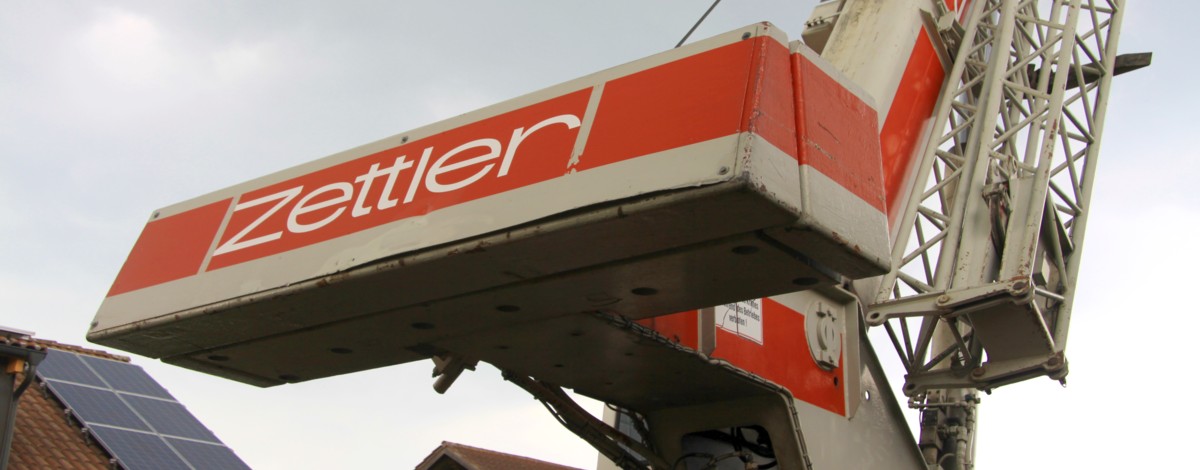

1.8 tonnes of counterweight are permanently mounted to the superstructure. A 3.5 tonne slab can be taken on the undercarriage, but Zettler doesn't do this. The main boom can be extended by a 13.1 meter folding jib. A hook height of 39.6 meters can be reached then.
