Liebherr LR 1300 - PVE

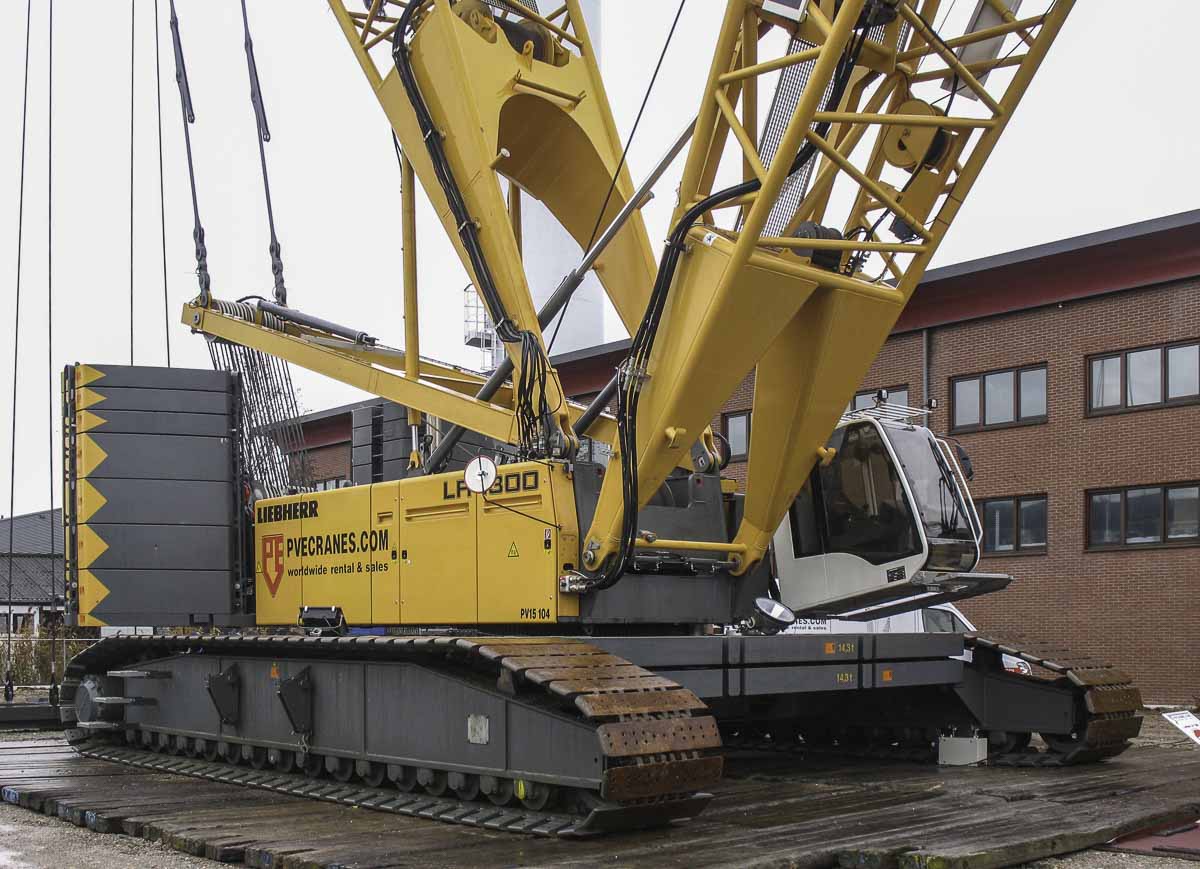

During an open day was PVE from Oosterhout (NL) showing this interesting Liebherr LR 1300. It is a 300-tonne crawler crane with year of manufacture 2008. It was the first time a Liebherr LR 1300 was erected in superlift configuration in the Netherlands.

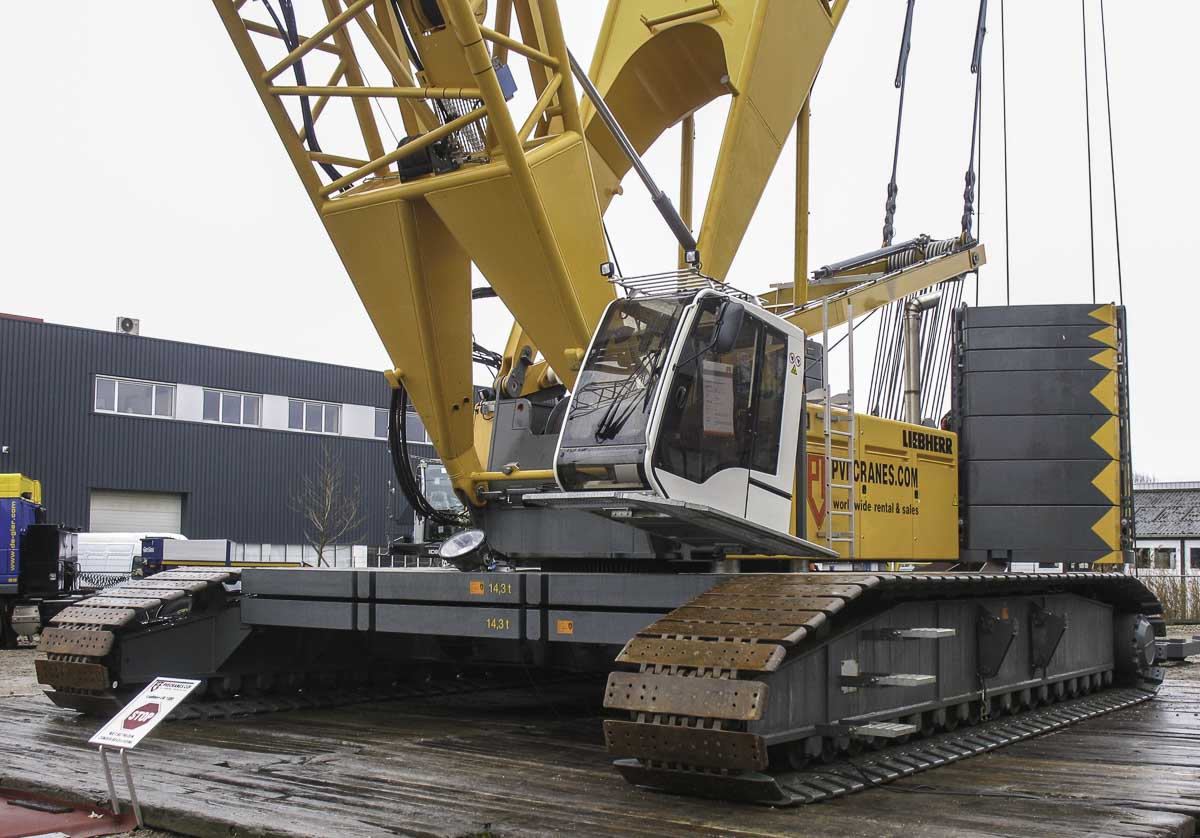

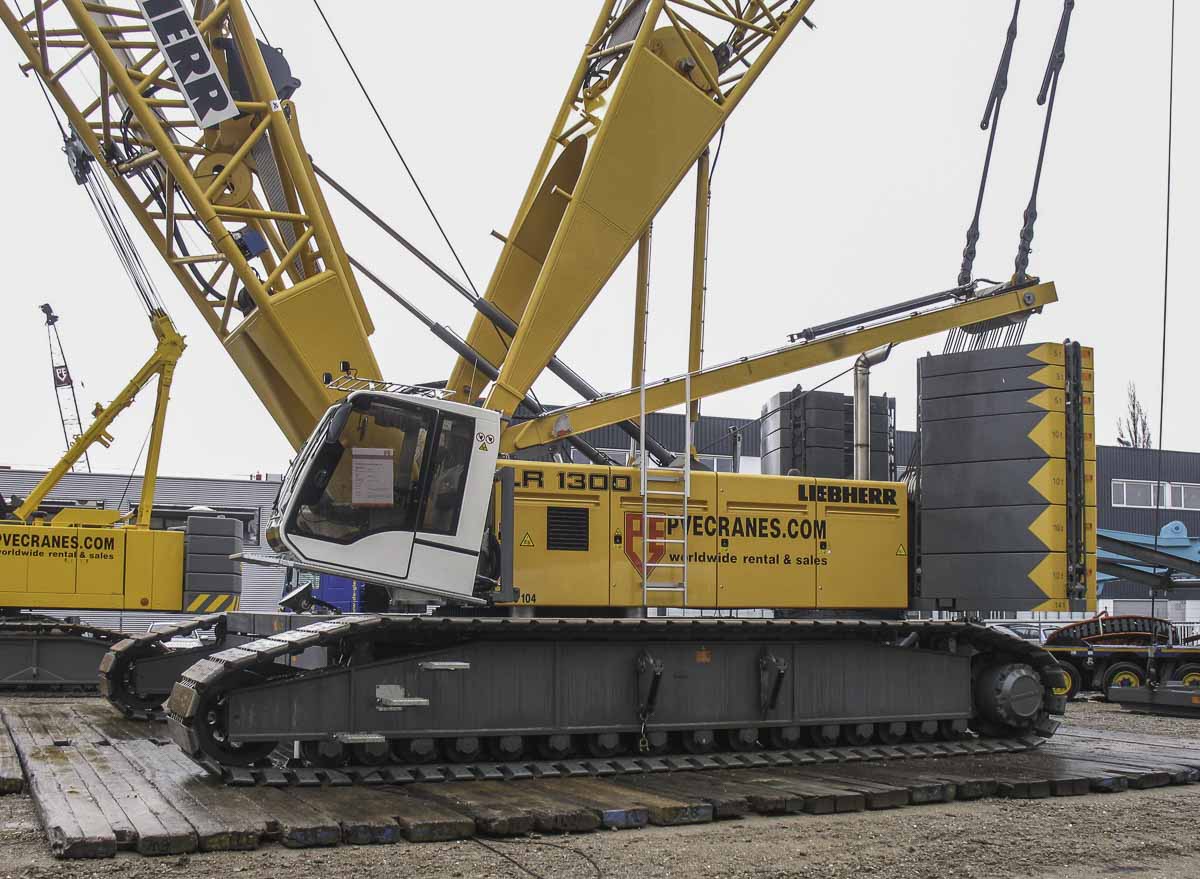

The undercarriage is 9.65 meters long and 8 meters wide. The tracks are each 9.65 meters long, 1.2 meters wide and 1.465 meters tall. The mass each is 22.35 tonnes.

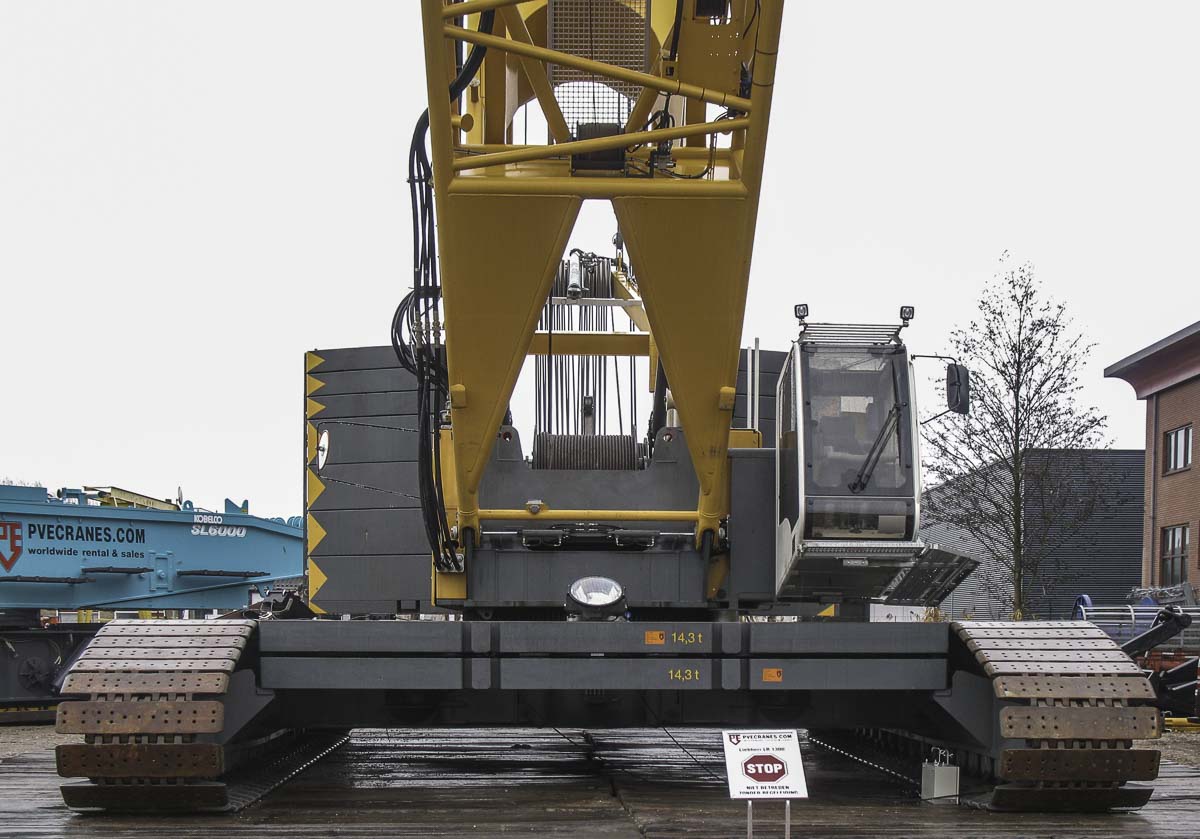

Between the tracks is in total 57.2 tonnes of central counterweight. That exists out of four slabs with each a mass of 14.3 tonnes.
The crane is powered by a Liebherr D 9508 A7, an 8-cylinder diesel engine with a power of 450 kW (612 hp).

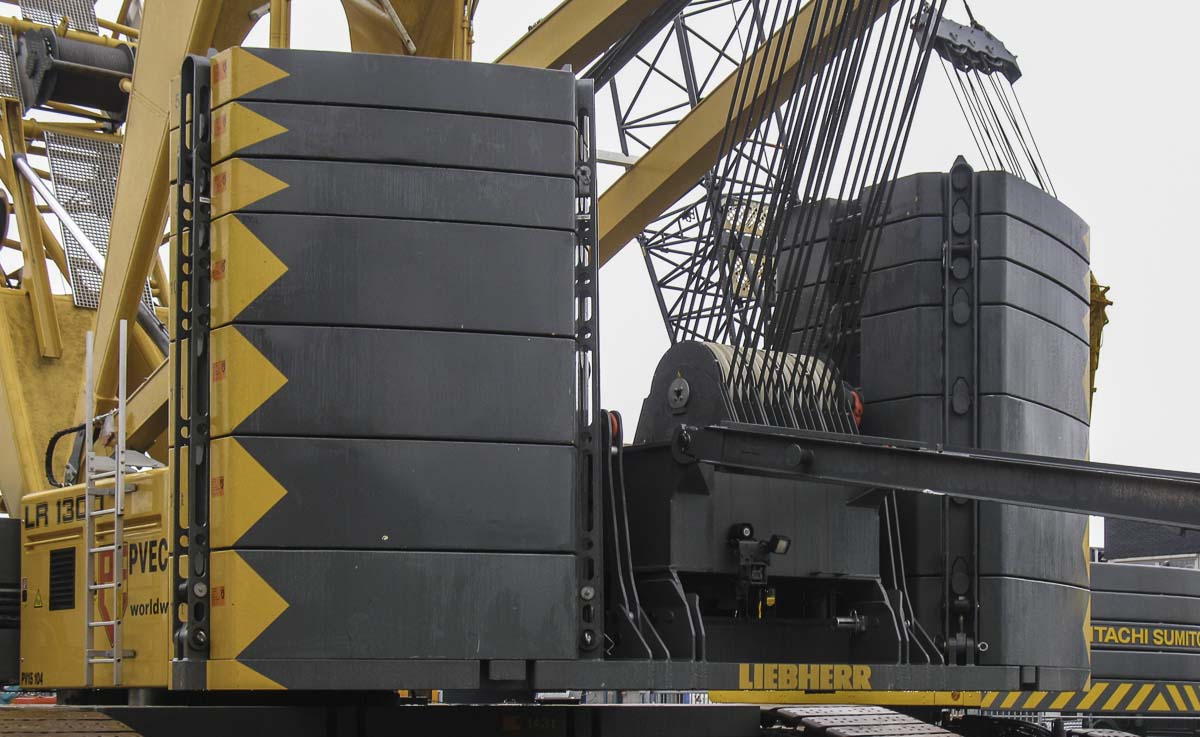

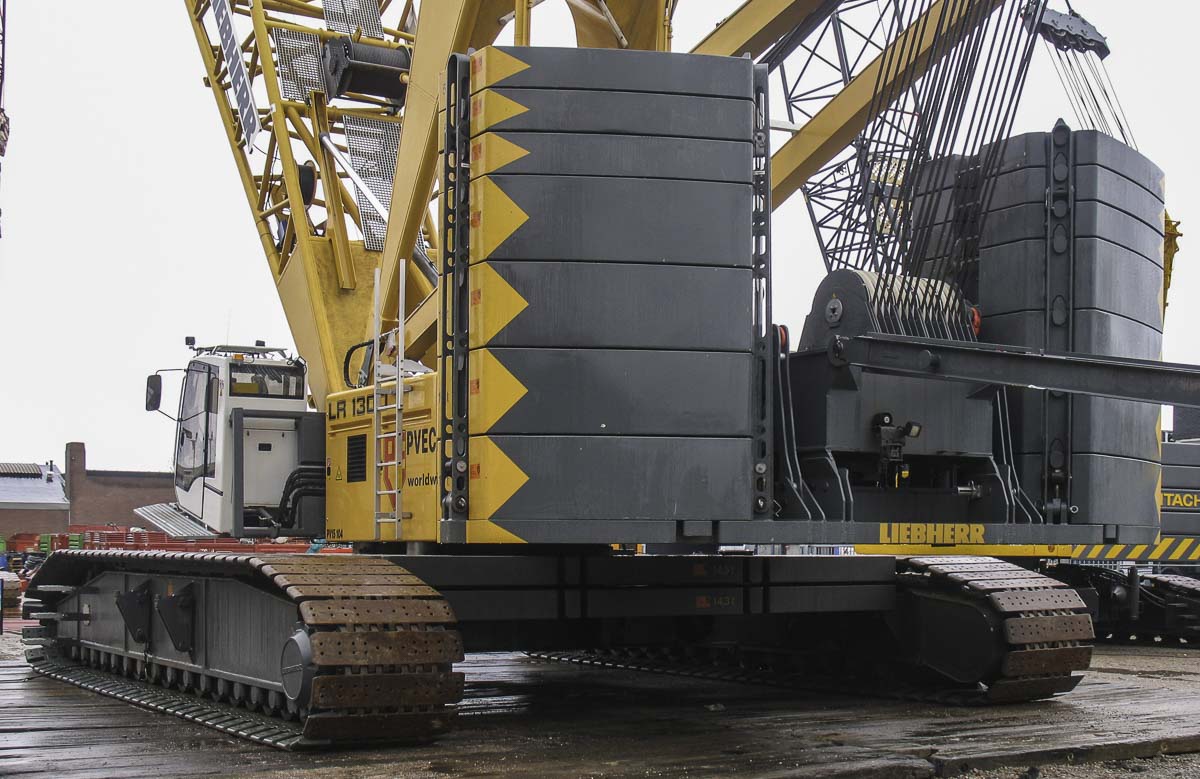

Attached to the superstructure is a counterweight of 124 tonnes, the counterweight has a 6.98 meter tailswing.

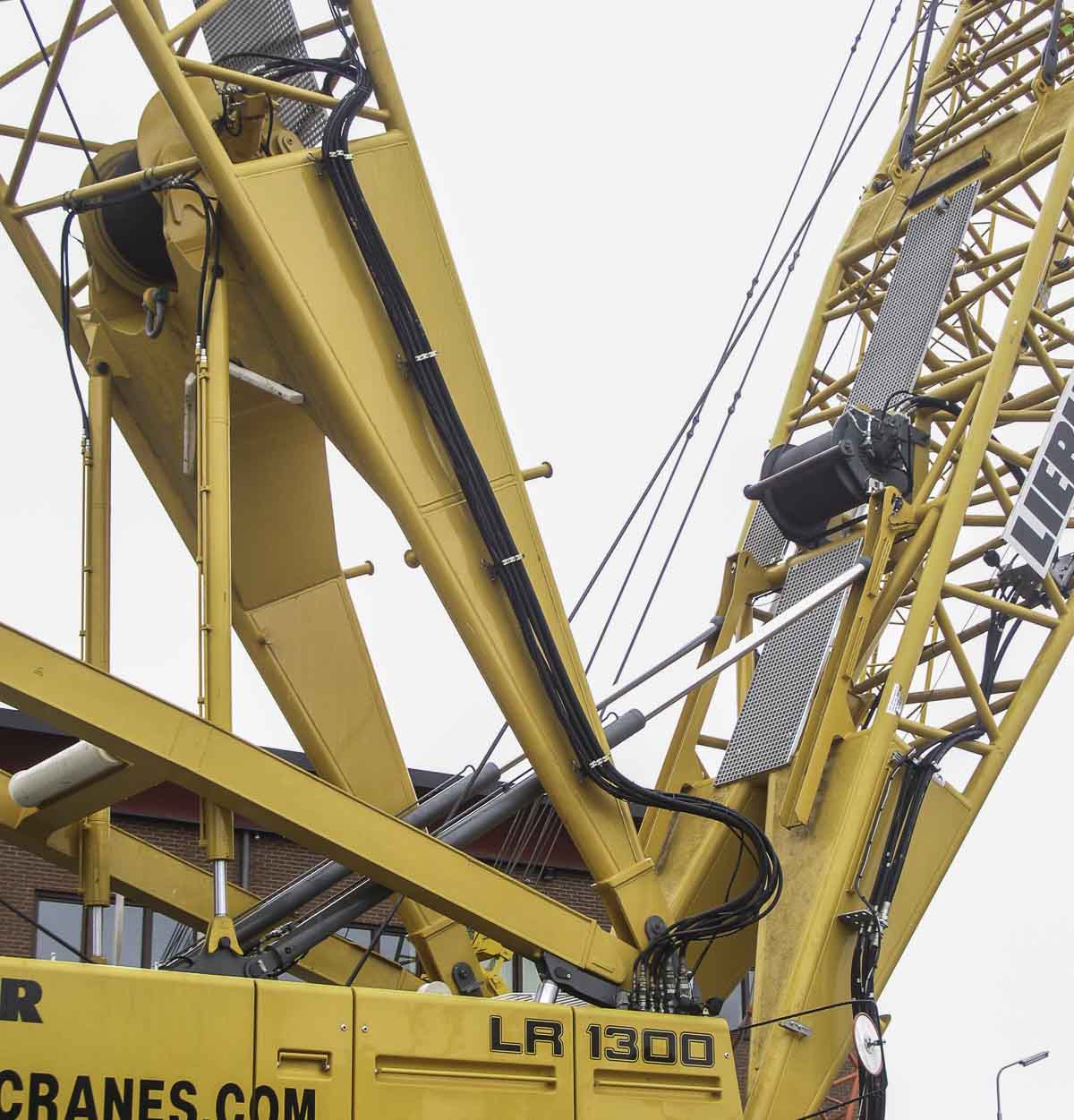

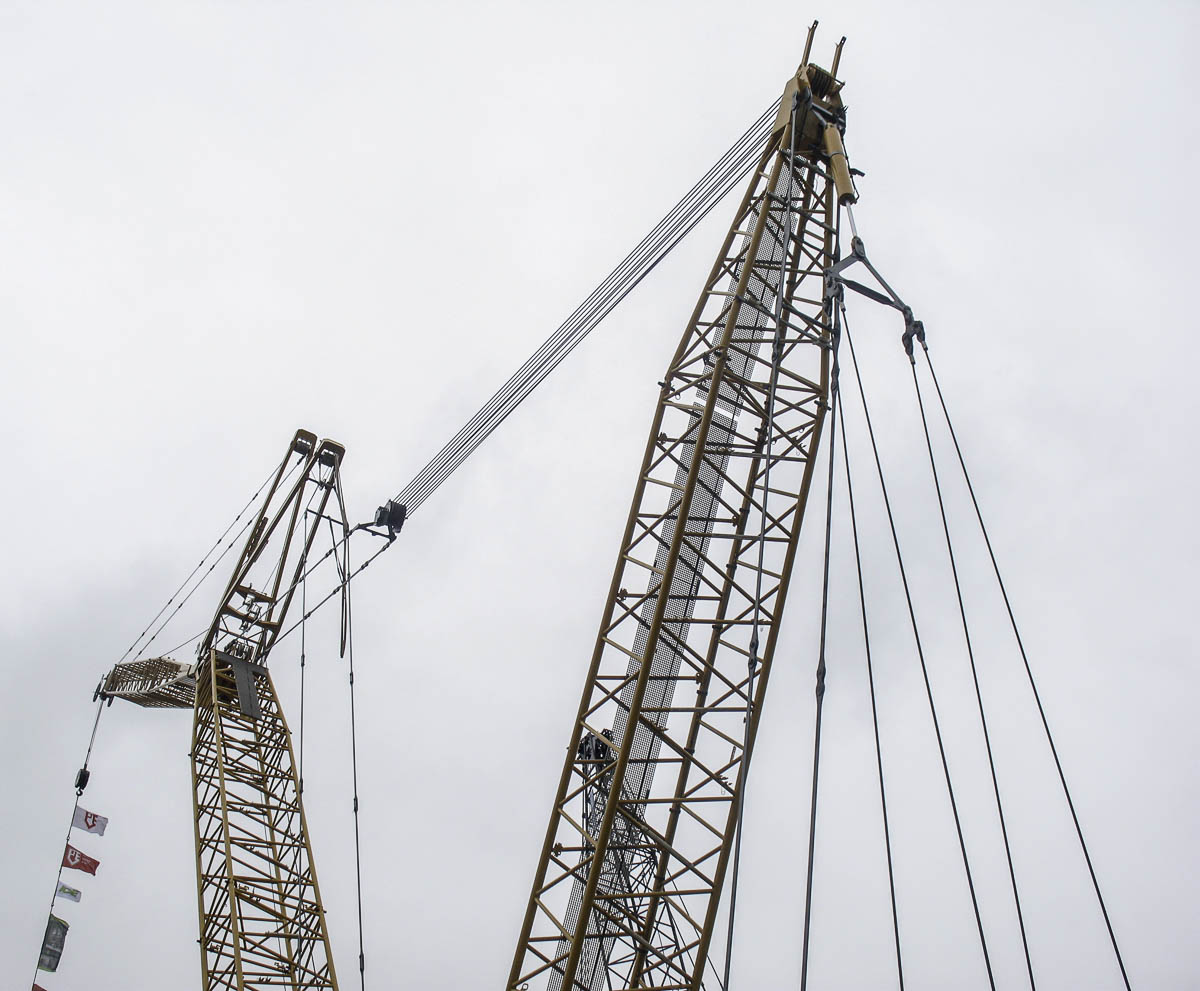

The superlift boom has a 30 meter length. In the boom foot of the superlift boom is the adjustment winch for the main boom mounted. On the boom foot of the main boom is the adjustment winch for the luffing jib mounted.

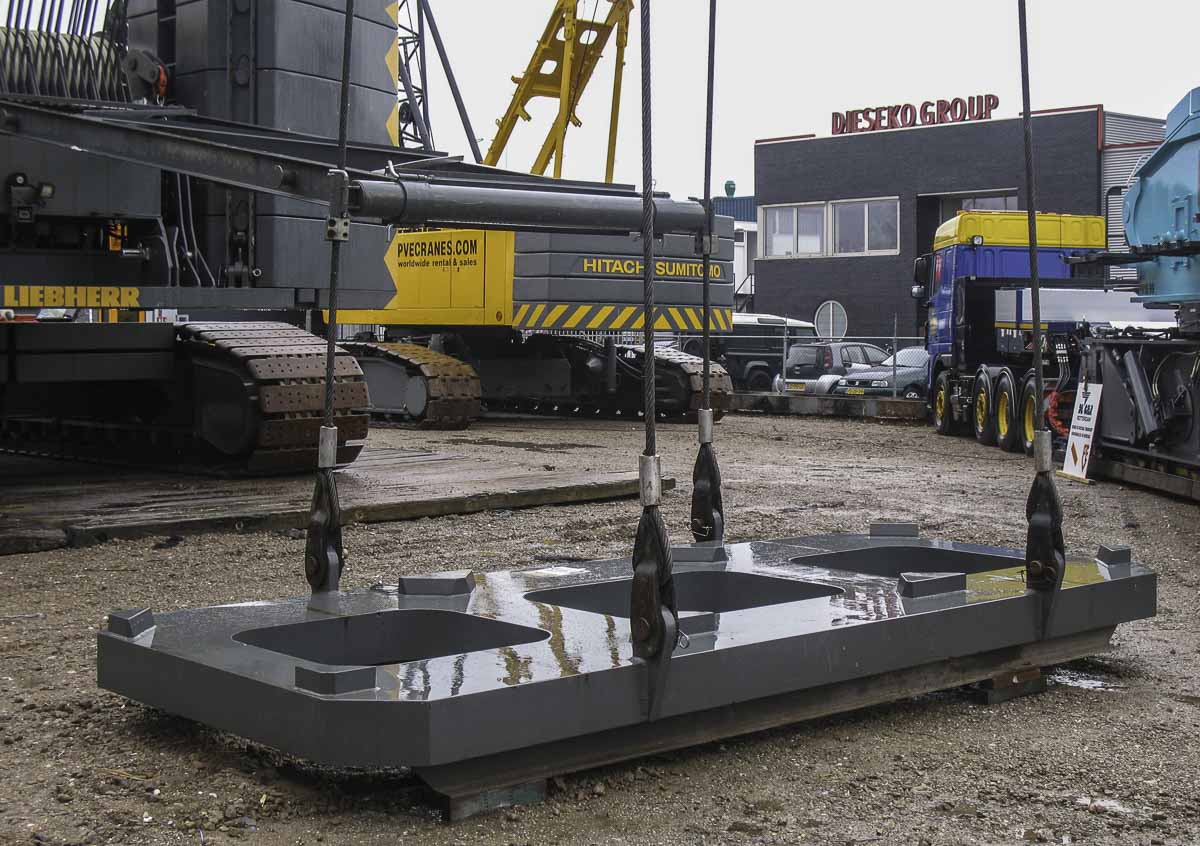

Attached to the superlift is hanging maximum 120 tonnes of counterweight on a 13 meter counter radius.

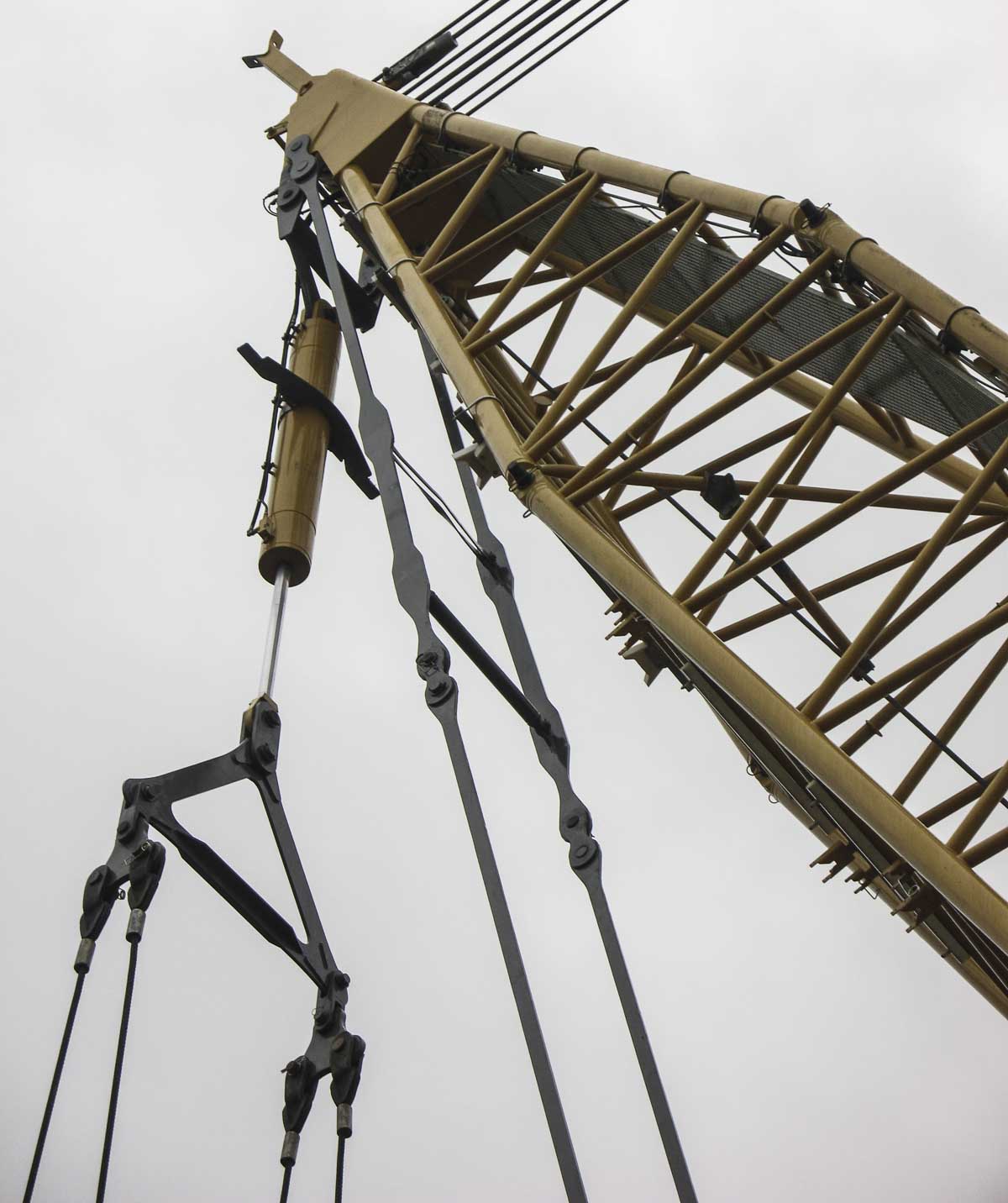

Here was the crane fitted with a 44 meter main boom with a 35 meter long luffing jib. The maximum combination is 86 meters of main boom with a 113 meter long luffing jib. A very interesting crane of PVE!
