Spierings SK599-AT5 - Saan

Saan from Amsterdam (NL) was using this Spierings SK599-AT5 at the sewage disposal in Amsterdam (NL).

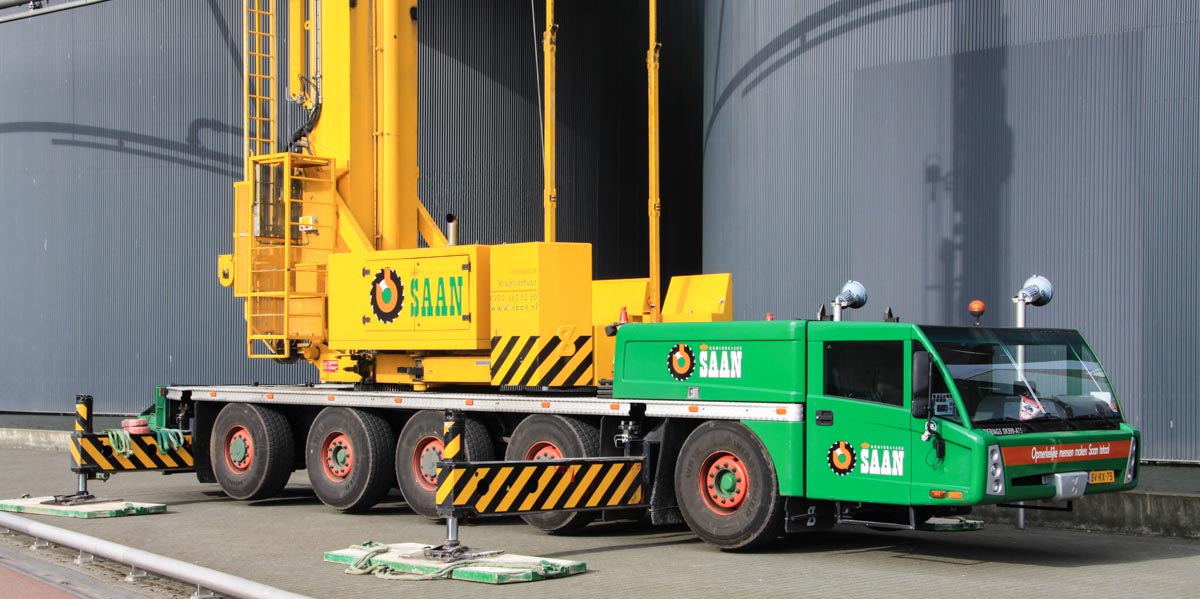

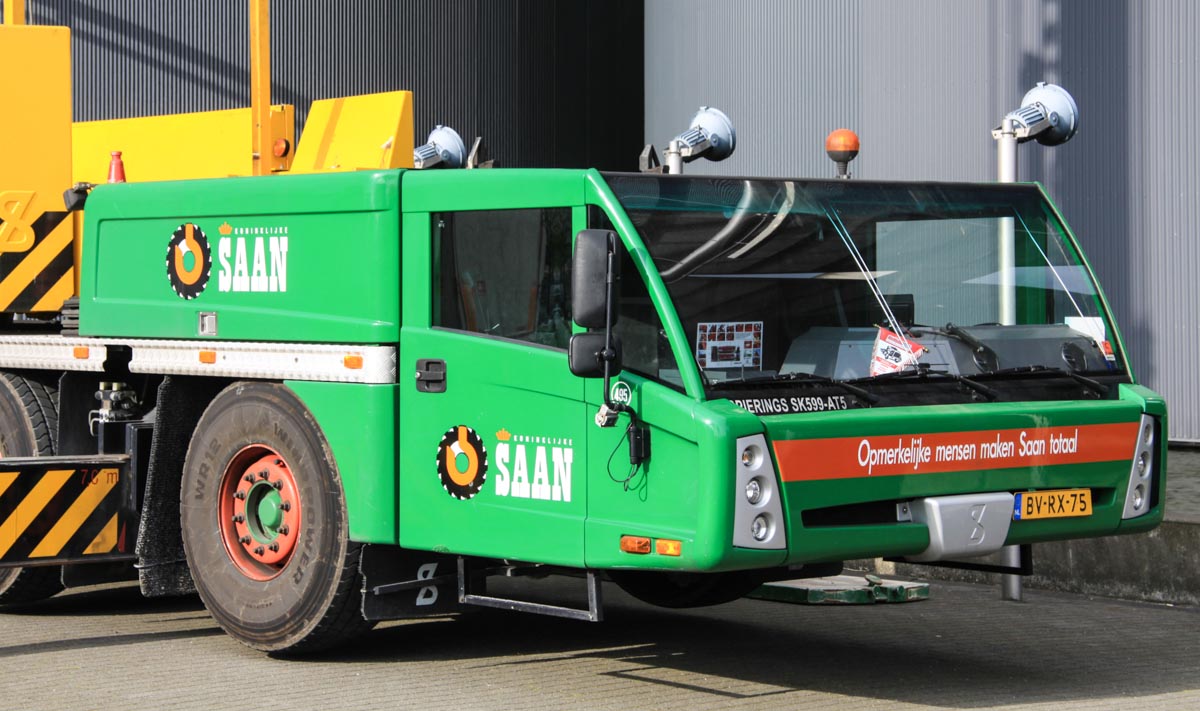

The 5 axle crane carrier is powered by a DAF MX 375, a 12.9 liter diesel engine with 510 hp. Over a ZF gearbox are the axles 2, 3 and 5 driven. The crane could reach a maximum speed on the road of 83 km/h.

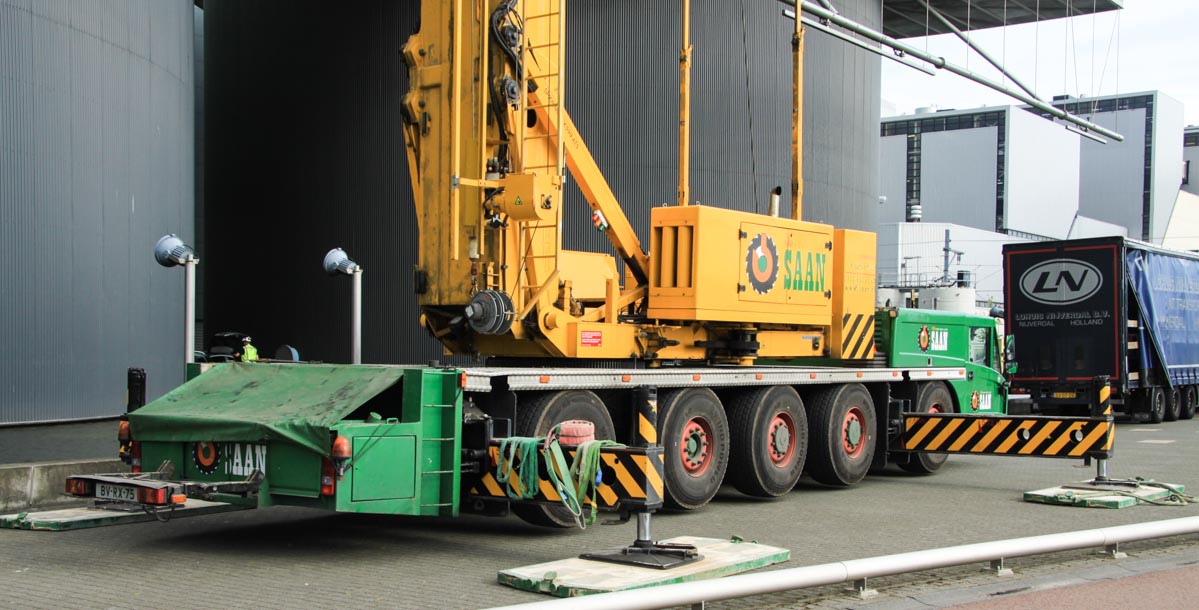

The outrigger base measures 7.5 x 7.66 meters, or half 7.5 x 5.72 meters. The tailswing of the counterweight is 4 meters.

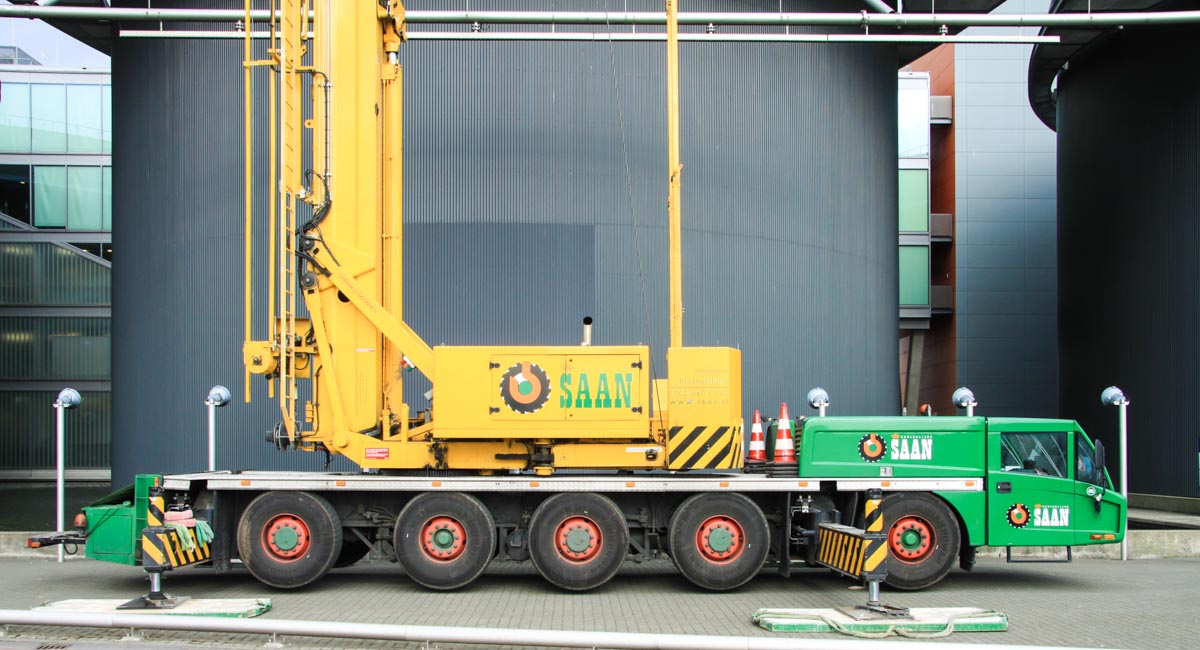

The crane has a 3 meter breadth and a 4 meter height. The transport mass is around 60 tonnes. The crane has a 15.43 meter transport length.

The superstructure is powered by a John Deere 4045HF285-T3 diesel engine with 142 hp. The counterweight weights 9.55 tonnes.

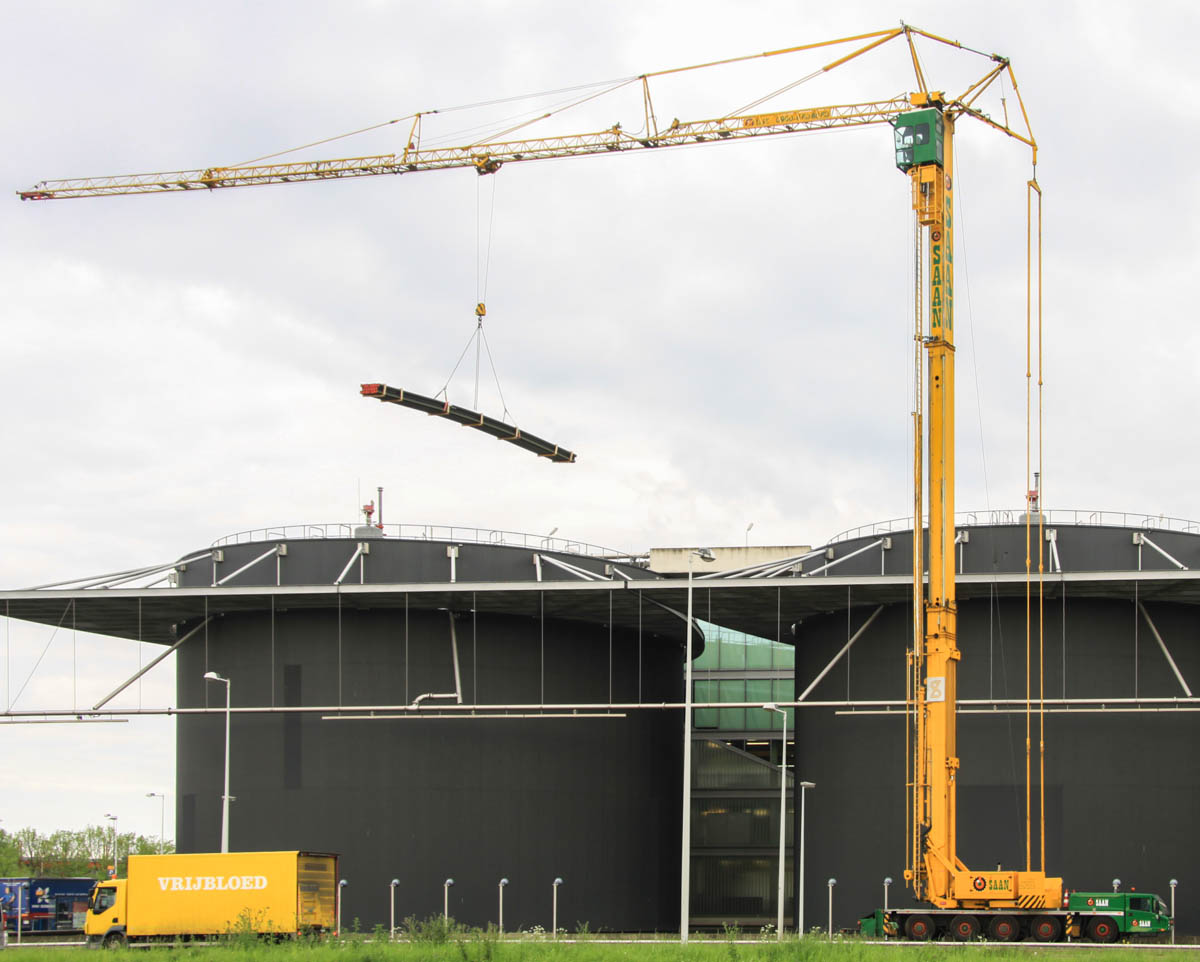

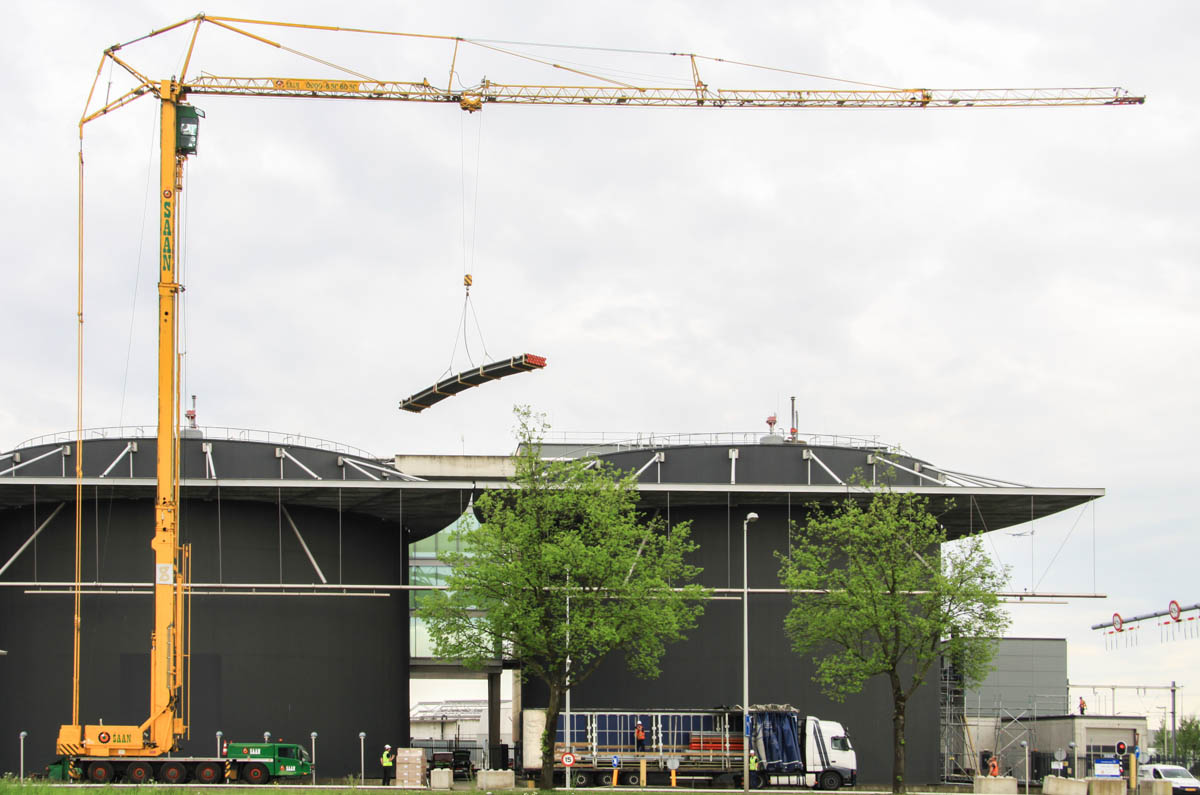

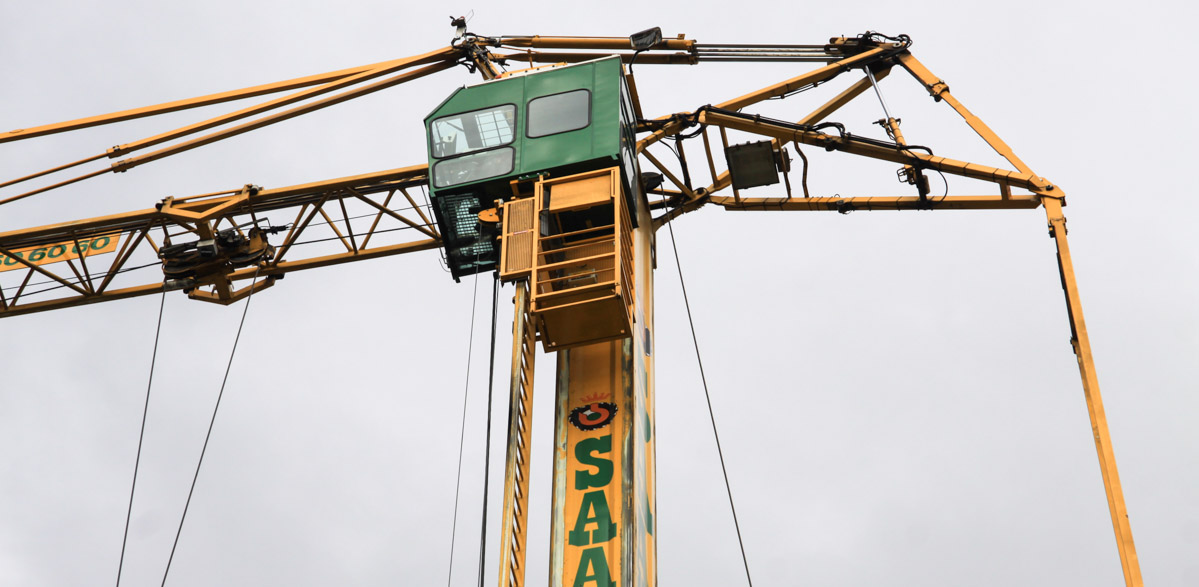

Normally the crane is erected with a 25.4 meter tower height (23.8 meter hook height), but when required (like here) is it possible to extend the tower to a 34.1 meter length (32.6 meter hook height).

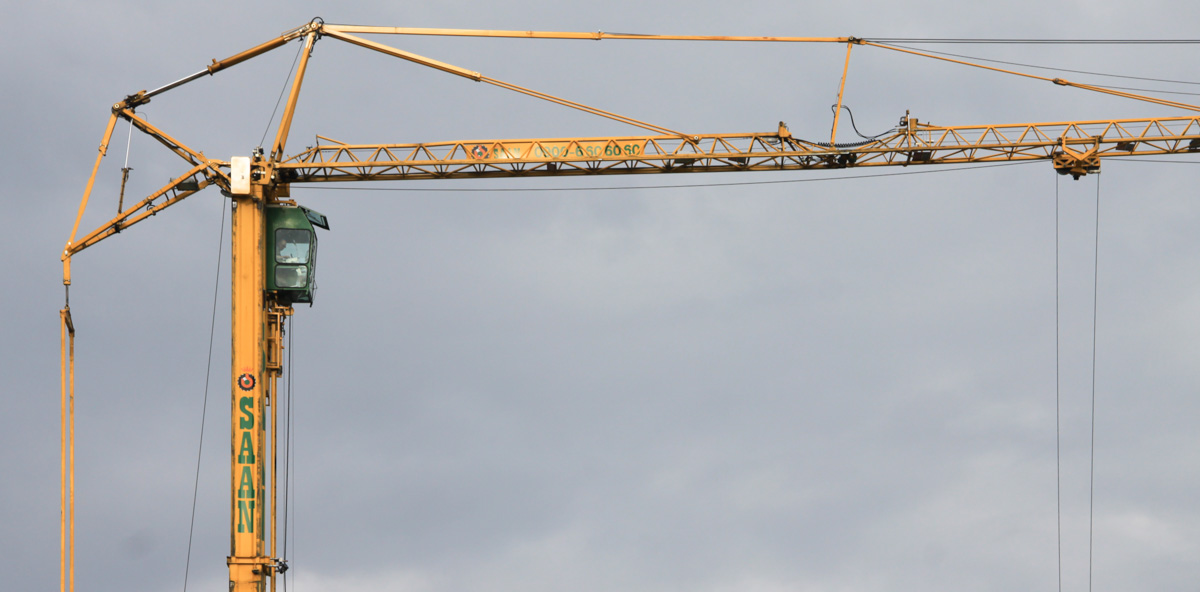

The jib has a 50 meter length. The maximum load of 9 tonnes could be lifted on a 13 meter radius with fully extended outriggers, at maximum reach still 1,900 kg could be lifted.
