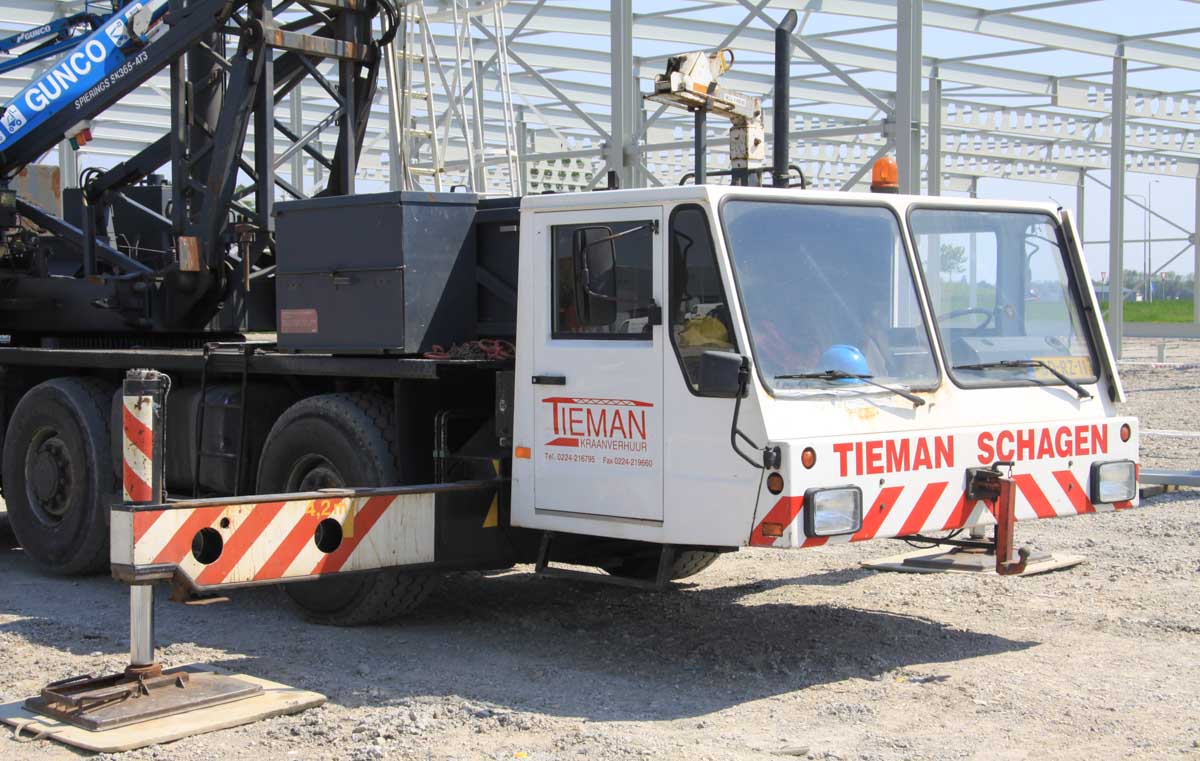

Tieman from Schagen (NL) is owning this Spierings SK365-AT3 with year of manufacture 1996. It is a used crane of construction company VBK, also from Schagen (NL).

The SK365-AT3 was produced around 60 times between 1995 and 2001.

Packed has this crane a 12.8 meter length, a 2.6 meter breadth and a 4 meter height. The total weight is 36 tonnes.

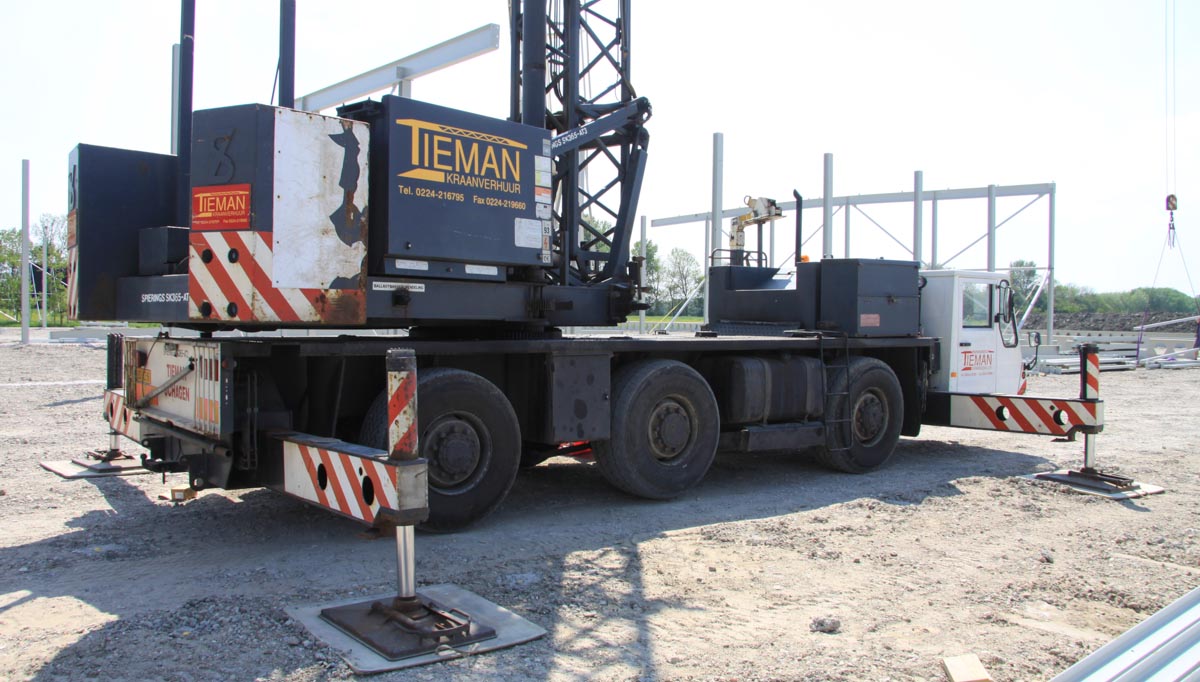

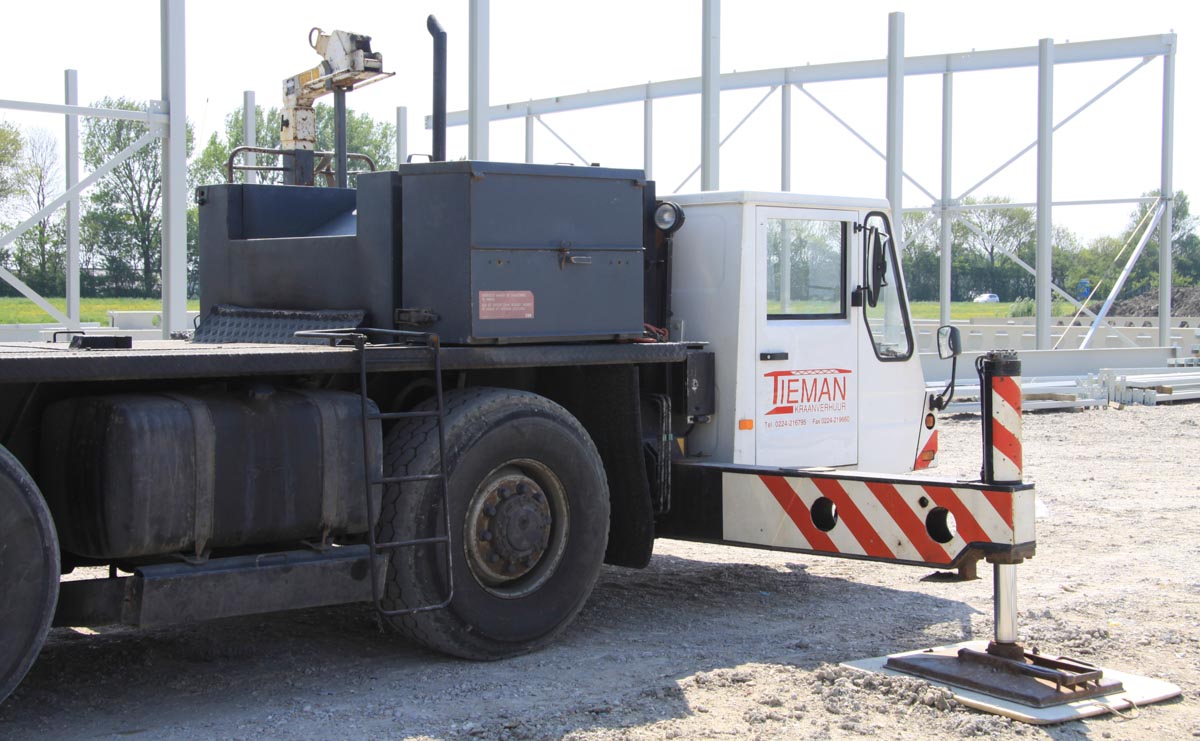

The outrigger base measures 6.9 x 5.8 meters, or half 6.9 x 4.2 meters.

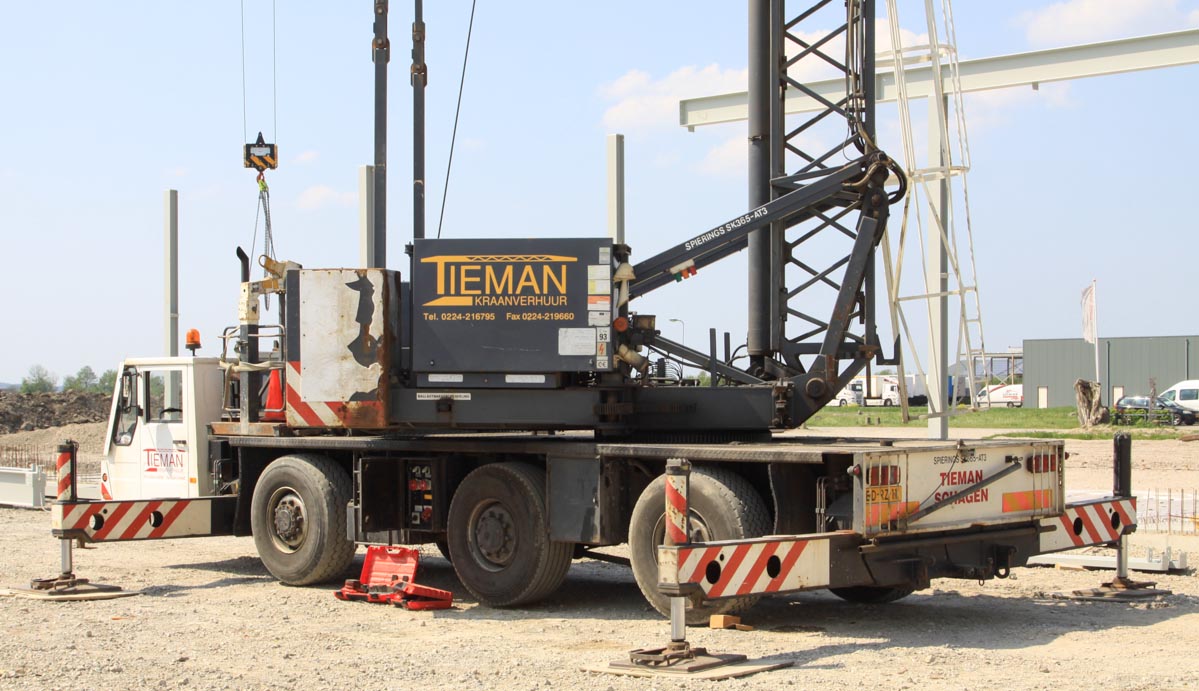

The counterweight weights 7 tonnes and has a 3.24 meter tailswing. During transport over the road are both counterweights swinged backwards.

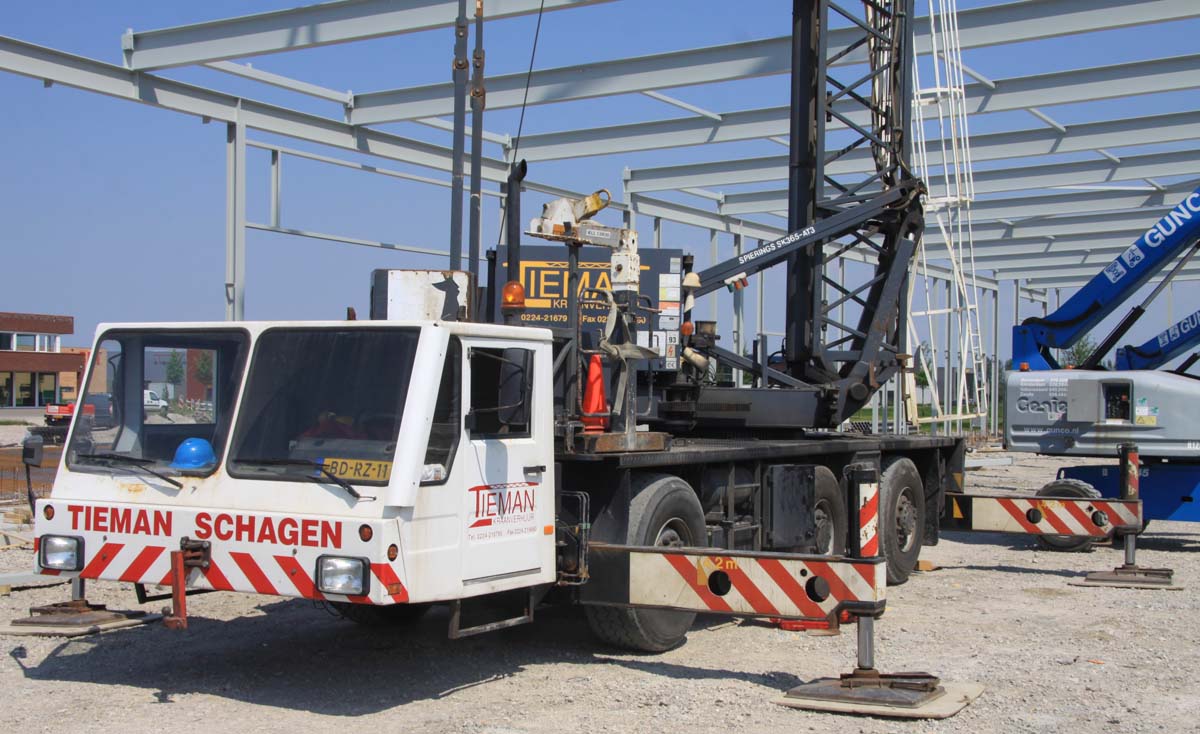

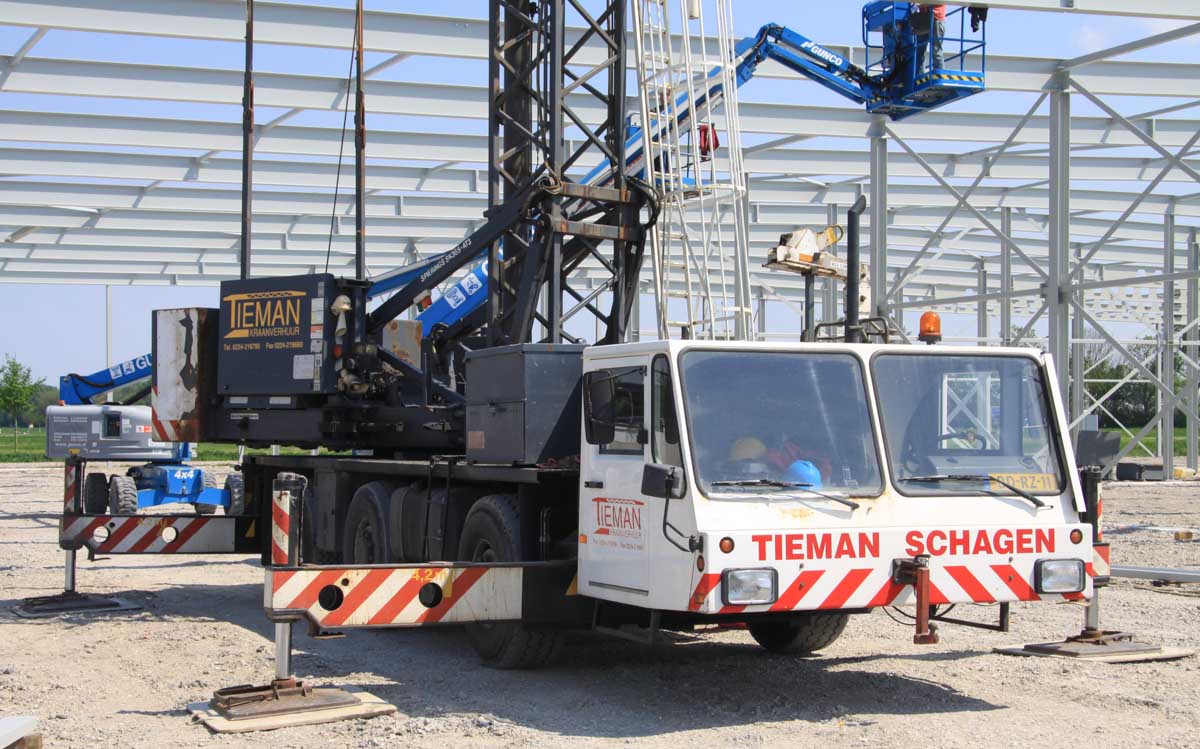

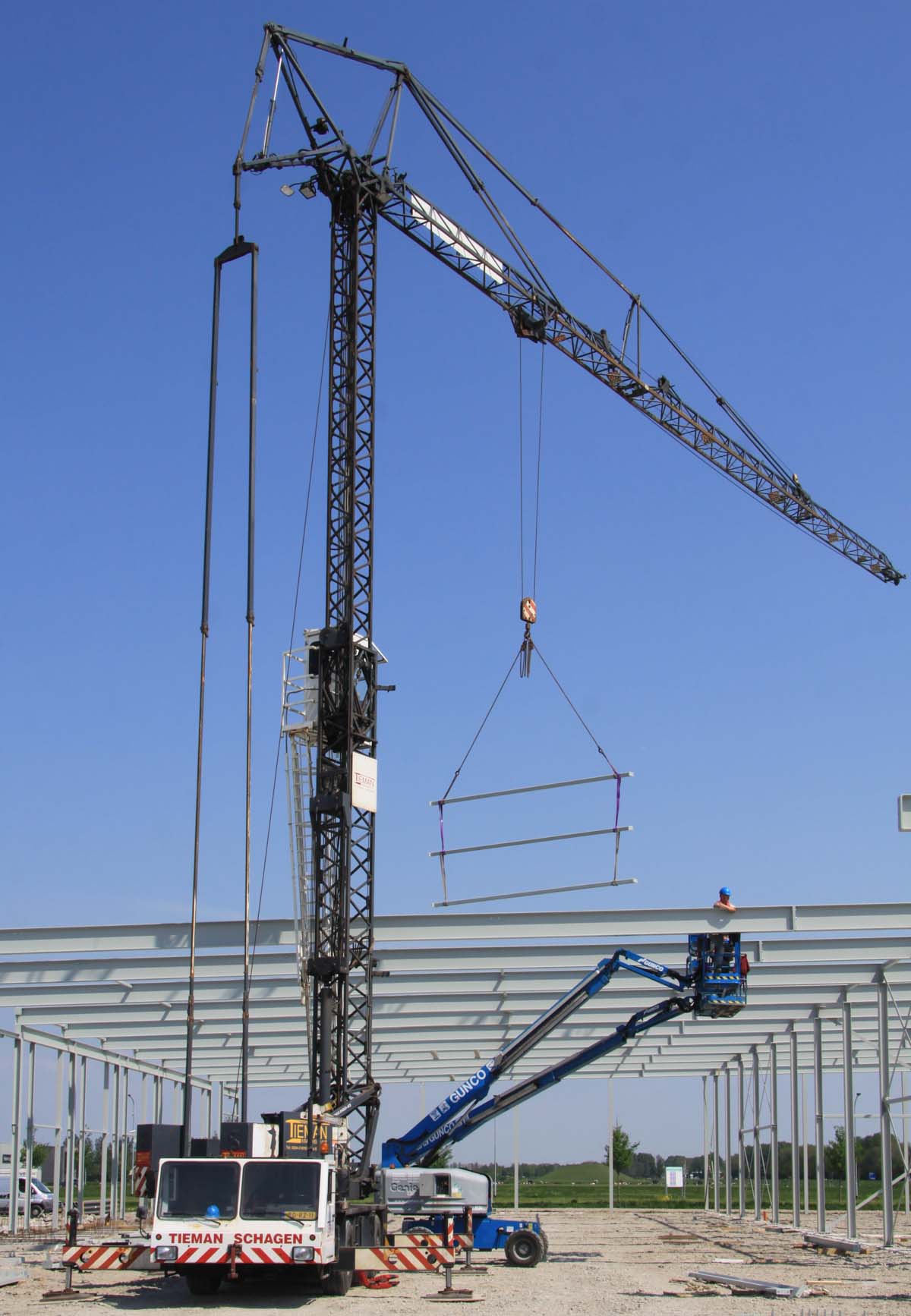

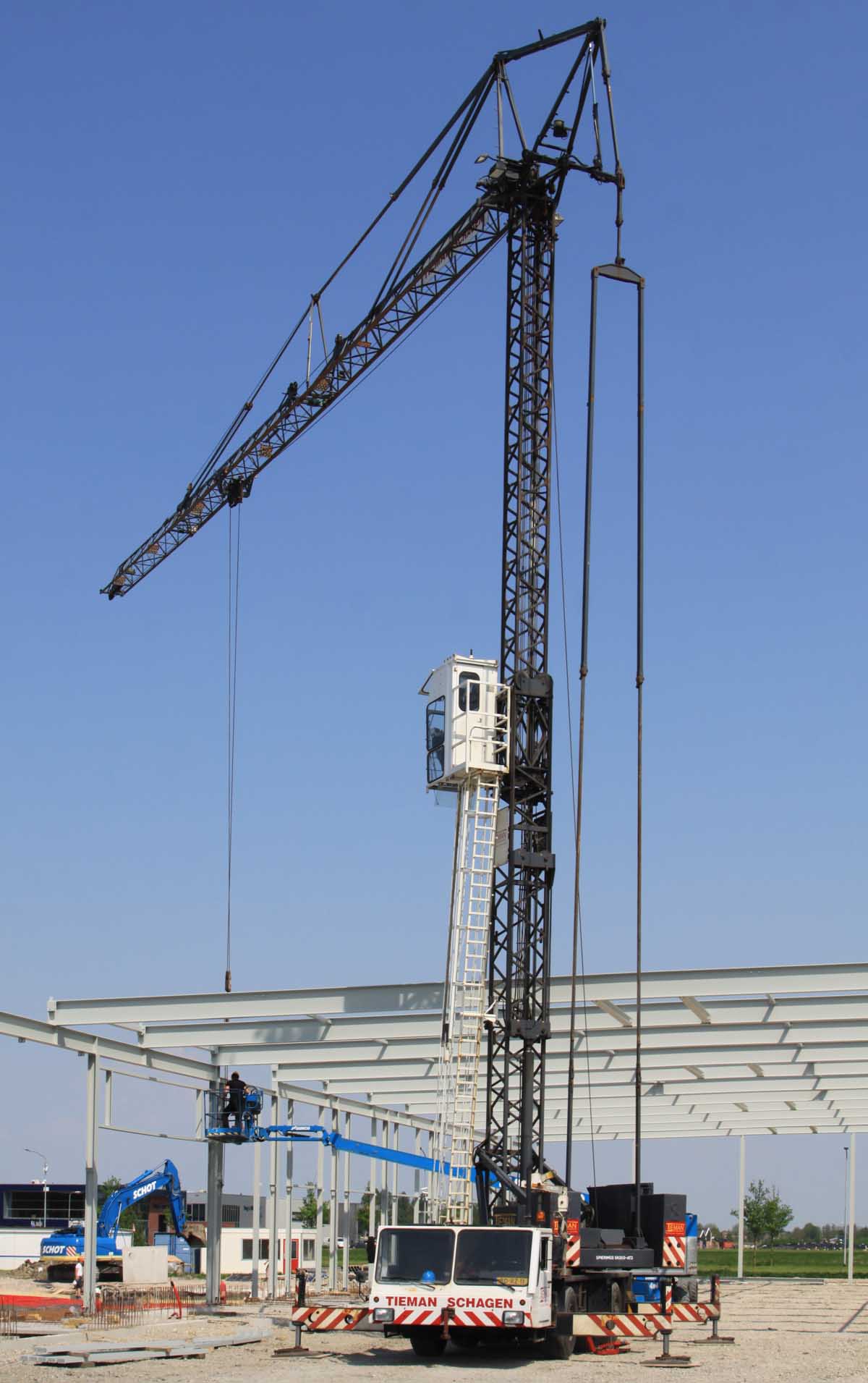

The crane was used here by the erecting of a large steel construction. The crane has a 19 meter hook height.

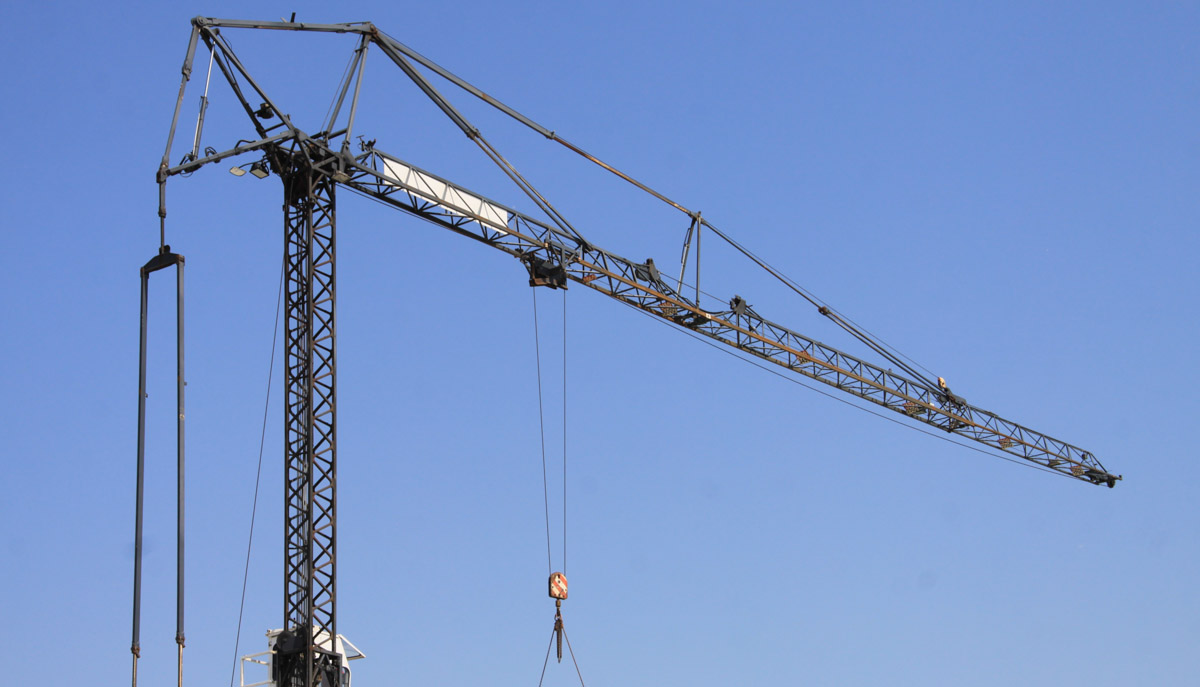

The jib has a 30.4 meter length and can lift 1.7 tonnes at the tip. The maxmimum load of 5 tonnes can be lifted up to a 12.1 meter radius.

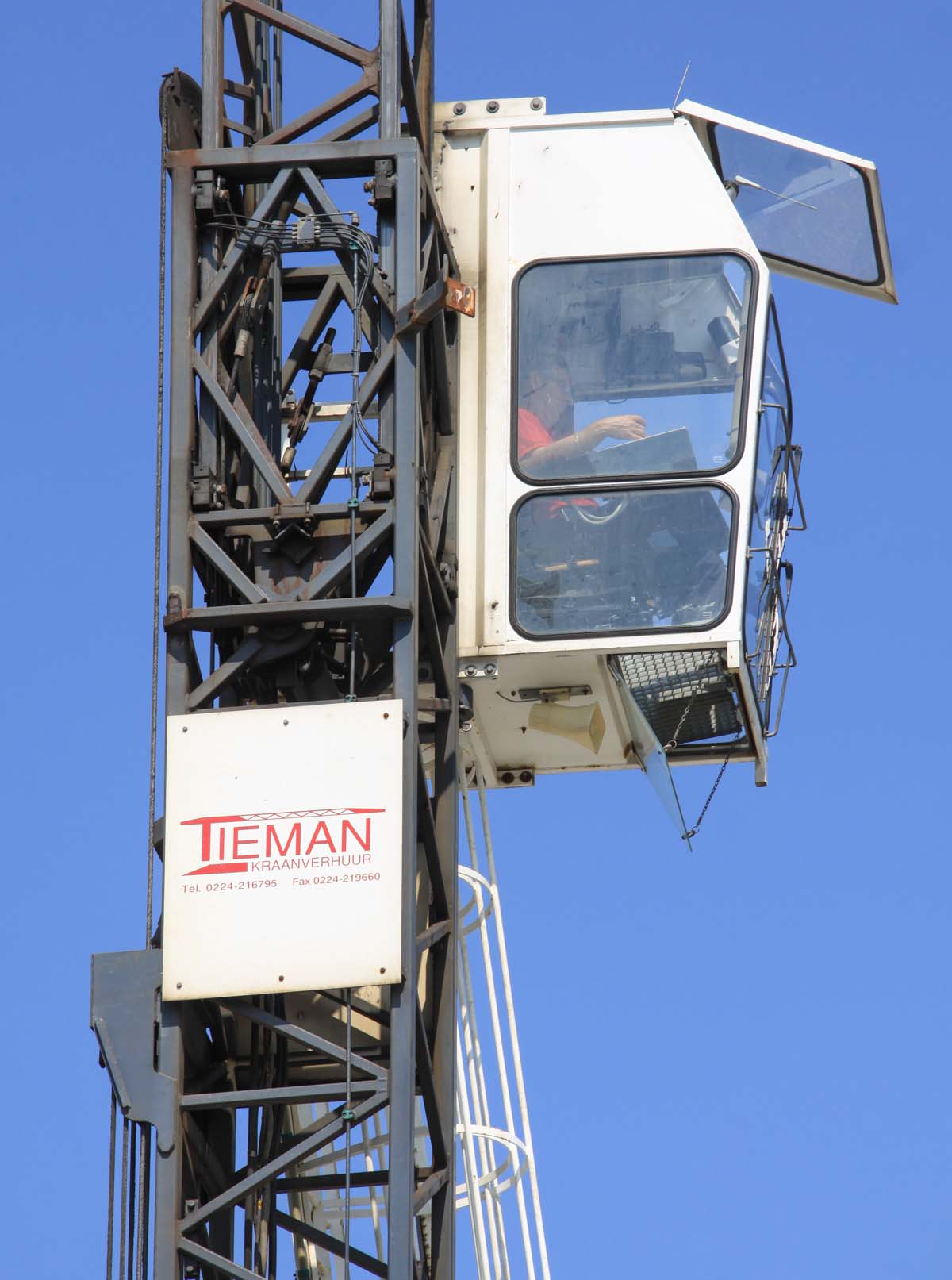

The crane can be operated from the cabin as per remote control.

The erection and dismantle time of the crane is around 15 minutes.
