Spierings SK498-AT4 - Wiesbauer

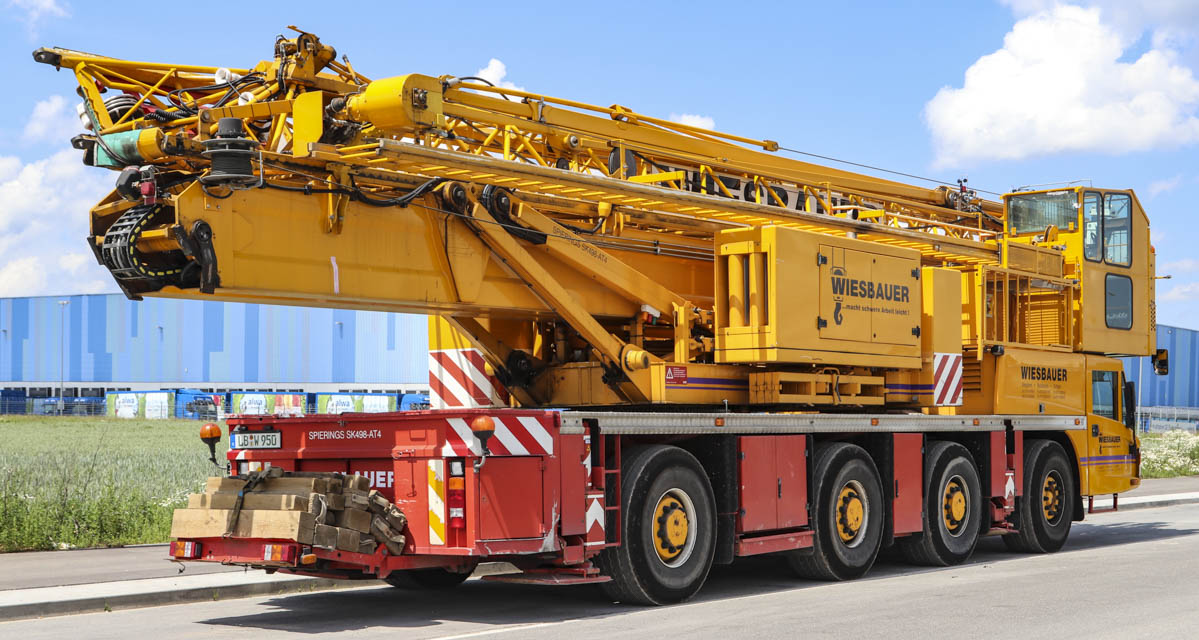

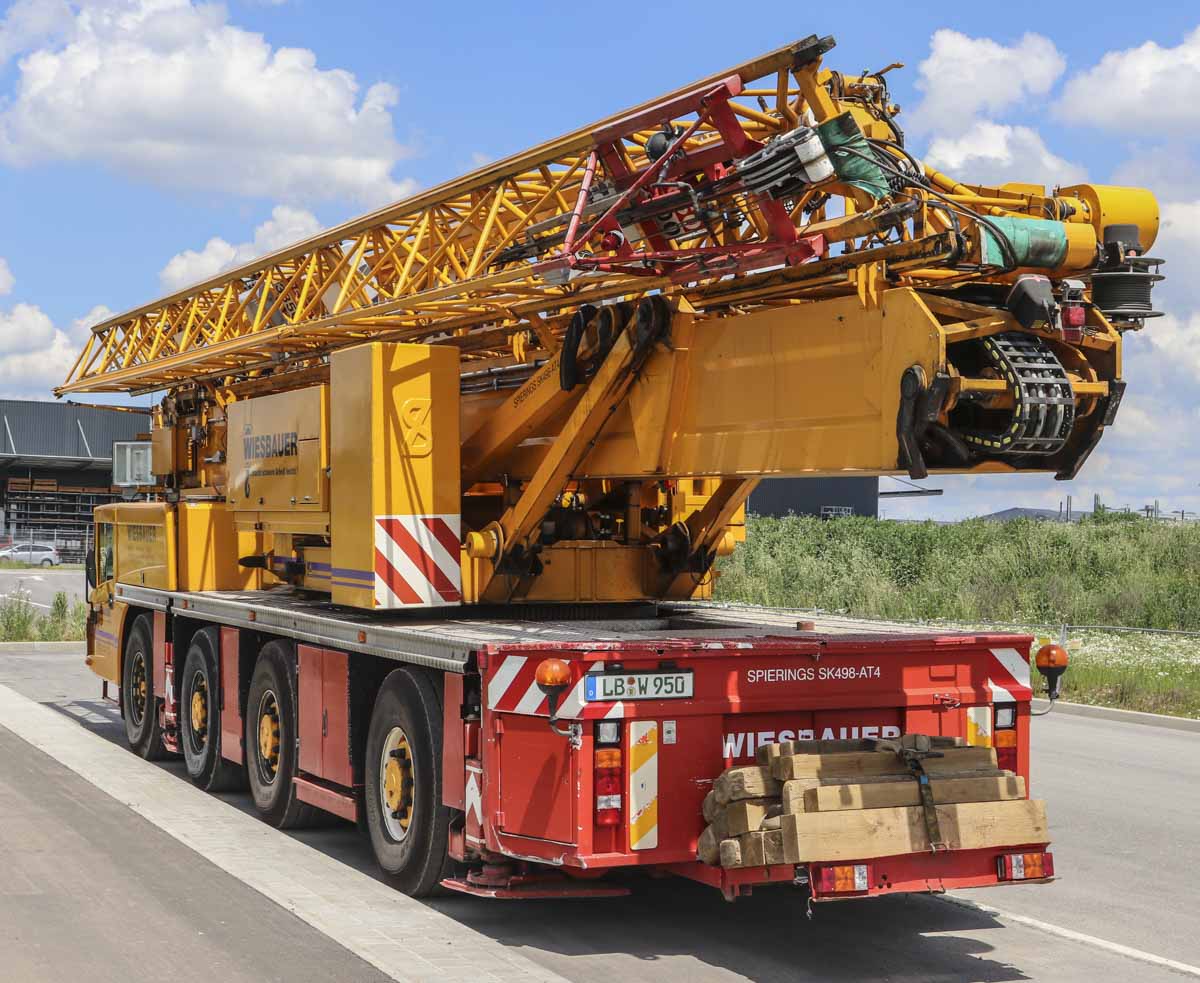

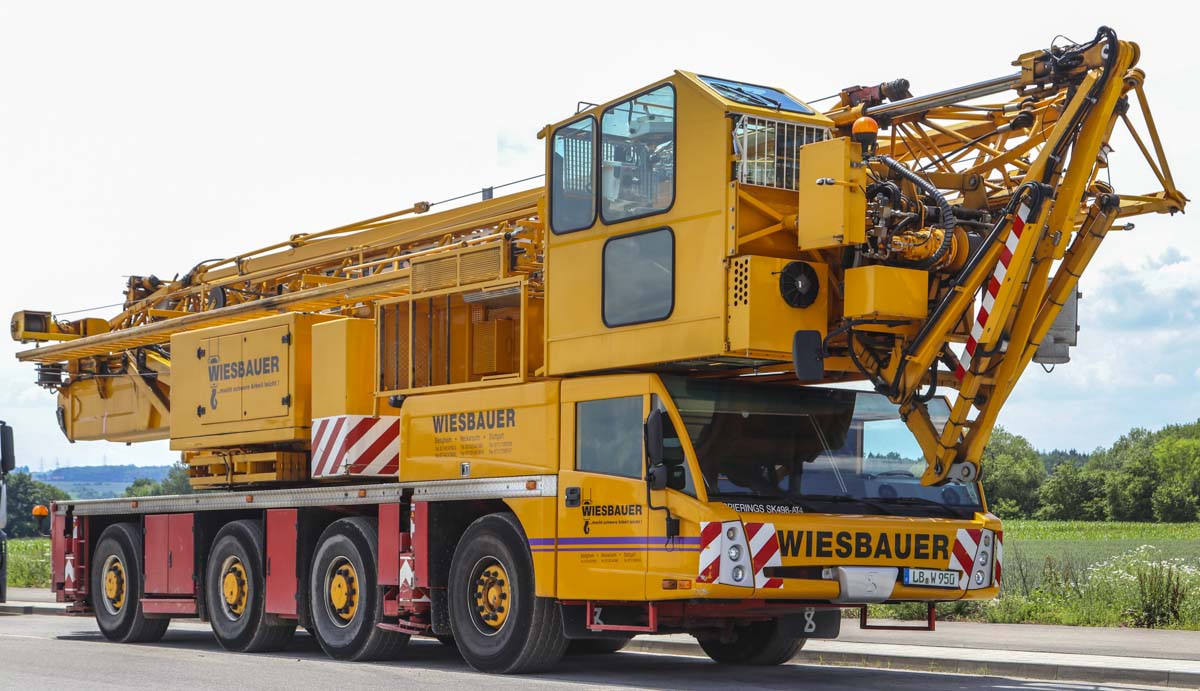

This sharp Spierigs SK498-AT4 of Wiesbauer from Bietigheim (DE) stood during a weekend parked on a small industrial area. It is a 4-axle mobile tower crane with a jib length of 44 meters.

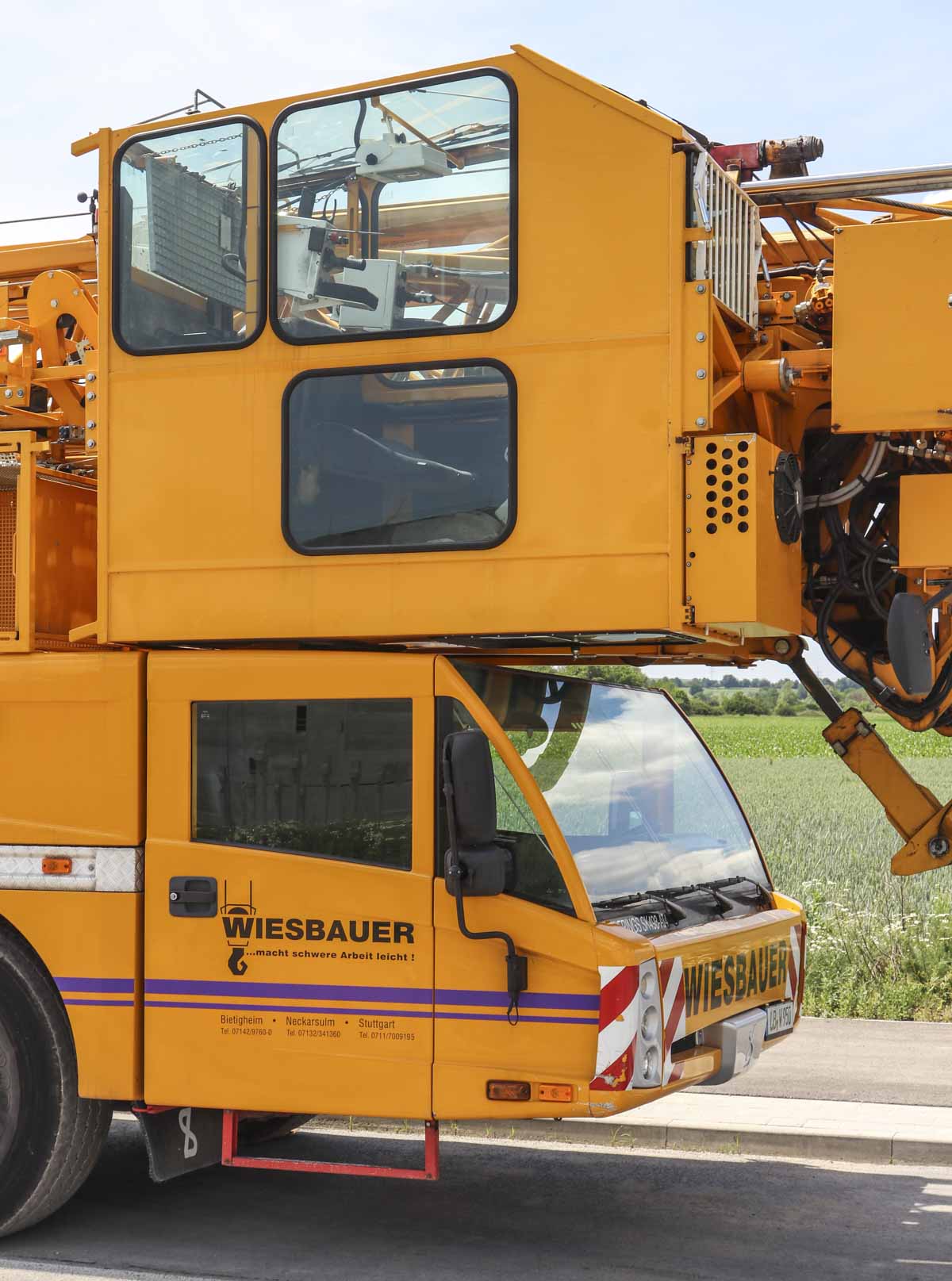

The cabin on the superstructure is during the transport over the road parked above the cabin on the undercarriage. During crane operation is the cabin to be positioned in a height of 15.65 or 26.5 meters.

In transit is the crane 15.98 meters long, 2.75 meters wide and 4 meters tall. The transport mass is 48 tonnes.

The outrigger base measures 6.925 x 6.85 meters, or half 6.925 x 5.15 meters.

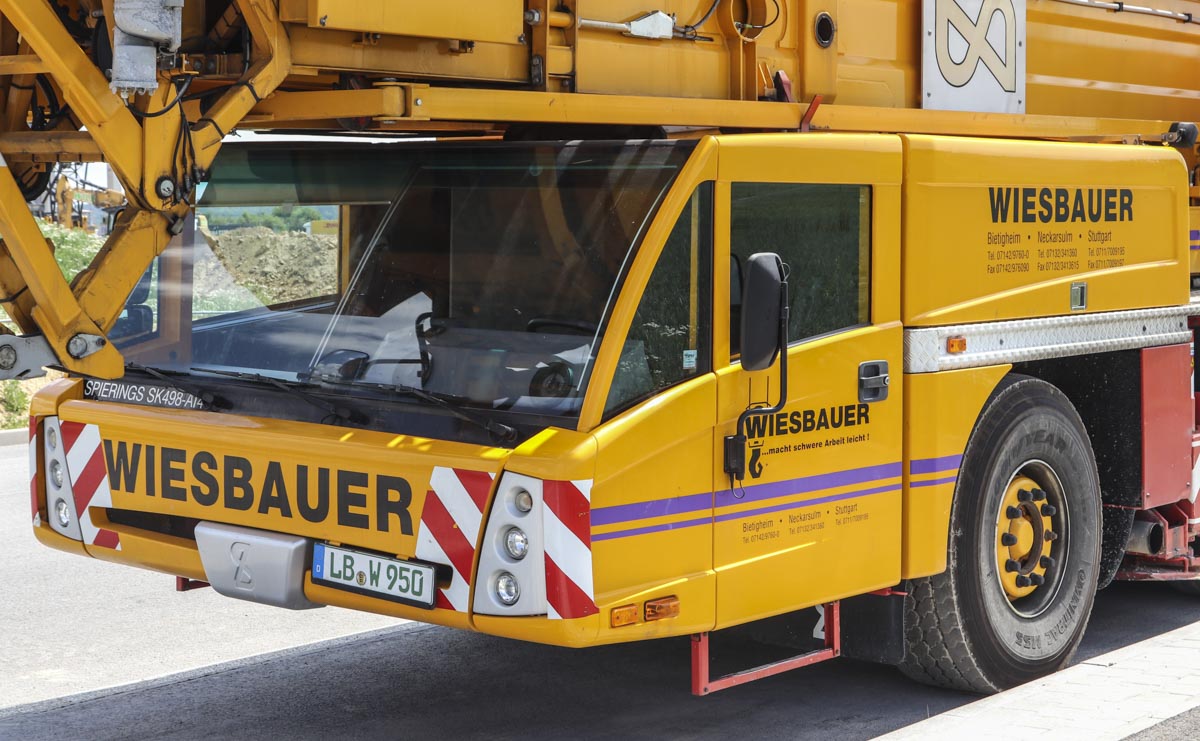

The undercarriage is powered by a PACCAR MX 300, a 12.9-liter 6-cylinder diesel engine with a power of 300 kW (402 hp). The axles 2, 3 and 4 are driven and the axles 1, 2, and 4 are steerable.

The tower extends one time to a horizontal hook height of 26.5 meters. The jib has a 44 meter length. The maximum capacity of 8 tonnes can be lifted to a maximum radius of 12.85 meters and the capacity at the jib tip is 1,900 kg.

The superstructure is powered by a John Deere 4045HF75 diesel engine with a power of 129 kW.

A very sharp crane of Wiesbauer!
