Holding HDTC55 - Asiagroup

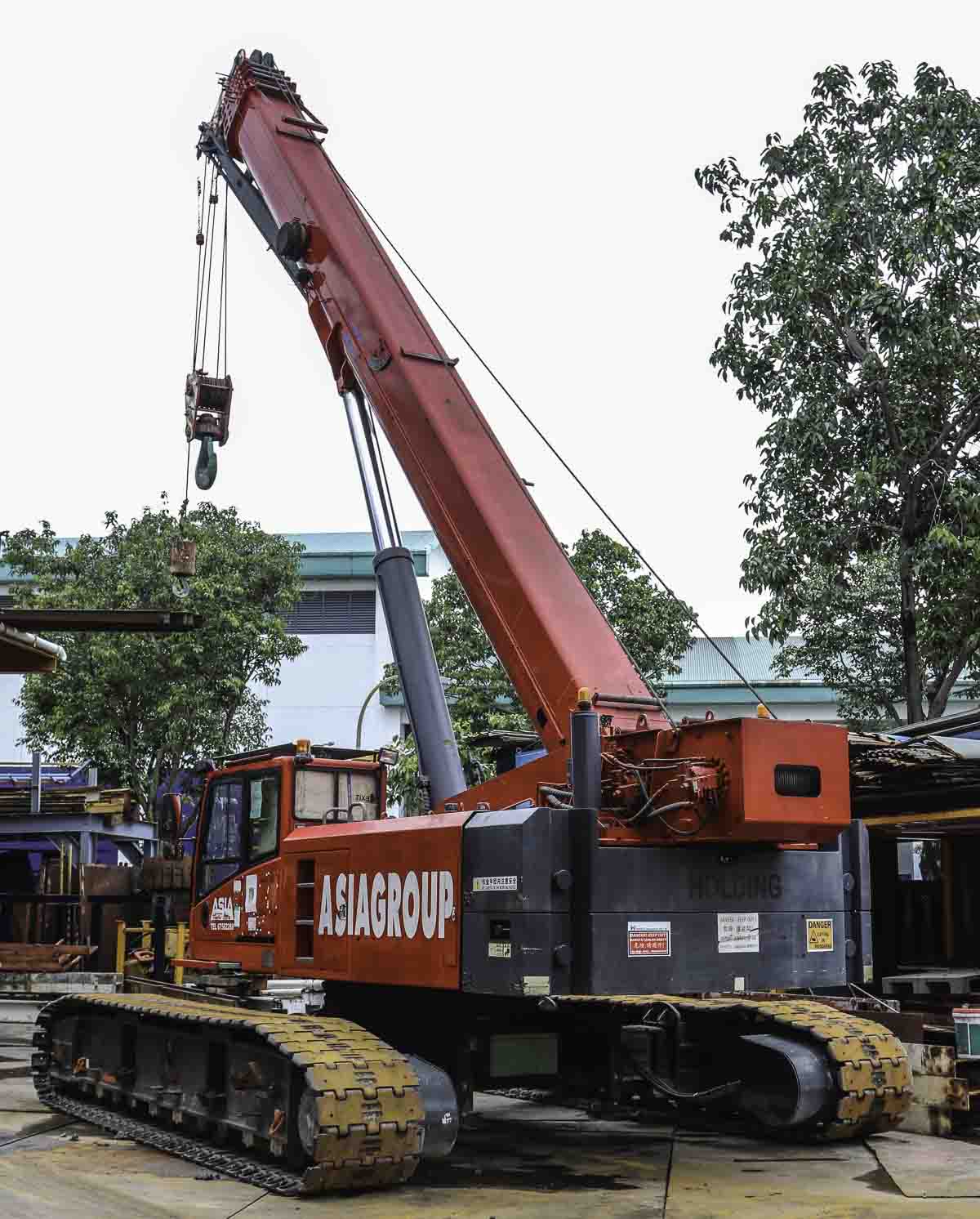

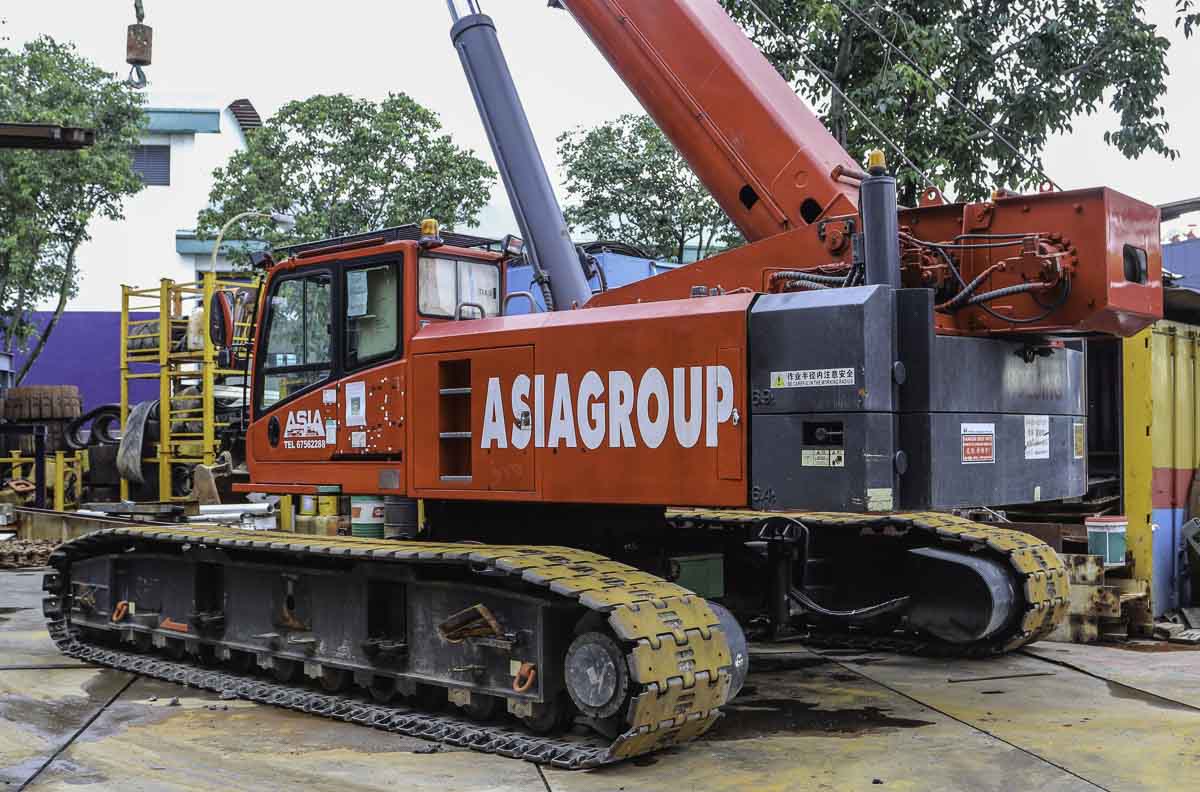

This Holding HDTC55 could be photographed on Asiagroup's yard. It is a 55-tonne crane with telescopic boom on crawler undercarriager with year of manufacture 2015.

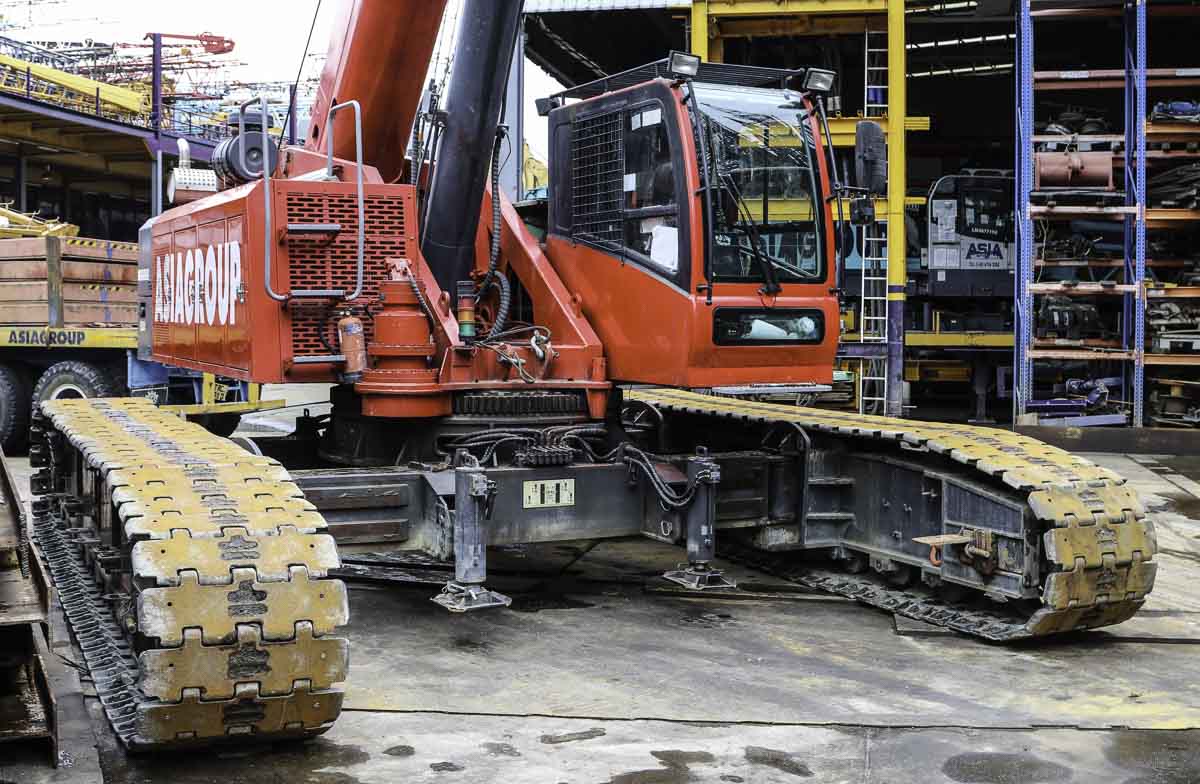

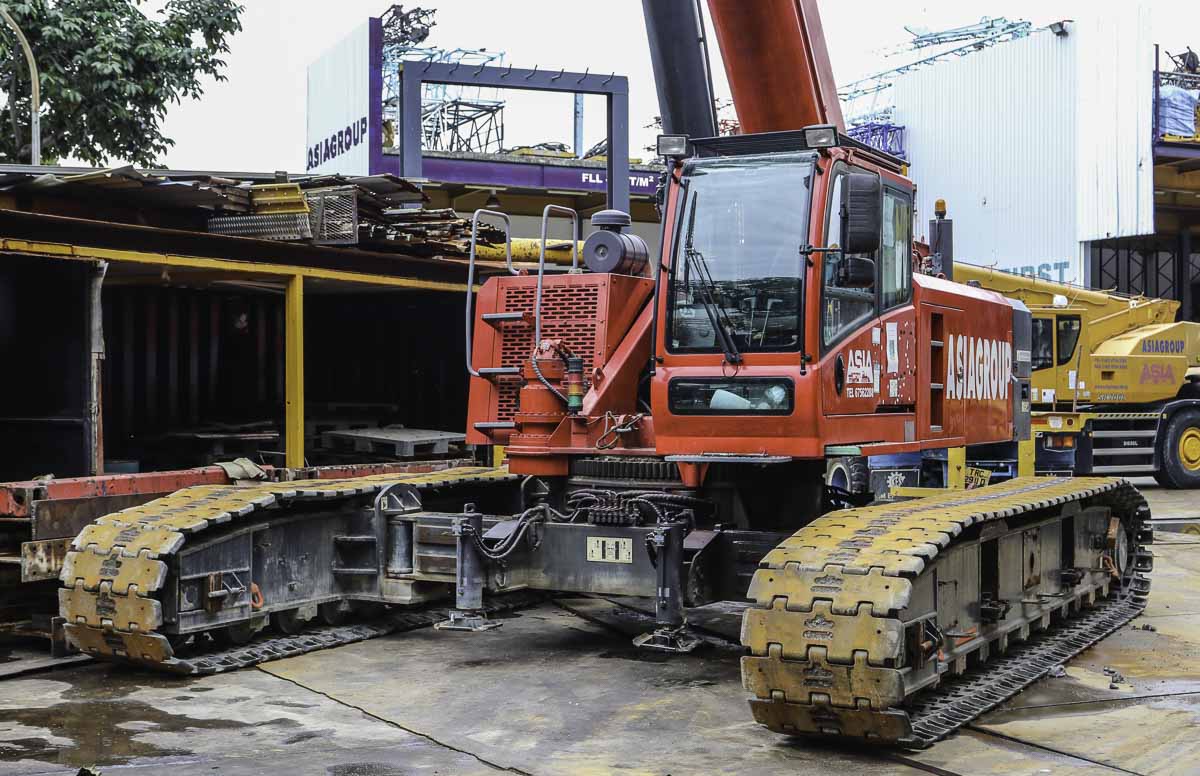

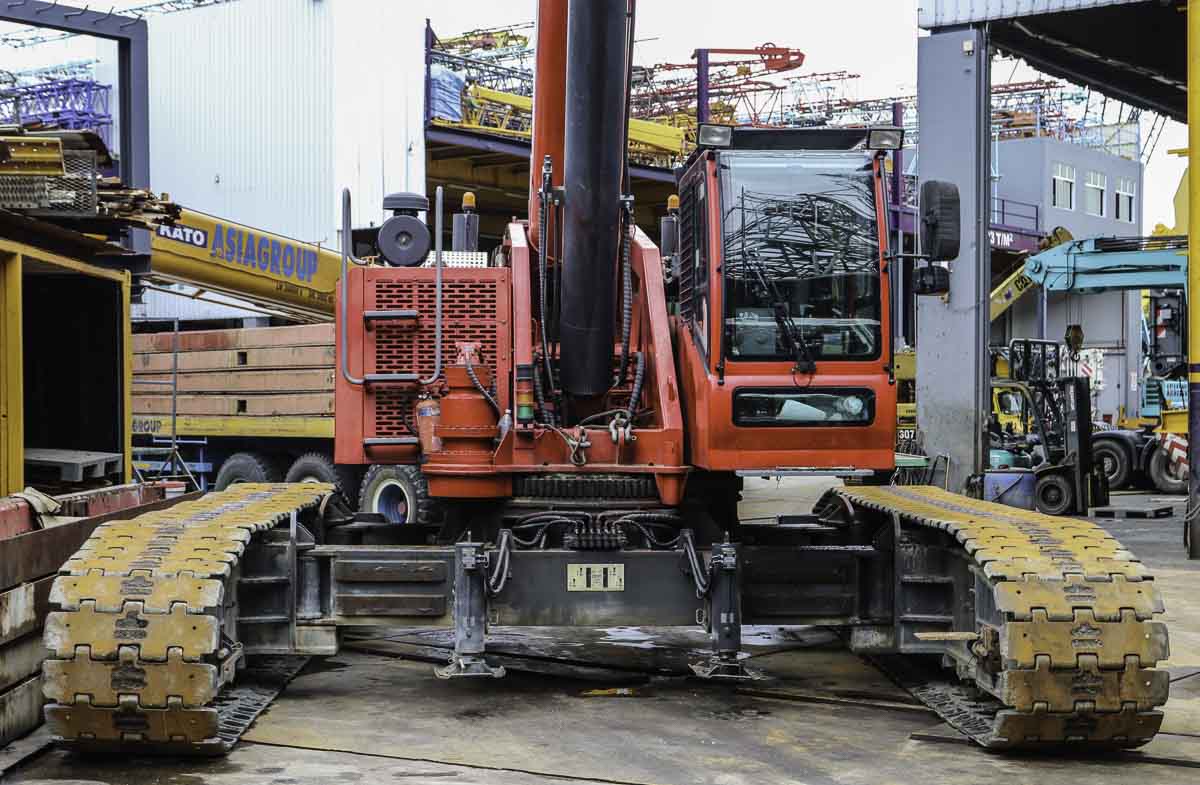

The undercarriage of the crane is about 6 meters long and 5 meters wide.

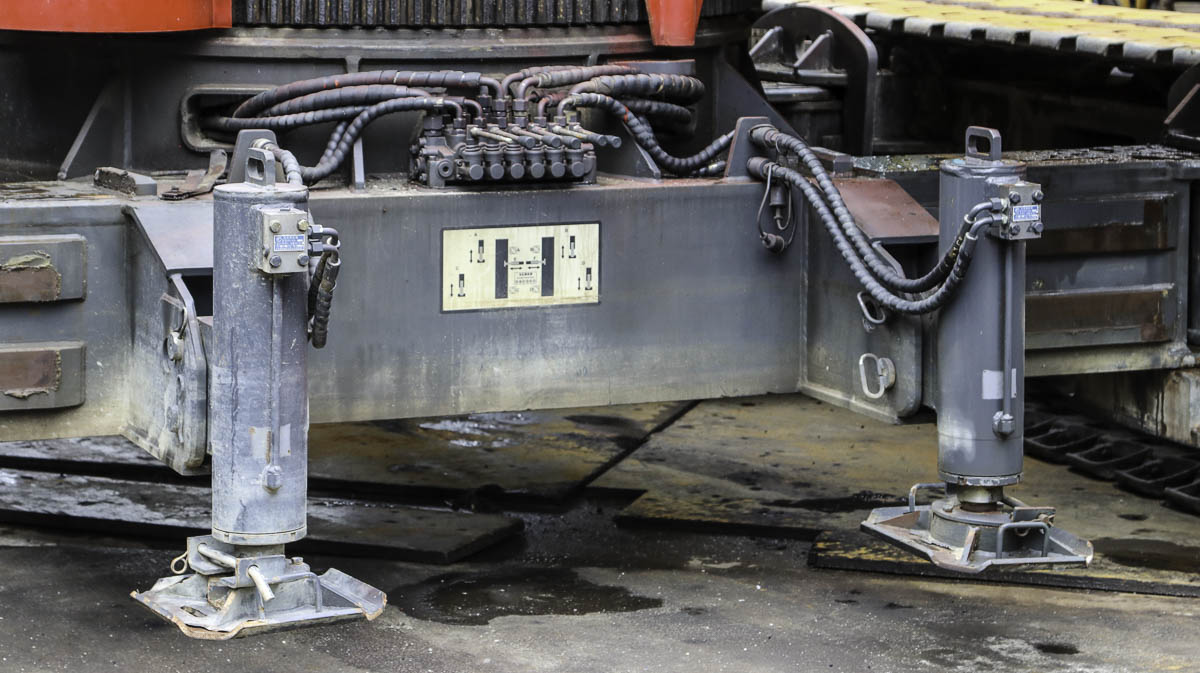

For the transport over the road is the width to be reduced to 3.2 meters. To unload the tracks during this adjustment are these hydraulic jacks on the undercarriage used.
The crane is powered by a Wechai WP7.210E30 diesel engine with a power of 155 kW at 2,000 rpm.

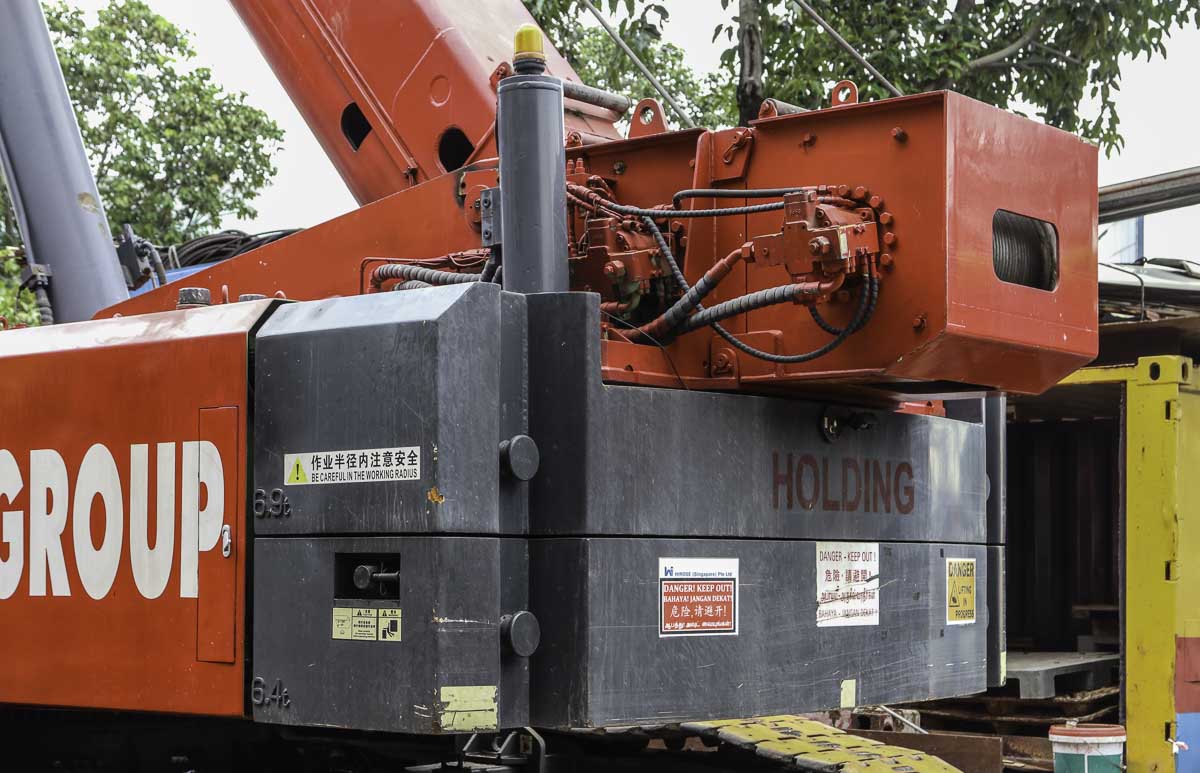

Attached to the superstructure is in total 13.3 tonnes of counterweight. The counterweight has a 3.9 meter tailswing. The crane is fitted with two hoist winches, the tailswing of the second winch is 4.5 meters.

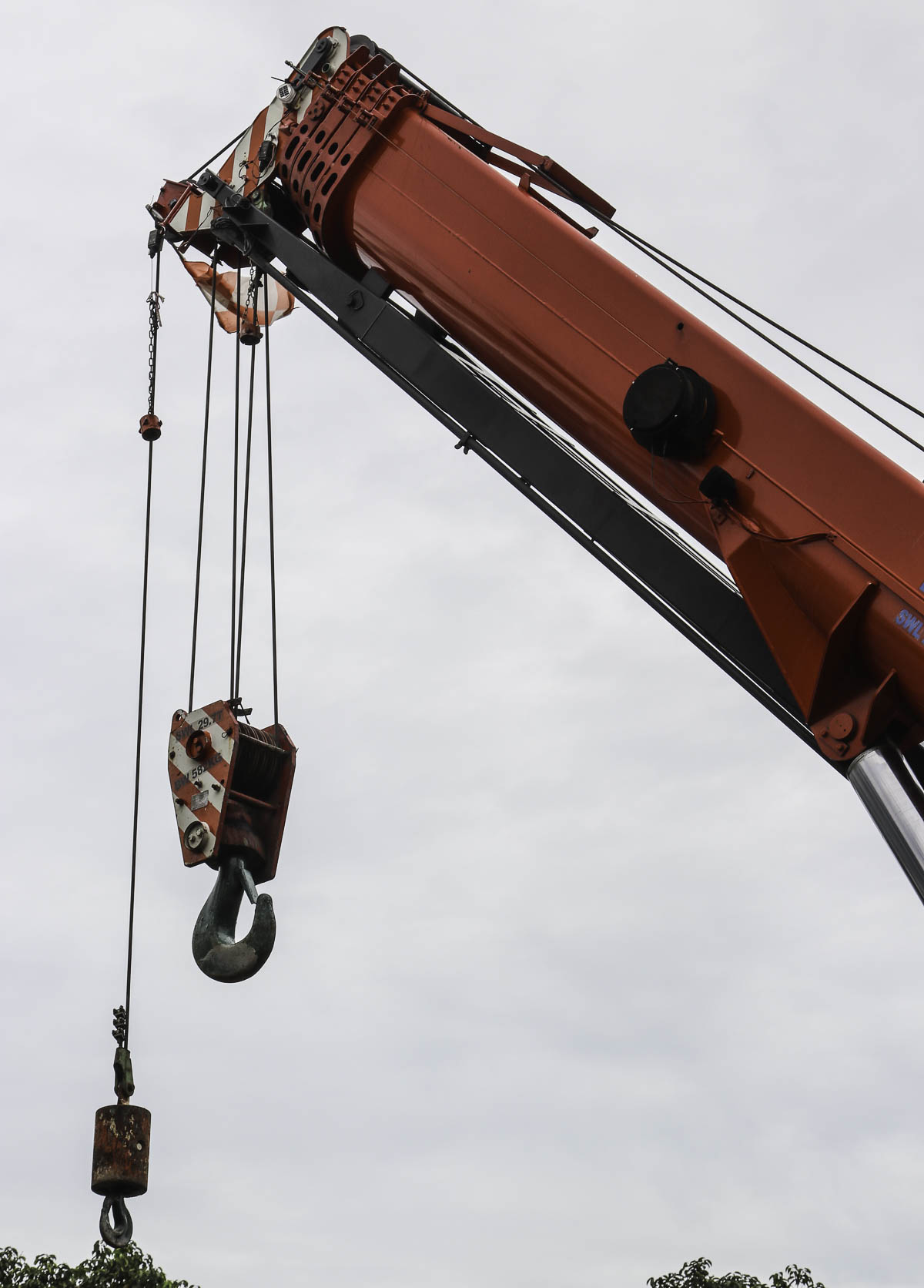

The 5-part main boom has a 11.4 meter base length and extends to a maximum length of 43 meters. Optionally is the main boom to be extended by a 7.3 - 11.3 meter long jib. A maximum hook height of 54 meters can be achieved in that configuration.
