IHI CCH1500-5 - Toa Corporation

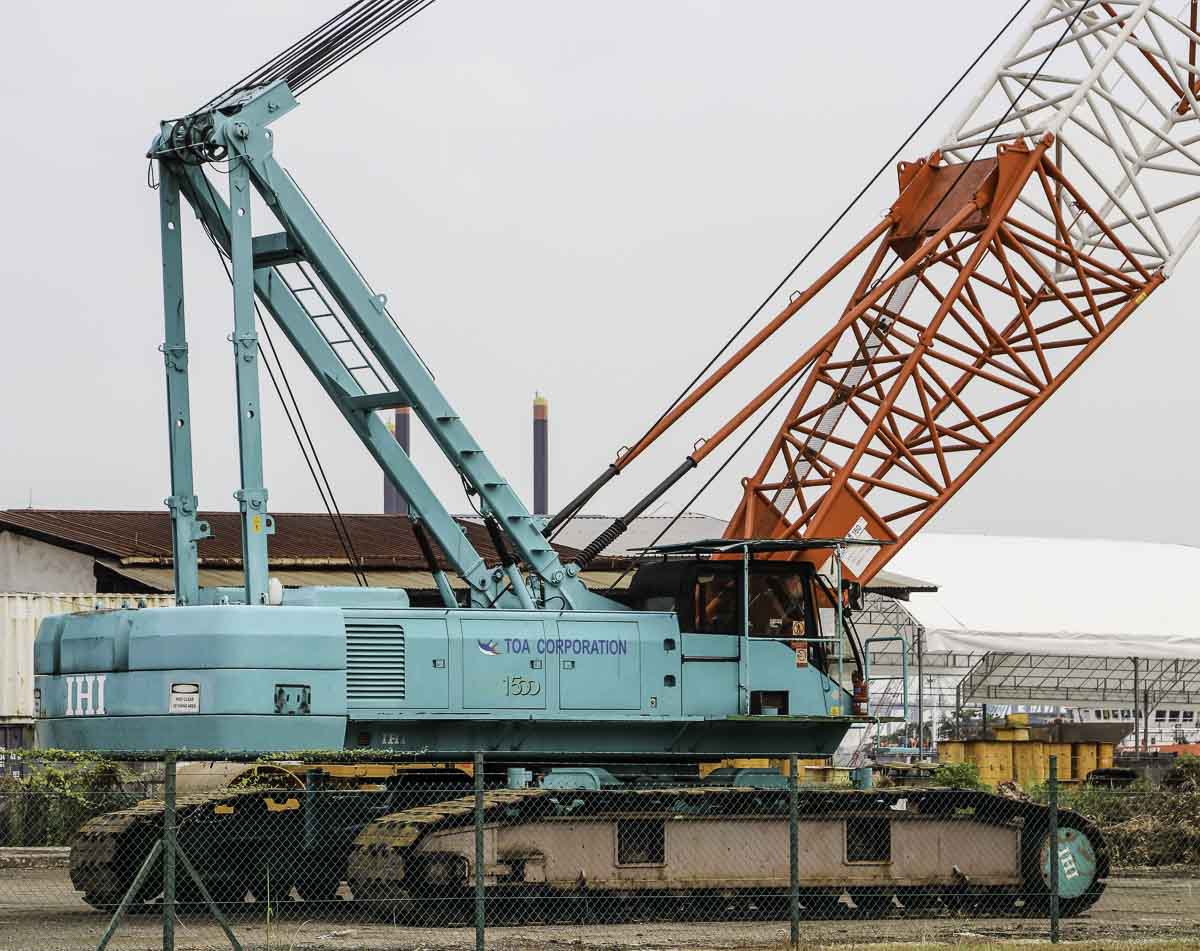

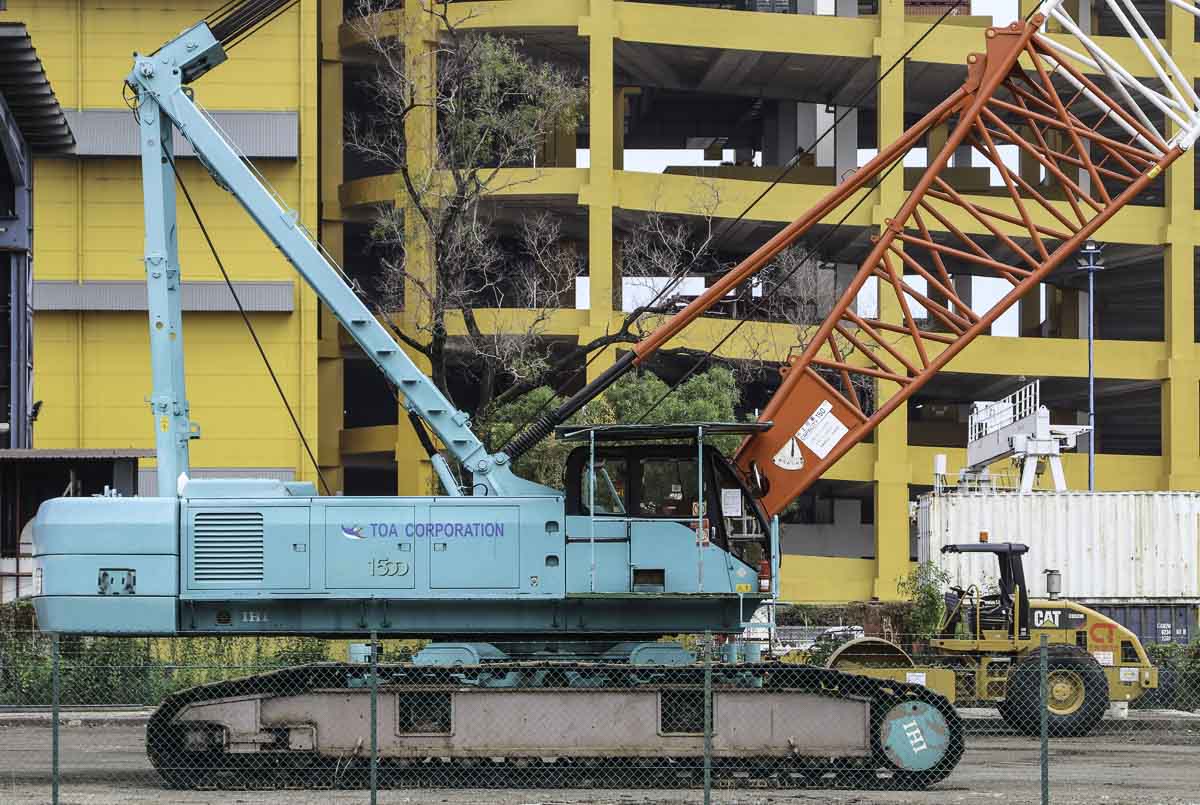

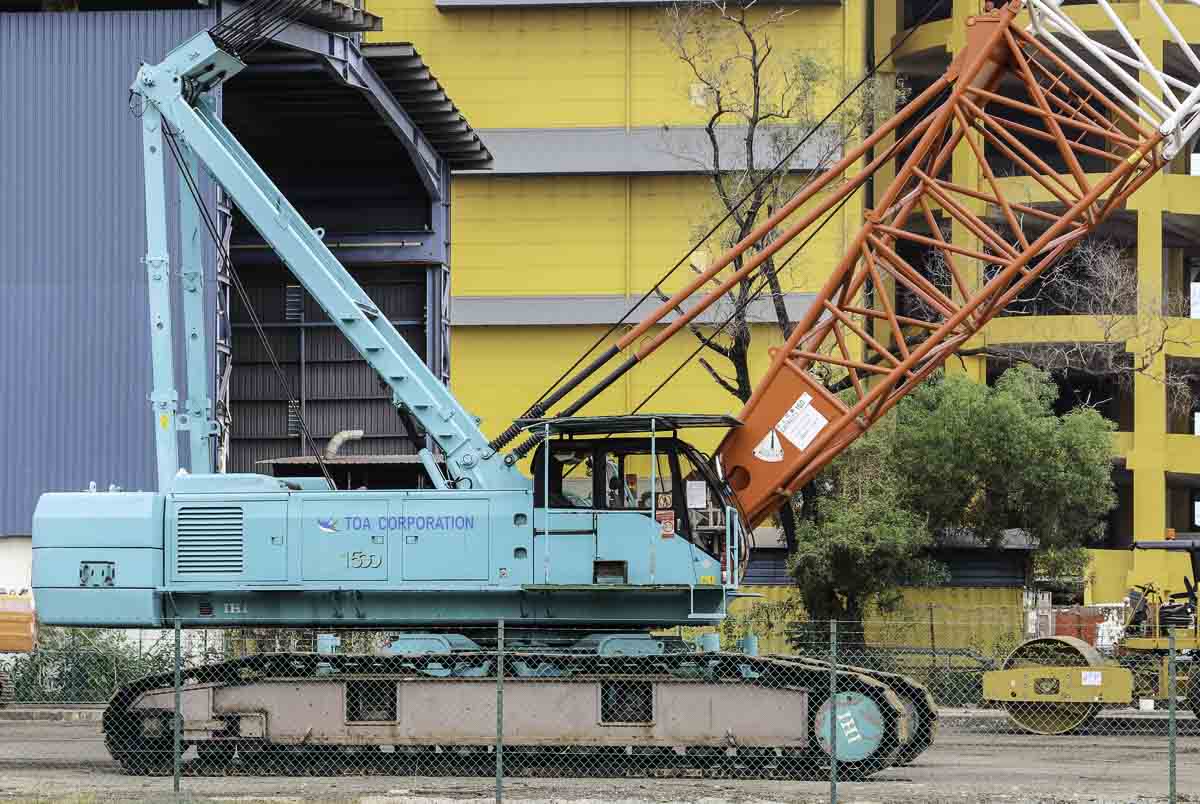

This IHI CCH1500-5 belongs to Toa Corporation and was used on a small wharf in Singapor (SG). It is a 150 tonne crawler crane.

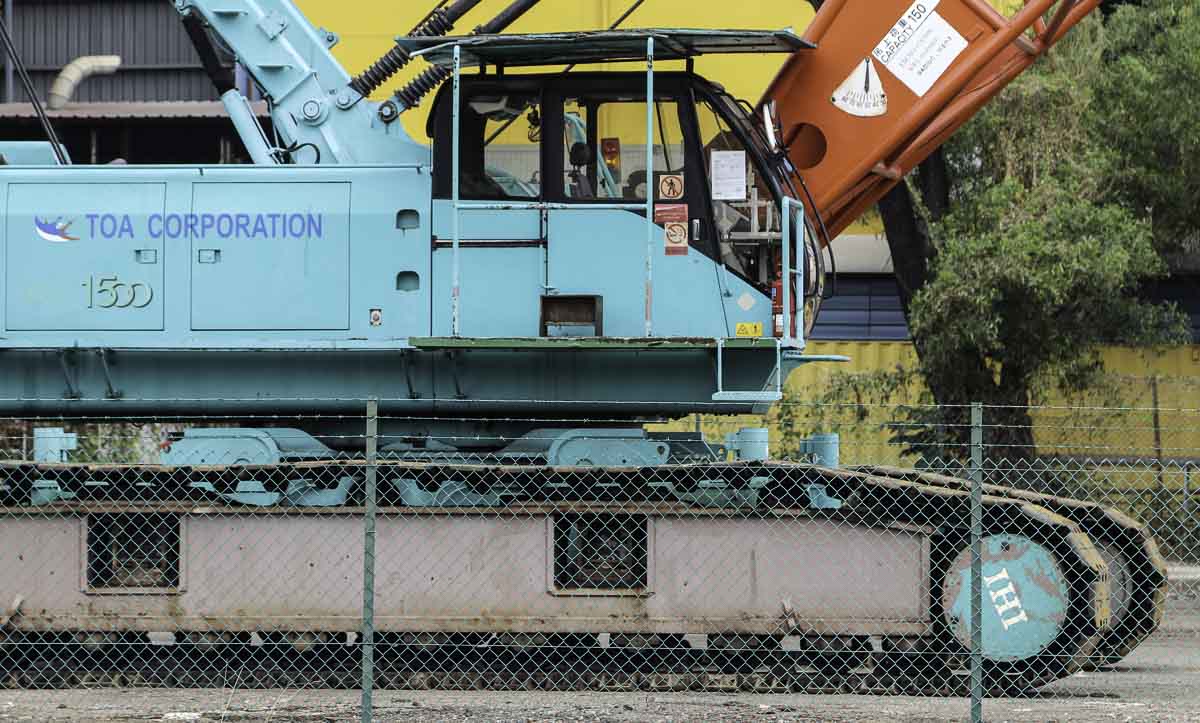

The undercarriage of the crane is 8.87 meters long and 7.07 meters wide. The tracks are each 8.87 meters long, 1.07 meters wide and 1.37 meters tall. The mass each is 18.7 tonnes.

The crane is powered by a Cummins QSL diesel engine with a power of 242 kW. The crane is fitted with two 13.5-tonne hoist winches.

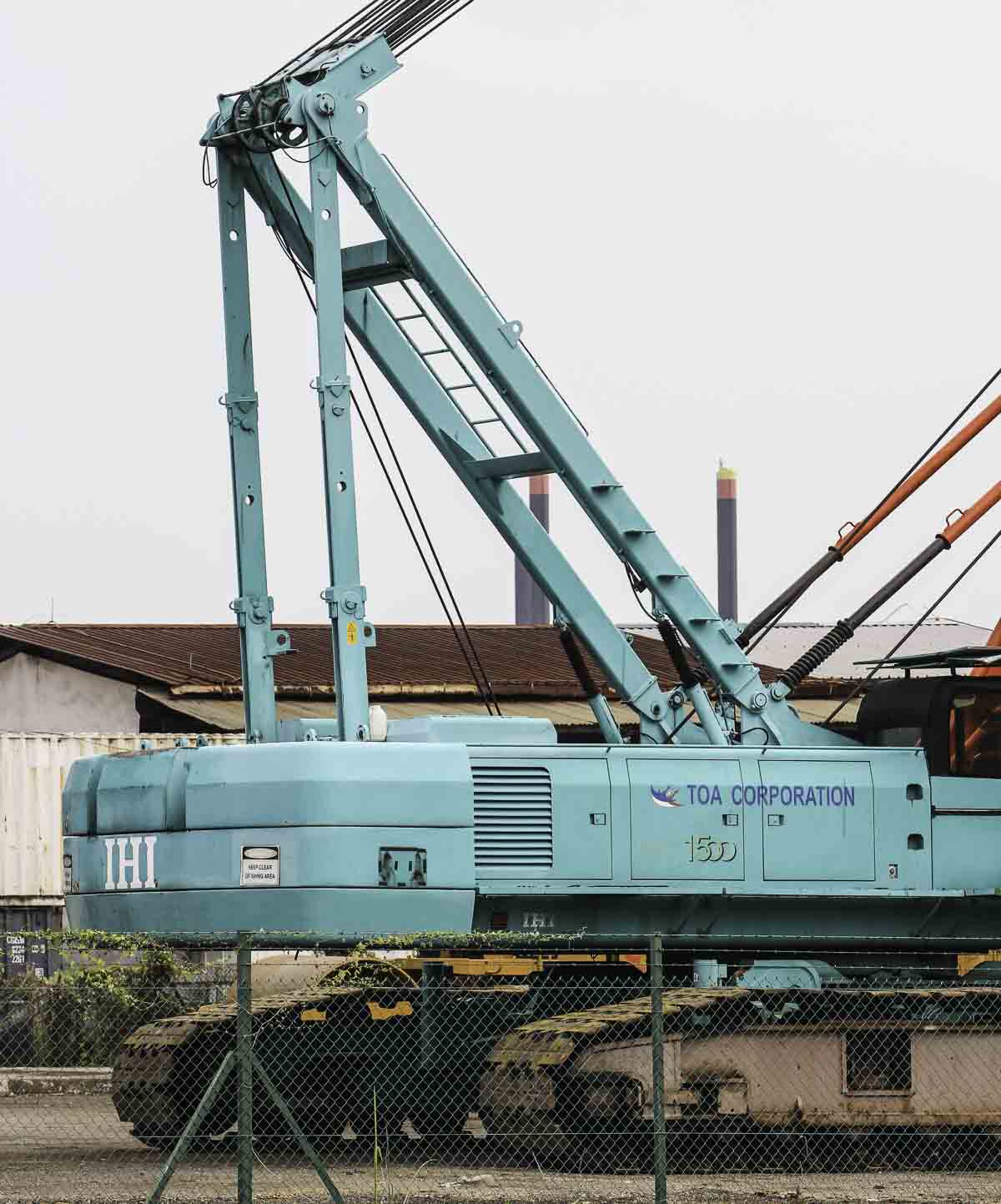

Attached to the super structure is 64 tonnes of counterweight, that has a 6 meter tailswing. The A-frame has in working position a height of approx. 8.5 meters.

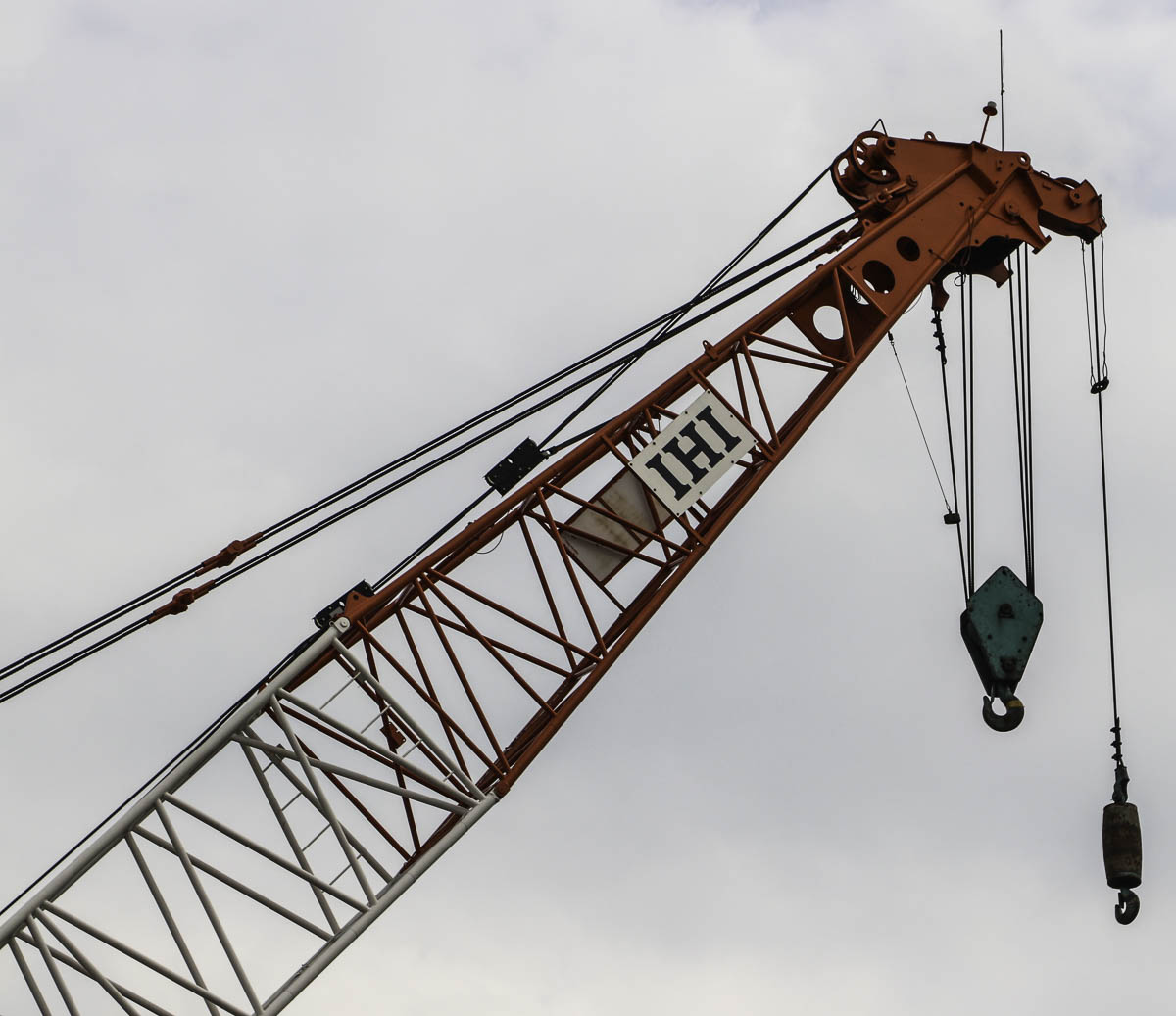

The main boom has an 18 meter base length and can be extended in steps of 3 meter to a maximum lenght of 84 meters.

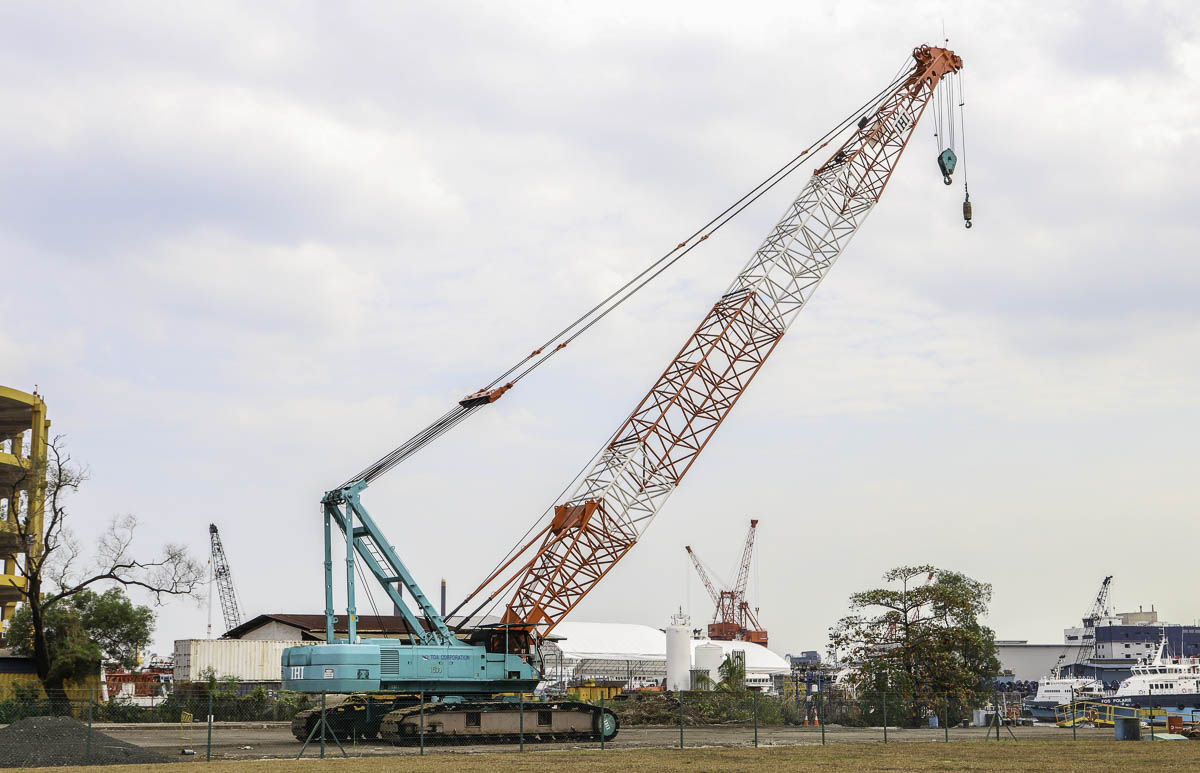

Here was the crane fitted with a 39 meter main boom, in this configuration is the crane able to lift maximum 92 tonnes on an 8.7 meter radius or 13.8 tonnes to a 35.4 meter radius. A sharp crane of Toa Corporation!
