Sumitomo SC 1000-2
Takayama Transportation & Construction

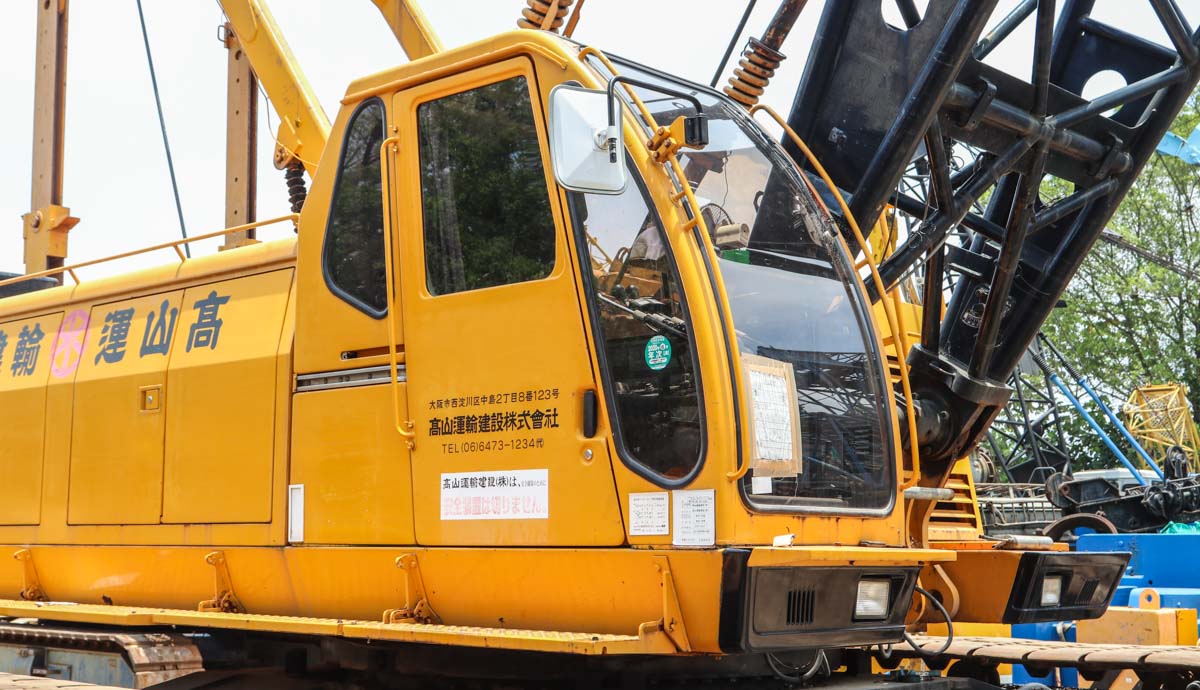

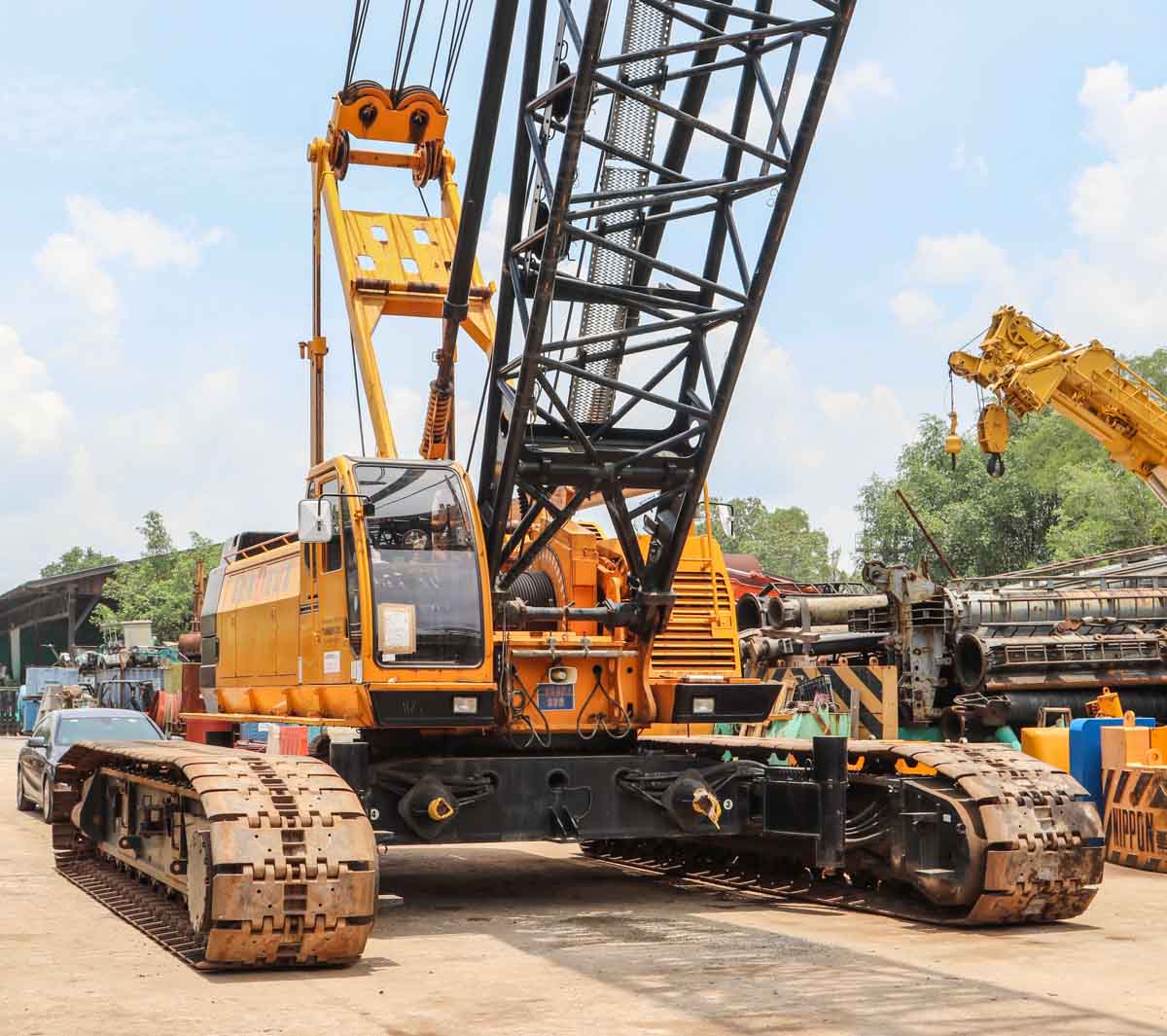

This fine Sumitomo SC 1000-2 belonged to Takayama Transportation & Construction from Osaka (JP) and was offered for sale at a dealer in Singapore (SG). It is a 100-tonne crawler crane.
The carrier of the crane is 7.715 metres long and 6.215 metres wide.
The crane is powered by a Mitsubishi 6D22T, an 11.15-litre 6-cylinder diesel engine with an output of 186 kW (250 hp). The diesel engine drives four hydraulic pumps.

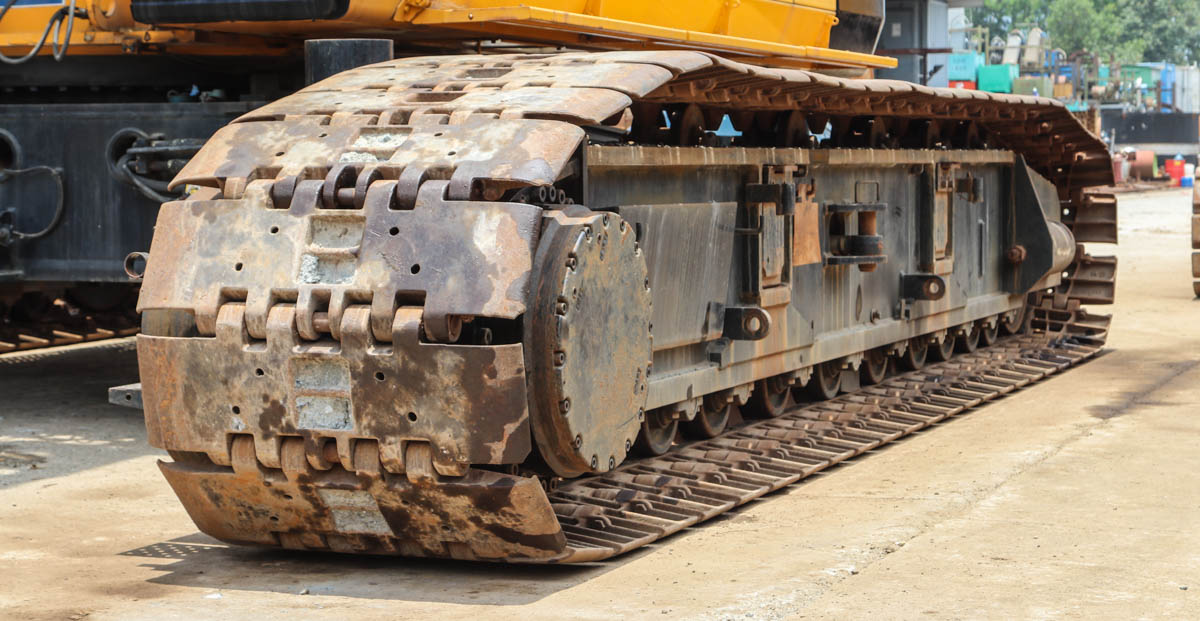

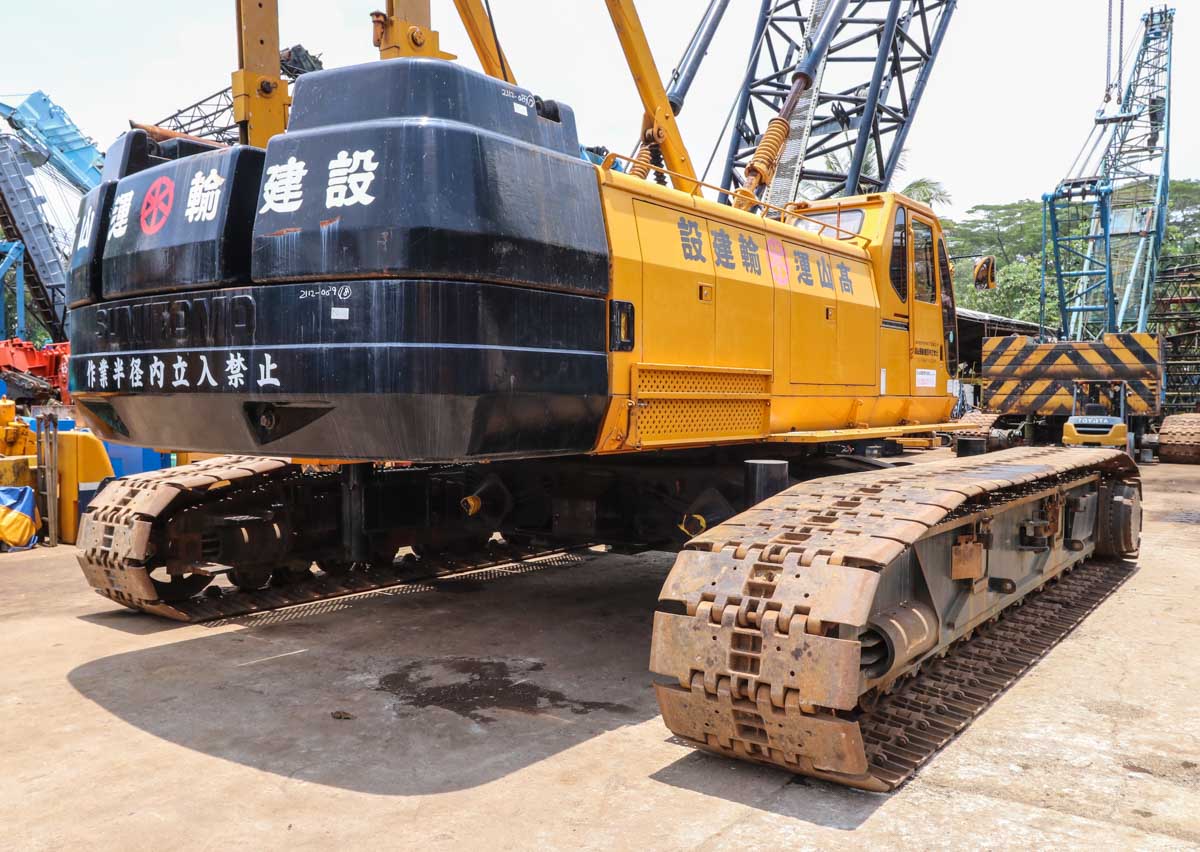

A single crawler track is 7.715 metres long, 0.97 metres wide and 1.255 metres high. For transport on public roads, the crawler tracks are separated from the base machine; they weigh 13.2 tonnes each.

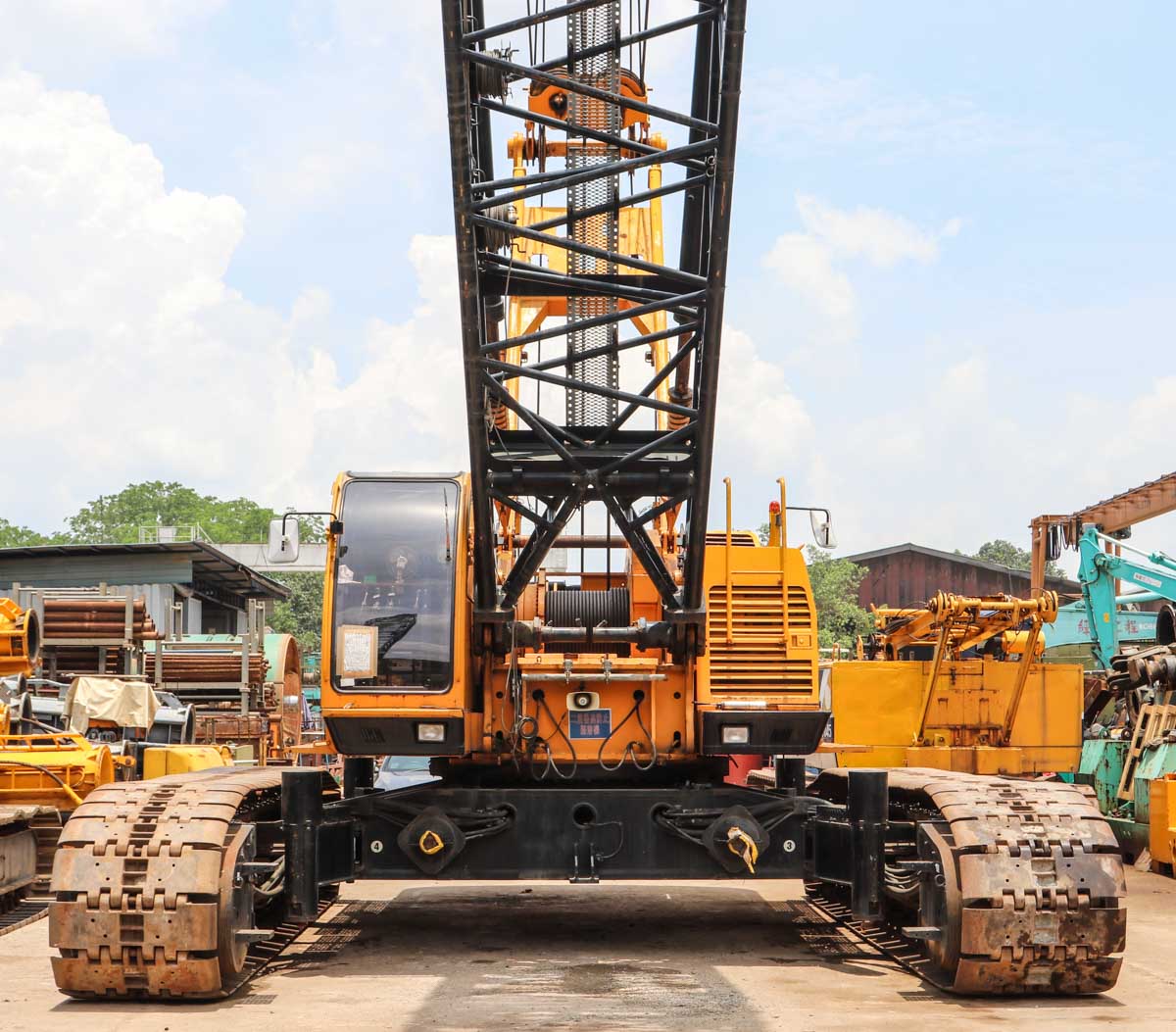

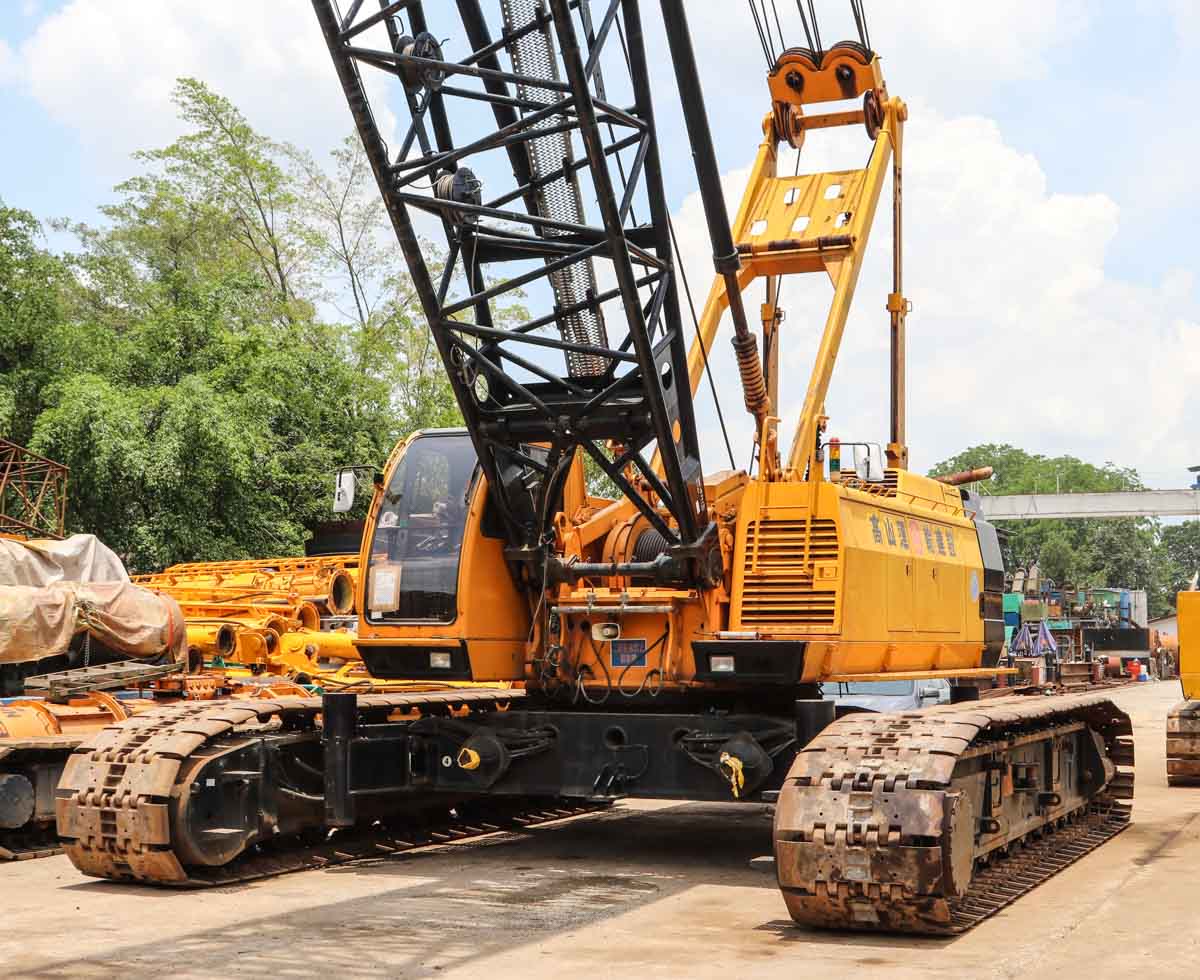

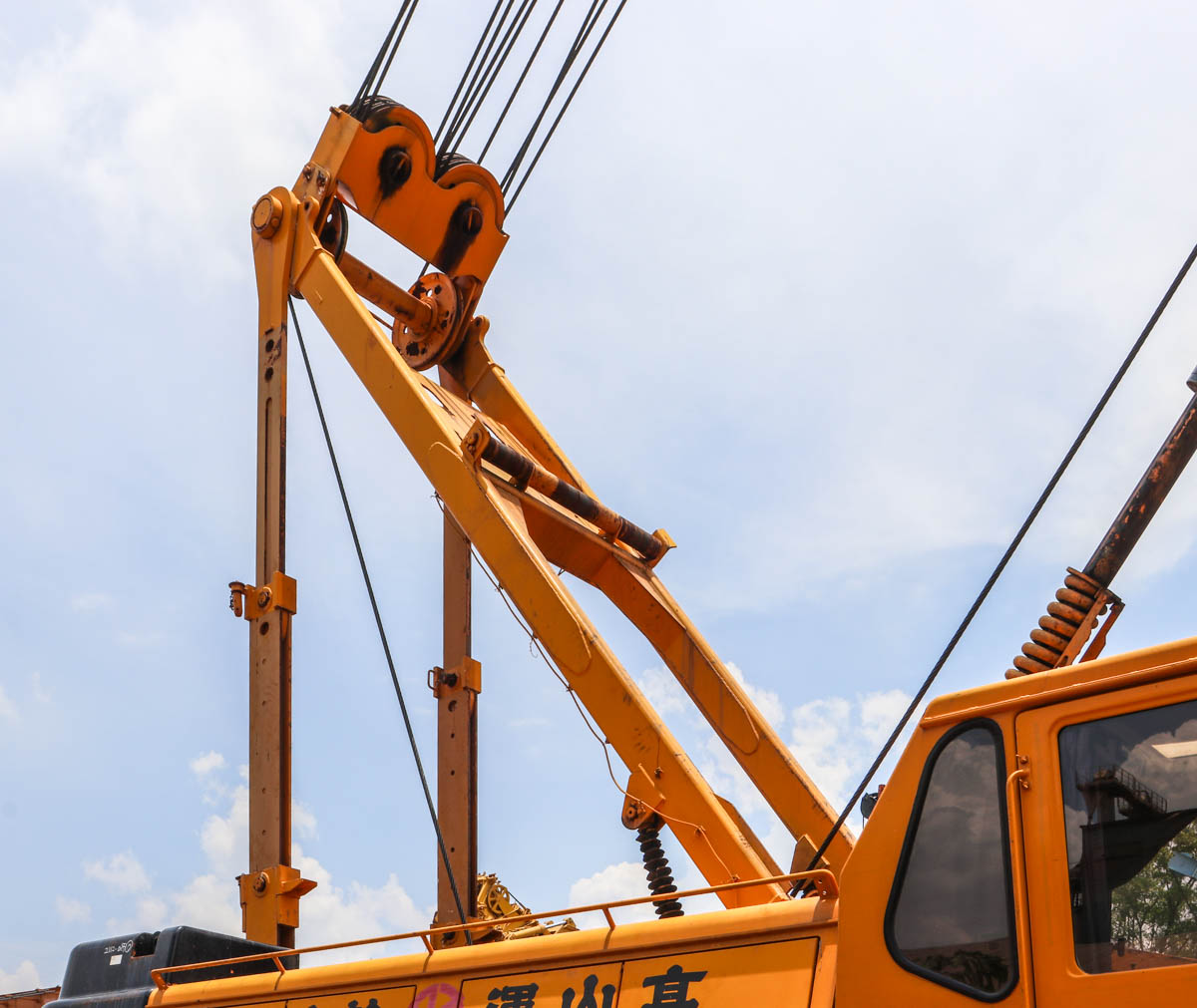

In working position, the A-frame is 7.42 metres high. For transport on public roads, it can be folded down.
The main boom has a base length of 18.3 metres and a maximum length of 73.15 metres. The main boom can be extended by a fixed jib of up to 24.4 metres in length.

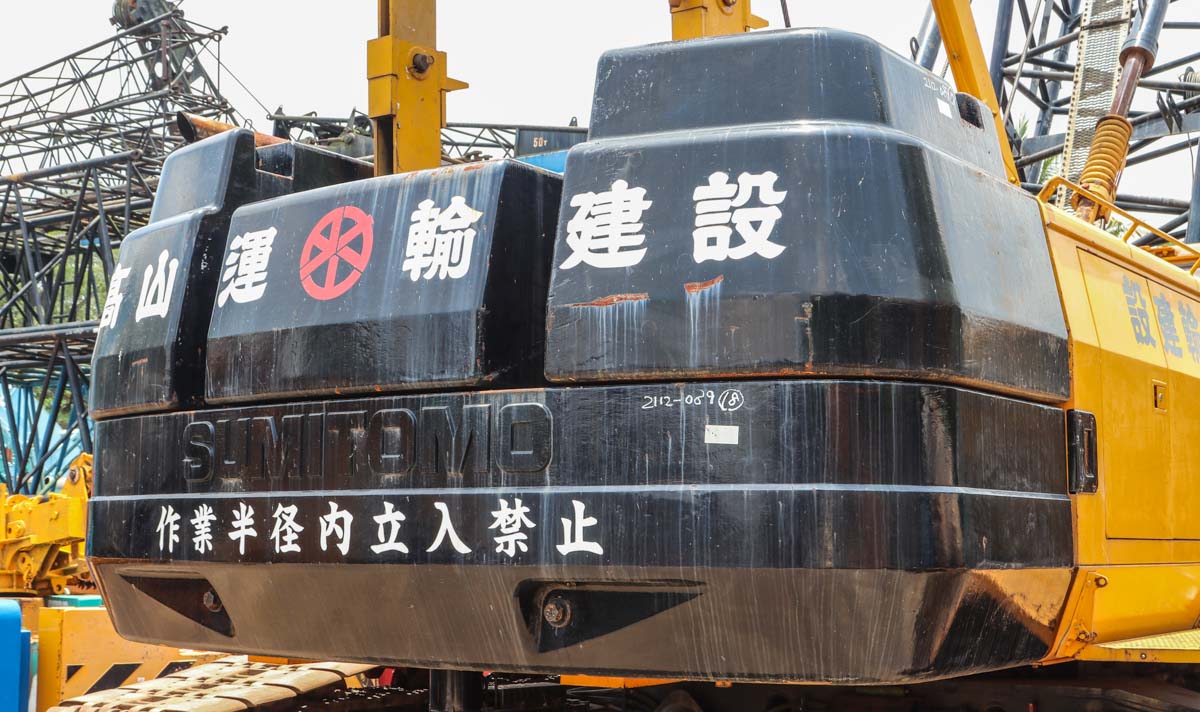

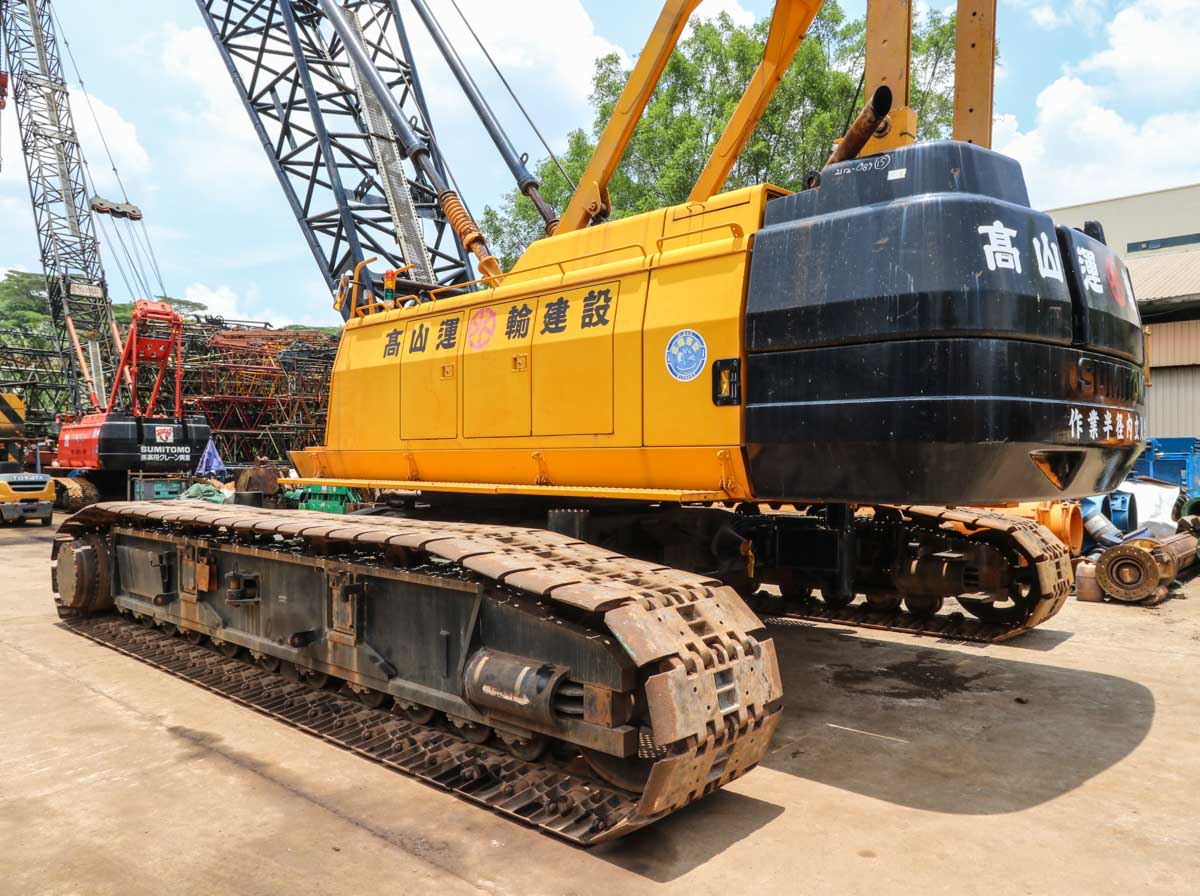

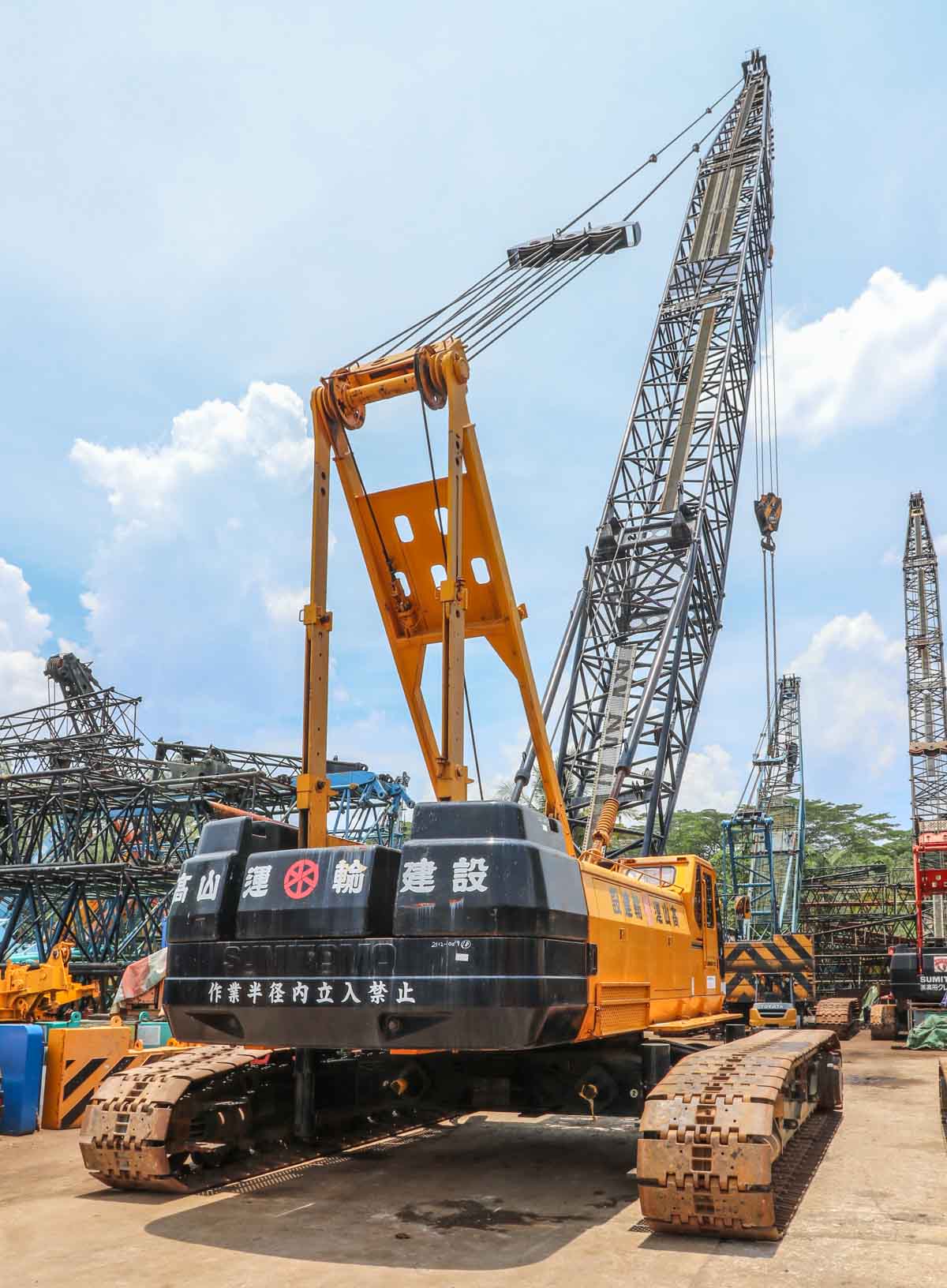

A four-part ballast with a weight of 43.5 tonnes is mounted on the superstructure. The ballast has a swing radius of 4.9 metres.

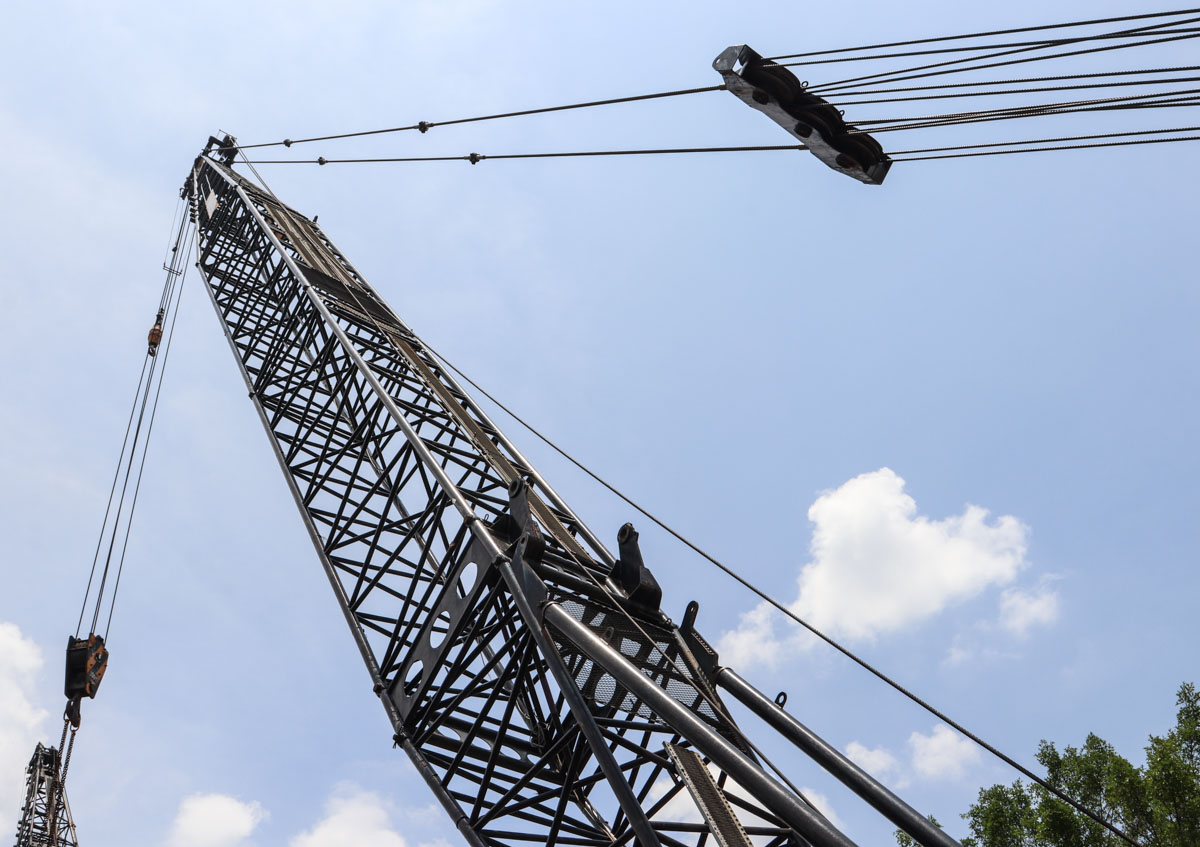

Here, the main boom was 37.45 metres long.

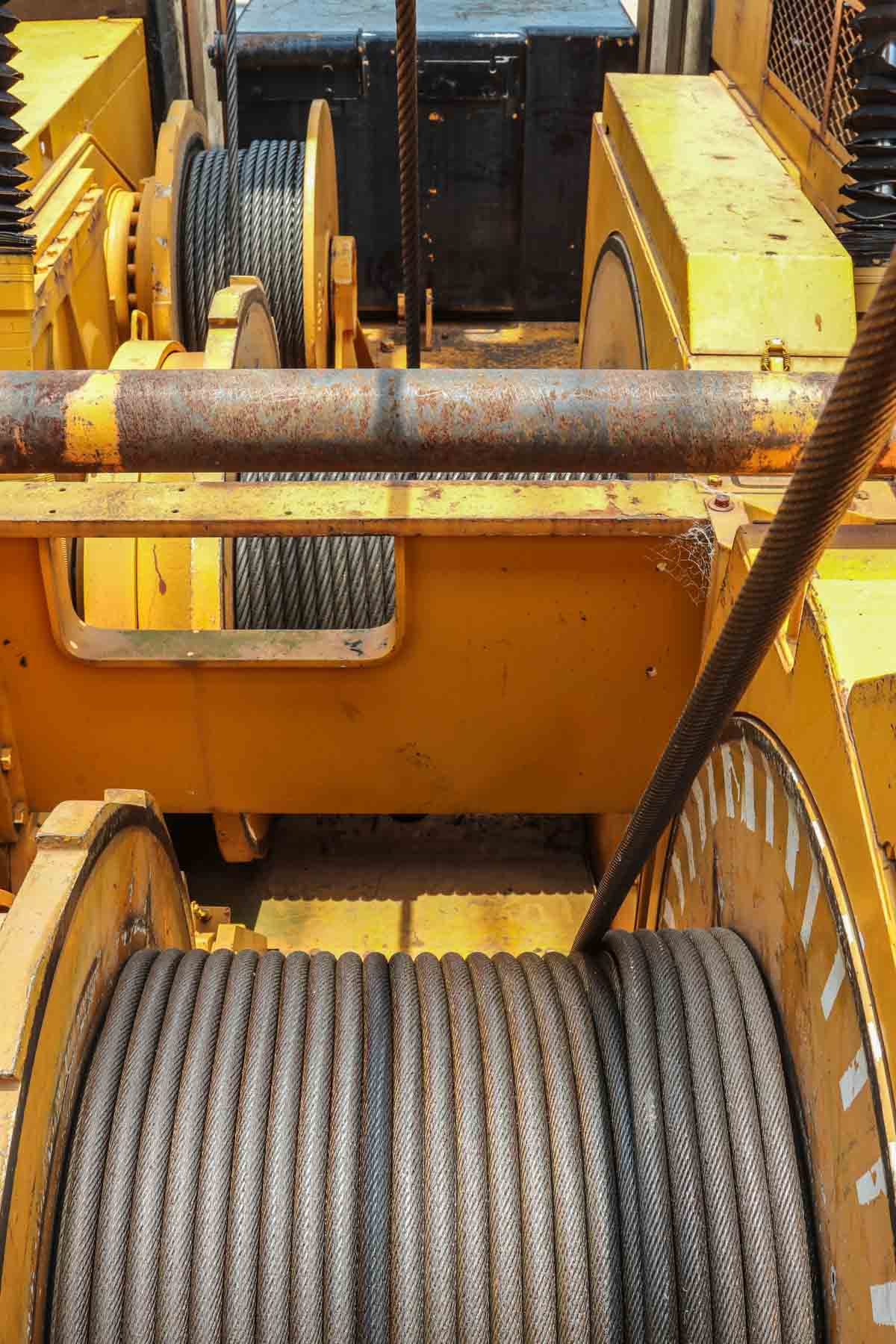

Mounted in the superstructure are two 11-tonne hoist winches and the boom luffing winch. The hoist rope has a diameter of 26 mm.
A very fine crane from Takayama Transportation & Construction! This company operates crawler cranes of up to 200 tonnes.
