Sunward SWTC55 - Antar

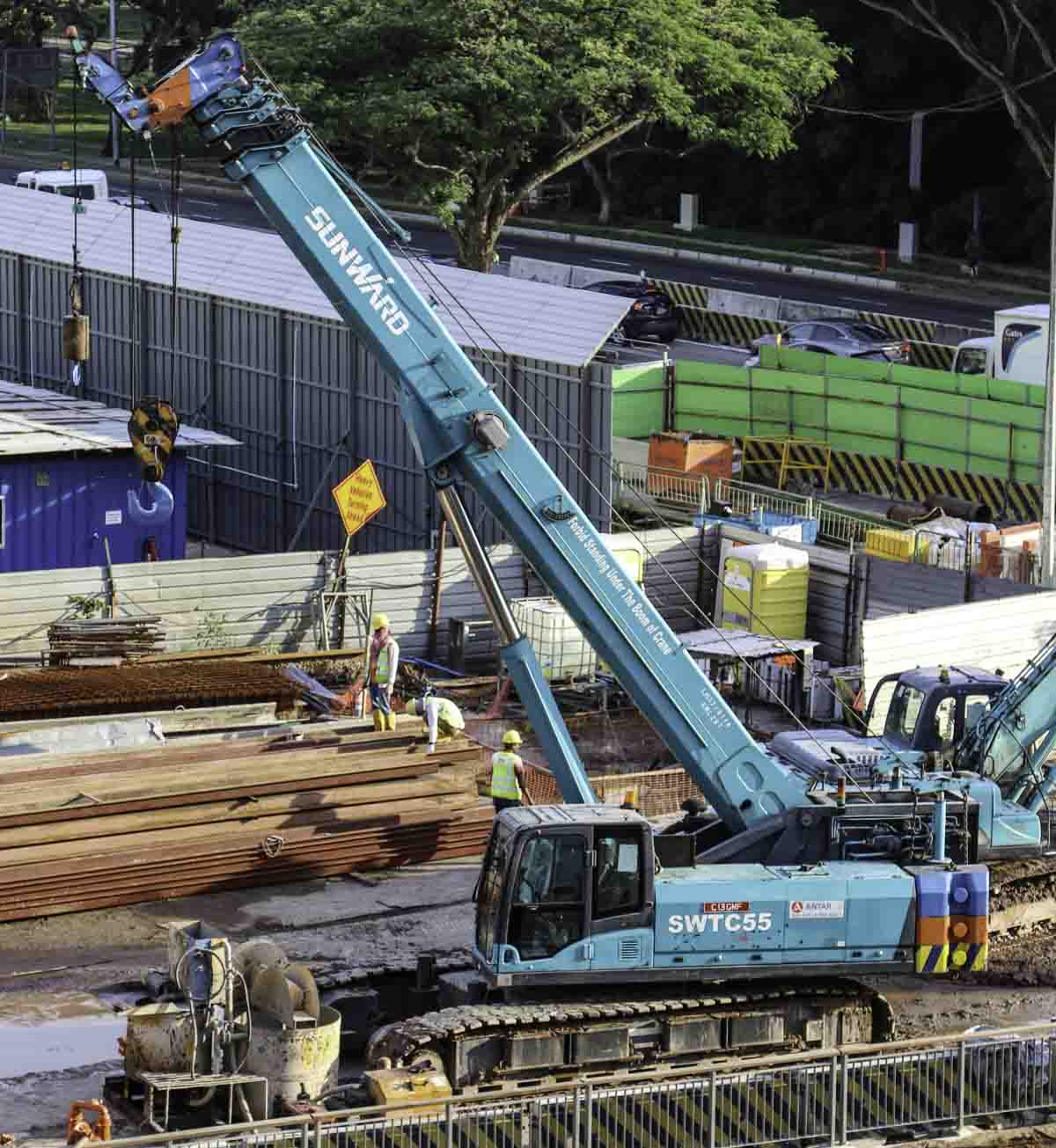

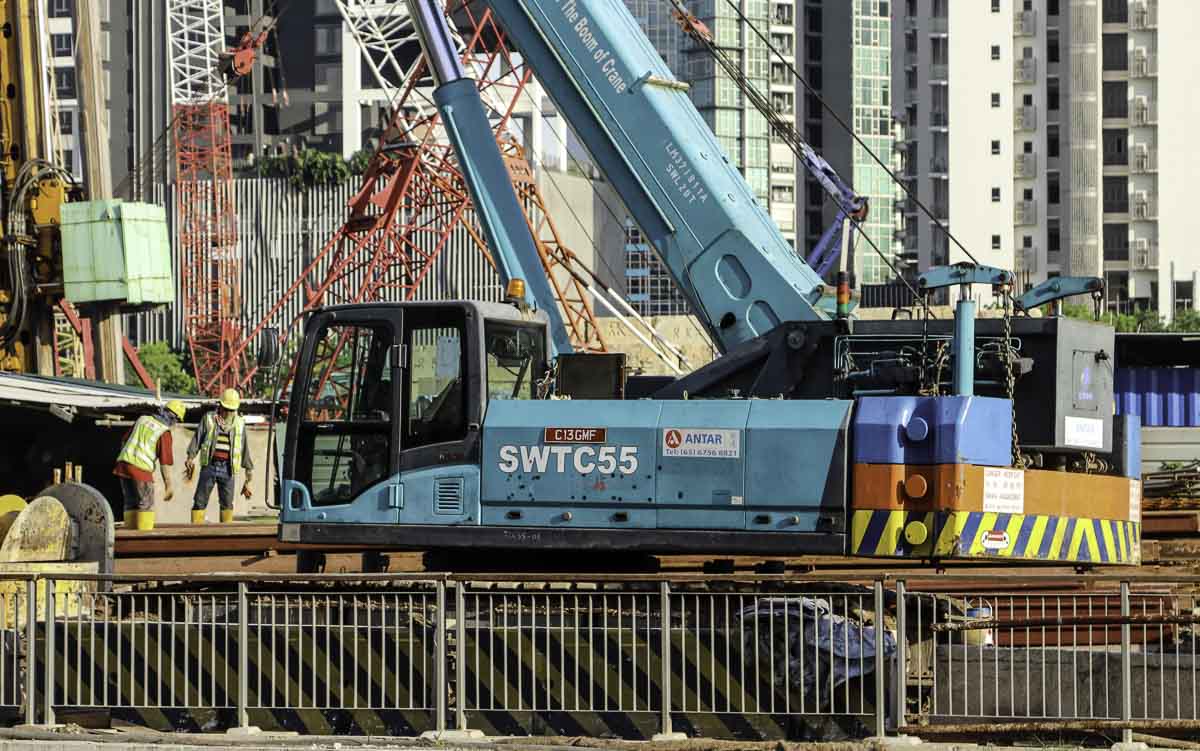

This Sunward SWTC55 of Antar from Singapore (SG) was used on a construction site there. It is a 55-tonne crawler crane with telescopic boom.
The undercarriage of the crane is 6.11 meters long and 4.96 meters wide. For the transport over the road is the width to be reduced to 3.3 meters.
The crane is powered by a Wechai WP6.210 diesel engien with a power of 155 kW (211 hp).

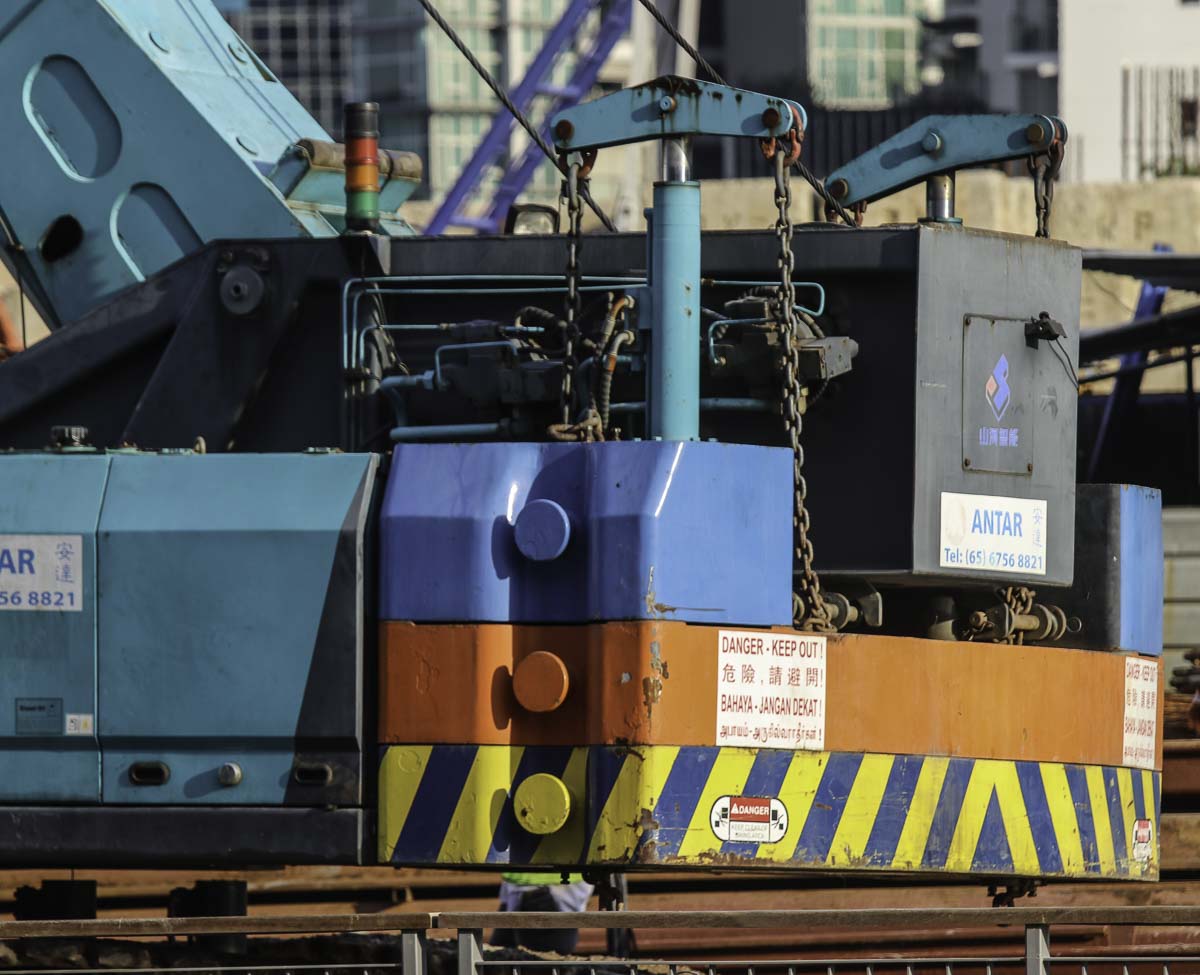

Attached to the superstructure of the crane is 15.5 tonnes of counterweight, the counterweight has a 4.54 meter tailswing.

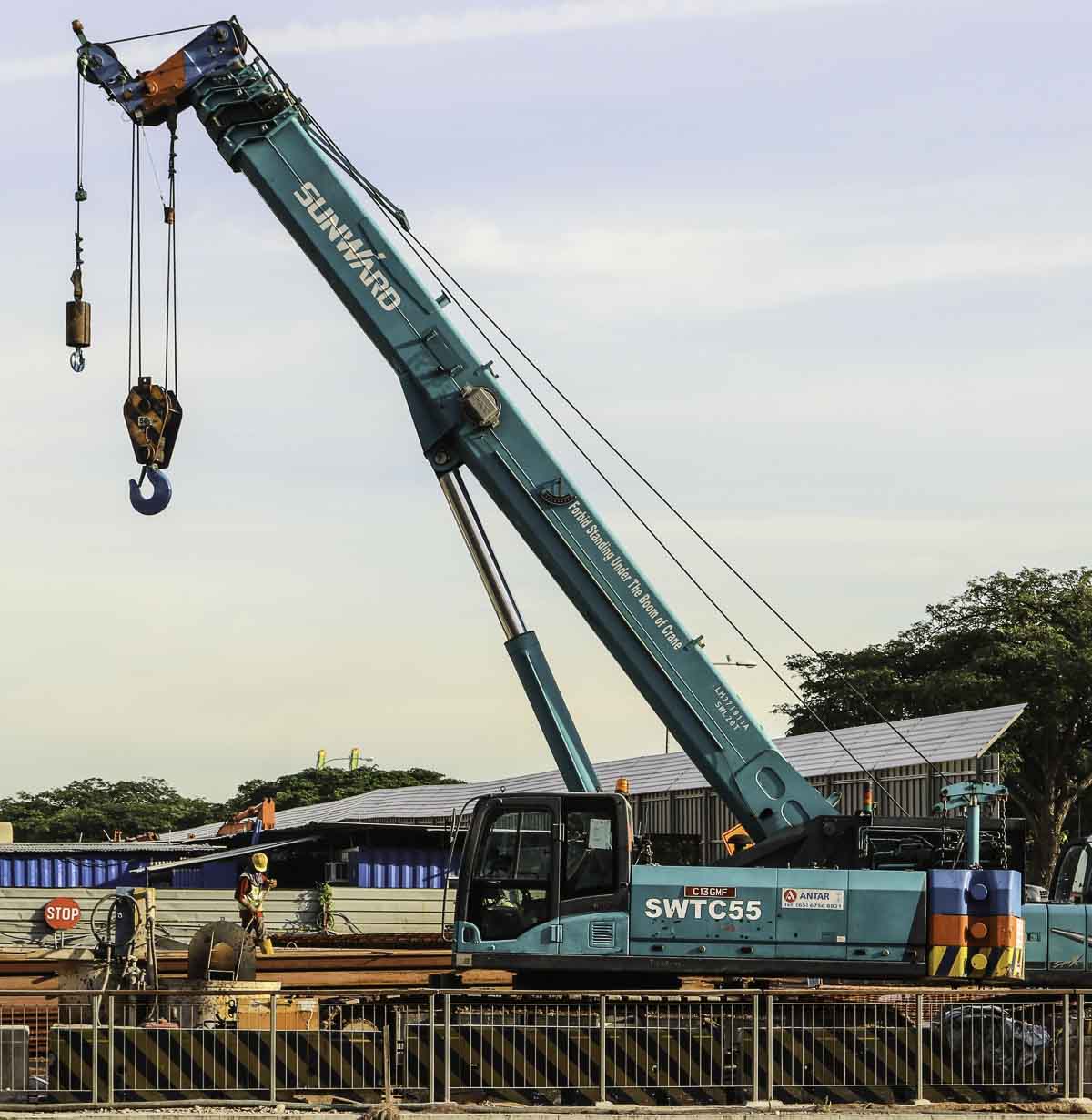

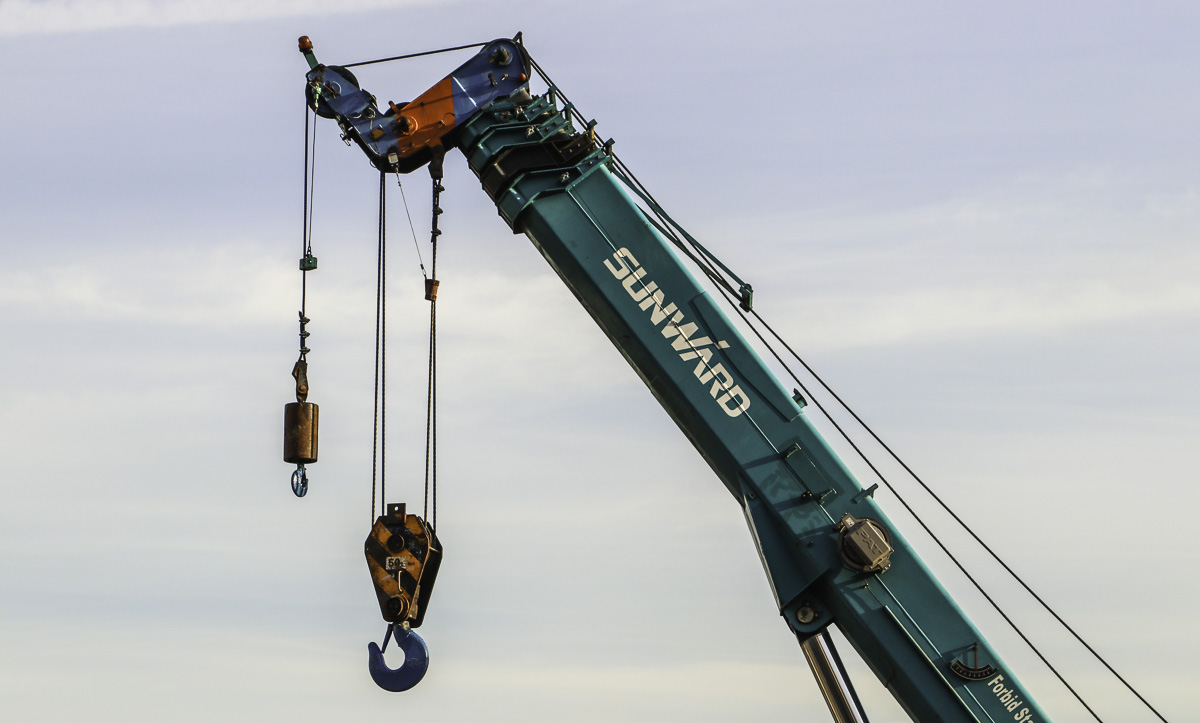

The 5-part main boom has a 10.8 meter base length and extends four times to a maximum length of 40 meters.
The transport dimensions of the crane are 13.2 meter length, 3.3 meter breadth and 3.25 meter height. The transport mass is approx. 57 tonnes. An interesting crane of Antar!
