MAN TGX 41.680 - Gebr. Markewitsch

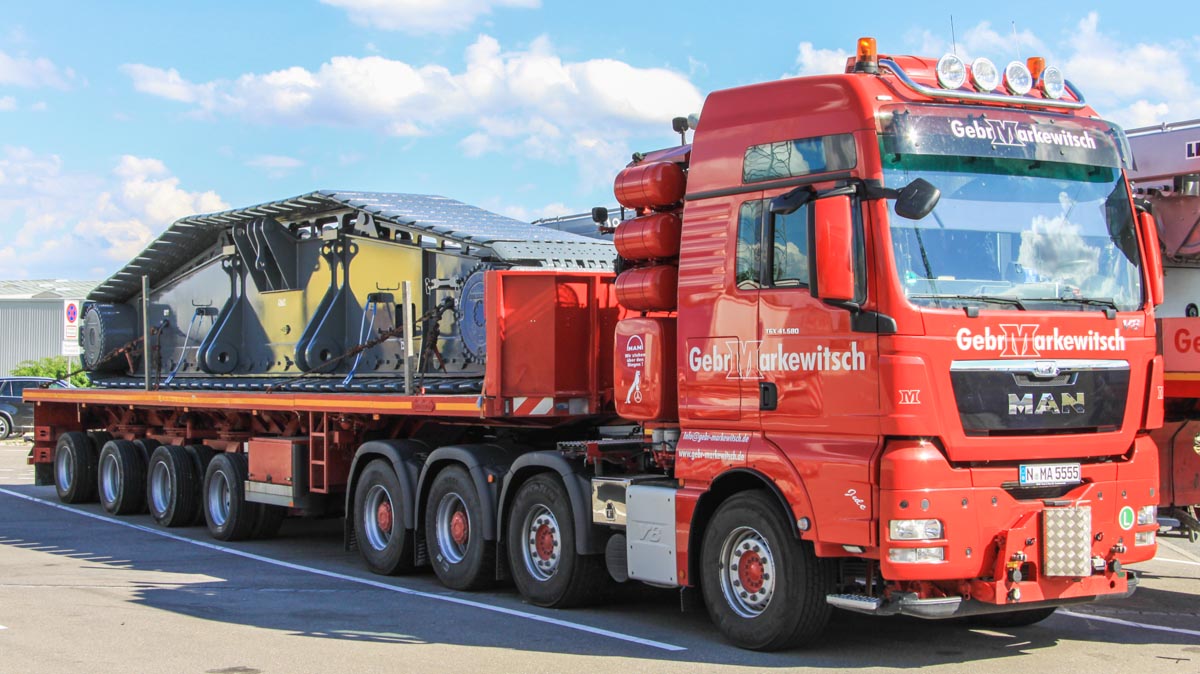

This sharp MAN TGX 41.680 of Gebr. Markewitsch from Nürnberg (DE) stood on the parking at Liebherr in Ehingen (DE) with a new crawler of the new Liebherr LR 1750/2 for Fanger from Sachseln (CH).

It is a 4-axle truck with 8x4 drive line that is powered by a 16.2 liter V8 diesel engine MAN D2863 with 680 hp.

The front bumper is reinforced for the heavy coupling, so the truck can be used also to push and brake transports or the move trailers.

Behind the front axle are the muffler, storage compartment and air filter located.

Behind the cabin are a 900 liter diesel tank, a 300 liter hydraulic oil tank, compressed-air tanks and a large cooler for the hydraulic oil. The truck also has a WSK 440 torque converter installed.

Attached is a 4-axle extendable Nooteboom flat bad trailer.

The track of the LR 1750/2 is 11.9 meters long, 1.5 meters wide and 2.13 meters high. The mass is 44 tonnes.

A sharp combination!
