MAN TGX 41.540 - Navigator

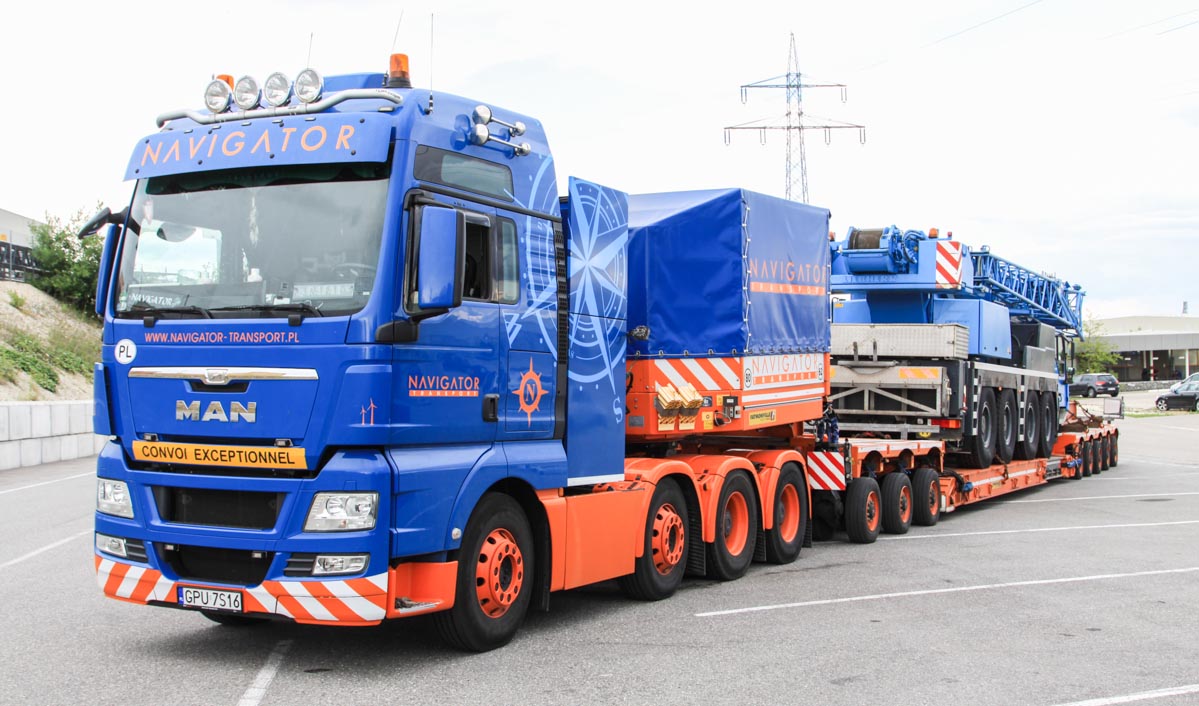

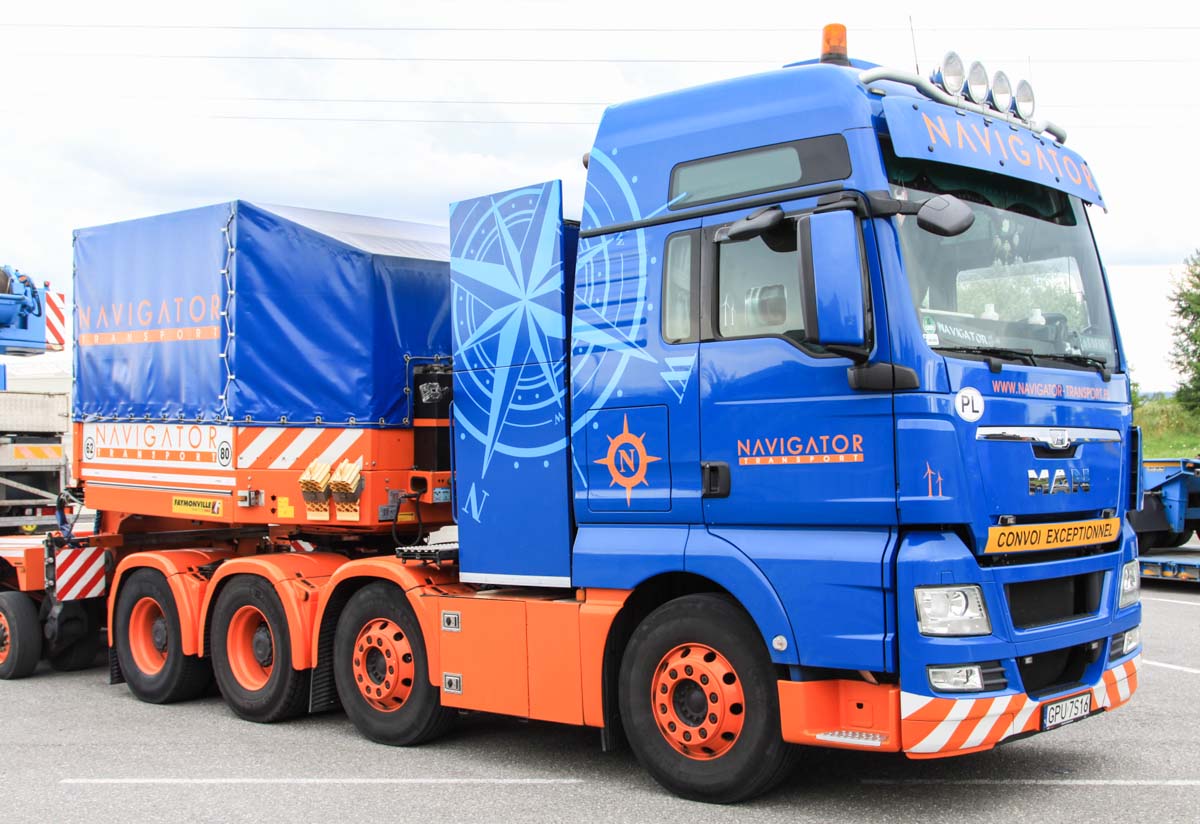

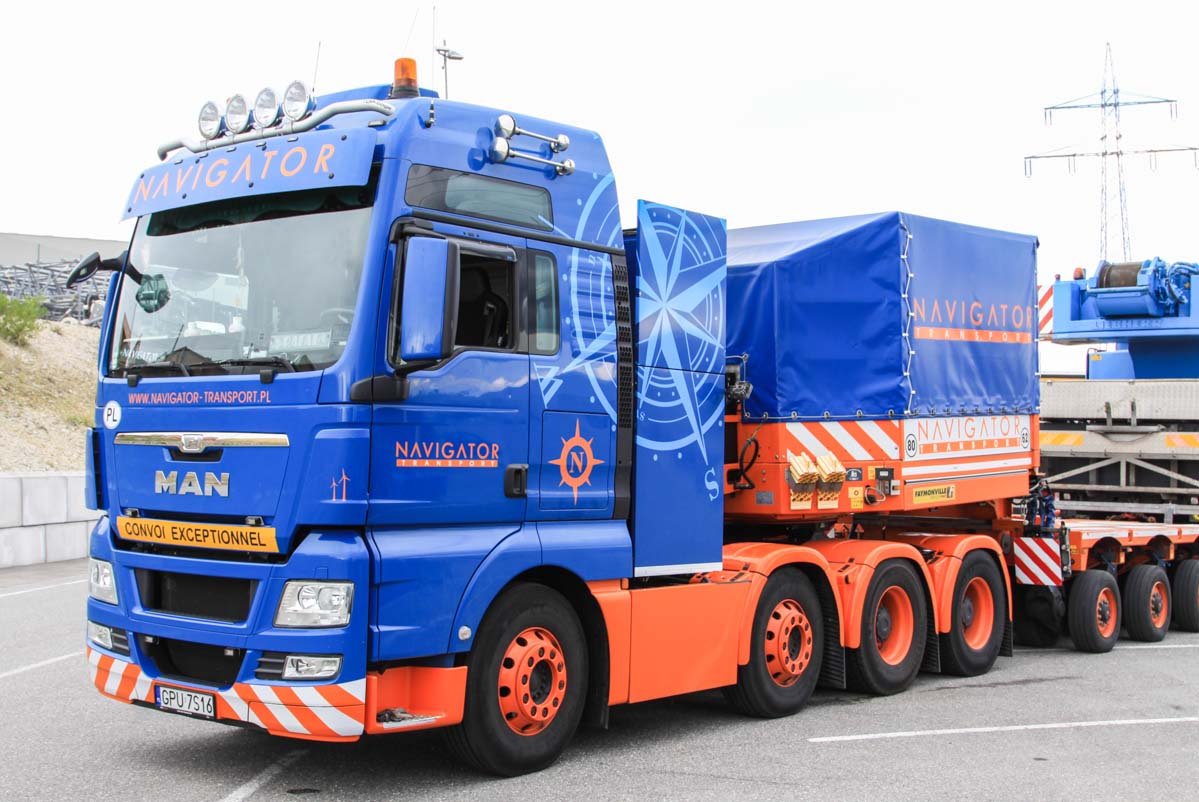

This sharp MAN TGX 41.540 of Navigator from Reda (PL) was used with an 8-axle low loader to transport a used crane from the manufacturer to the new owner.

The TGX 41.540 is powered by a MAN D2676, a 6-cylinder diesel engine with a 12.4 liter stroke with 540 hp. The truck has a maximum mass of 41 tonnes.

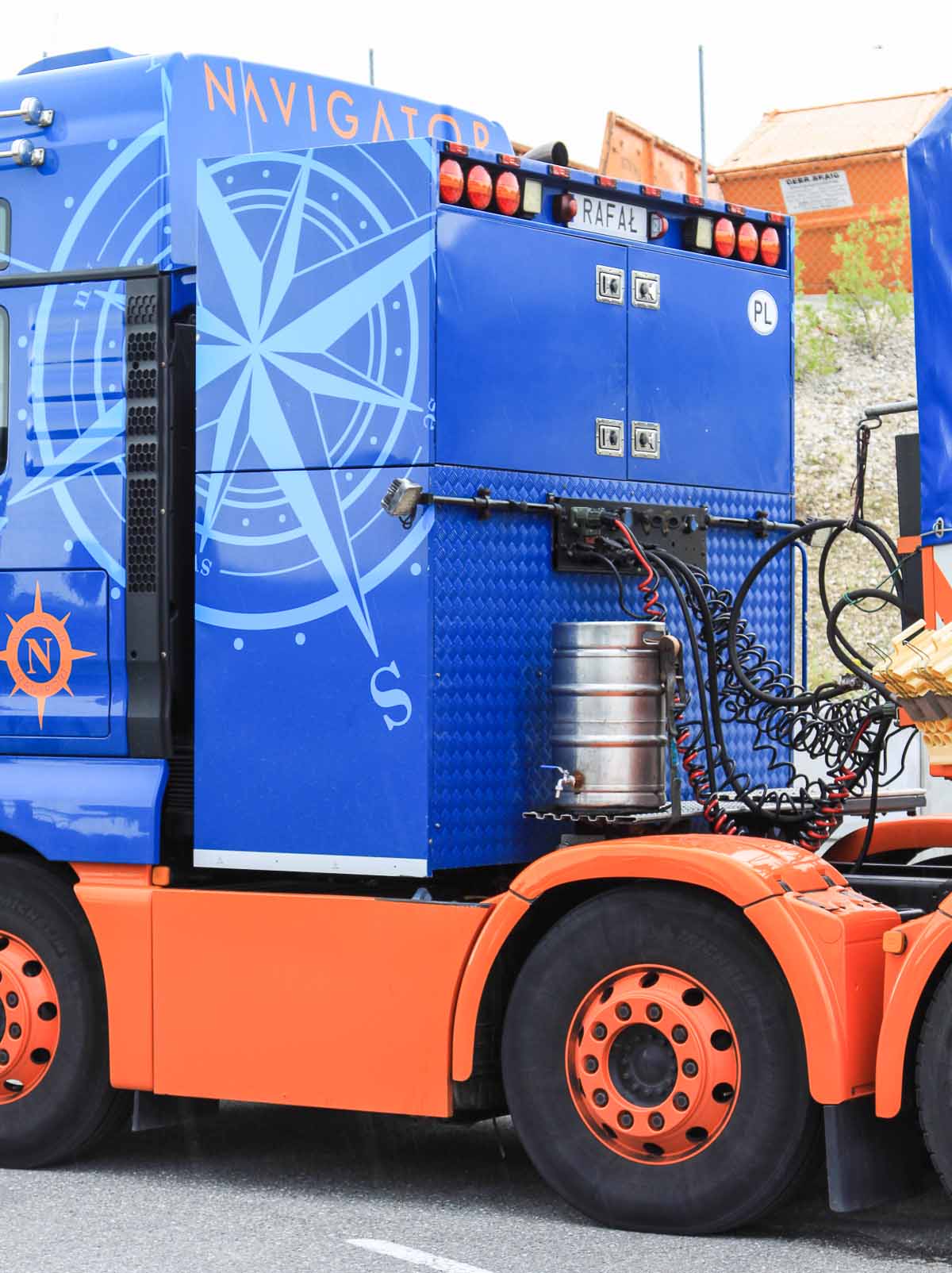

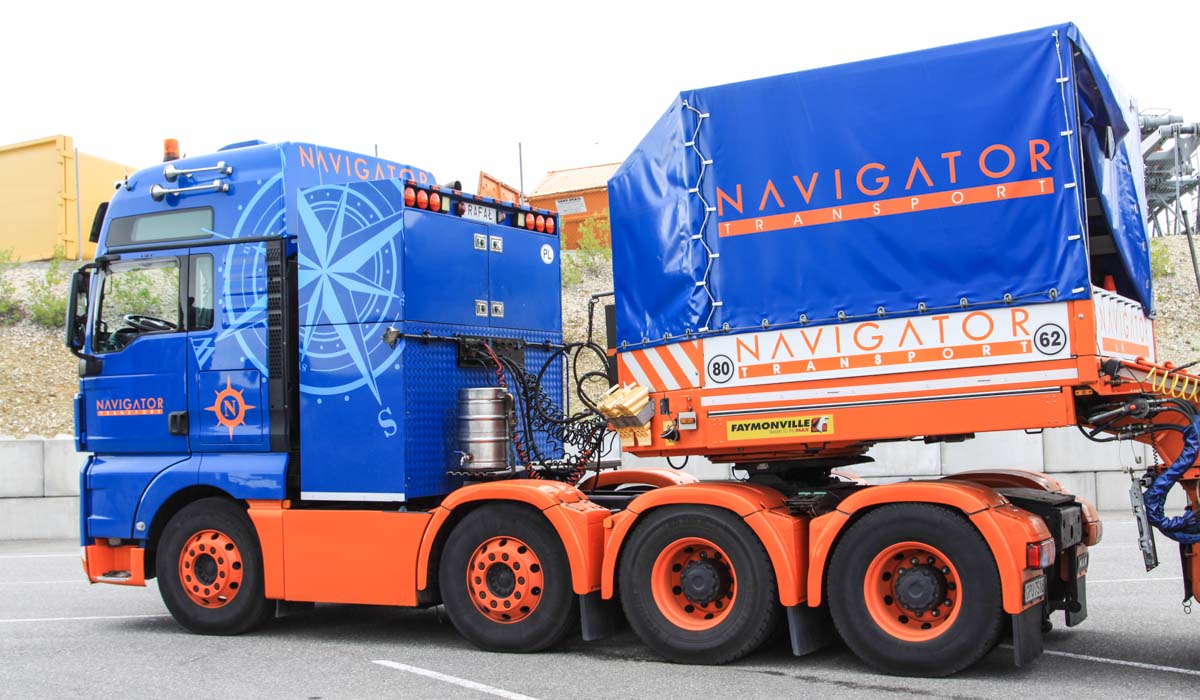

The diesel tank and storage compartments are installed behind the cabine and very nice covered. Behind the front axle can only the AdBlue tank be recognized, usually are on this side also the battery and compressed-air tanks installed, but can be identified difficult now.

On this side are behind the front axle the muffler and another storage compartment installed. Again very nice finished.

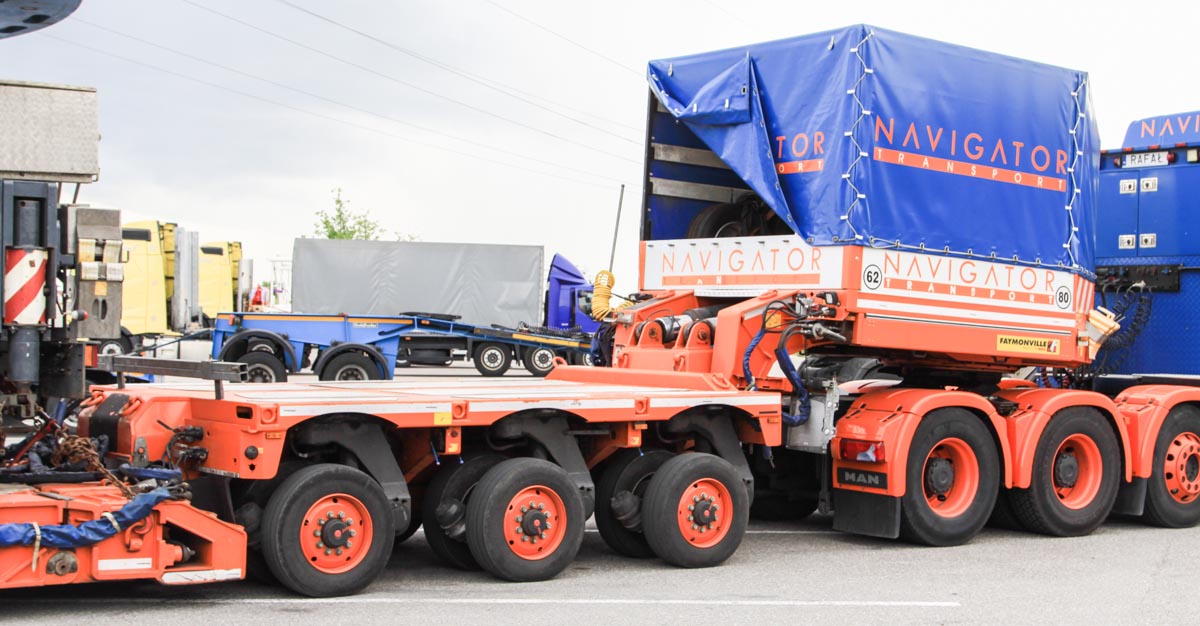

Attached is a Faymonville 3/5 VarioMax low loader with a vessel bed between the wheel bogies. On the rear bogies are some extension beams for the vessel bed loader, often required for the transport of wind turbine towers, something where Navigator is also very active.

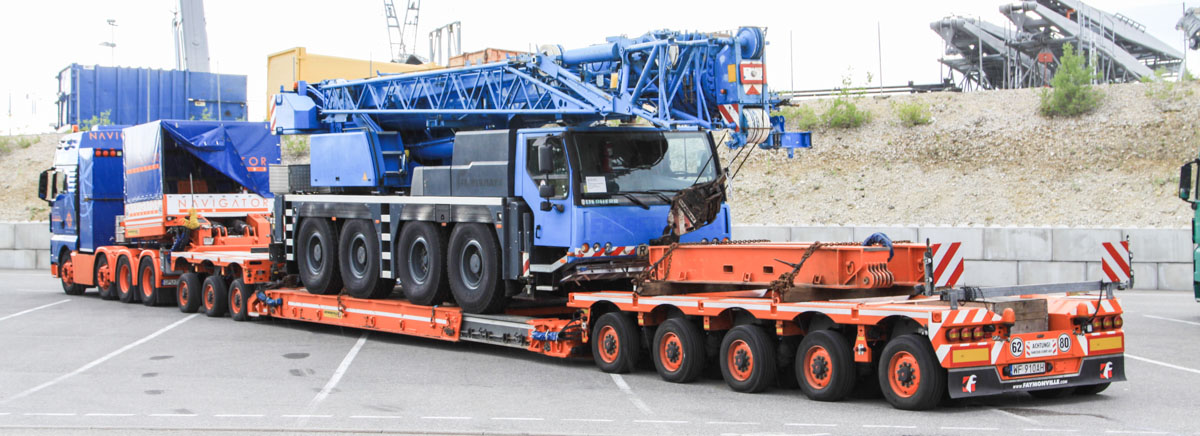

The cargo is a used Liebherr LTM 1070-4.1 that was before in operation by Felbermayr. The crane is 13 meters long, 2.55 meters wide and 3.8 meters high. The transport mass is approx. 48 tonnes.

A very sharp combination in the colours of Navigator!
