Volvo FMX 460 - Heidelberger Beton

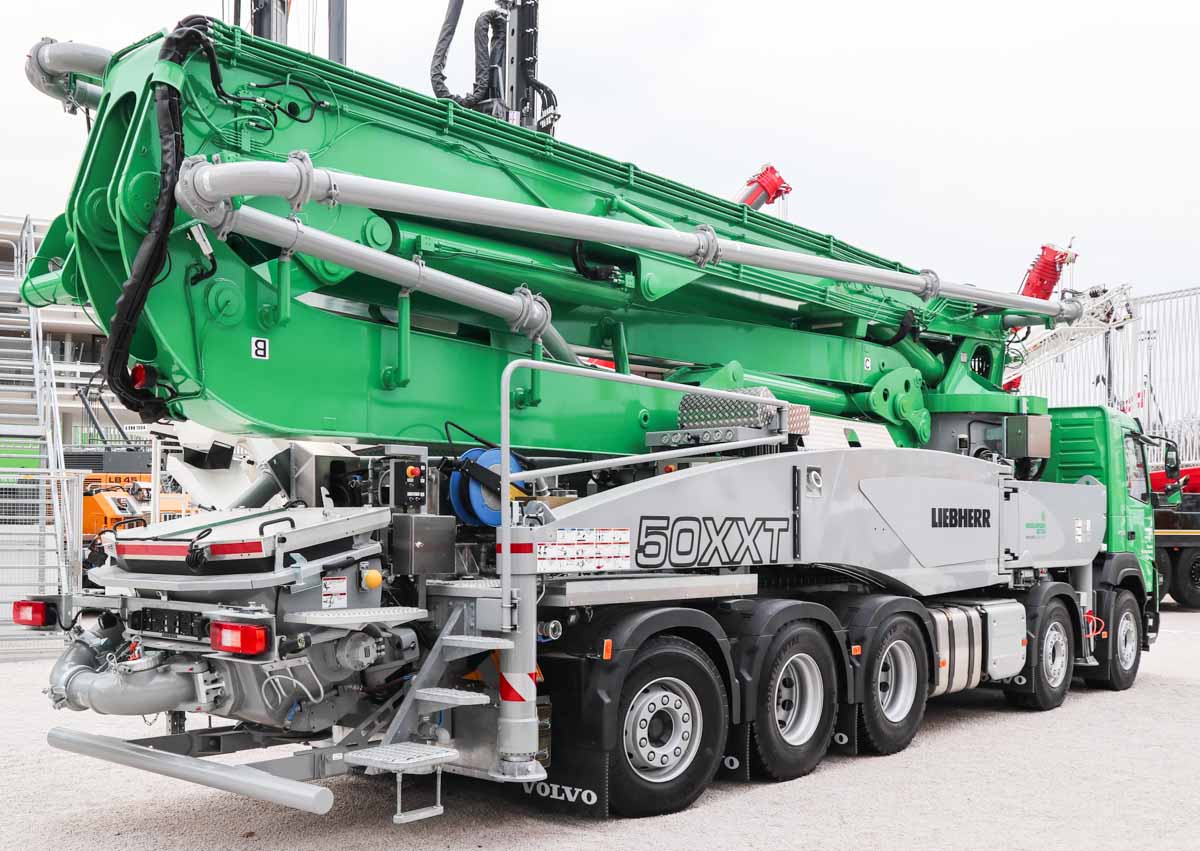

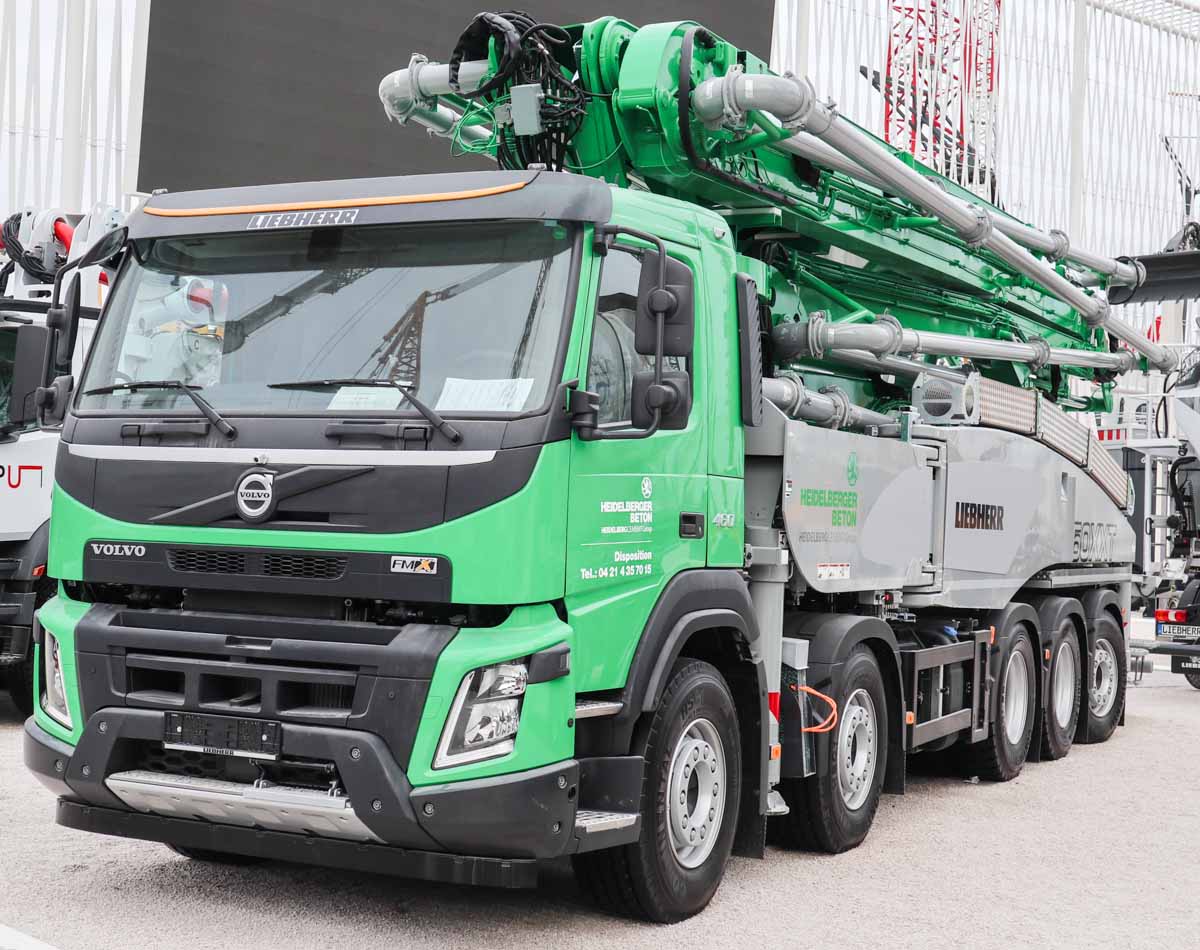

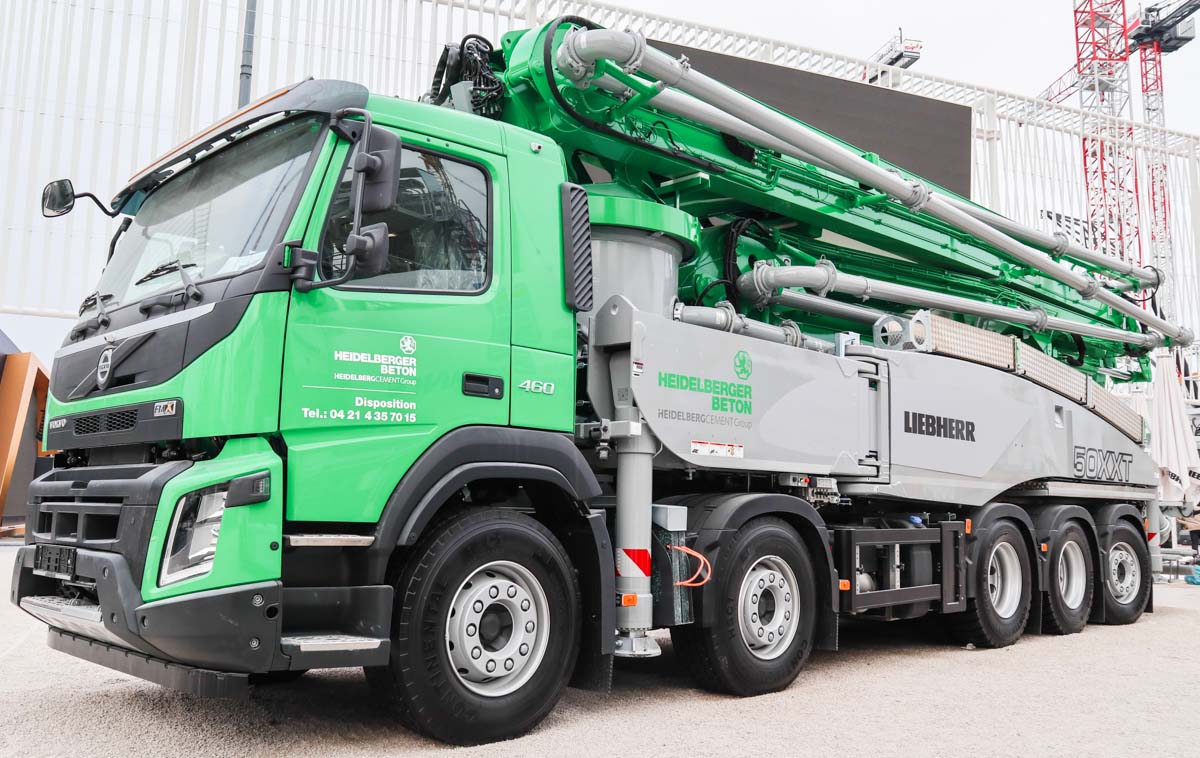

At the Bauma 2019 presented Liebherr this 50 M5 XXT concrete pump on a sharp Volvo FMX 460 10x4 chassis in the colors of Heidelberger Beton from Heidelberg (DE).

The truck is powered by a Volvo D13K460, a 12.8 liter 6-cylinder with 460 hp. The 5-axle chassis has two driven rigid axles and three steerable axles.

The concrete pump can be installed on a 8x4 or a 10x4 truck chassis. The total length of both versions is approx. 12.1 meters. The maximum outrigger base measures 9.3 x 9.2 meters, or only fully extended on one side 6.7 x 9.3 meters.

The pump has a capacity of 163 cubic per hour.

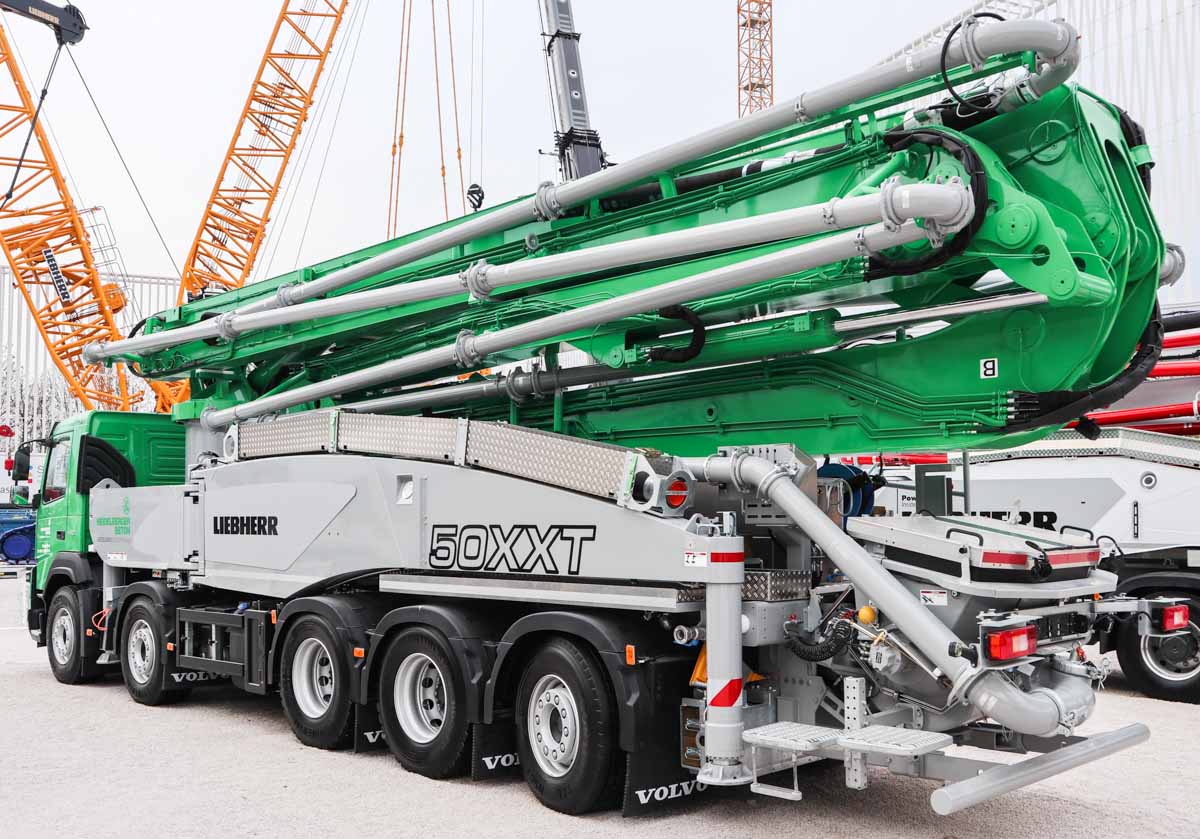

The 5-part placing boom has a maximum vertical reach of 49.1 meters and a horizontal reach of 44.4 meters.

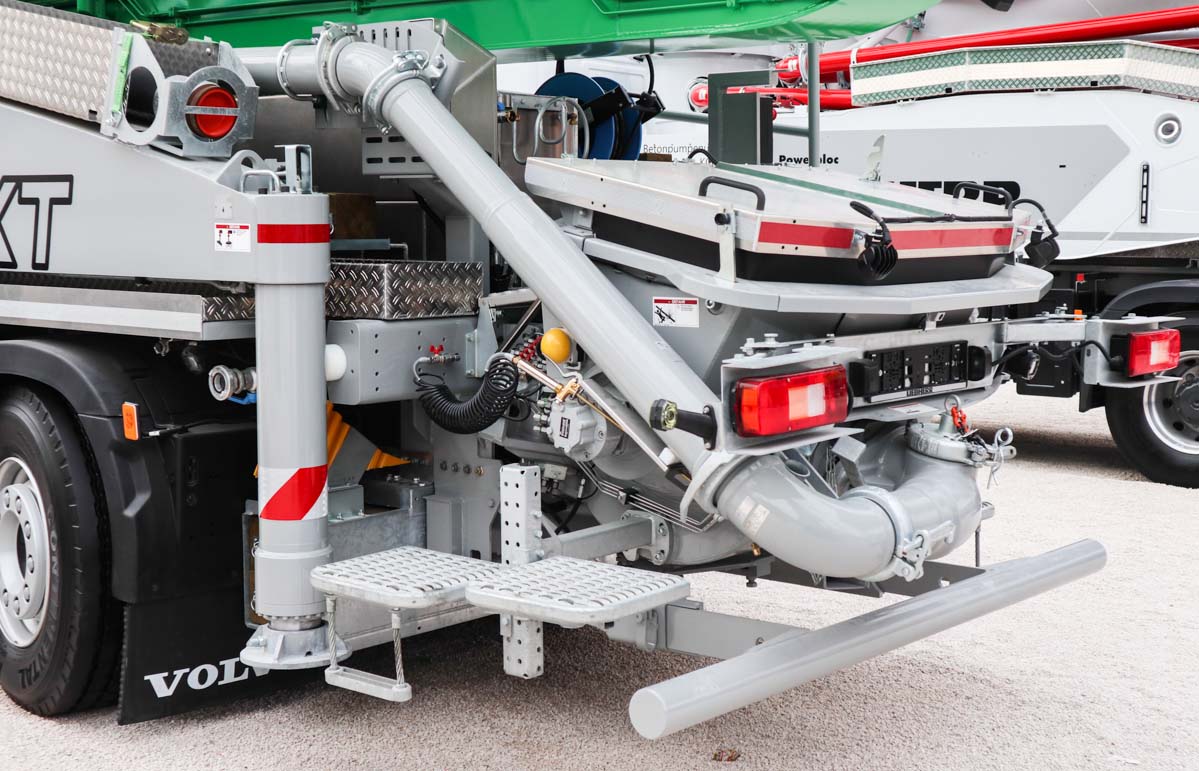

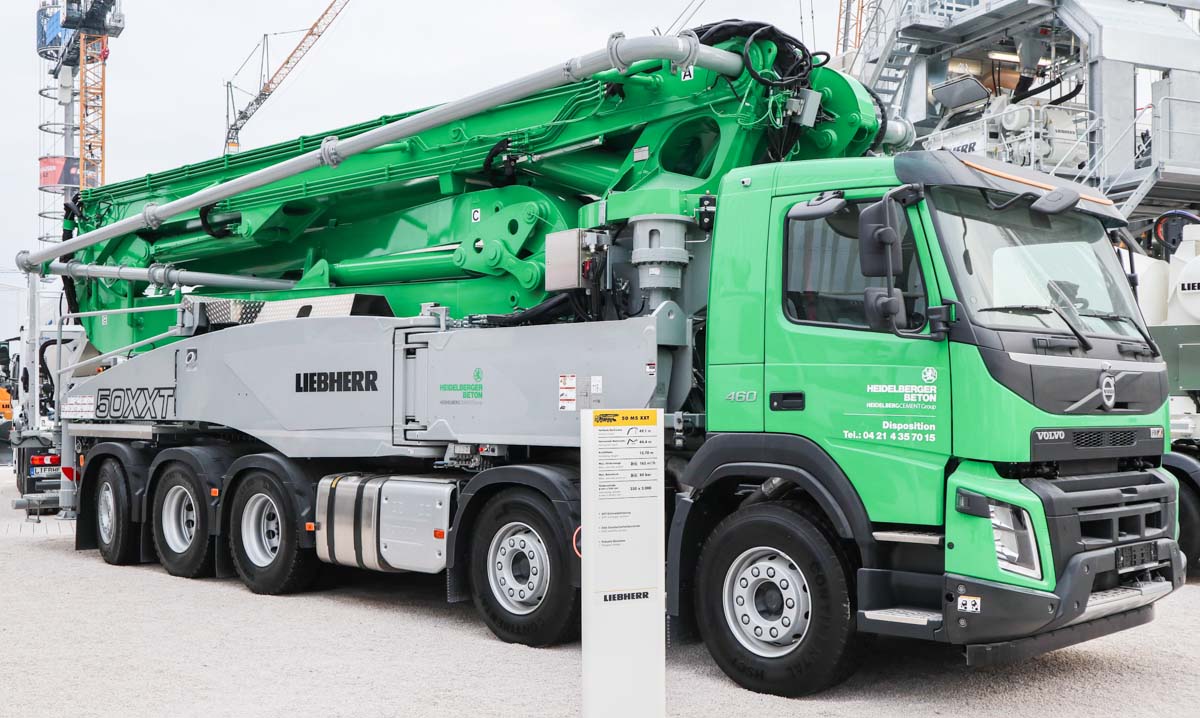

The muffler and the dieseltank are installed between the axles, on the other side are here the AdBlue tank and the battery installed.

A sharp new concrete pump for the german construction sites!
