Volvo FM 400 - R&D Equipment

This sharp Volvo FM 400 with Sany SY5510THB 620C-8 concrete pump belongs to R&D Equipment from Singapore (SG). The vehicle stood parked during a weekend in front of a large construction site.

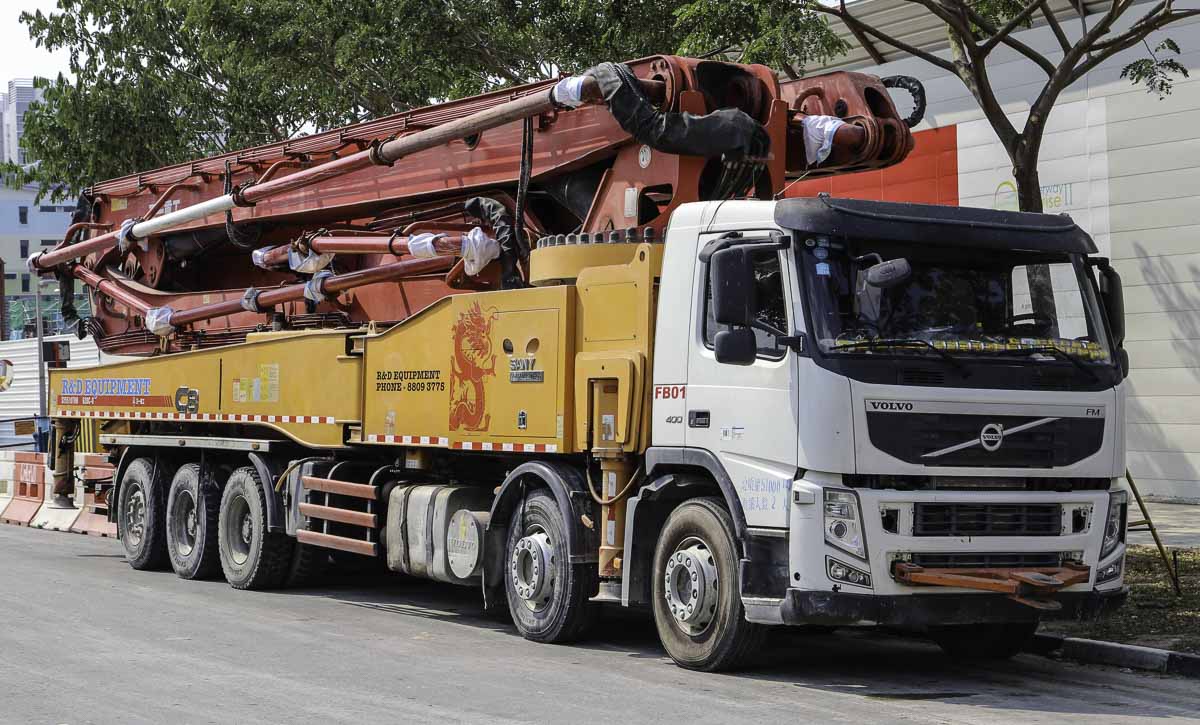

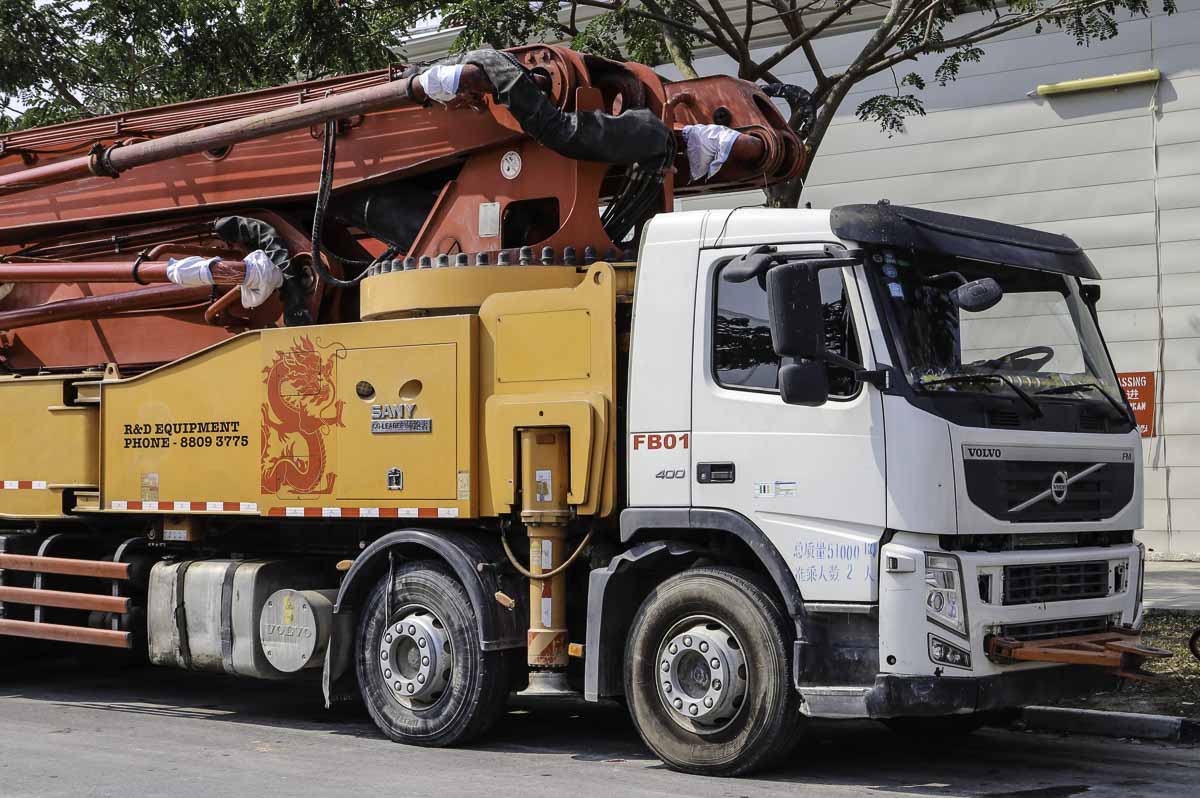

The vehicle is a Volvo FM 400 with 10x4-drive line. The truck is powered by a Volvo D13, a 12.8-liter 6-cylinder diesel engine with a power of 294 kW (400 hp). The vehicle is towed between destinations as the truck can't get a road registration due to its dimensions.

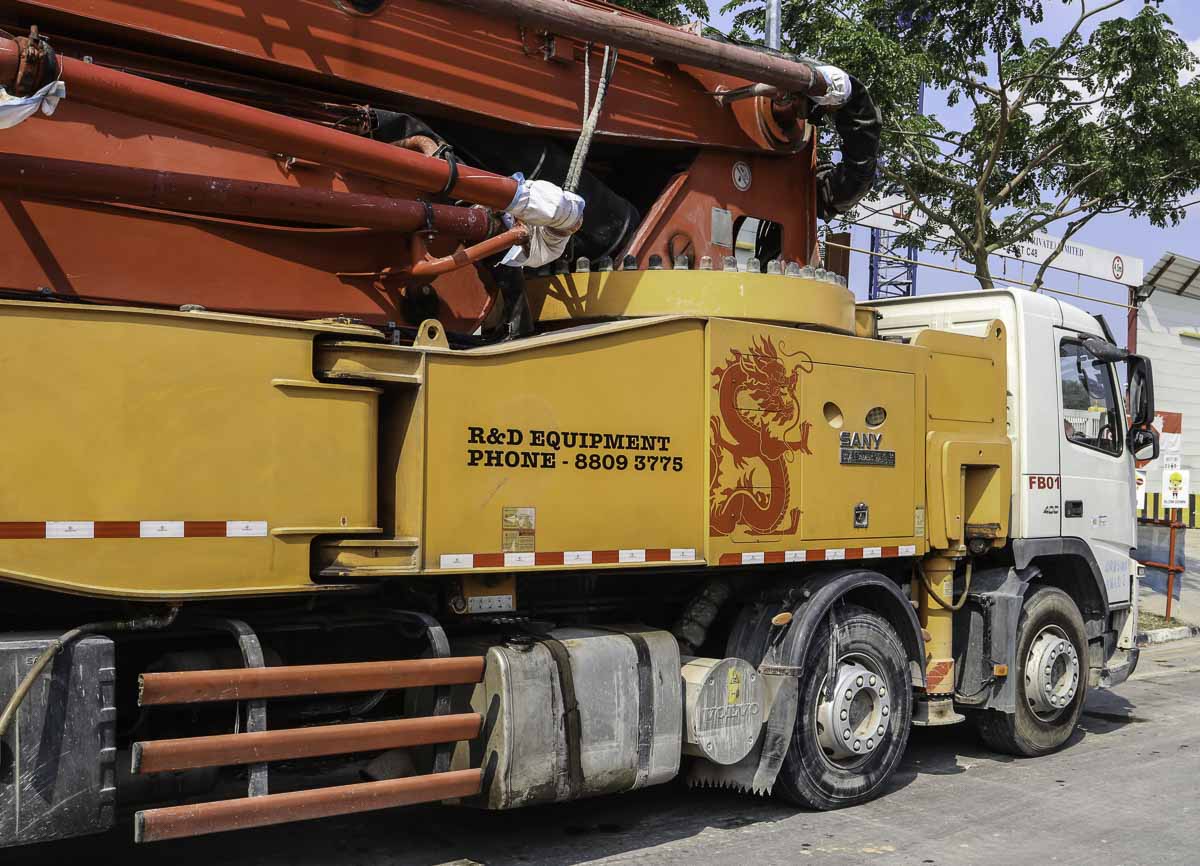

The outrigger base in the front has a maximum width of 11.42 meters. Behind the second axle are the Euro 3 muffler and the diesel tank mounted.

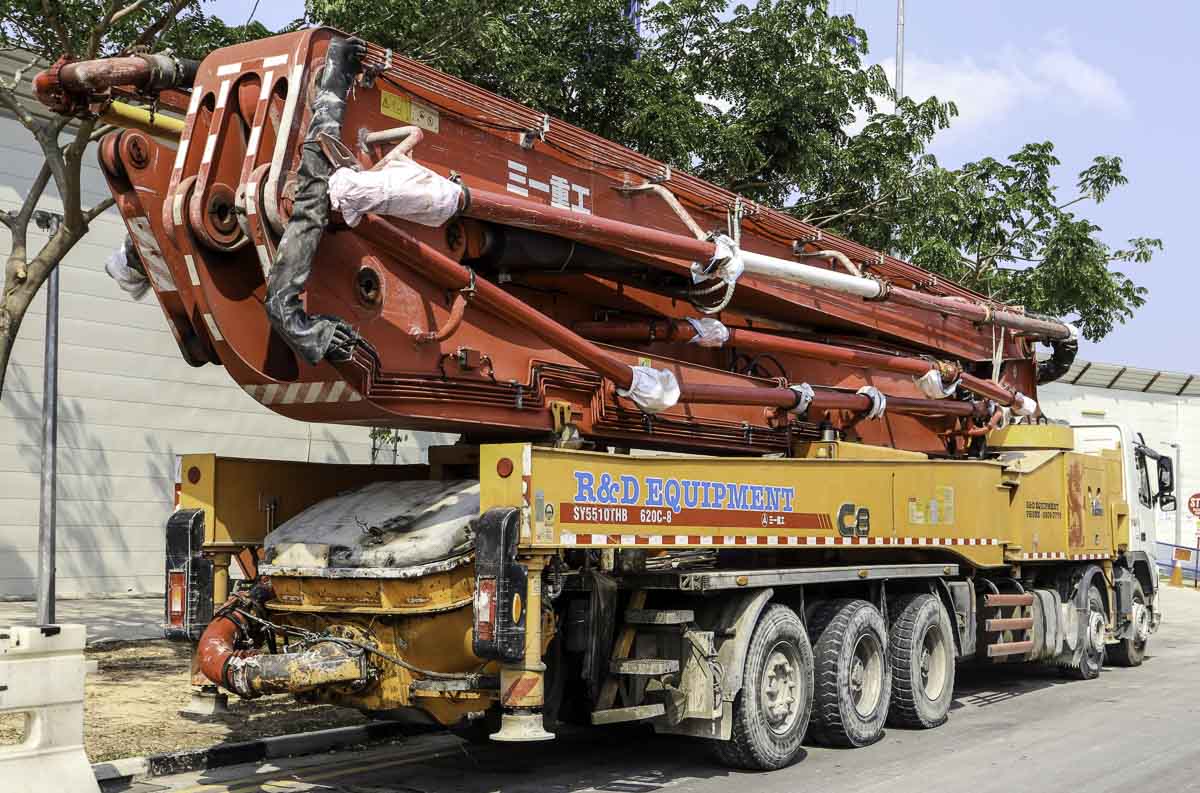

The 6-part placer boom has a maximum vertical length of 62 meters and a horizontal reach of 57.6 meters. The vehicle is 15.73 meters long, 2.5 meters wide and 4 meters tall. The mass of the vehicle is approx. 51 tonnes.

The pump has a maximum pumping capactity of 180 cubic metres of concrete per hour. The rear outriggers have a maximum width of 13.88 meters.
