Scania G 440 - Hup Hin

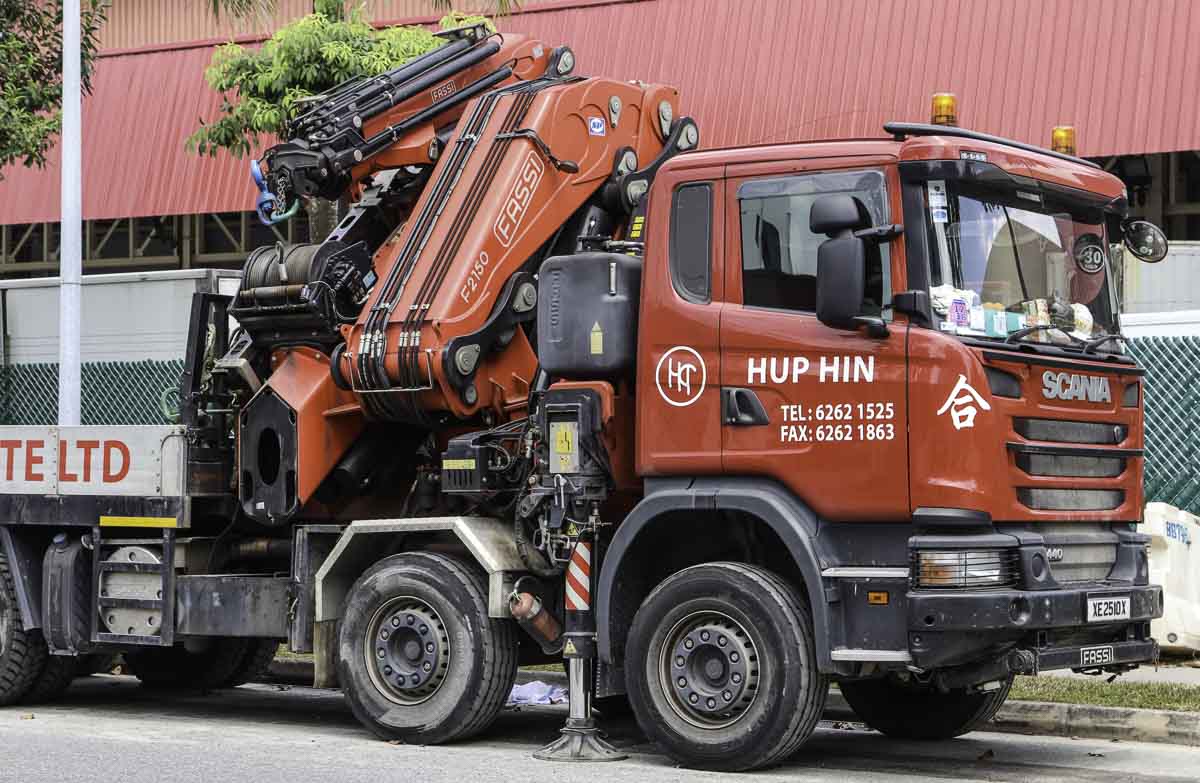

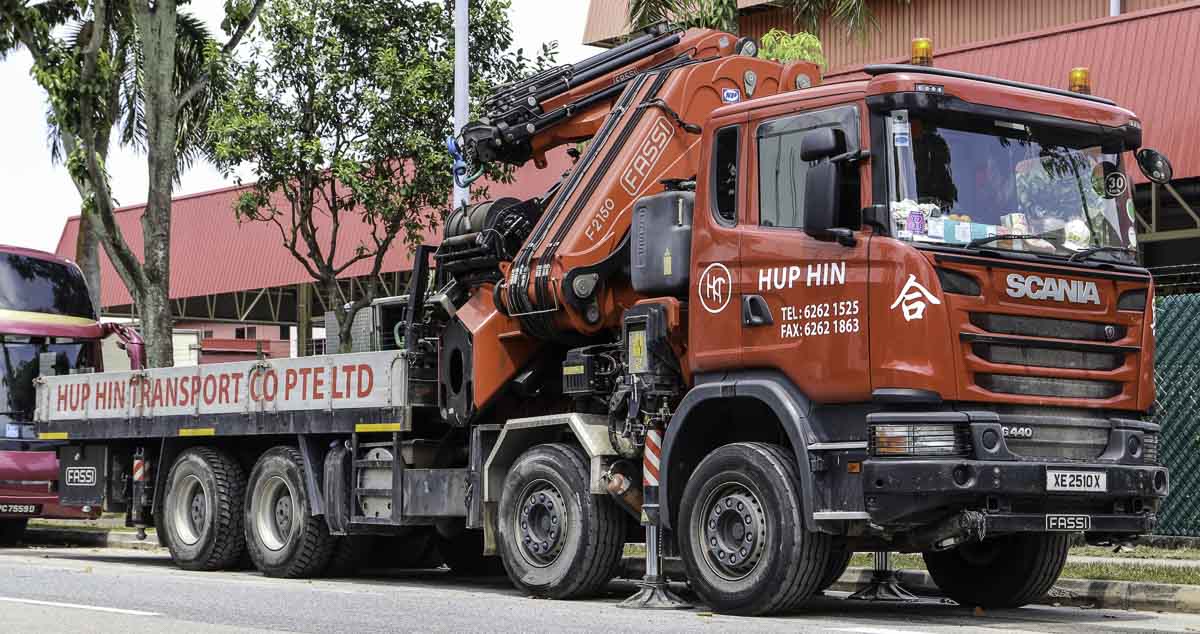

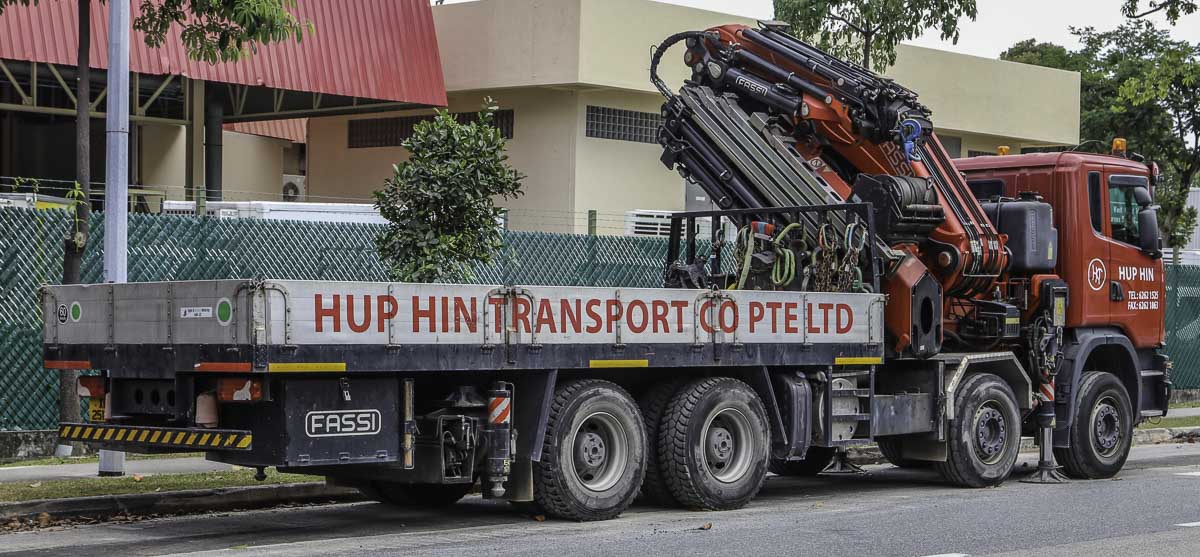

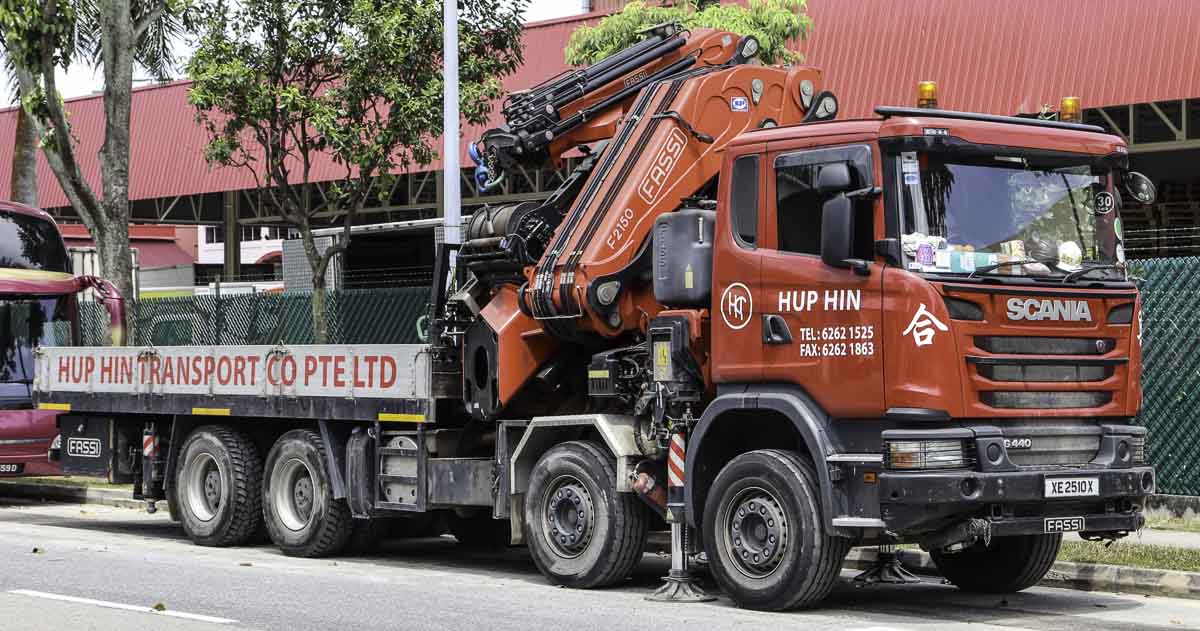

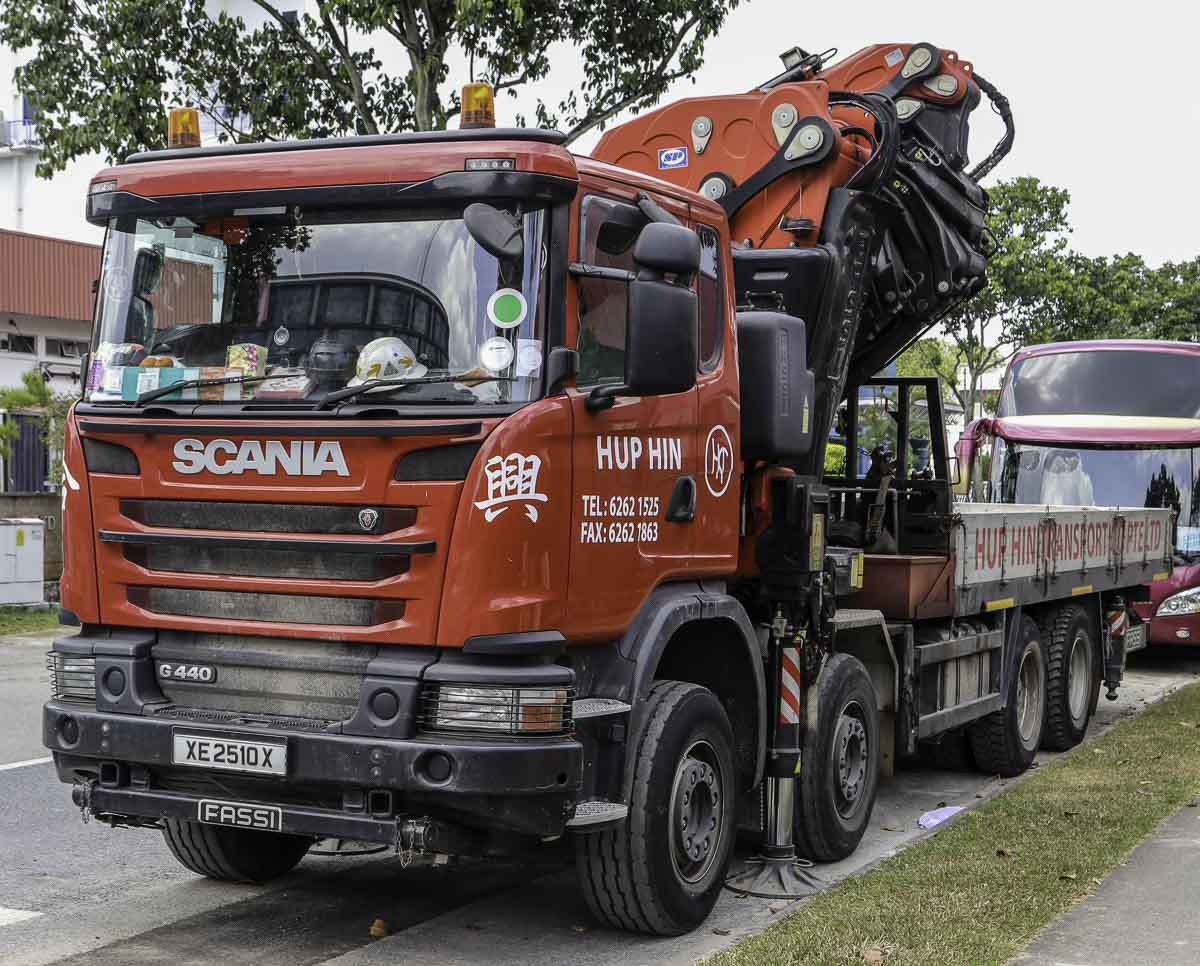

This sharp Scania G 440 with Fassi F2150 lorry crane belongs to Hup Hin from Singapore (SG). During the weekend stood the vehicle parked along the road. The vehicle's year of manufacture is 2016.

The truck is powered by a Scania DC13, a 12.7-liter 6-cylinder diesel engine with a power of 328 kW (440 hp). The truck has an 8x4-drive line, where both rigid rear axles are powered and both front axles are only steerable.

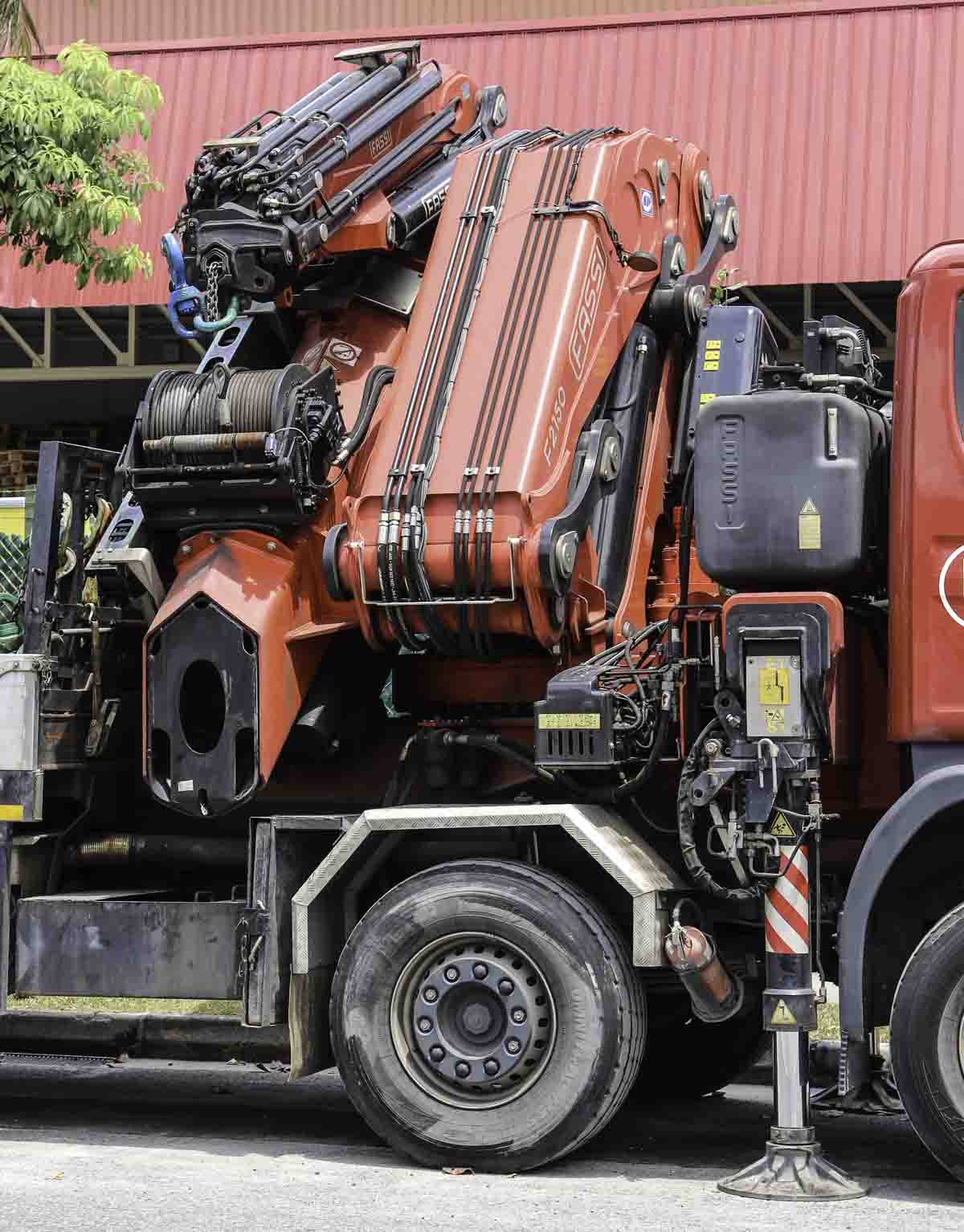

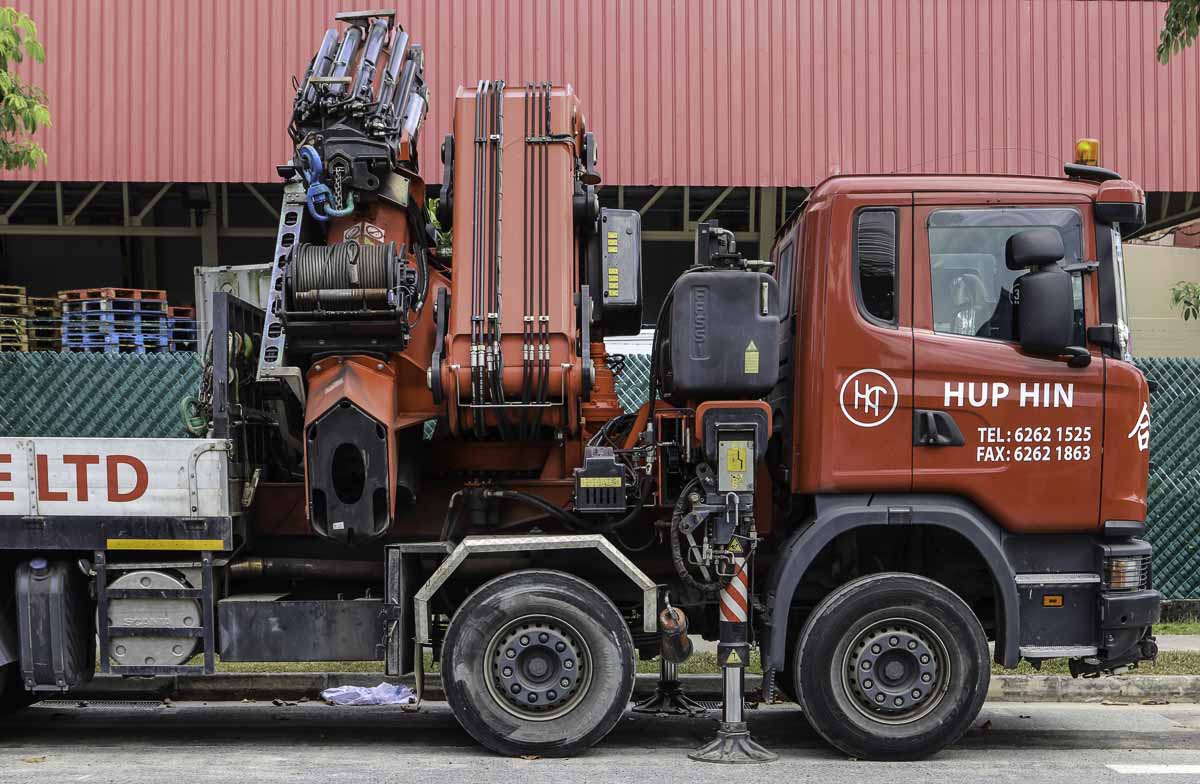

Behind the cabine is a large Fassi F2150RA.2.28 lorry crane with a load moment of 160 mt mounted. In front of the third axle are the AdBlue tank and muffler installed.

Typical in Singapore do the vehicles have a fixed box. The vehicle doesn't have a trailer coupling.

The crane can maximum lift 30 tonnes on a 4.75 meter radius, or 6.5 tonnes on a 19.4 meter radius. With the L916 jib is the reach extended to 31 meters, the crane can still lift 1.675 tonnes there. Once the hoist winch is used, is the crane able to lift maximum 20 tonnes, this is limited by the maximum amount of reevings.

The outriggers next to the crane have a maximum width of 10.99 meters.

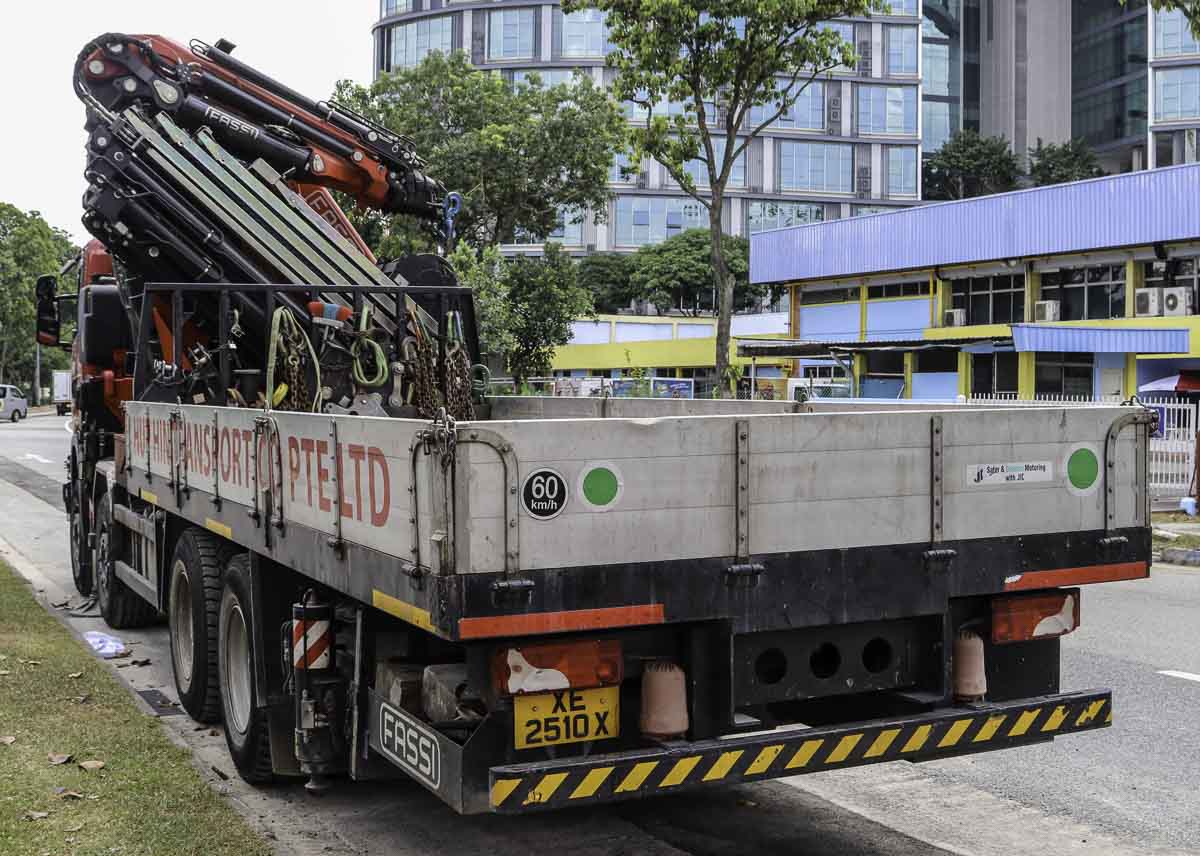

At the rear of the chassis are another two outriggers mounted.

A very sharp vehicle by Hup Hin!
