Kobelco 7090G - Ho Lee

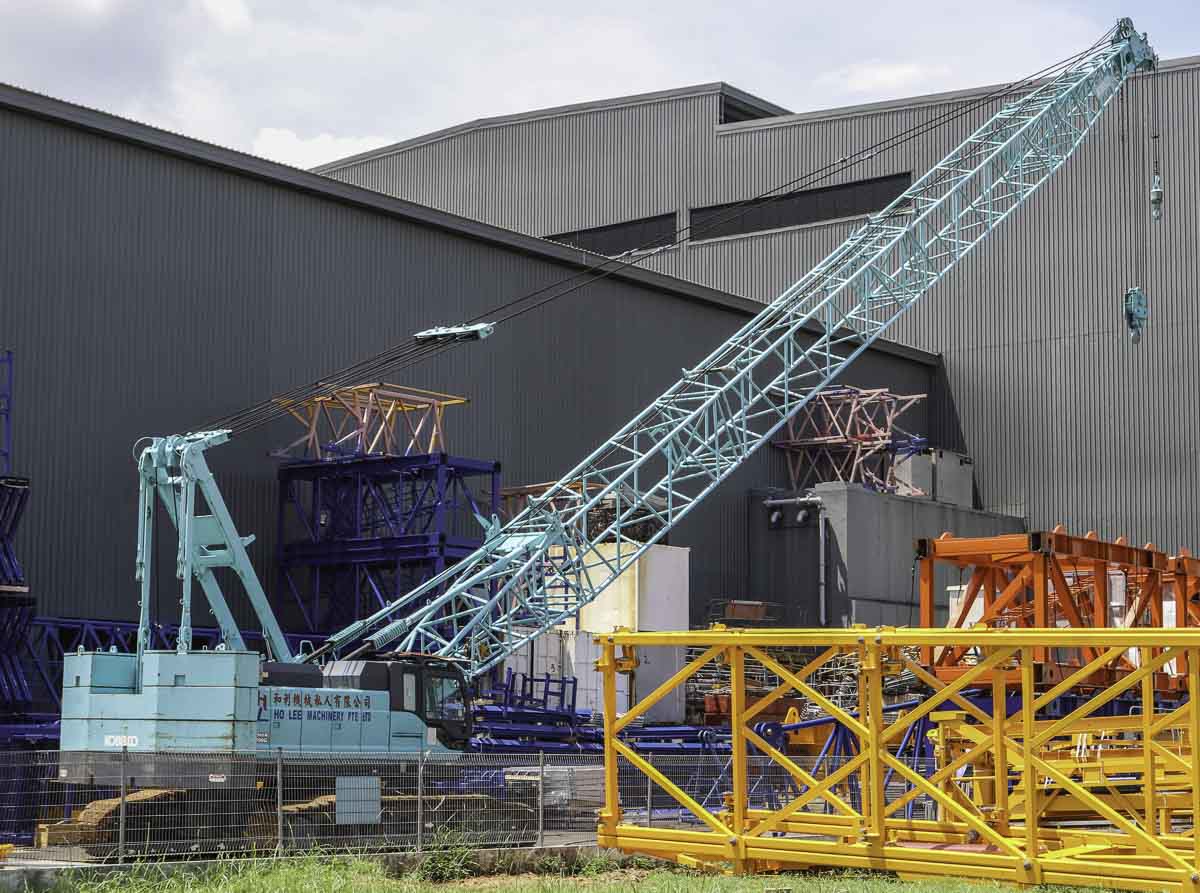

This sharp Kobelco 7090G belongs to Ho Lee Machinery from Singapore (SG) and is used as assist crane on their yard with tower crane parts. It is a 90-tonne crane.

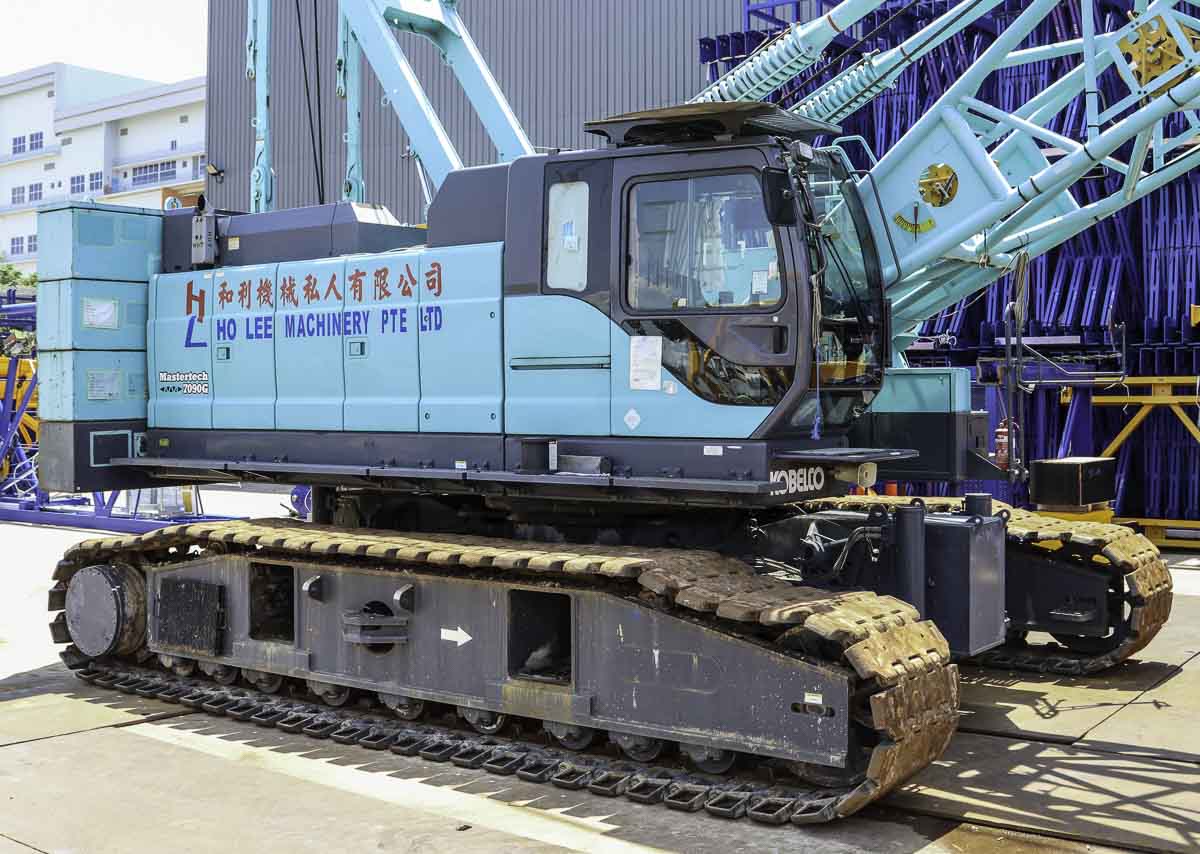

The undercarriage of the crane is 6.32 meters long and 4.9 meters wide. For the transport over the road is the width to be reduced to 3.5 meters.

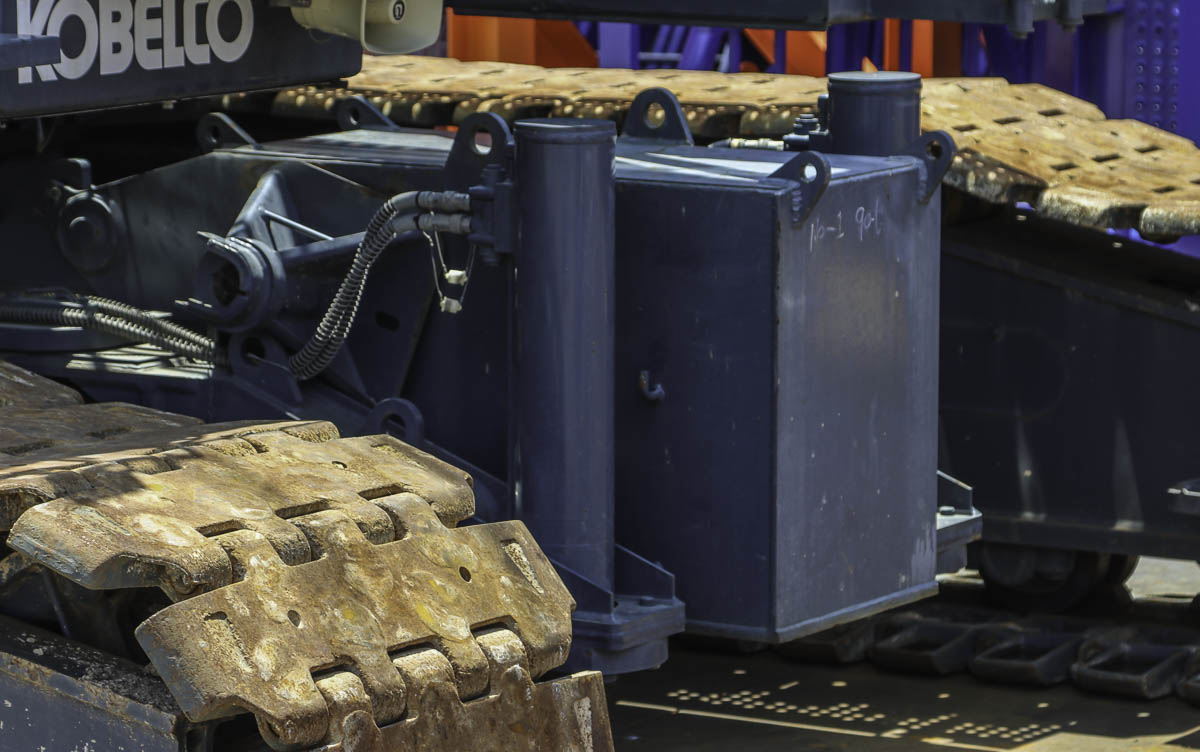

Between the tracks is in total 6.6 tonnes of central counterweights mounted, on each side 3.3 tonnes.

The crane is powered by a Hino J08E-UV diesel engine with a power of 213 kW.

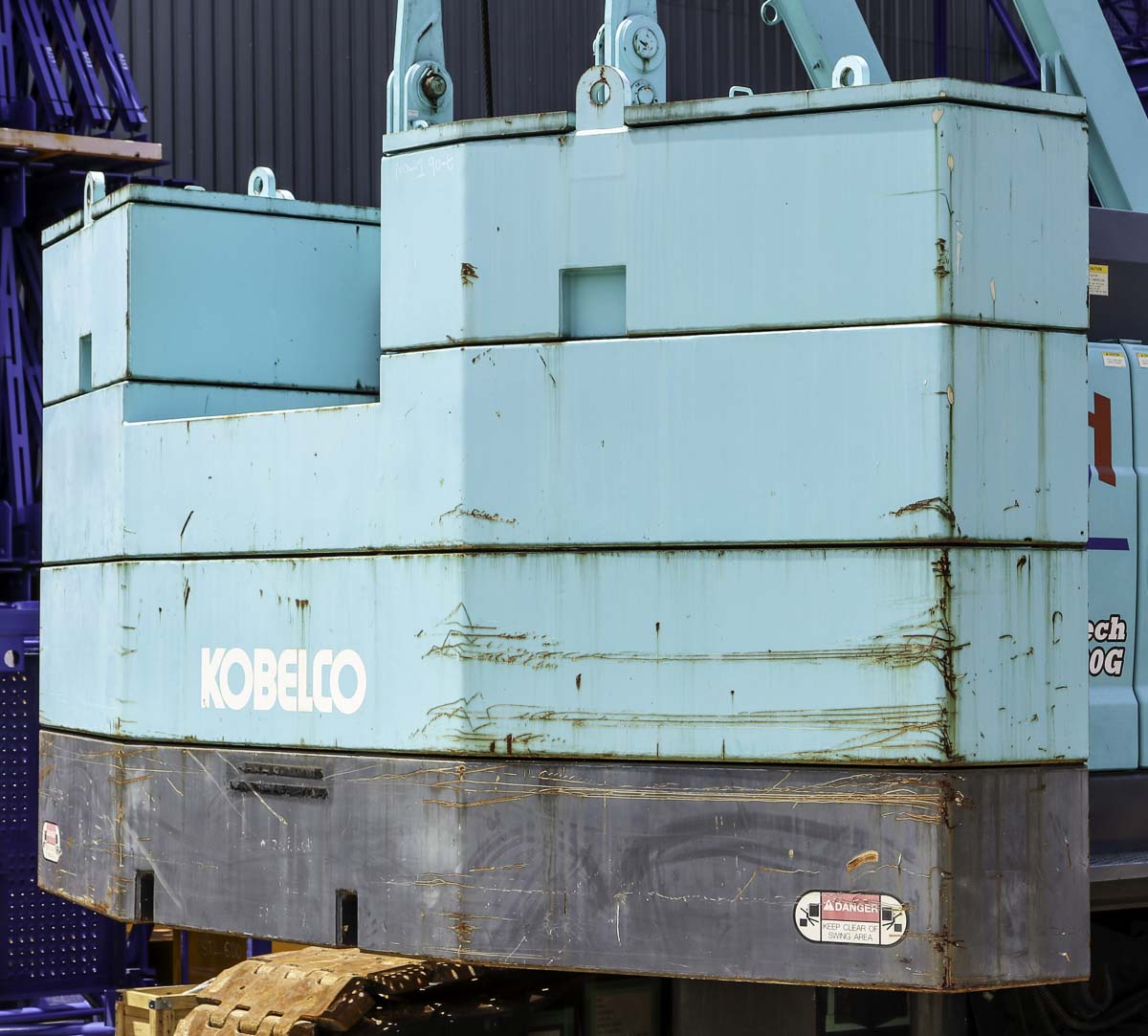

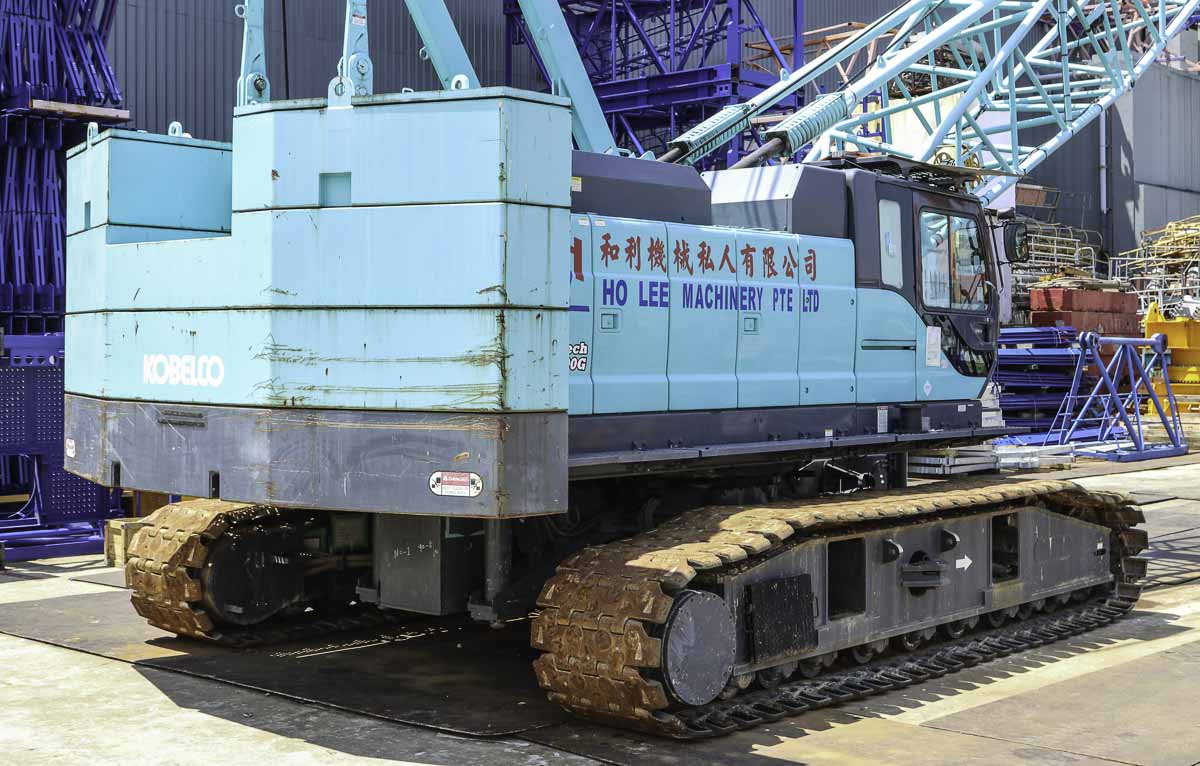

Attached to the superstructure is in total 33.7 tonnes of counterweight, the counterweight has a 4.4 meter tailswing.

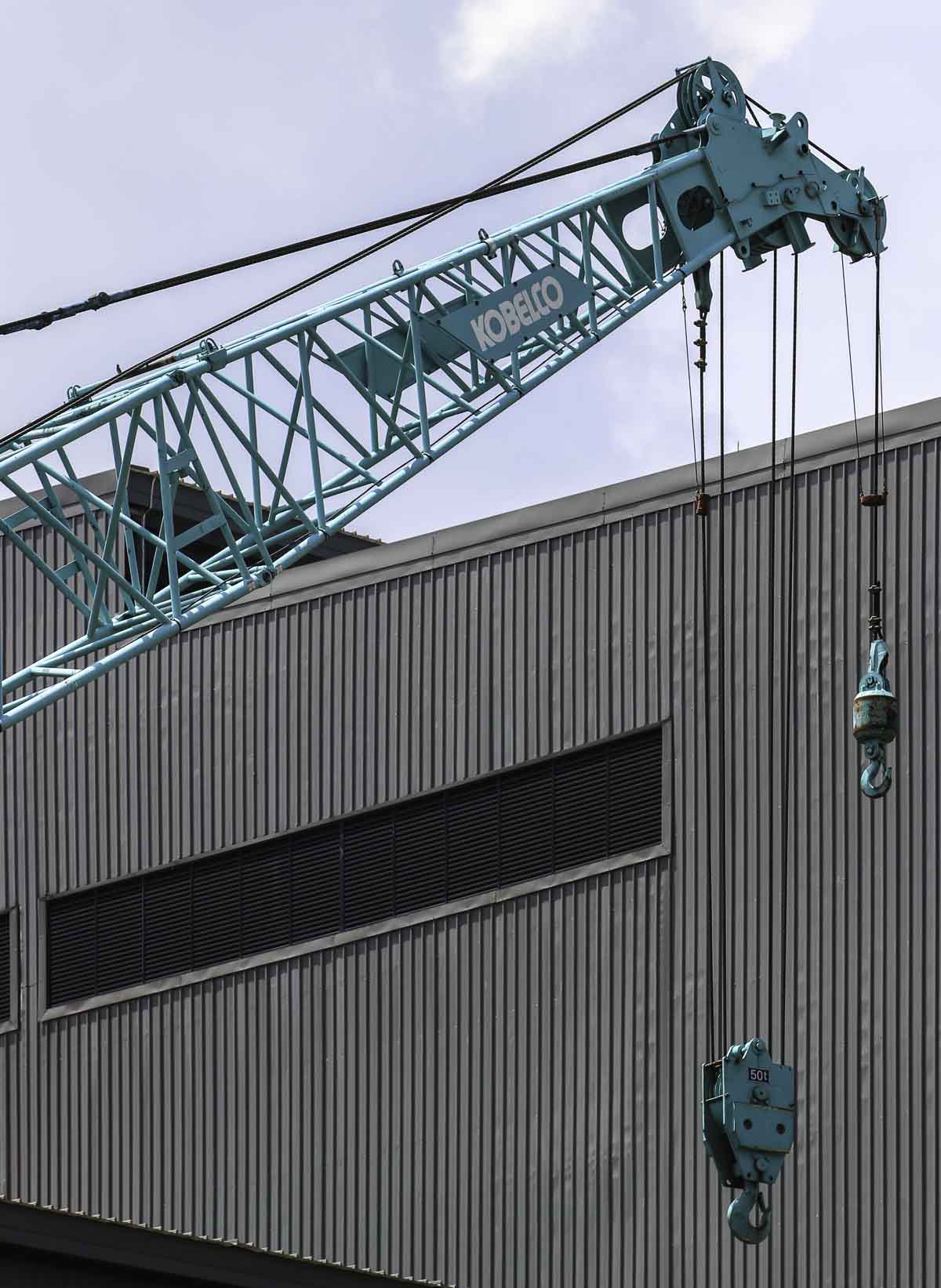

The crane is fitted with two 11-tonne hoist winches with 26 mm wire rope. The crane is here fitted with a 38.2 meter long main boom, the maximum length of the main boom is 53.4 meters. A very sharp crane of Ho Lee!
