Kobelco 7065 - Zwagerman VMT

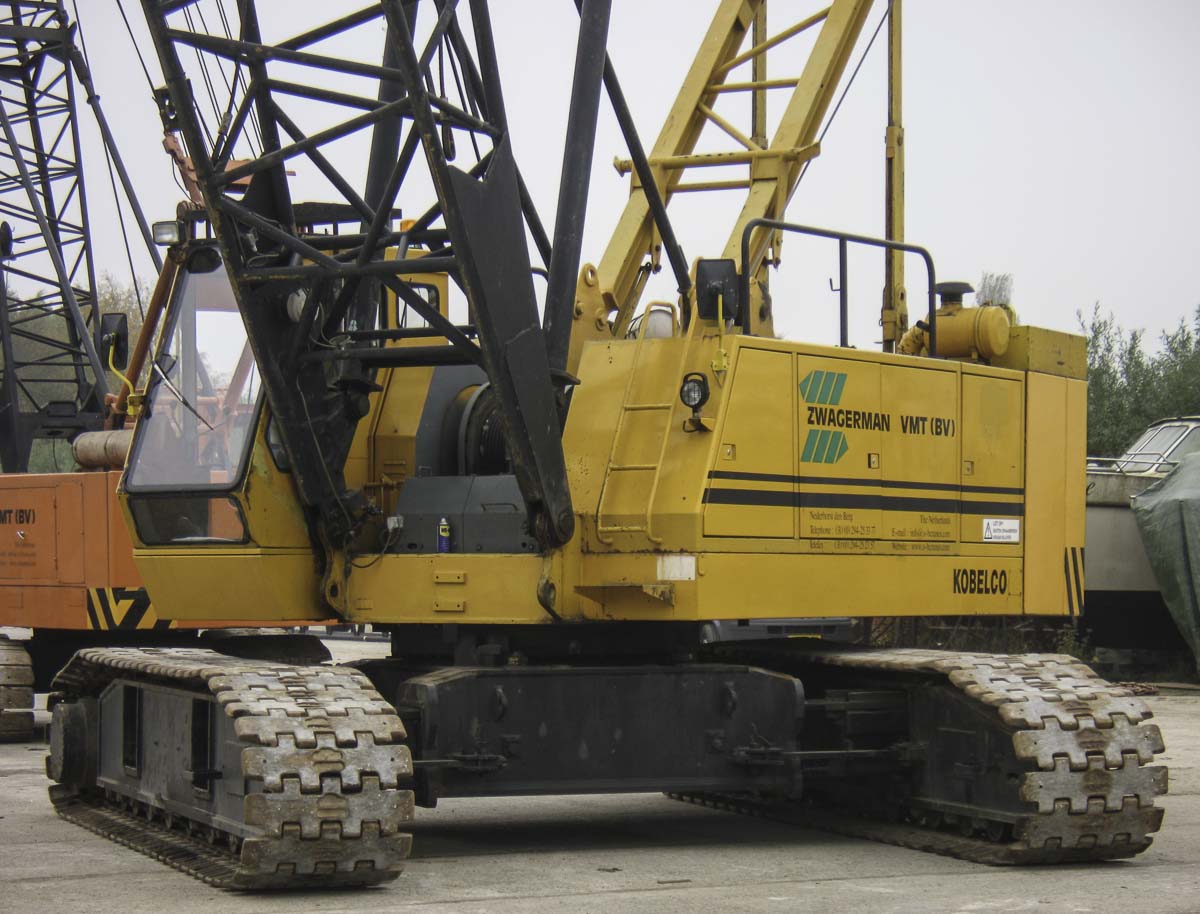

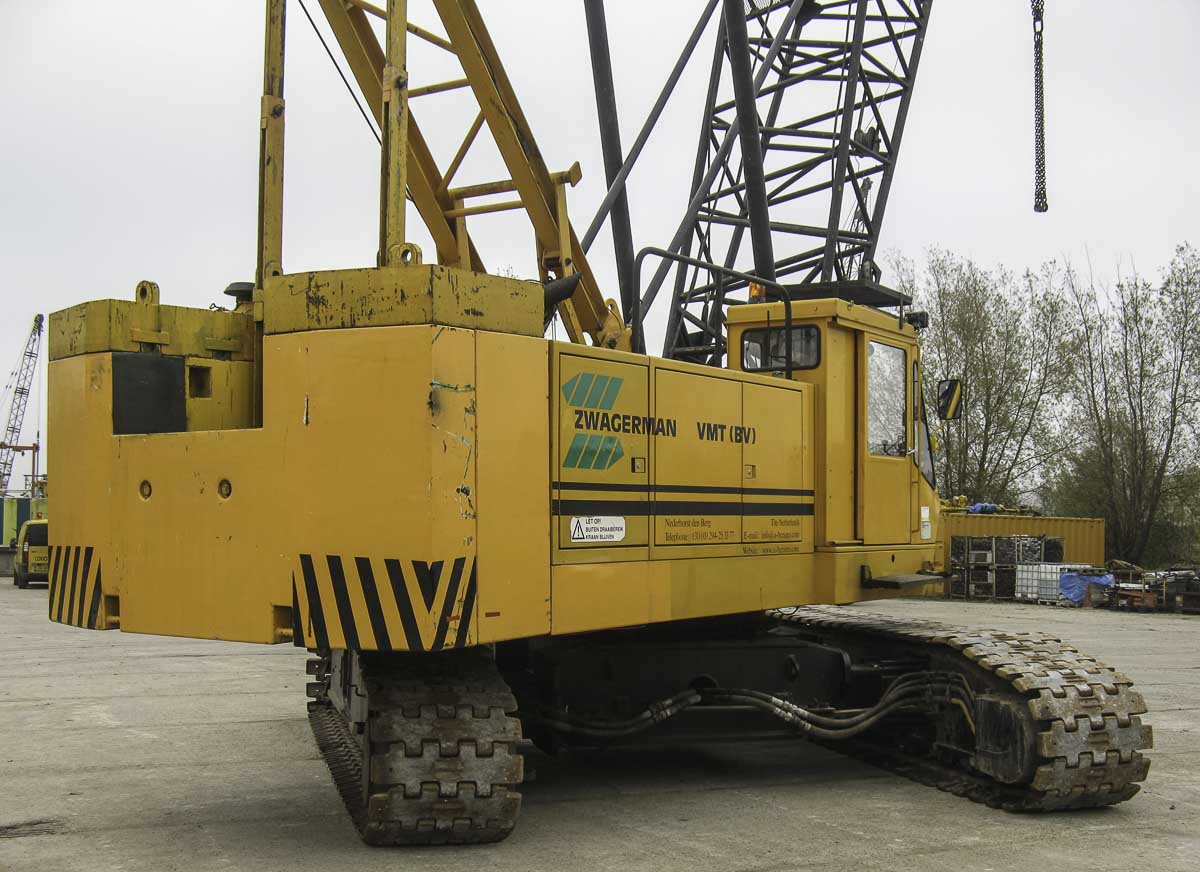

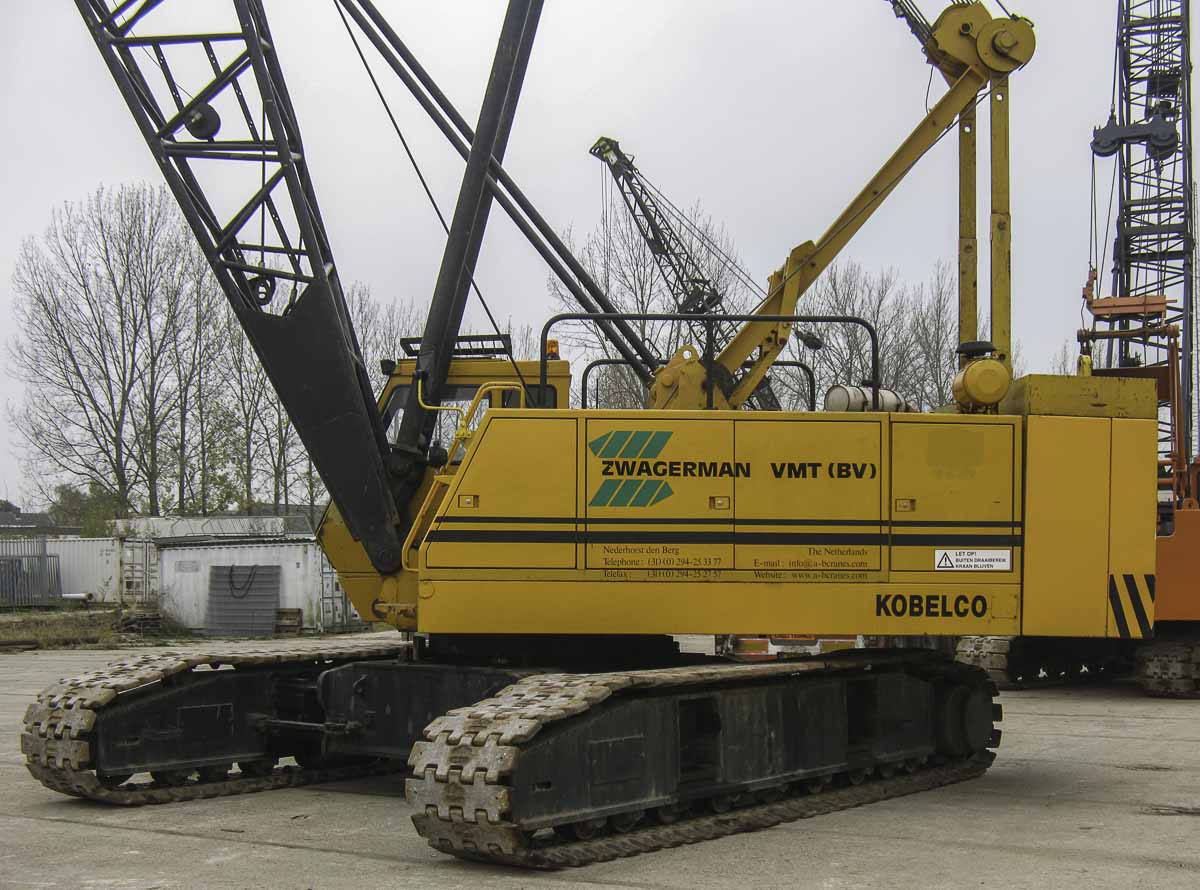

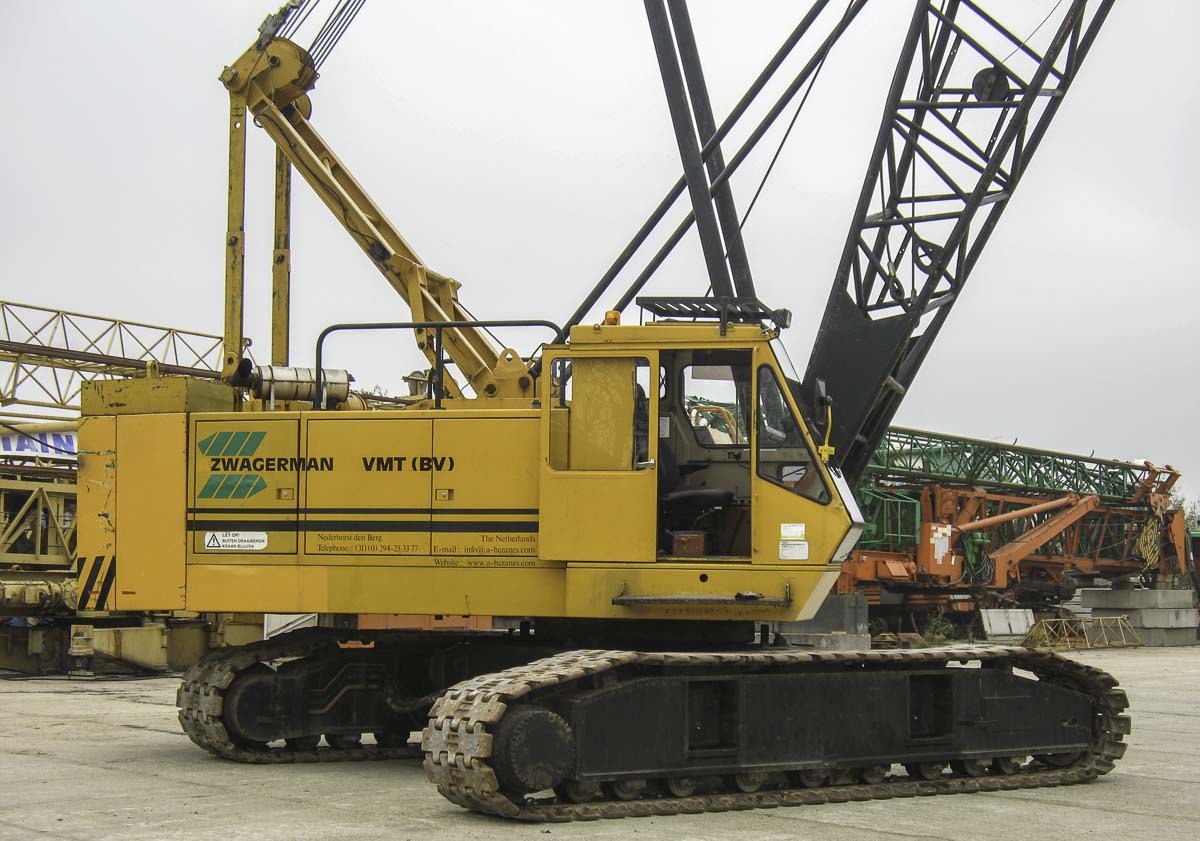

This Kobelco 7065 of Zwagerman VMT stood on their yard in Nederhorst den Berg (NL), it is a 65-tonne crawler crane.

The crane is powered by a Mitsubishi 6D22C, a 6-cilinder diesel engine with a power of 132 kW (180 hp). In total are three hydraulic pumps powered.

The undercarriage is 5.83 meters long and 4.64 meters wide, for the transport over the road is a width of 3.4 meters reached.

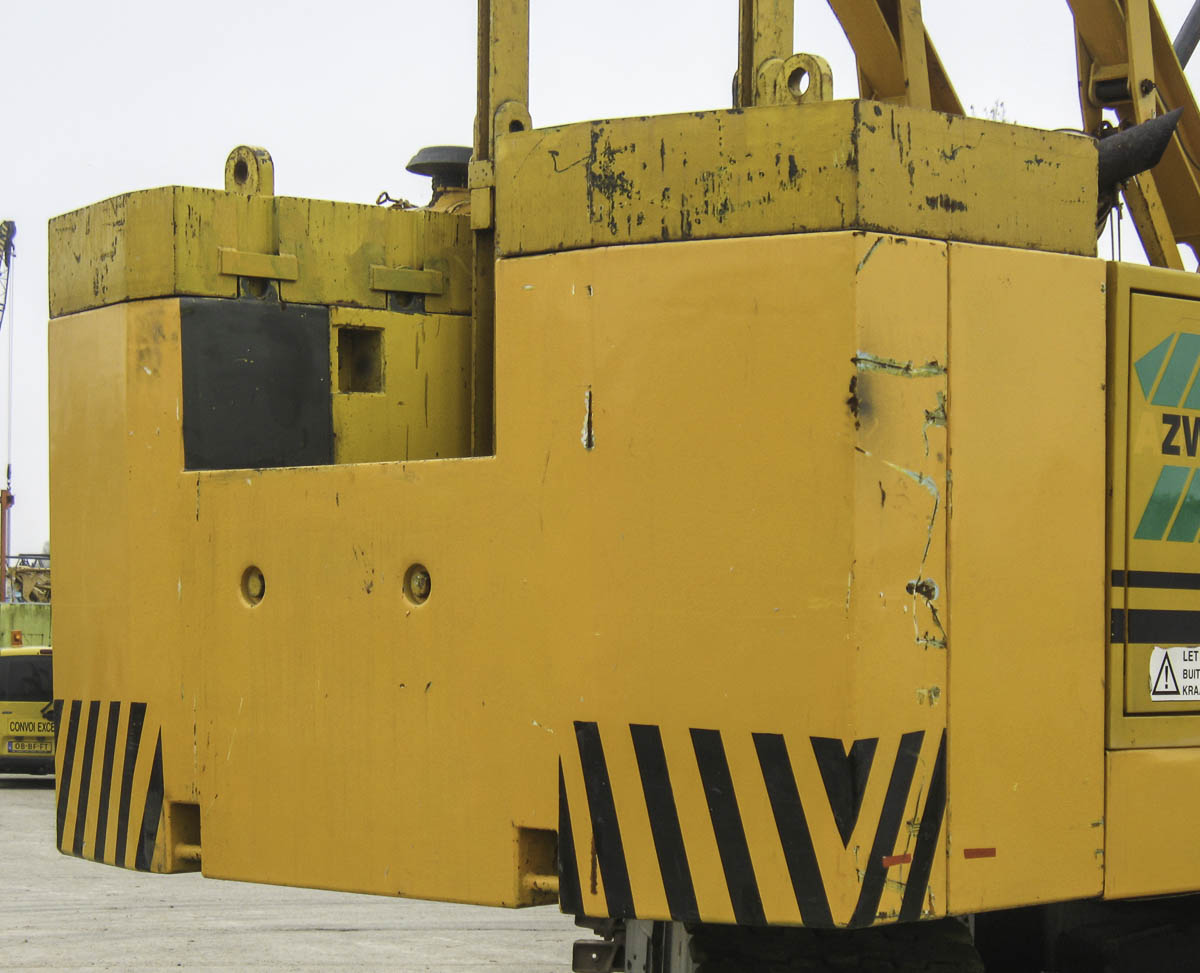

Standard is the 7065 fitted with 18.5 tonnes of counterweight, with a 4.38 meter tailswing. This crane is fitted with two additional counterweight slabs on top of the standard counterweight.

The crane is fitted with two 6.5-tonne hoist winches using 22 mm hoist wire rope.

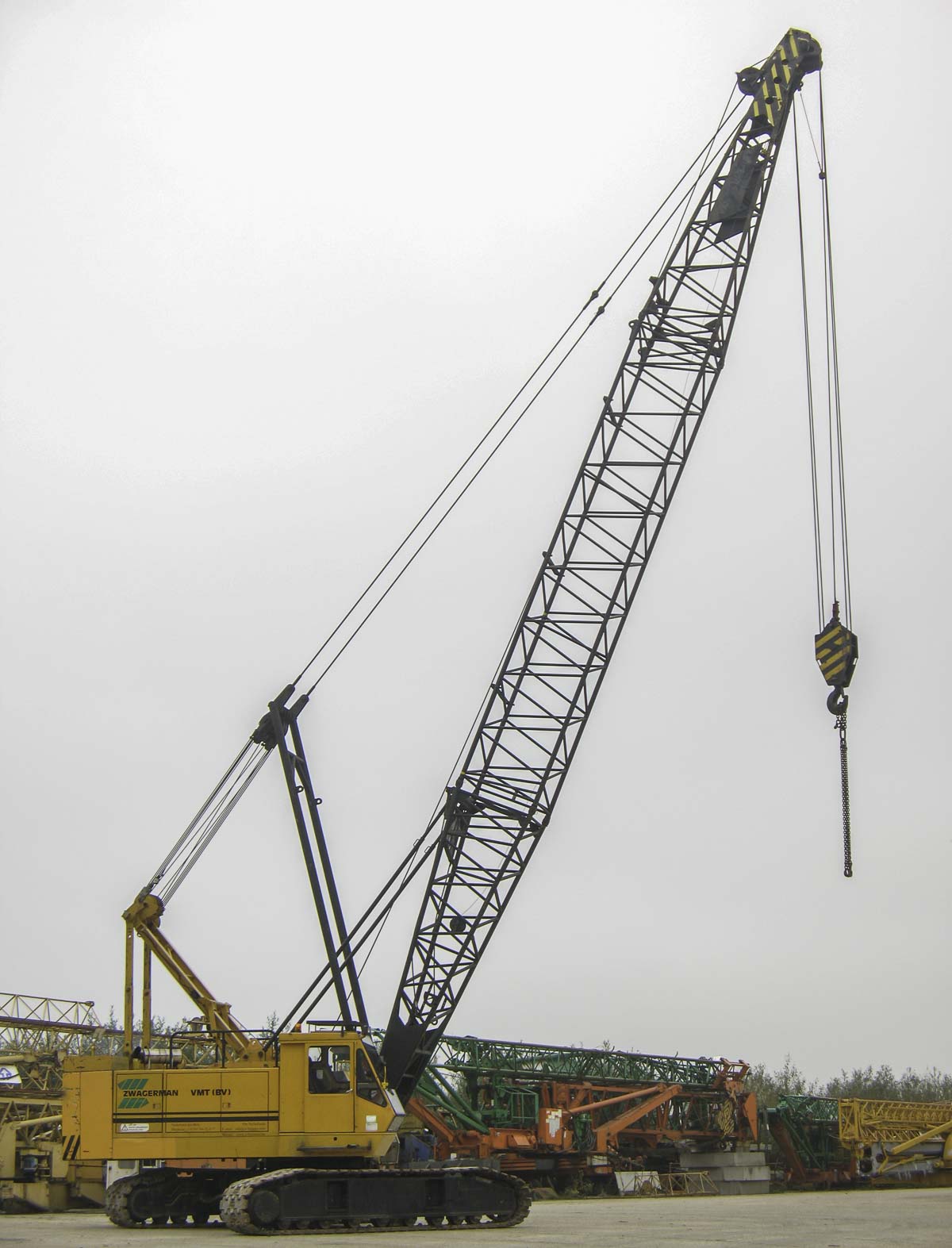

The main boom has a 12.19 meter base length and a maximum length of 54.86 meters. This crane was fitted with a 21.34 meter long main boom, in this configuration is the crane able to hoist maximum 43.9 tonnes on a 5 meter radius or 6.6 tonnes to a 19.9 meter radius. A very shap crane of Zwagerman VMT.
